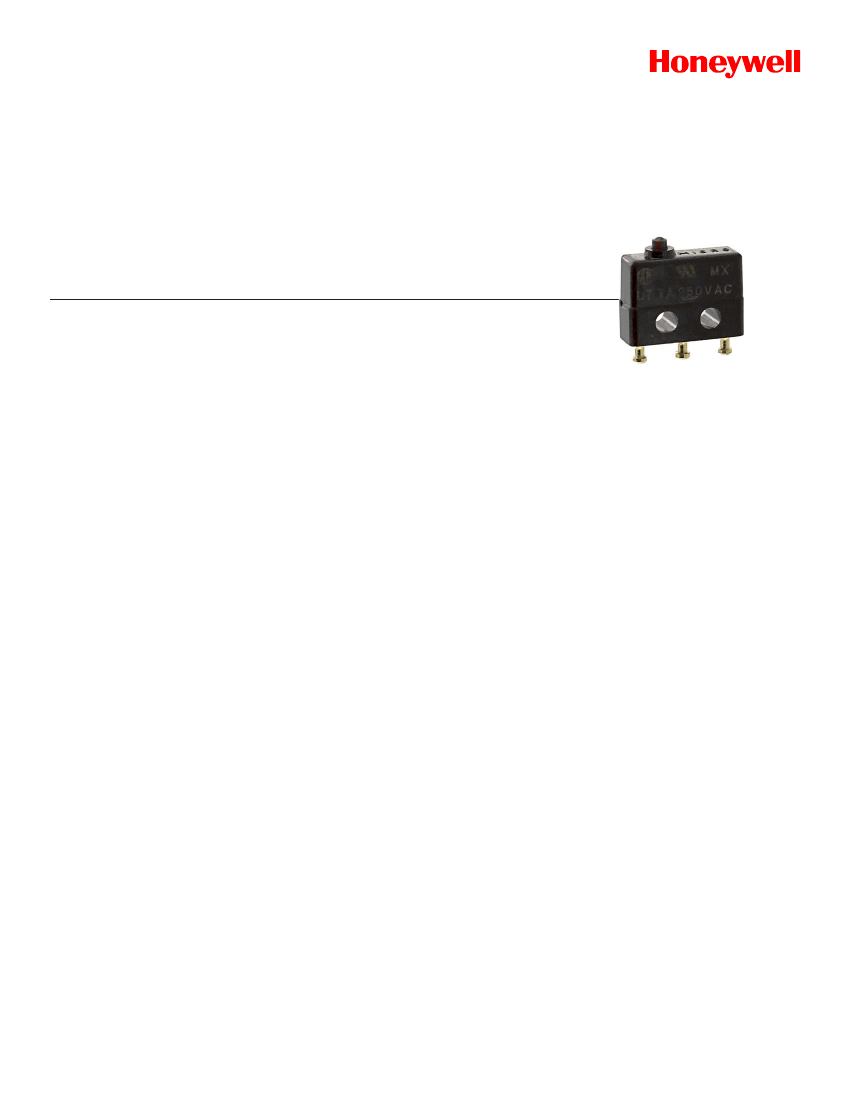

MICRO SWITCH™ SX Series
Premium Subminiature Switch
DESCRIPTION
The industry-defining name in snap-action switches, Honeywell
MICRO SWITCH™ premium subminiature switches are designed
for repeatability and enhanced product life. MICRO SWITCH™
SX Series delivers repeatability and consistent performance
within a range of conditions.
Offering enhanced repeatability, MICRO SWITCH™ SX Series’
lower operating force provides for enhanced operation and ap-
plication versatility. Its covered case construction with molded-in
terminals allows for very simple adaptation to the customers’
actuation systems.
FEATURES AND BENEFITS
•
•
•
•
•
•
•
•
Best suited for high cost-of-failure applications
Small size and light weight
Extended operating life
Elongated mounting holes provides for easier, more accu-
rate mounting
Choice of actuation, electrical termination, and operating
characteristics
High temperature construction options
MIL-PRF-8805 qualified listings available
UL/CSA, cUL, ENEC, and CE approvals
APPLICATIONS
•
•
Aerospace
Industrial
- Appliances
- Instrumentation
- Office equipment
- Valves
Medical
- Medical/dental equipment
•
MICRO SWITCH™ SX Series
Table 1. Specifications
Parameter
Differentiator
Ampere rating
Circuitry
Operating force
Termination
Actuator
Voltage
Agency approvals
Agency file information
Operating temperature
Contacts
Housing
Sealing
Expected mechanical life
Size
Characteristic
low operating force to 3 oz. max; sensitive differential travel as low as 0.001 in max.;
power load switching capability to 7 A
1 A to 7 A
SPDT, SPNO
0.71 oz to 6 oz
quick connect, solder, pcb
pin plunger, straight, roller, simulated roller, offset flag, crossed roller
125 Vac, 250 Vac, 28 Vdc
UL, CE, CSA, ENEC
UL: E12252; CSA: LR41372
-55 °C to 125 °C [-67 °F to 267 °F]
silver, gold
phenolic or valox
MIL-PRF-8805 qualified listings available
up to 10,000,000 operations for 11SX listings
up to 1,000,000 operations for 1SX listings
10,2 mm H x 5,08 mm W x 12,7 mm L [0.4 in H x 0.20 in W x 0.5 in L]

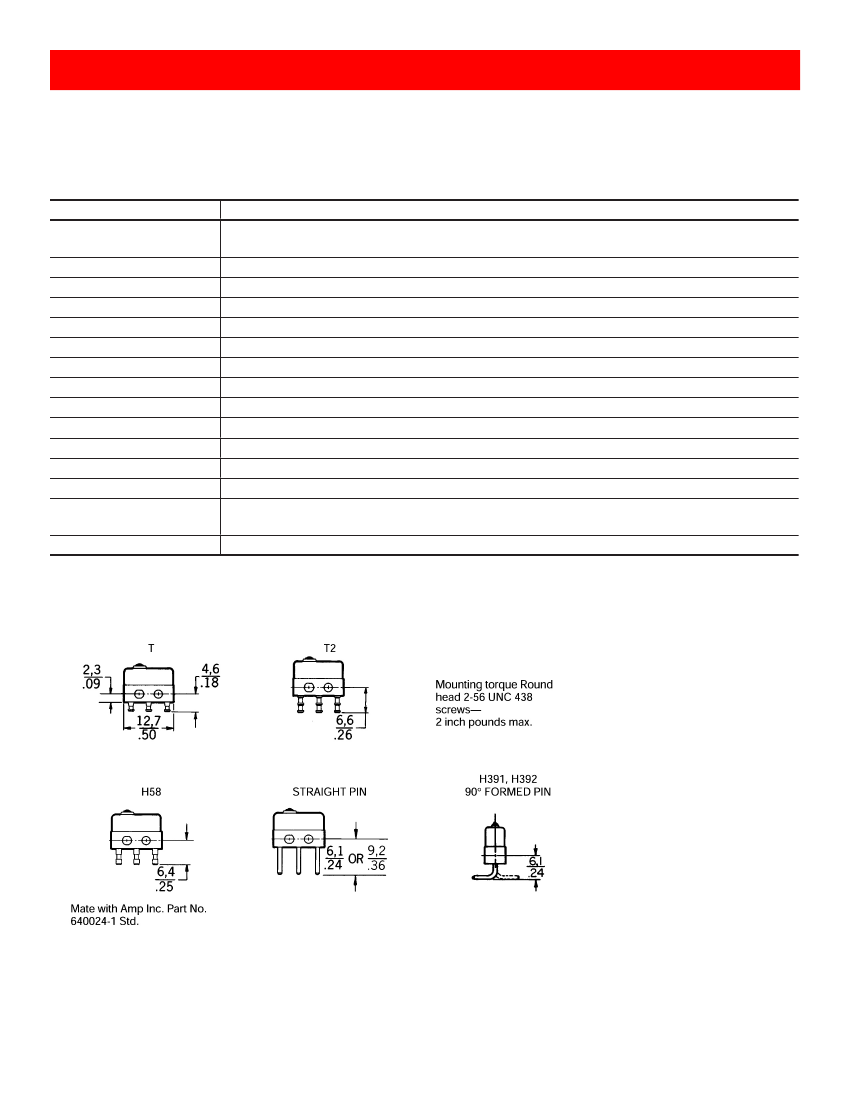

MICRO SWITCH™ SX SERIES AVAILABLE TERMINALS
2 Honeywell • Sensing and Control
Premium Subminiature Switch

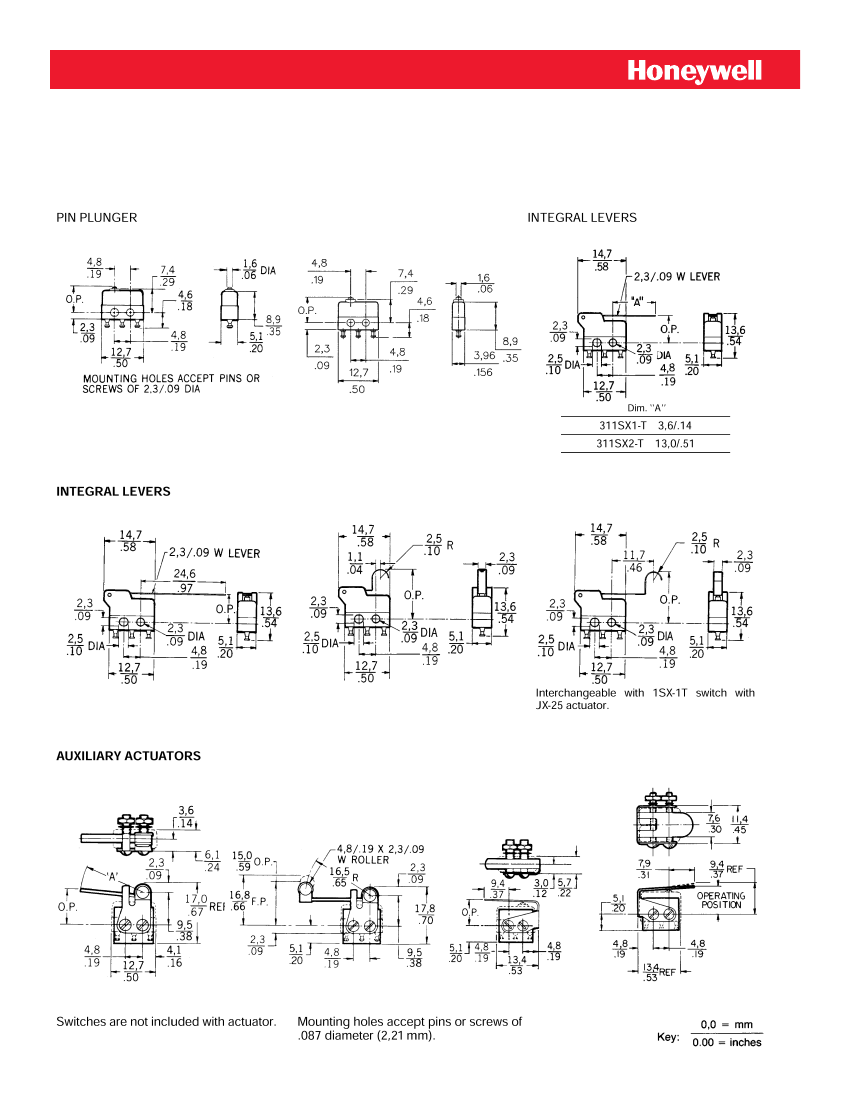

MICRO SWITCH™ SX SERIES STANDARD LEVER OPTIONS AND DIMENSIONS mm/in
Honeywell • Sensing and Control 3
MICRO SWITCH™ SX Series
NUMERIC DESIGNATIONS FOR MICRO SWITCH™ SX SERIES
Prefix
1SX
2SX
3SX
4SX
5SX
6SX
7SX
8SX
11SX
12SX
13SX
14SX
15SX
16SX
17SX
18SX
19SX
21SX
22SX
23SX
31SX
33SX
311SX
312SX
323SX
91SX
93SX
411SX
Description
Plastic pin plunger, fine silver contacts with 0.188 mounting hole centers
1SX except, low force characteristics (3 oz. max. operating force)
1SX except, gold/gold alloy contacts
1SX except, high temperature construction [400 °F]
“For factory use only” XE basics
1SX except, high temperature and gold/gold alloy contacts
2SX except, gold/gold alloy contacts
Case, switch assembly for “Newhouse only”
Low force characteristics (OF and DT)
11SX except, bifurcated gold contacts
11SX except, gold/gold alloy contacts
11SX except, high temperature construction
Reserved
Reserved
11SX except, diallyl phthalate material (obsolete)
11SX except, bifurcated contacts and diallyl phthalate material (obsolete)
11SX except, gold contacts and diallyl phthalate material (obsolete)
1SX except, MIL-approved
2SX except, MIL-approved
1SX except, gold/gold alloy contacts and MIL-approved
Reserved
Reserved
11SX except with integral lever actuator
12SX except with integral lever actuator
311SX except, gold/gold alloy contacts
Thin SX (0.156 in thick)
Thin SX (0.156 in thick), gold/gold alloy contacts
High temperature construction [400 °F]
4 Honeywell • Sensing and Control
Premium Subminiature Switch

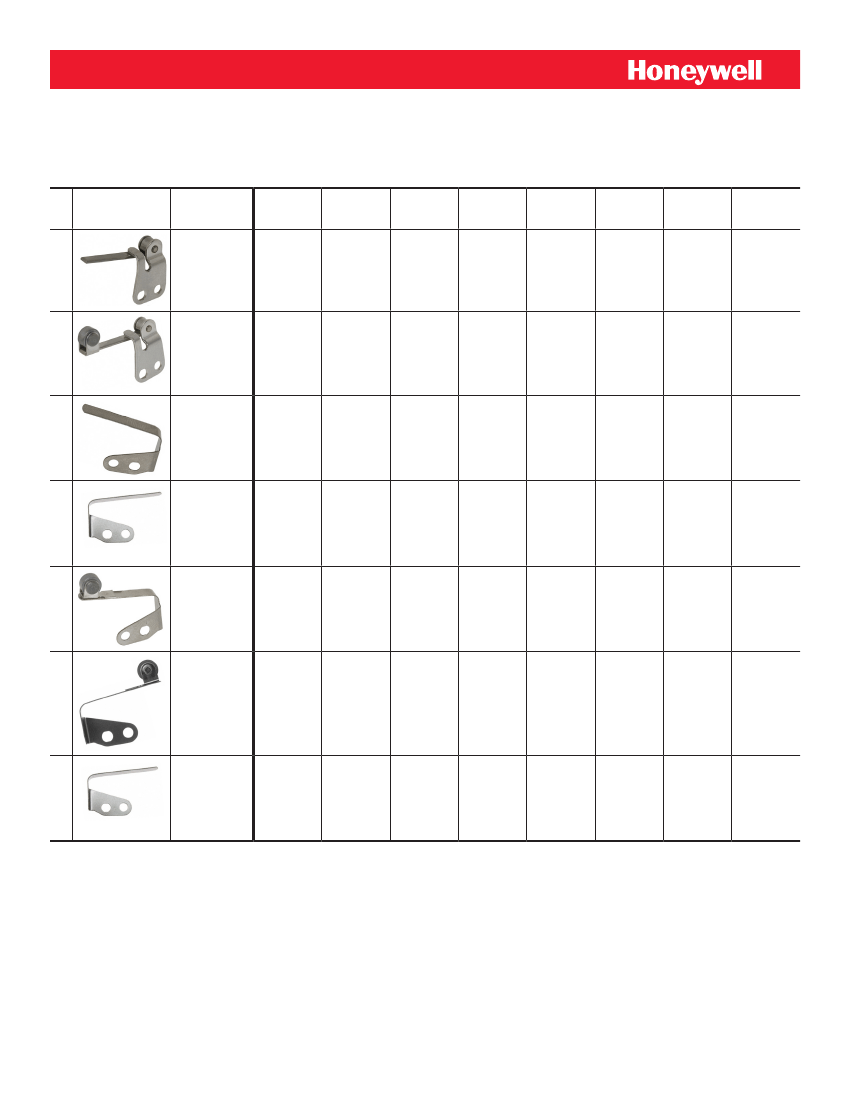

MICRO SWITCH™ JX SERIES AUXILIARY ACTUATORS FOR THE MICRO SWITCH™ SX SERIES SWITCHES
Description
Actuator
length mm
[in]
OF max. N
[oz]
RF min. N
[oz]
PT max.
mm [in]
OT min.
mm [in]
DT max.
mm [in]
OP mm
[in]****
FP max.
mm [in]
Straight
lever
(JX-219 for
higher tem-
peratures)
Roller lever
(JX-220 for
higher tem-
peratures)
Straight leaf
(JX-95 for
higher tem-
peratures)
Reverse leaf
JX-20
18,3
[0.72]
0,28 [1]
approx.
0,04
[0.14]
–
0,76
[0.030]
approx.
0,76
[0.030]
approx.
10,8
[0.425]
approx.
12,3
[0.485]
approx.
JX-25
16,5
[0.65]
0,42 [1.5]
0,04 [1.4]
–
0,51
[0.020]
0,75
[0.030]
14,9 =
1,14
[0.585 =
0.045]
7,5
[0.295]
168
[0.660]
max.
JX-40
9,4
[0.37]*
1,95 [7]
0,56 [2]
[0.225 ]
approx.
0,38
[0.015]
0,64
[0.025]
12,3
[0.485]
ref.
JX-41**
9,4
[0.37]*
1,67 [6]
0,28 [1]
[0.110]
approx.
0,38
[0.015]
0,64
[0.025]
7,5
[0.295]
9,4
[0.370]
ref.
Roller leaf
(JX-96 for
higher tem-
peratures)
Reverse
roller leaf
JX-45
6,1
[0.24]*
1,95 [7]
0,28 [1]
[0.225]
approx.
0,38
[0.015]
0,64
[0.025]
12,2
[0.480]
16,5
[0.650]
ref.
JX-51**
7,6
[0.30]*
1,67 [6]
0,56 [2]
[0.110]
approx.
0,38
[0.015]
0,64
[0.025]
12,8
[0.505]
14,7
[0.580] ref
Tandem leaf
JX-4
7,9 [0.31]
4,17 [15]
0,83 [3]
[0.065]
approx.
0,20
[0.008]
0,76
[0.030]
7,6
[0.300]
9,40
[0.370]
ref.
*** Switch is mounted with plunger end reversed from JX-40
**** Ecept where stated ±0,76 mm [±0.030 in]
NOTE: Above actuators should be used
below 149 °C [300 °F], except listings JX-95, JX-96, JX-219, and JX-220 are fur use with 4SX1-T to 204 °C [400 °F]
* “A” measurement is fromcenter of mounting hole nearest tip of lever to the point indicated on the drawing.
Honeywell • Sensing and Control 5
