DA-15PQUNL2

Description
D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle
CategoryThe connector    The connector
File Size66KB,1 Pages
ManufacturerLeoco USA Corp
Websitehttp://www.leoco.com.tw

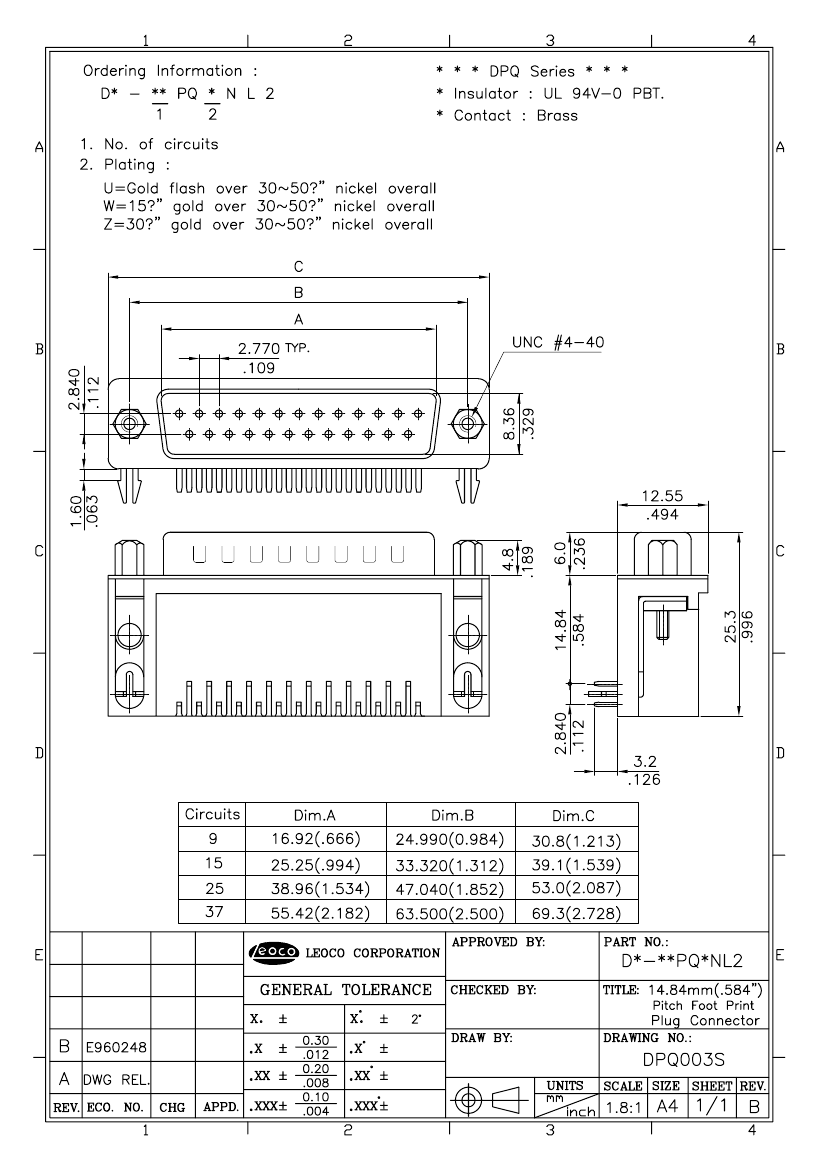

Download Datasheet Parametric View All

DA-15PQUNL2 Overview

D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

DA-15PQUNL2 Parametric

Parameter NameAttribute value
body width0.494 inch
subject depth0.76 inch
body length1.539 inch
Terminal length0.126 inch
Connector typeD SUBMINIATURE CONNECTOR
Contact point genderMALE
Installation methodRIGHT ANGLE
PCB row number2
Body/casing typeRECEPTACLE
Shell materialSTEEL
Number of rows loaded2
Contact resistance20 mΩ
Rated current (signal)3 A
Terminal pitch2.7686 mm
Total number of contacts15
Contact to complete cooperationAU ON NI
Installation typeBOARD
insulator materialPOLYBUTYLENE TEREPHTHALATE
Shell surfaceTIN
Plug contact pitch0.109 inch
PCB contact row spacing2.8448 mm
Match contact row spacing0.112 inch
Installation option 1#4-40
Plating thicknessFLASH inch
contact modeSTAGGERED
Insulator colorBLACK
Termination typeSOLDER
Contact materialBRASS
Contact styleRND PIN-SKT
PCB contact patternSTAGGERED
Installation option 2SCREWLOCKS
OptionsGENERAL PURPOSE
Dielectric withstand voltage1000VAC V
Minimum operating temperature-25 °C
Maximum operating temperature105 °C
GuidelineUL, CSA
Objectid303581605
Reach Compliance CodeUnknown
ECCN codeEAR99
Is SamacsysN
