PHA025-P0403GF datasheet, PDF - EEWORLD Datasheet

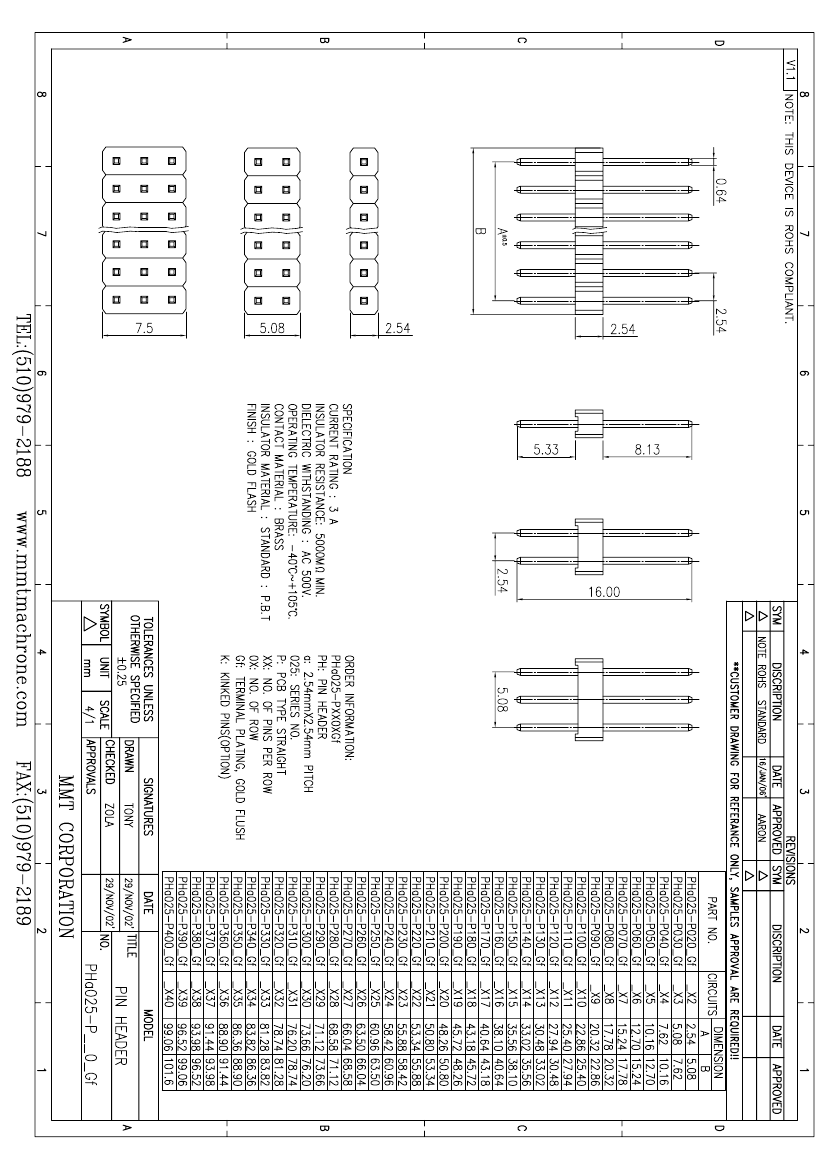

PHA025-P0403GF: DescriptionBoard Connector, 12 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerMMT Corp; Websitehttp://www.mmtmachrone.com; Environmental Compliance

Download Datasheet Parametric View All

PHA025-P0403GF Overview

Board Connector, 12 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
JESD-609 code	e4
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Is it Rohs certified?	Yes
Schedule B Code	8536.69.40.40
EU RoHS Version	RoHS 2 (2011/65/EU)
UNSPSC	31163100
Maker	MMT Corp
Objectid	304305727
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Category CO2 Kg	3.7
Compliance Temperature Grade	Industrial: -40C to +105C
Other features	ROHS COMPLIANT
Connector type	BOARD CONNECTOR
insulator material	POLYBUTYLENE TEREPHTHALATE
Installation method	STRAIGHT
PCB row number	3
Number of rows loaded	3
Total number of contacts	12
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU
Contact point gender	MALE
Installation type	BOARD
Rated current (signal)	3 A
Terminal pitch	2.54 mm
body width	0.295 inch
subject depth	0.1 inch
body length	0.4 inch
Terminal length	0.21 inch
contact mode	RECTANGULAR
Plug contact pitch	0.1 inch
Mixed contacts	NO
Number of connectors	ONE
Termination type	SOLDER
Contact completed and terminated	Gold (Au)
Contact material	BRASS
Contact style	SQ PIN-SKT
Match contact row spacing	0.1 inch
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Insulation resistance	5000000000 Ω
Dielectric withstand voltage	500VAC V
Filter function	NO
