254BX-R44 datasheet, PDF - EEWORLD Datasheet

254BX-R44: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Guide Slot, Receptacle; CategoryThe connector The connector; File Size21KB，1 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric View All

254BX-R44 Overview

Board Connector, 44 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Guide Slot, Receptacle

Parameter Name	Attribute value
Guideline	UL
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Objectid	303809199
body width	0.354 inch
subject depth	0.354 inch
body length	2.399 inch
Terminal length	0.114 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU
Contact resistance	20 mΩ
Rated current (signal)	3 A
Connector type	BOARD CONNECTOR
Contact point gender	MALE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Terminal pitch	2.54 mm
Total number of contacts	44
Contact material	BRASS
Contact style	SQ PIN-SKT
Mixed contacts	NO
Installation option 2	LOCKING
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Termination type	SOLDER
contact mode	RECTANGULAR
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	GUIDE SLOT
Number of connectors	ONE
Plating thickness	FLASH inch
Dielectric withstand voltage	250VAC V
Filter function	NO
Insulation resistance	100000000 Ω
polarization key	POLARIZED HOUSING
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C

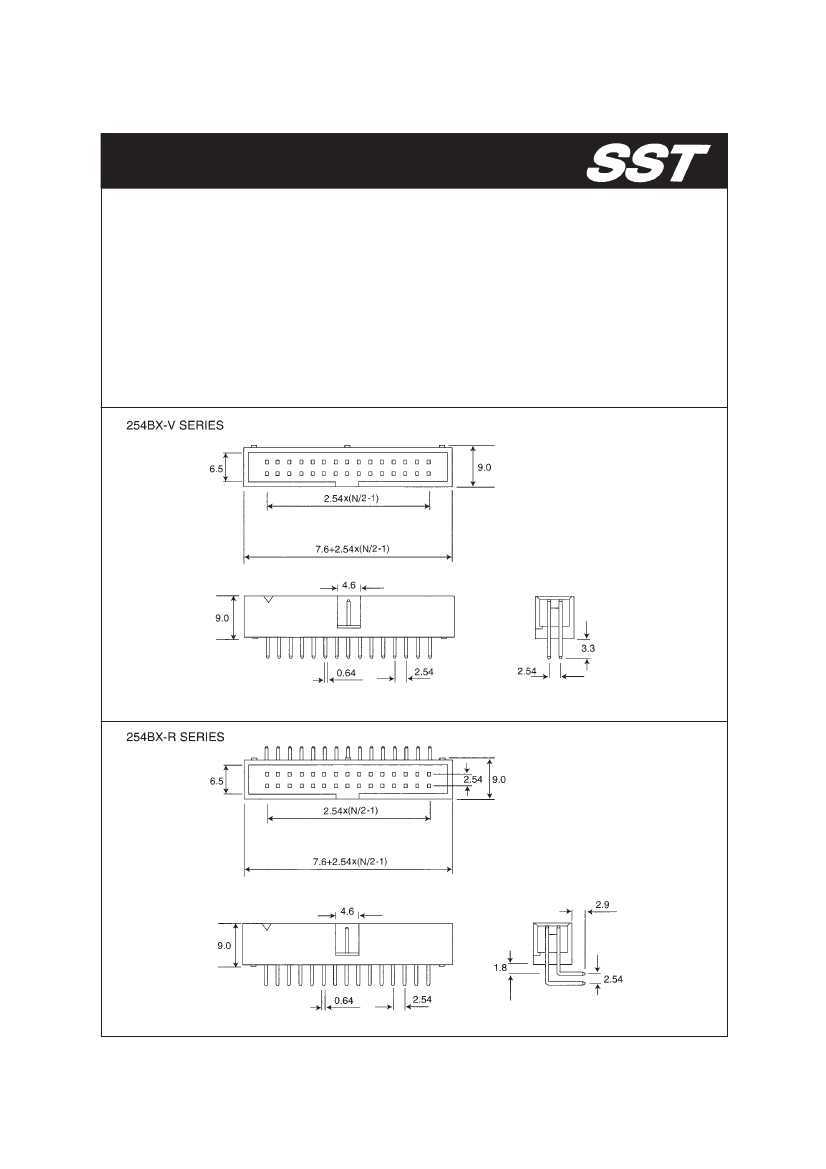

254BX BOX HEADER CONNECTOR SYSTEM

.100”x.100” (2.54x2.54mm) pitch

MATERIAL : PBT+30% GLASS FIBER UL 94V-0

BRASS GOLD FLASH

CURRENT RATING : 3A AC,DC

VOLTAGE RATING : 100V AC,DC

CONTACT RESISTANCE : 20m MAX

INSULATION RESISTANCE : 100M MIN

WITHSTANDING VOLTAGE : 250V AC/MINUTE

TEMPERATURE RANGE : -25ºC TO +85ºC

SQ PIN SIZE : 0.64MM

PC BOARD HOLE : 0.9MM DIA

PC BOARD THICKNESS : 1.6MM

PART NO :

254BX-Vxx (STRAIGHT TYPE)

254BX-Rxx (R/A TYPE)

xx = 06, 08, 10, 12, 14, 16, 20, 24, 26,

30, 34, 40, 44, 50, 60, 64
