CDH3D13SHPNP-4R7MB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDH3D13SHPNP-4R7MB

CDH3D13SHPNP-4R7MB: DescriptionGeneral Purpose Inductor, 4.7uH, 20%, 1 Element, SMD, 1714, CHIP, 1714, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components inductor; File Size106KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDH3D13SHPNP-4R7MB Overview

General Purpose Inductor, 4.7uH, 20%, 1 Element, SMD, 1714, CHIP, 1714, HALOGEN FREE AND ROHS COMPLIANT

CDH3D13SHPNP-4R7MB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	1714
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1714
structure	Unshielded
DC Resistance	0.181 Ω
Nominal inductance(L)	4.7 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDH
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	1.3 mm
Package length	3.8 mm
Package form	SMT
Package width	4 mm
method of packing	Box
Maximum rated current	1.5 A
series	CDH3D13/SHP
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

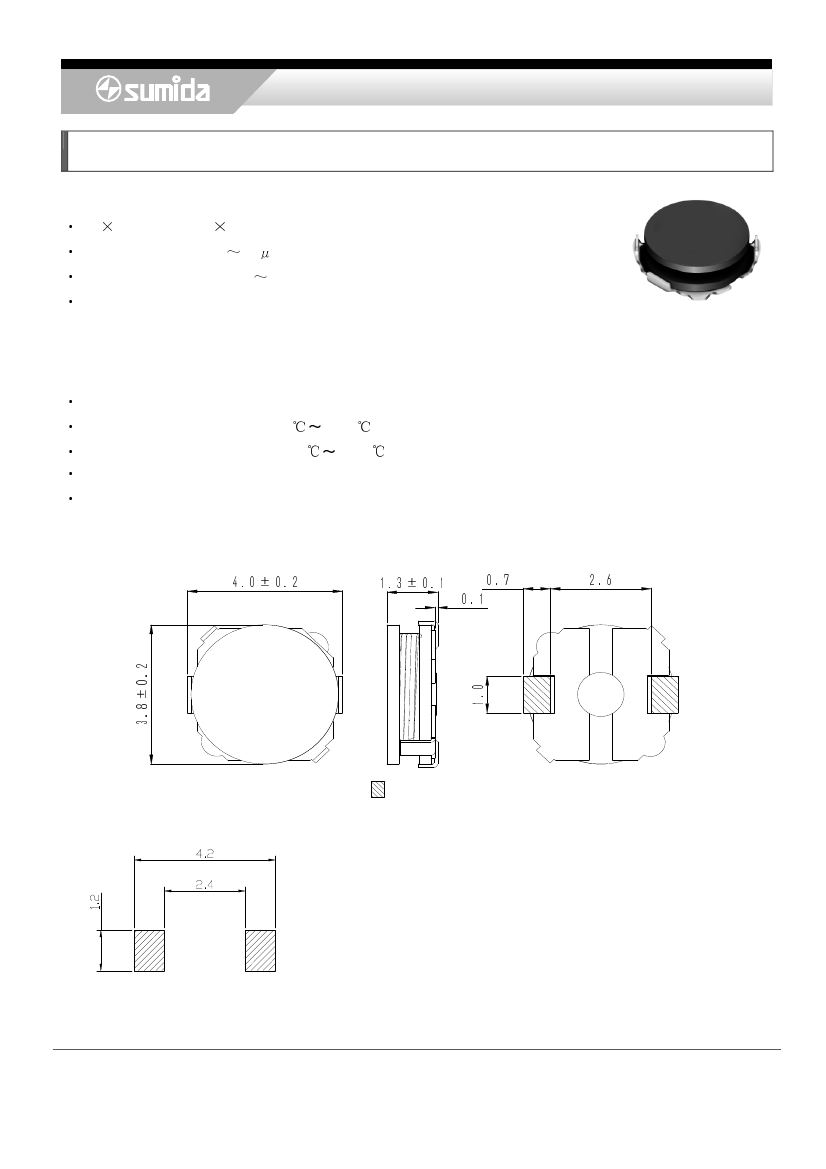

Power Inductors <SMD Type: CDH Series>

Type: CDH3D13/SHP

◆

Product Description

4.2 4.0mm Max.(L W),1.4mm Max. Height.

Inductance range: 1.2 22 H.

Rated current range: 0.60 2.40A.

In addition to the standard versions of inductors shown here,

custom inductors are available to meet your exact requirements.

◆

Feature

Magnetically unshielded construction.

Operating temperature range: -40

+105 (Including coil’s self temperature rise).

Ideally used in Mobilephone,PDA,MP3,DSC/DVC,Portable DVD,etc as DC-DC converter inductors.

RoHS Compliance and Halogen Free.

◆

Dimensions (mm)

6.2

7.0

1.0

1.0 ±3.1

2.0 ±0.4

Electrode

◆

Land Pattern (mm)

Please refer to the sales offices on our website for a representative near you

www.sumida.com

℃ ½℃

Storage temperature range: -40

μ ½

・

× ・

・

+105 .

1/2
