DM7407 Hex Buffers with High Voltage Open-Collector Outputs
December 1986
Revised February 2000
DM7407
Hex Buffers with High Voltage Open-Collector Outputs
General Description
This device contains six independent gates each of which
performs a buffer function. The open-collector outputs
require external pull-up resistors for proper logical opera-
tion.
N
1
(I
OH
)
=
total maximum output high current
for all outputs tied to pull-up resistor
N
2
(I
IH
)
=
total maximum input high current for
all inputs tied to pull-up resistor
N
3
(I
IL
)
=
total maximum input low current for
all inputs tied to pull-up resistor
Pull-Up Resistor Equations
Where:
Ordering Code:
Order Number
DM7407M
DM7407N
Package Number
M14A
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram
Function Table
Y
=
A
Input
A
L
H
H
=
HIGH Logic Level
L
=
LOW Logic Level
Output
Y
L
H
© 2000 Fairchild Semiconductor Corporation
DS006497
www.fairchildsemi.com
DM7407
Absolute Maximum Ratings
(Note 1)
Supply Voltage
Input Voltage
Output Voltage
Operating Free Air Temperature Range
Storage Temperature Range
7V
5.5V
30V
0°C to
+70°C
−65°C
to
+150°C
Note 1:
The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Recommended Operating Conditions
Symbol
V
CC
V
IH
V
IL
V
OH
I
OL
T
A
Parameter
Supply Voltage
High Level Input Voltage
Low Level Input Voltage
High Level Output Voltage
Low Level Output Current
Free Air Operating Temperature
0
Min
4.75
2
0.8
30
40
70
Nom
5
Max
5.25
Units
V
V
V
V
mA
°C
Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Symbol
V
I
I
CEX
V
OL
Parameter
Input Clamp Voltage
HIGH Level
Output Current
LOW Level
Output Voltage
I
I
I
IH
I
IL
I
CCH
I
CCL
Input Current @ Max Input Voltage
HIGH Level Input Current
LOW Level Input Current
Supply Current with Outputs HIGH
Supply Current with Outputs LOW
Conditions
V
CC
=
Min, I
I
= −12
mA
V
CC
=
Min, V
O
=
30V
V
IH
=
Min
V
CC
=
Min, I
OL
=
Max
V
IL
=
Max
I
OL
=
16 mA, V
CC
=
Min
V
CC
=
Max, V
I
=
5.5V
V
CC
=
Max, V
I
=
2.4V
V
CC
=
Max, V
I
=
0.4V
V
CC
=
Max
V
CC
=
Max
29
21
Min
Typ
(Note 2)
Max
−1.5
250
0.7
0.4
1
40
−1.6
41
30
mA
µA
mA
mA
mA
Units
V
µA
V
Note 2:
All typicals are at V
CC
=
5V, T
A
=
25°C.
Switching Characteristics
at V
CC
=
5V and T
A
=
25°C
Symbol
t
PLH
t
PHL
Parameter
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
C
L
=
15 pF
R
L
=
110Ω
Conditions
Min
Max
10
30
Units
ns
ns
www.fairchildsemi.com
2
DM7407
Physical Dimensions
inches (millimeters) unless otherwise noted

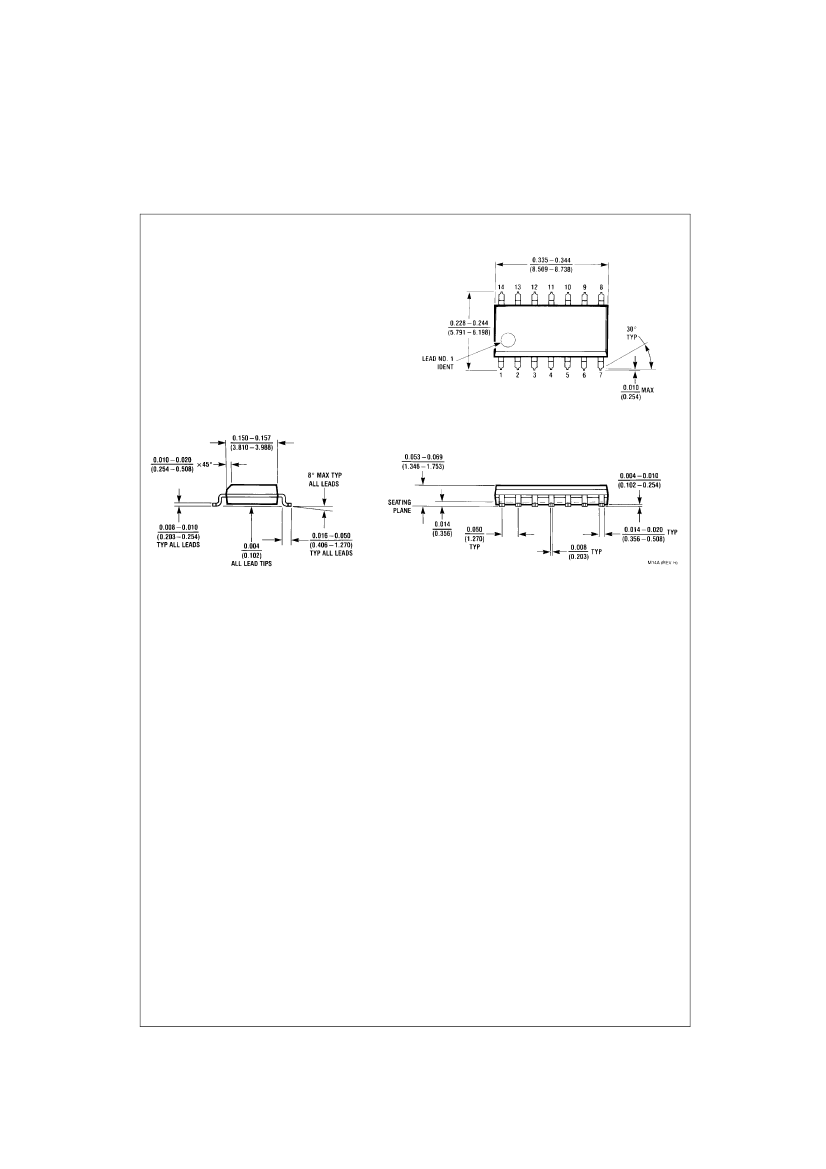

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
Package Number M14A
3
www.fairchildsemi.com
DM7407 Hex Buffers with High Voltage Open-Collector Outputs
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N14A
