52808-2872: DescriptionHeaders and Edge Type Connector,; CategoryThe connector The connector; File Size790KB，9 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

52808-2872 Overview

Headers and Edge Type Connector,

52808-2872 Parametric

Parameter Name	Attribute value
Contact material	NOT APPLICABLE
Is it Rohs certified?	Yes
Objectid	145010208752
2D Presentation	https://componentsearchengine.com/2D/0/16384556.png
Is Samacsys	N
Samacsys Modified On	2022-06-14 20:41:16
YTEOL	0
Reach Compliance Code	Compliant
ECCN code	EAR99
3D View	https://componentsearchengine.com/viewer/3D.php?partID=16384556
Samacsys PartID	16384556
Samacsys Thumbnail Image	https://componentsearchengine.com/2D/0/16384556.png
Samacsys Manufacturer	Molex
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT APPLICABLE

Preview

Download Datasheet

View All

NOTE

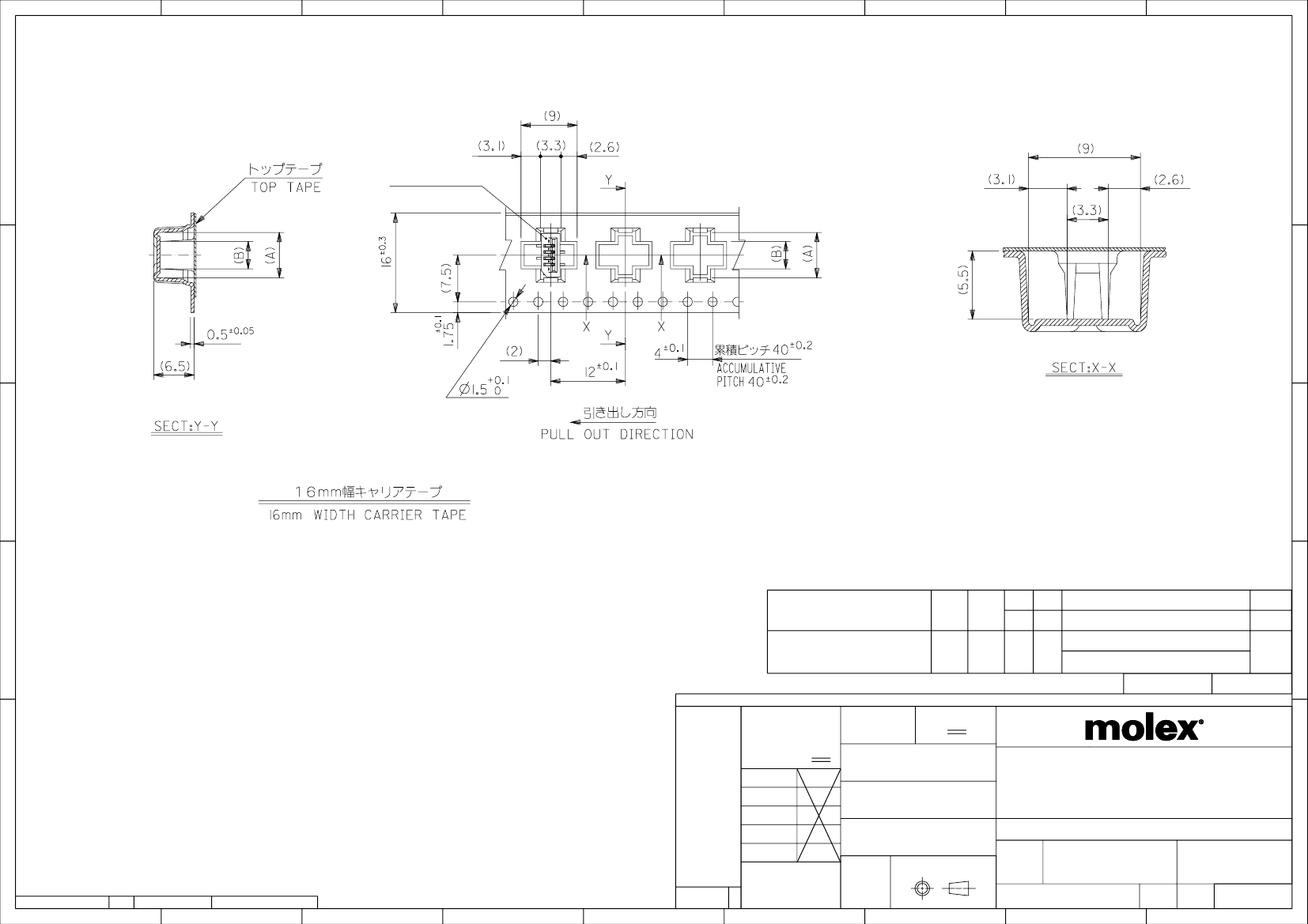

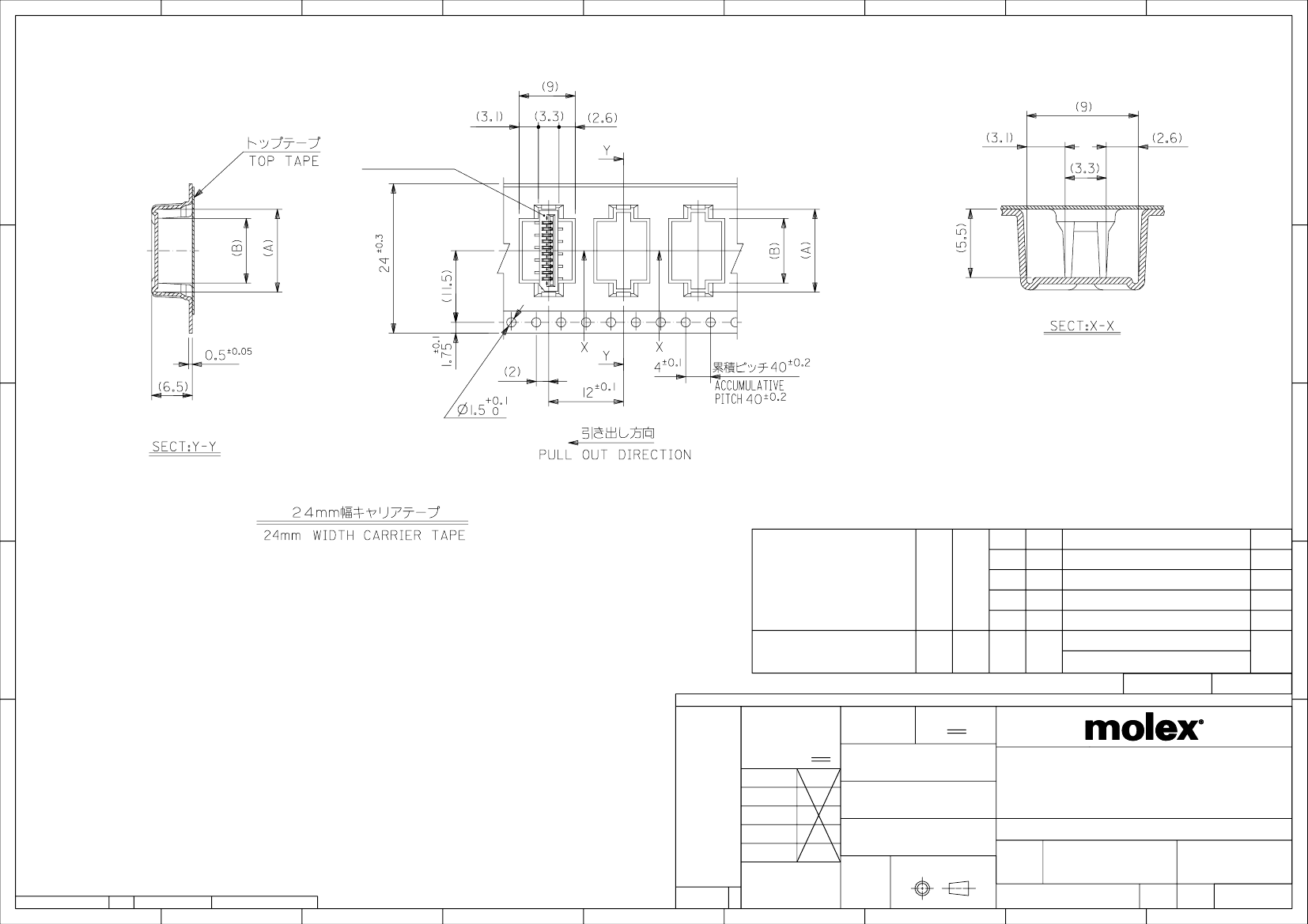

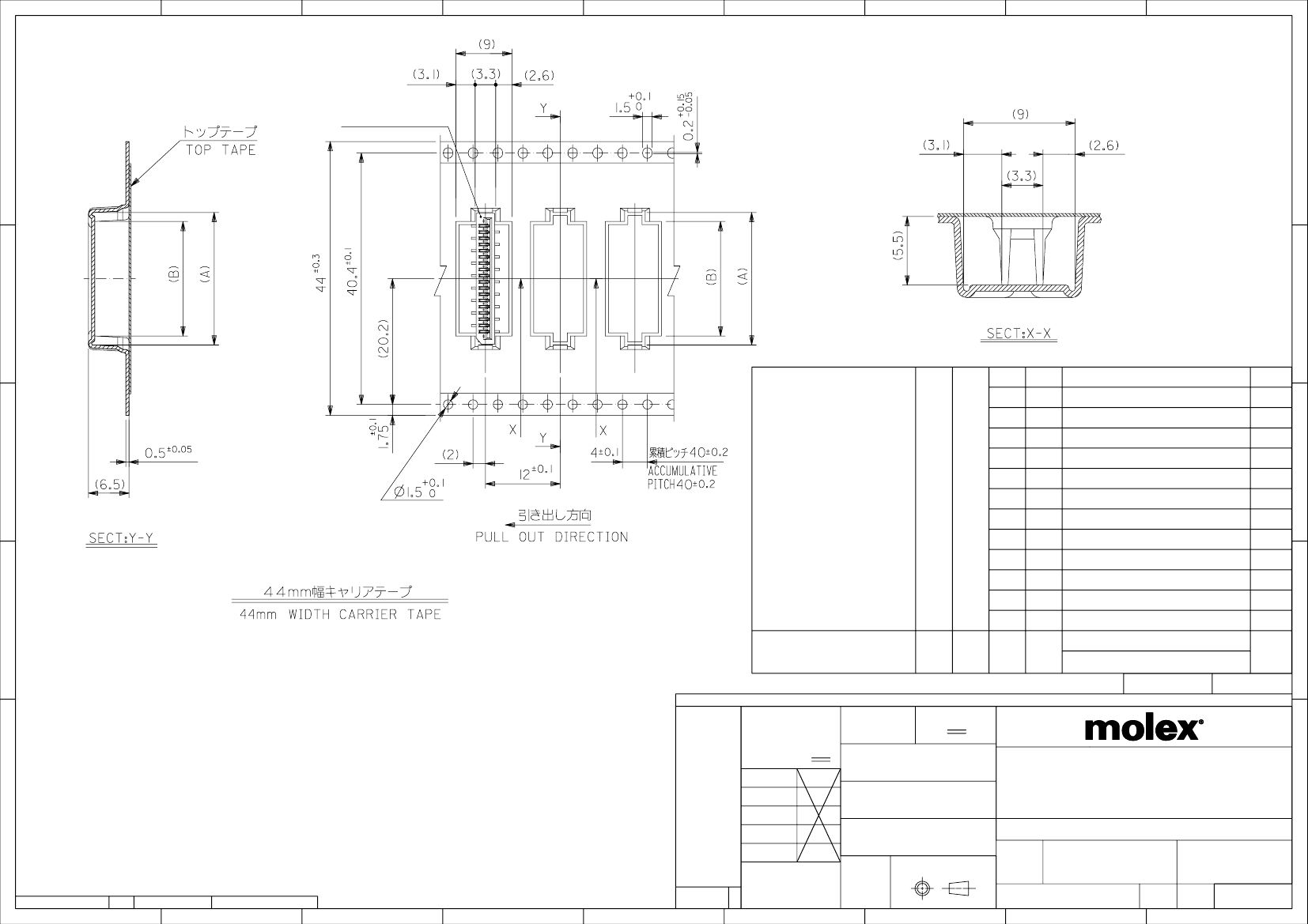

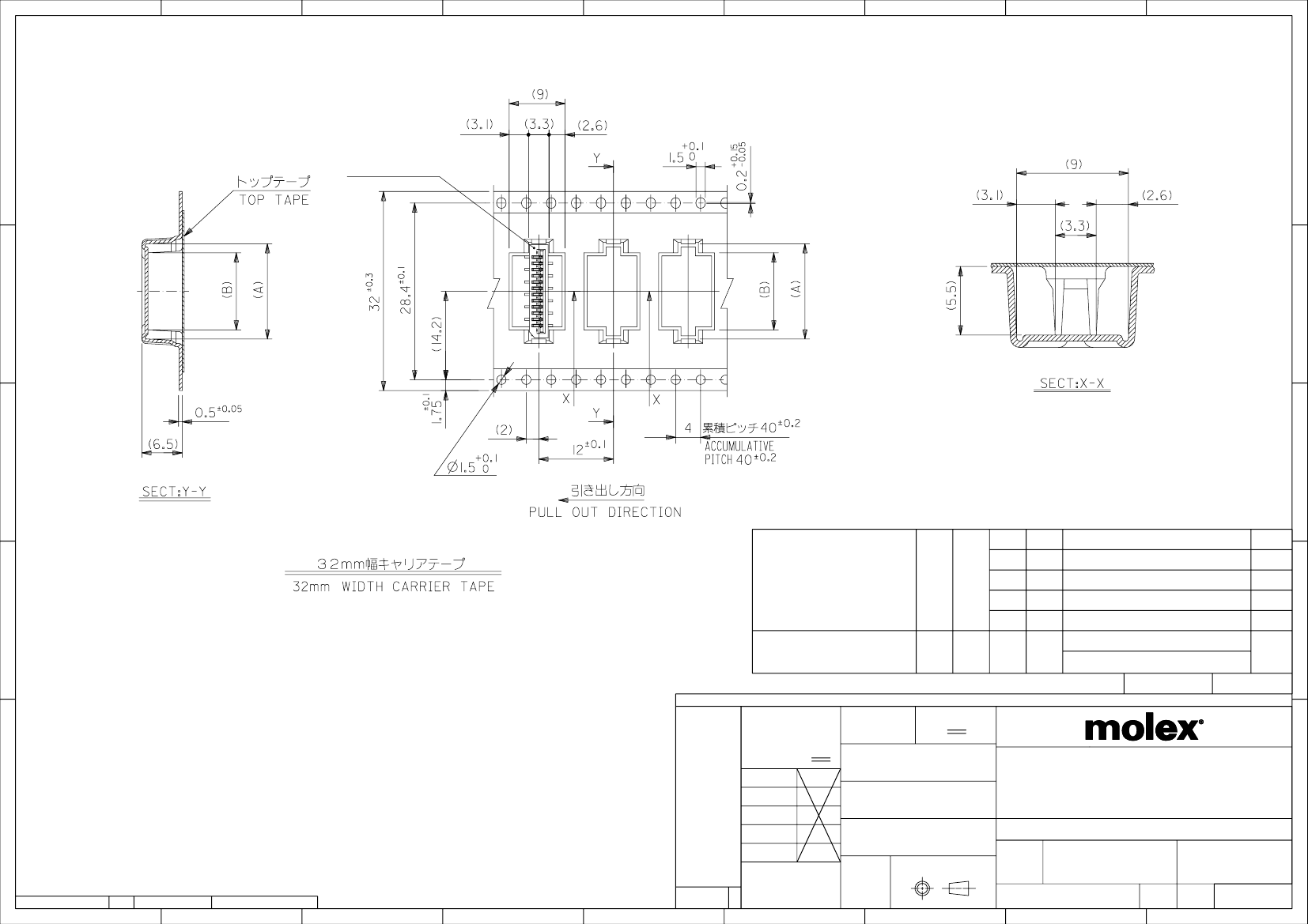

½品詳細寸法については528081002_000を参照下さい。

RE DETAILED DIMENSION, SEE 528081002_000

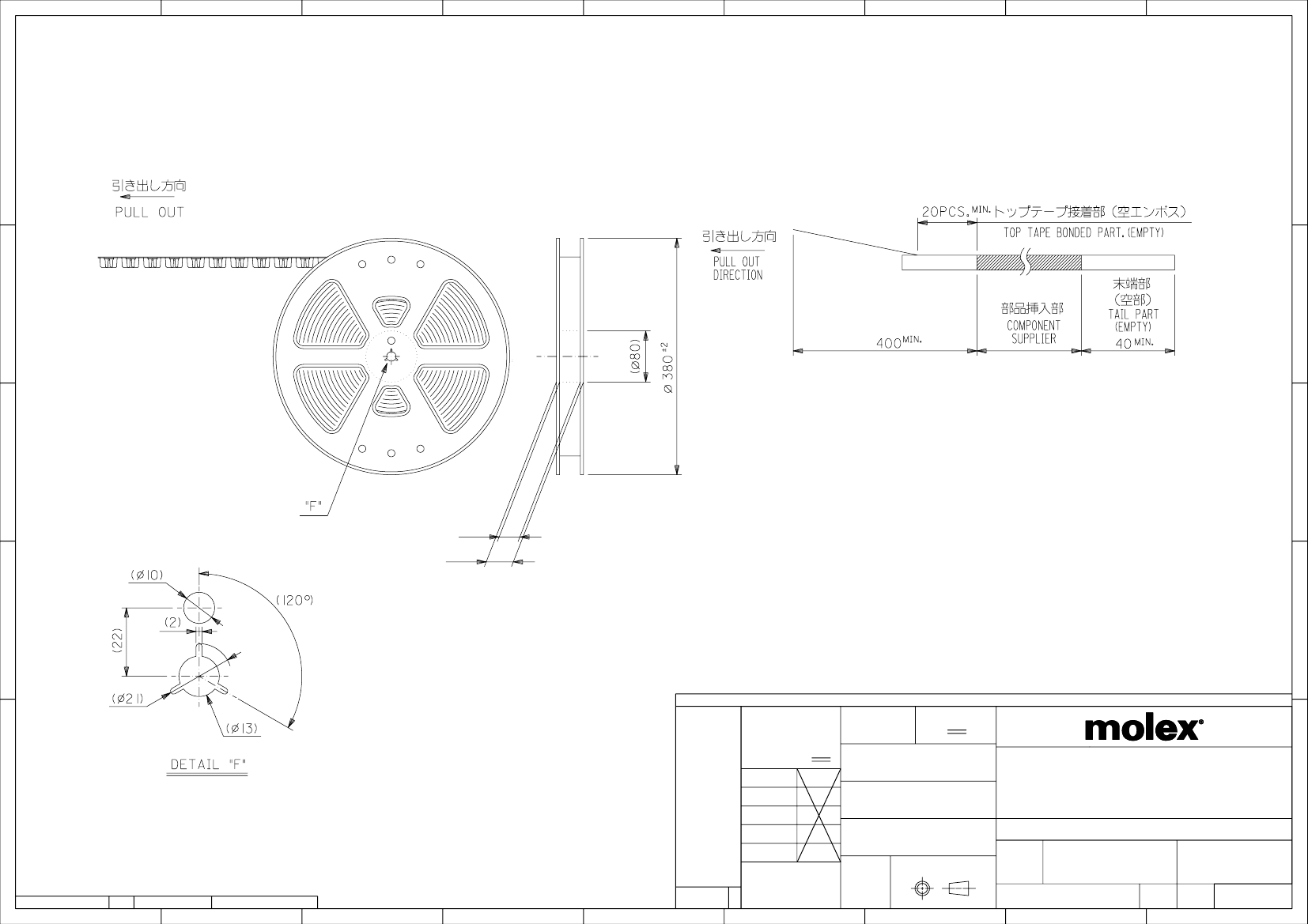

2. 梱包数量:1000個/リール

NUMBER OF CONNECTORS:1000PCS/REEL

3. リードテープ長さ LEAD　TAPE LENGTH

4. カバーテープの剥離強度については IEC 60286-3 に準拠

COVER TAPE PEEL FORCE IS DEFINED BY IEC 60286-3

5. 材料（MATERIAL）

キャリアテープ(CARRIER TAPE):ポリプロピレン(POLYPROPYLENE)

トップテープ(TOP TAPE):PET,PE, PEF

リール(REEL):ポリスチレン(PS)〈リサイクル材を含む〉

　　　　　　 POLYSTYREN(PS) 〈RECYCLE MATERIAL CONTAINED〉

本½品は52808シリーズの金メッキ品です。

THIS PRODUCT IS Au PLATING OF 52808 SERIES.

7. ELV 及び RoHS適合品

ELV AND RoHS COMPLIANT.

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

2016/01/29

2016/02/12

GENERAL

TOLERANCES

(UNLESS SPECIFIED)

ANGULAR TOL ±

0.0

DIMENSION UNITS

SCALE

DRWN BY

DATE

1:1

2016/01/29

DATE

RELEASED

4 PLACES

0.0

MTAKAHASHI04

CHK'D BY

102905

MTAKAHASHI04

KTAKAHASHI

TKUSUHARA01

3 PLACES

2 PLACES

1 PLACE

0 PLACES

1.0 FFC CONN NON ZIF SMT ST PKG

KTAKAHASHI

APPR BY

DATE

2016/02/12

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

TKUSUHARA01

DRAWING SIZE

EC NO:

DRWN:

CHK'D:

APPR:

THIRD ANGLE PROJECTION

RELEASE STATUS

FORMAT: master-tb-prod-A3

REVISION: F

DATE: 2015/11/16

RELEASE DATE

12.02.2016

10:27:39

REV

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

52808

DOCUMENT NUMBER

SEE CHART

GENERAL

DOC TYPE

DOC PART

SHEET NUMBER

528080002

PSD

000

1 OF 6
