110300112033 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 110300112033

110300112033: DescriptionBoard Connector, 33 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

110300112033 Overview

Board Connector, 33 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

110300112033 Parametric

Parameter Name	Attribute value
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Terminal pitch	2.54 mm
Total number of contacts	33
MIL compliance	NO
UL Flammability Code	94V-0
DIN compliance	NO
IEC compliance	NO
Filter function	NO
Number of connectors	ONE
Options	GENERAL PURPOSE
Termination type	SOLDER
Mixed contacts	NO
Objectid	8335675817
Reach Compliance Code	Unknown
Country Of Origin	Germany
ECCN code	EAR99
Is Samacsys	N

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0

Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

Ratioplast

Electronics

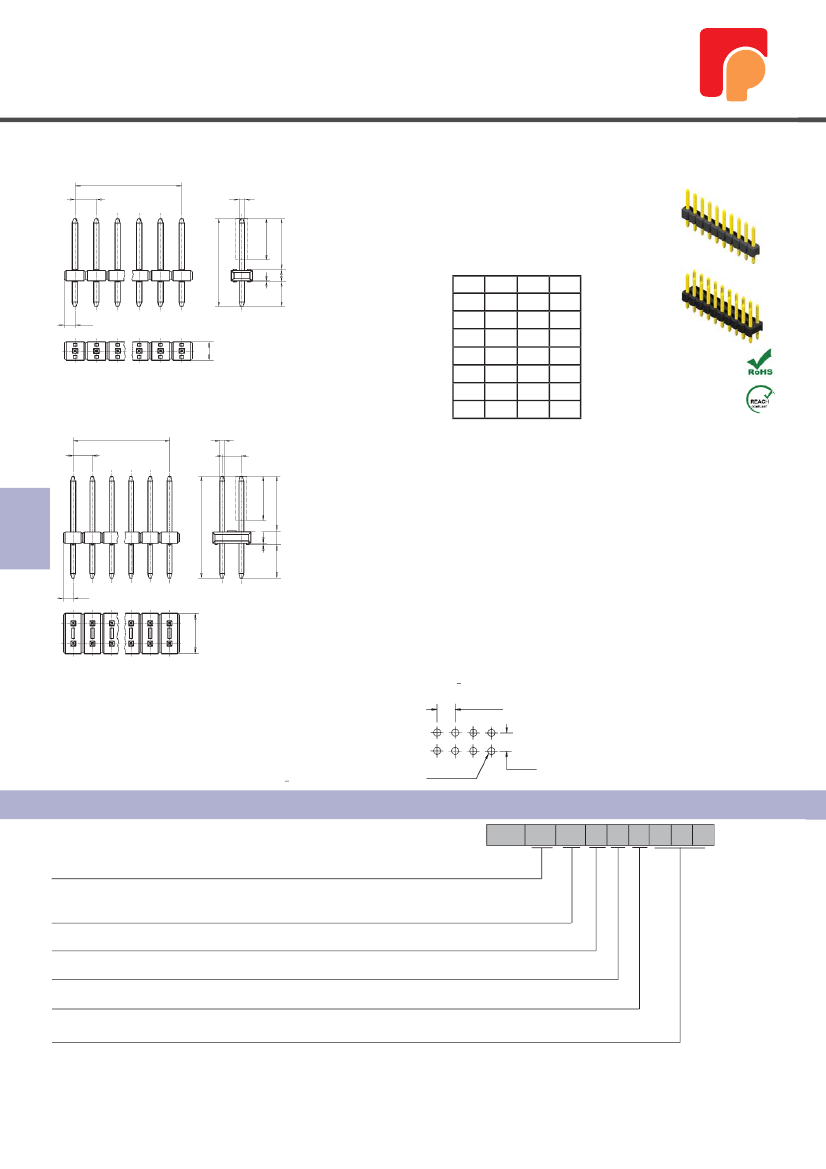

Stiftleisten Raster 2,54mm / Pin Header pitch 2,54mm

(N-1)x2,54

2,54

0,63

Serie 011

0,15

Abmessungen / dimensions

1,7

Code

2,5

11,30

12,60

14,70

16,50

17,70

19,80

21,60

6,70

8,00

10,10

11,90

13,10

15,20

17,00

2,90

(N/2-1)x2,54

2,54

0,63

Andere Abmessungen auf Anfrage / other dimensions on request

5,00

0,15

Raster / Pitch

2,54mm

Ausführung / Version

gerade / straight

Seite/ Page 98

1,7

Empfohlenes Leiterplatten Layout

Recommended P.C.B. Layout

(PCB Tolerance +0,05)

2,54

Technische Daten / Technical Data

Isolierkörper / Insulator

Kontaktmaterial / Contact material

Nennspannung / Current Voltage

Nennstrom / Current Rating

Temperaturbereich / Temperatur Range

Lötwärmebeständigkeit / Ressistance soldering

Stanyl (UL94-V0)

CuZn30

250V AC

-55°C....+125°C

235°C (30-60 sec.)

260°C (10 sec.)

D= Länge der selektiven Veredelung min.4,5mm

Lenght of selective plating min 4,5mm

E= 1,27mm +0,25mm

2,54

ø 1,00

weitere Informationen auf Anfrage / more information on request

Bestellbeispiel

How to order

Bitte ersetzen Sie X durch unten aufgeführten Code

Please replace X with coding listed below

011

Codierte Pinlänge / Encoded pin length

(siehe Tabelle / see table)

Veredelung / Plating

00=

verzinnt / tin plating

25=

0,25μm selektiv vergoldet / selective gold plating

03=

0,1-0,2μm vergoldet / gold plating

(andere Veredelungen auf Anfrage / other platings on request)

Anzahl Reihe / Number of row

1-reihig / 1-row,

2-reihig / 2-row

XX XX X 1 X X X X

Raster / Pitch

2,54mm

5,08mm

Sonderraster / other pitch

Polzahl / Number of contacts

002...050

(1-reihig / 1-row)

004...100

(2-reihig / 2-row)

Ratioplast-Electronics, H.Wiedemann GmbH Sonderanfertigungen und andere Veredelungen auf Anfrage. Die Vervielfältigung dieser Unterlagen durch Kopieren oder Nachdruck ist

nur mit ausdrücklicher Genehmigung des Herausgebers gestattet. Zuwiderhandlung verplichtet zu Schadensersatz. Mit Erscheinen dieses Kataloges verlieren vorherige Ausgaben Ihre

Gültigkeit. Design und technische Änderung vorbehalten / Customer Designs and special platings on request. The duplication of this cataloge by copying or reprint is used by permission
