551-0207-003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 551-0207-003

551-0207-003: DescriptionSingle Color LED Array, Green, T-1, 3mm, 6 PIN; CategoryLED optoelectronic/LED photoelectric; File Size25KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

551-0207-003 Overview

Single Color LED Array, Green, T-1, 3mm, 6 PIN

551-0207-003 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	6 PIN
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY
color	GREEN
color@wavelength	Green
Configuration	SEPARATE, 3 ELEMENTS
Maximum forward current	0.025 A
JESD-609 code	e0
Nominal luminous intensity	16.0 mcd
Installation features	RADIAL MOUNT
Number of functions	3
Number of LEDs in the array	3
Number of terminals	6
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	7.11 mm
method of packing	BULK
peak wavelength	563 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
perspective	45 deg
Base Number Matches	1

Preview

Download Datasheet

View All

NEW

3mm

LED CBI

Circuit Board Indicator

Tri-Block, .200” High LED Centerline

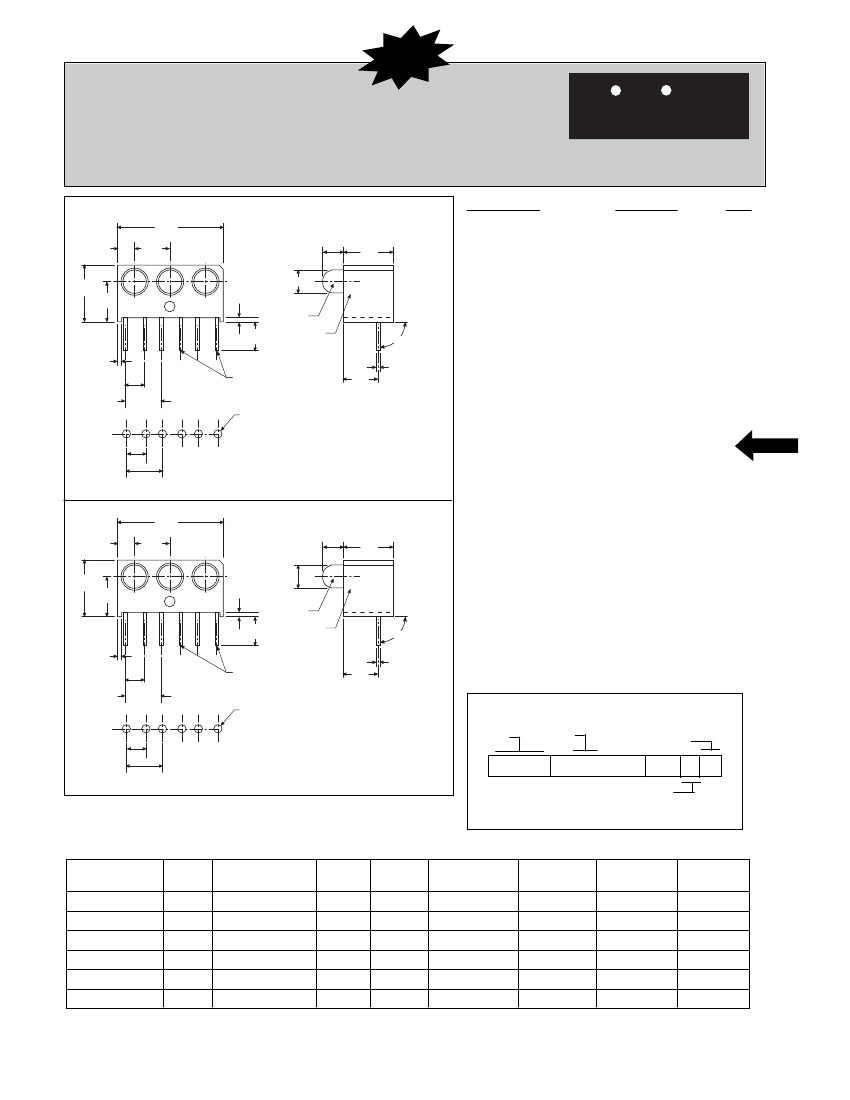

FIGURE A

13.55

[.534]

2.21

[.087]

NOM

4.57

[.180]

TYP (2)

2.67

[.105]

3.10

±.02

[.122

±.008]

DIA

5.08

[.200]

6.35

[.250]

Dialight

551-xx07-003

COLOR*

Green

Yellow

Red

Yellow

Green

FIG

7.11

[.280]

.51

[.020]

LED

3.68

±.25

[.145

±.010]

HOUSING

90°

.51 [.020] SQ

NOM TYP

CATHODE

TYP (3)

4.44

[.175]

0.51

[.020]

3X 2.54

[.100]

2X 4.57

[.180]

PART NO.

HIGH EFFICIENCY

551-0207-003

551-0307-003

551-0407-003

LOW CURRENT

551-1107-003

551-1207-003

551-1307-003

* LED 1, LED 2, LED 3

Ø 1.09

±.05

[.043

±.002]

TYP (6)

REVERSE POLARITY OPTION AVAILABLE

2.54

±.05

[.100

±.002]

See Part Number Ordering Code below.

4.57

±.05

[.180

±.002]

RECOMMENDED PC BOARD

HOLE PATTERN

NEW

Dimensions in mm [inches]

FIGURE B

13.55

[.534]

2.21

[.087]

NOM

4.57

[.180]

TYP (2)

2.41

[.095]

2.92

±.25

[.115

±.010]

DIA

6.35

[.250]

7.11

[.280]

5.08

[.200]

.51

[.020]

Benefits

• Available with a variety of LEDs

• Housing material UL94V-0 rated

• Black housing enhances contrast

• High reliability – life measured in years

• Vibration and shock resistant

• Single PC Board insertion of 3 LEDs

• Housing assures proper LED alignment

• Standoffs on housing facilitate PC board cleaning

Custom Combinations

• Contact factory for information on custom color

combinations.

LED Data

• For absolute maximum ratings and other

electrical/optical data, refer to LED data sheet.

LED

3.68

±.25

[.145

±.010]

0.51

[.020]

3X 2.54

[.100]

2X 4.57

[.180]

CATHODE

TYP (3)

4.44

[.175]

HOUSING

90°

.46 [.018] SQ

NOM TYP

Ø 1.02

±.05

[.040

±.002]

TYP (6)

PART NUMBER ORDERING CODE

Series

LED Type

Tri Block

2.54

±.05

[.100

±.002]

4.57

±.05

[.180

±.002]

RECOMMENDED PC BOARD

HOLE PATTERN

5 5 1 - x x 0 7 - 0 x 3

Dimensions in mm [inches]

Standard Polarity shown in drawing: Cathode right

Polarity Option

0 - Standard Cathode Right

1 - Reverse Cathode Left

Typical Operating Characteristics

=25°C)

Part Number

551-0207-003

551-0307-003

551-0407-003

551-1107-003

551-1207-003

551-1307-003

Color

Green

Yellow

Red

Yellow

Green

Peak

Wavelength nm

563

585

650

635

583

565

mcd

6.3

1.8

1.6

Volts

2.1

1.8

1.9

1.8

See LED data sheet for additional information

Test

Current (mA)

Viewing

Angle 2Θ

⁄

45°

50°

LED

Data sheet

521-9408

521-9428

521-9427

521-9324

521-9325

521-9326

Page #

4-63

4-55

4-26

Dialight Corporation • 1913 Atlantic Avenue • Manasquan, NJ 08736 • TEL: (732) 223-9400 • FAX: (732) 223-8788 • www.dialight.com

551-0207-003 Related Products

	551-0207-003	551-1307-003	551-0407-003	551-1107-003
Description	Single Color LED Array, Green, T-1, 3mm, 6 PIN	Single Color LED Array, Green, T-1, 3mm, 6 PIN	Single Color LED Array, Red, T-1, 3mm, 6 PIN	Single Color LED Array, Red, T-1, 3mm, 6 PIN
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	6 PIN	6 PIN	6 PIN	6 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
color	GREEN	GREEN	RED	RED
color@wavelength	Green	Green	Red	Orange-Red
Configuration	SEPARATE, 3 ELEMENTS	SEPARATE, 3 ELEMENTS	SEPARATE, 3 ELEMENTS	SEPARATE, 3 ELEMENTS
Maximum forward current	0.025 A	0.007 A	0.02 A	0.007 A
JESD-609 code	e0	e0	e0	e0
Nominal luminous intensity	16.0 mcd	1.6 mcd	10.0 mcd	1.6 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	3	3	3	3
Number of LEDs in the array	3	3	3	3
Number of terminals	6	6	6	6
Maximum operating temperature	85 °C	100 °C	85 °C	100 °C
Minimum operating temperature	-25 °C	-55 °C	-25 °C	-55 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY
total height	7.11 mm	7.11 mm	7.11 mm	7.11 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	563 nm	565 nm	650 nm	635 nm
shape	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	45 deg	60 deg	45 deg	60 deg
Base Number Matches	1	1	1	1
