REVISIONS
REV
A1
A2
A3
ECO
-
-
-
DESCRIPTION
RELEASE
UPDATE DRAWING
MODIFIED DESCRIPTION
DATE
2JUL2018
25/MAR/19
12JUL19
BY
JAH
APPR
BROOK TOMMY
BROOK TOMMY
TITLE:

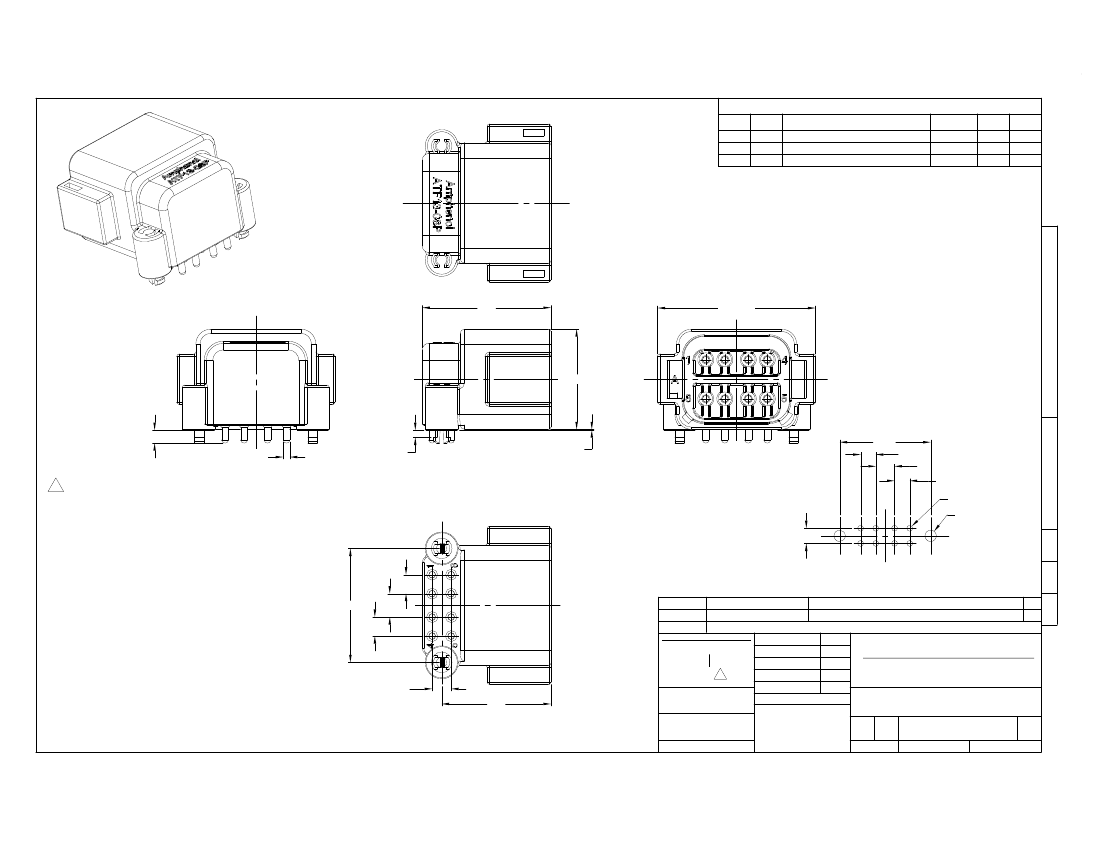

RIGHT ANGLE RECEPTACLE, AT 8 PIN,SNAP FIT,BOARDLOCK
29.9
36.8±0.40
23.3
DWG NO:
8x3.05±0.30
NOTES: UNLESS OTHERWISE SPECIFIED
1 SEE SHEET 2 FOR KEY ARRANGEMENTS AND COLORS.
2. MATERIAL:
HOUSING: THERMOPLASTIC; COLOR: SEE SHEET 2
CONTACT: COPPER ALLOY
PLATING: NICKEL UNDERPLATE
SEE CHART FOR OVERALL FINISH
3. MODIFICATIONS: RIGHT ANGLE PCB MOUNT, SNAP FIT
8xØ1.57
1.70TYP
0.18
26.50
4.42
5.45
4.42
8X Ø1.70
2X Ø3.30
4.42
ATF13-08PX-BM0X
REV:
A3
SH:
RECOMMENDED PCB LAYOUT
4.42
26.5
5.45
4.42
1
4. SPECIFICATIONS:
4.1 CURRENT RATING: 13 AMPS
4.2 OPERATING TEMPERATURE: -55°C TO +125°C
4.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
4.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @
25°C.
4.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )
4.6 MATING CYCLE DURABILITY: 100 CYCLES
4.7 RoHS COMPLIANT
5. MATING PART: AT06-08SX* PLUG
( X = A,B,C,D KEYS; * = MODIFICATIONS AND COLORS )
6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
OF:
SEE PART NUMBER CHART
PART NUMBER
DESCRIPTION
QUANTITY
MATERIALS LIST
UNLESS OTHERWISE SPECIFIED
1) All dimensions are in metric(mm).
2) Tolerances are as follows:
1 PL DEC ±0.30
Fractions ±1/64
2 PL DEC ±0.15
Angles ±1°
3 PL DEC ±0.08
3) Note reference =
X
ITEM
2
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
DATE
BROOK.DING
ORION.LI
TOMMY.XIE
12/JUL/19
12/JUL/19
12/JUL/19
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
4.42
25.4
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
RIGHT ANGLE RECEPTACLE, AT 8 PIN,
SNAP FIT, BOARDLOCK
TYPE
DWG NO:
B C-
NONE
ATF13-08PX-BM0X
SHEET
REVISION
A3
2
1
OF
REVISIONS
REV
A1
A2
A3
ECO
-
-
-
DESCRIPTION
RELEASE
UPDATE DRAWING
MODIFIED DESCRIPTION
DATE
2JUL2018
25/MAR/19
12JUL19
BY
JAH
APPR
BROOK TOMMY
BROOK TOMMY

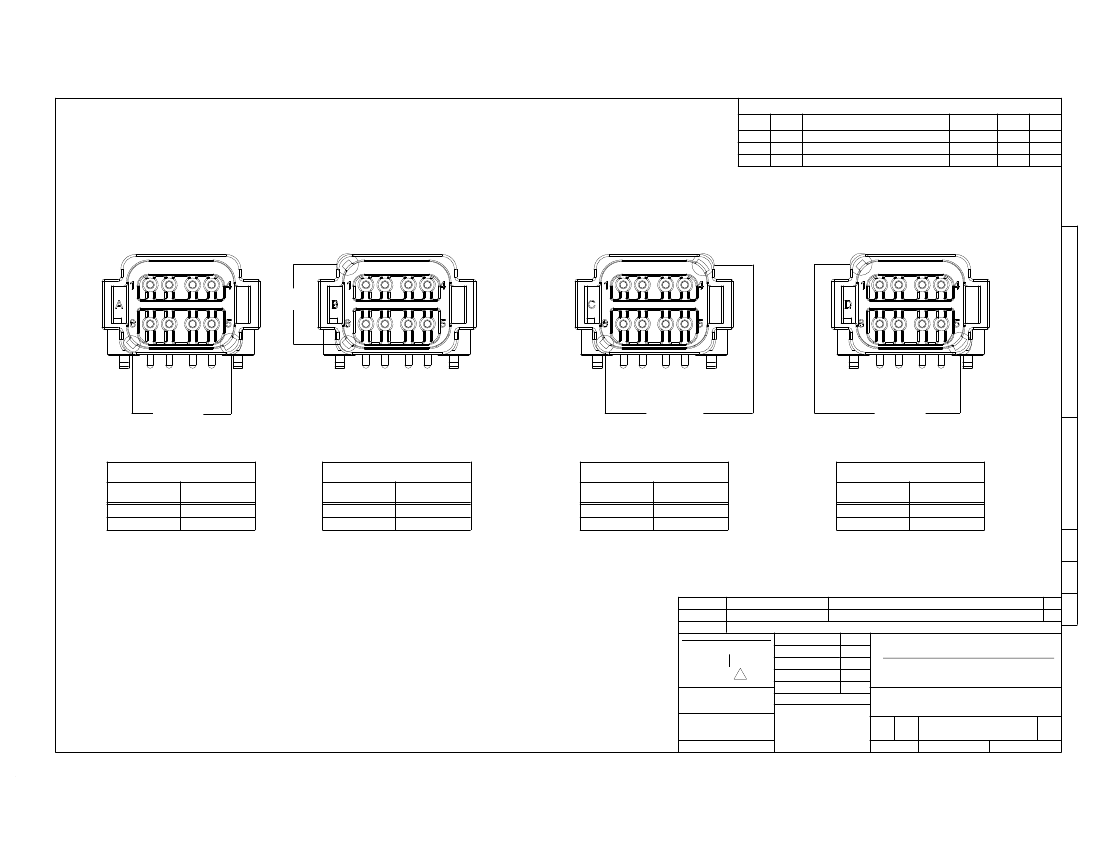

P/N ATF13-08PA-BM0X
KEY-A CONFIGURATION
COLOR: GREY
P/N ATF13-08PB-BM0X
KEY-B CONFIGURATION
COLOR: BLACK
P/N ATF13-08PC-BM0X
KEY-C CONFIGURATION
COLOR: GREEN
P/N ATF13-08PD-BM0X
KEY-D CONFIGURATION
COLOR: BROWN
TITLE:
RIGHT ANGLE RECEPTACLE, AT 8 PIN,SNAP FIT,BOARDLOCK
KEYWAY
(2) PLACES
KEYWAY
(2) PLACES
KEYWAY
(2) PLACES
KEYWAY
(2) PLACES
DWG NO:
ATF13-08PX-BM0X
ATF13-08PA-BM0X VARIANTS
CONTACT
PLATING
GOLD
TIN
PART NUMBER
ATF13-08PA-BM01
ATF13-08PA-BM03
ATF13-08PB-BM0X VARIANTS
CONTACT
PLATING
GOLD
TIN
PART NUMBER
ATF13-08PB-BM01
ATF13-08PB-BM03
ATF13-08PC-BM0X VARIANTS
CONTACT
PLATING
GOLD
TIN
PART NUMBER
ATF13-08PC-BM01
ATF13-08PC-BM03
ATF13-08PD-BM0X VARIANTS
CONTACT
PLATING
GOLD
TIN
PART NUMBER
ATF13-08PD-BM01
ATF13-08PD-BM03
REV:
A3
SH:
2
OF:
SEE PART NUMBER CHART
PART NUMBER
DESCRIPTION
QUANTITY
MATERIALS LIST
UNLESS OTHERWISE SPECIFIED
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
ITEM
2
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
DATE
BROOK.DING
ORION.LI
TOMMY.XIE
12/JUL/19
12/JUL/19
12/JUL/19
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
RIGHT ANGLE RECEPTACLE, AT 8 PIN,
SNAP FIT, BOARDLOCK
TYPE
DWG NO:
B C-
NONE
ATF13-08PX-BM0X
SHEET
REVISION
A3
2
2
OF
