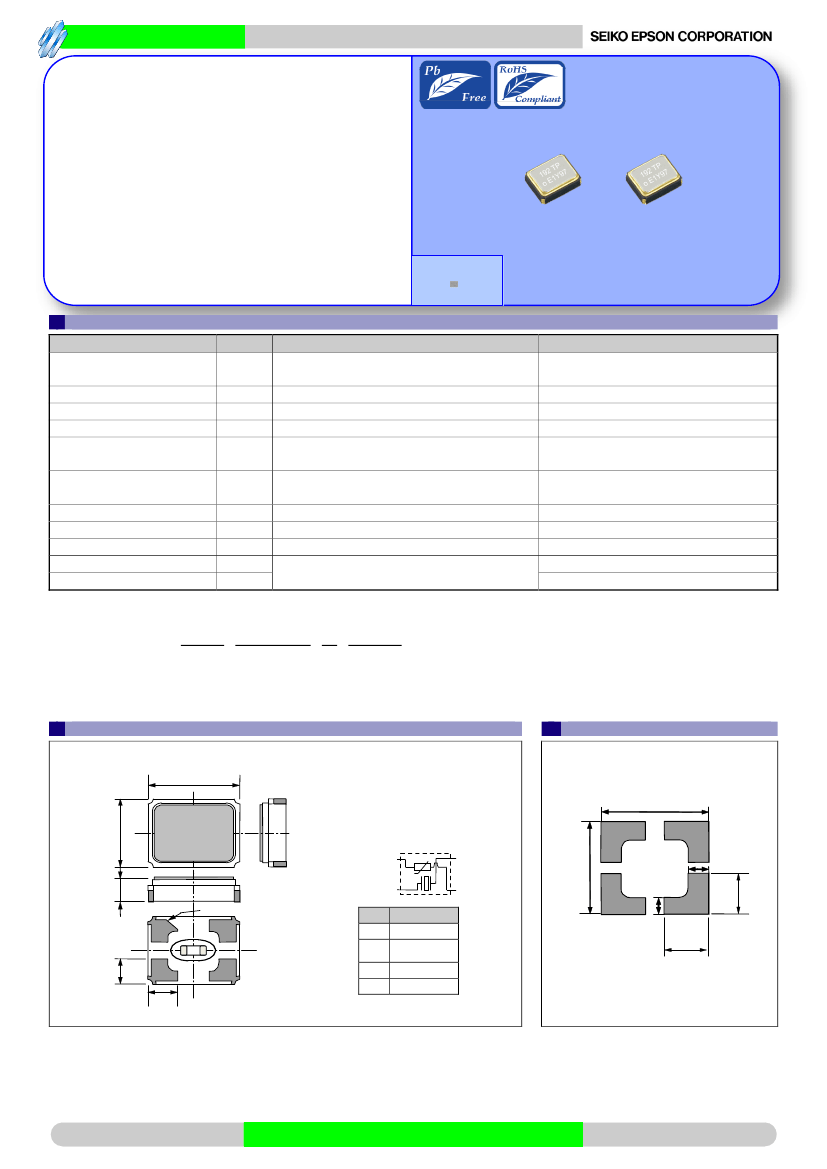

Crystal unit
MHz RANGE CRYSTAL UNIT
Built-in thermistor
Product Number (please contact us
)
FA-128S : X1E000361xxxx17
FA-128S
Nominal
frequency range
External
dimensions
Overtone
order
Applications
:
:
:
:
:
38.4 MHz
2.0 × 1.6 × 0.9 mm
Fundamental
Mobile phone, Bluetooth, W-LAN
ISM band radio, Clock for MPU
GPS, Smart phone
Actual size
Specifications (characteristics)
Item
Nominal frequency range
Storage temperature range
Operating temperature range
Level of drive
Frequency tolerance
Frequency versus
temperature characteristics
Load capacitance
Motional resistance (ESR)
Frequency aging
Thermistor resistance
Thermistor B constant
Symbol
f_nom
T_stg
T_use
DL
f_tol
f_tem
C
L
R
1
f_age
―
Specifications
38.4 MHz
-40
C
to +125
C
-40
C
to +85
C
100
W
Max.
10
10
-6
12
10
-6
*1
*1
Conditions / Remarks
Fundamental
Please contact us about available frequencies.
Storage as single product.
Recommended: 1 to 100
W
Please contact us about reference temperature.
6 pF to
60
Max.
1
10
-6
/ year Max.
Please contact us about specifications.
Please contact us for inquiries.
-30
C
to +85
C
Please contact us for inquiries.
Please specify.
-30
C
to +85
C
+25
C,
First year
―
*1
Please contact us for available frequency tolerances as they are dependent upon the nominal frequency.
Product name
(Standard form)
FA-128S 38.400000MHz 7.0 +10.0-10.0
①
②
③
④
①Model
②Frequency
③Load
capacitance(pF)
④Frequency
tolerance(
×
10
-6
,
+25
C)
In addition to the above mentioned specification item, please specify frequency temperature characteristics
and operating temperature range in case of inquiry.
(Unit:mm)
Footprint (Recommended)
(Unit:mm)
External dimensions
FA-128S
2.0±0.1
#4
#3
2.2
Internal connection
(TOP VIEW)
1.6±0.1
384 TP
O E1Y97
#1
#2
#4
#3
0.9 Max.
1.8
#1
#2
0.46
0.75
0.43
0.75
#1
C 0.2 Min.
#2
Pin map
Pin
1
2
connection
Crystal
GND,
thermistor
Crystal
thermistor
0.65
3
#4
0.65
#3
4
