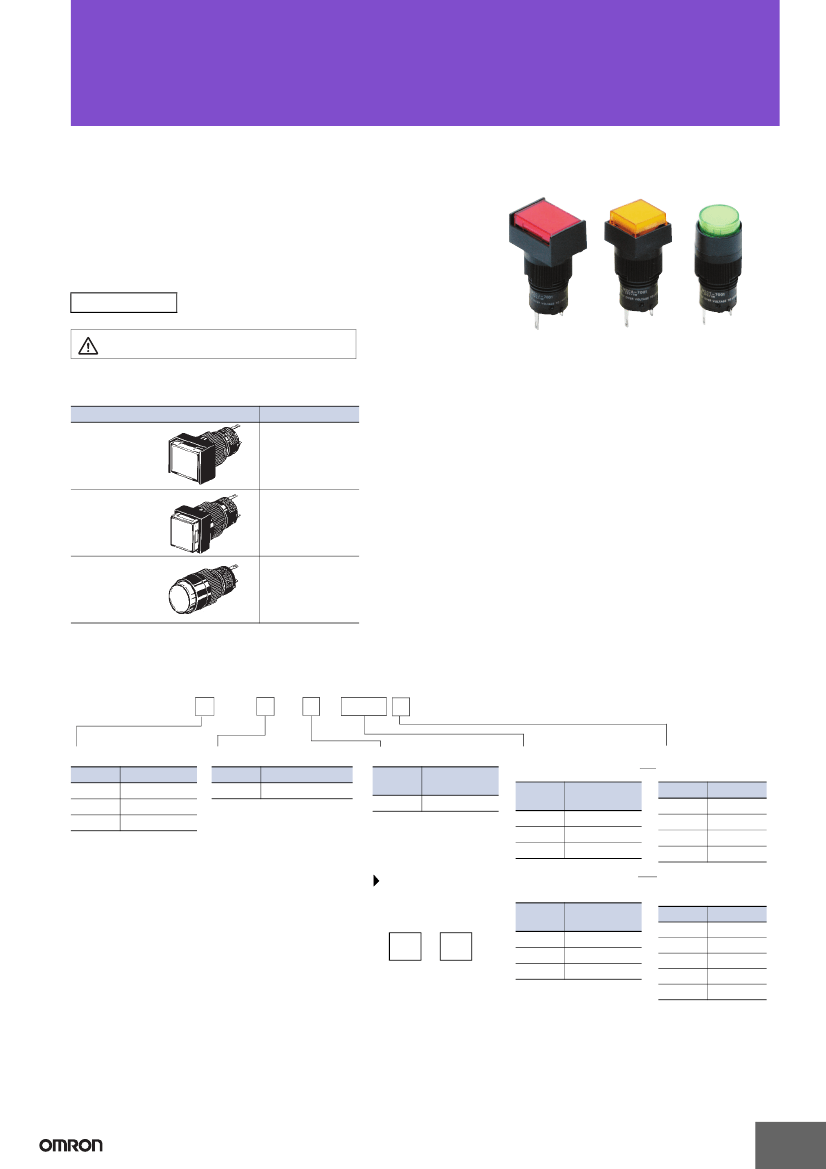

M2C
Indicator (Cylindrical 12-dia.)
CSM_M2C_DS_E_4_1
Indicator with Cylindrical 20-mm
×
12-dia. Body
• Same basic design as the A3C Pushbutton Switch.
• Good illumination with even surface brightness.
• Cylindrical body means panel cutouts can be made easily.
RoHS Compliant
Refer to
Safety Precautions for All Pushbutton Switches
and
Safety Precautions
for the A3C.
List of Models
Appearance
Model
Rectangular
M2CJ
Square
M2CA
Round
M2CT
Model Number Legend
.................................................. The model numbers used to order sets of Units are illustrated below. One set
(1)
(2)
(3)
(4)
comprises the Display, Lamp, and Socket Unit.
For information on combinations, refer to
Ordering Information
(5)
M 2 C J - 9 0 A 1 - 24E R
(1) Shape of Display
Symbol
J
A
T
Shape
Rectangular
Square
Round
(2) Terminal Type
Symbol Terminal type
0
Solder terminals
(3) Lighting Type
Symbol
1
Lighting
type
Illumination only
(4) Lighting Method
LED lamp-lighted Models
Symbol
05E
12E
24E
Operating
voltage
5 VDC
12 VDC
24 VDC
(5) Color of Display
For LED lamp
Symbol
R
Y
G
W
Color
Red
Yellow
Green
White
•
Colored-illumination
models are also available.
For details, refer to page
3.
“Colored-illumination”
models operate in the
way shown below:
Unlit
White
Lit
Color
The built-in
LED is col-
ored.
Incandescent Lamp-
lighted Models
Symbol
06
14
28
Operating
voltage
5 VAC/VDC
12 VAC/VDC
24 VAC/VDC
For incandescent
lamp
Symbol
R
Y
G
A
W
Color
Red
Yellow
Green
Blue
White
1
M2C
Ordering Information
Ordering as a Set
..............................................................The model numbers used to order sets of Units are given in the following tables.
One set comprises the Display, Lamp, and Socket Unit.
Rectangular
Models
Square
Models
Round
Models
Solder Terminals
Appearance
Lighting
Model number (for set)
M2CJ-90A1-05E@
LED lamp
Rectangular
(M2CJ)
Incandescent
lamp
M2CJ-90A1-12E@
M2CJ-90A1-24E@
M2CJ-90A1-06@
M2CJ-90A1-14@
M2CJ-90A1-28@
M2CA-90A1-05E@
LED lamp
Square
(M2CA)
Incandescent
lamp
M2CA-90A1-12E@
M2CA-90A1-24E@
M2CA-90A1-06@
M2CA-90A1-14@
M2CA-90A1-28@
M2CT-90A1-05E@
LED lamp
Round
(M2CT)
Incandescent
lamp
M2CT-90A1-12E@
M2CT-90A1-24E@
M2CT-90A1-06@
M2CT-90A1-14@
M2CT-90A1-28@
Display color
symbol
R: red
Y: yellow
G: green
W: white
R: red
Y: yellow
G: green
W: white
A: blue
R: red
Y: yellow
G: green
W: white
R: red
Y: yellow
G: green
W: white
A: blue
R: red
Y: yellow
G: green
W: white
R: red
Y: yellow
G: green
W: white
A: blue
Note: Enter the desired color symbol for the Display in the
@
at the end of the model number.
Individual models: Refer to pages 4 to 5.
(The Display, Lamp, and Socket Unit can be ordered separately.)
■
Ratings: Refer to page 6.
■
Dimensions: Refer to page 7.
■
Accessories: Refer to the A3C.
2
M2C
Ordering Information

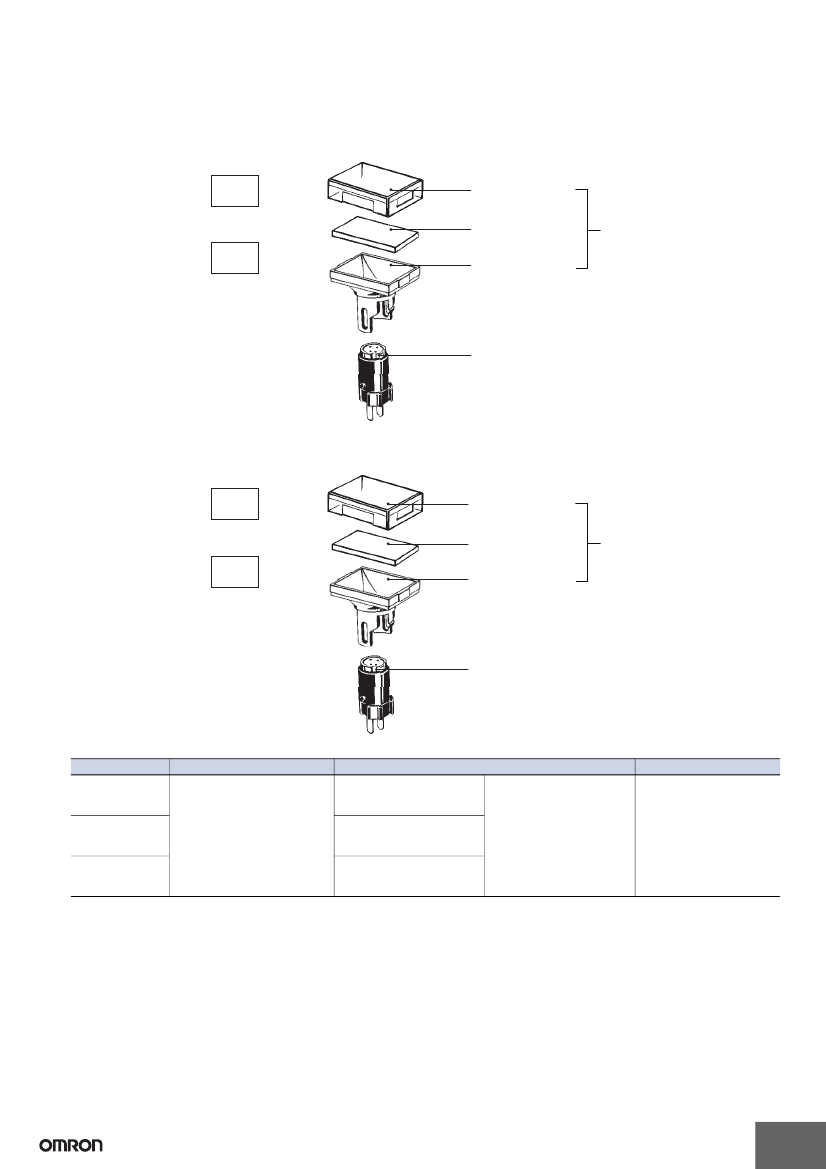

Illumination-only and Colored-illumination LED Models
“Illumination only” describes LED models for which the screen color is the same whether the LED is lit or not. The screen simply becomes brighter
when the LED lights.
Example: Red LED
Not lit
Red
Cap (red)
Legend plate
(milky white)
Reflective plunger
Lit
Red
Display
LED lamp (red)…Lamp
“Colored illumination” describes LED models for which the screen color is white when the LED is not lit and changes to the color of the LED lamp
when the LED is lit.
Not lit
White
White cap
(semi-transparent)
Legend plate
(milky white)
Reflective plunger
Display
Lit
Red
LED lamp (red)…Lamp
Ordering: With colored-illumination models, order the Display, Lamp, and Socket Unit as shown in the following table.
Illuminated color
Red
Display
IP40
A3C@-500W
Enter one of the following
symbols in
@
.
J: Rectangular
A: Square
T: Round
A16-@DR
Enter one of the following
symbols in
@.
5: 5 VDC
12: 12 VDC
24: 24 VDC
Refer to page 5. Order the
Socket Unit that is appropri-
ate for the Display.
Lamp (LED)
Socket Unit
Yellow
A16-@DY
Green
A16-@DG
3
M2C
Ordering Information

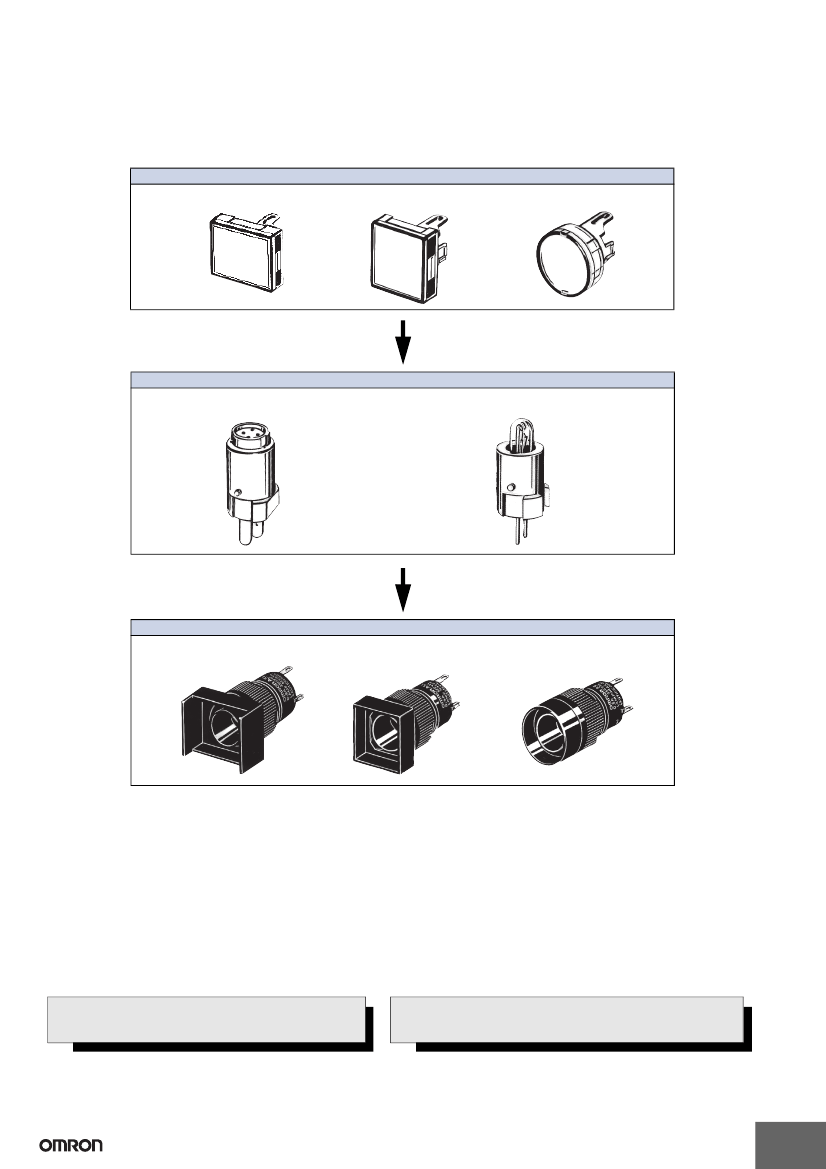

Ordering Individually
................Displays, Lamps, and Socket Units can be ordered separately. Combinations that are not available as sets
can be created using individual Units. Also, store the parts as spares for maintenance and repairs.
Ordering: Specify a model number from the following page.
Display
Rectangular
Square
Round
Lamp
LED Lamp
Incandescent lamp
Socket Unit
Rectangular
Square
Round
Ordering set combinations: Refer to page 2.
■
Ratings: Refer to page 6.
■
Dimensions: Refer to page 7.
■
Accessories: Refer to the A3C.
4
M2C
Ordering Information
Ordering Individually

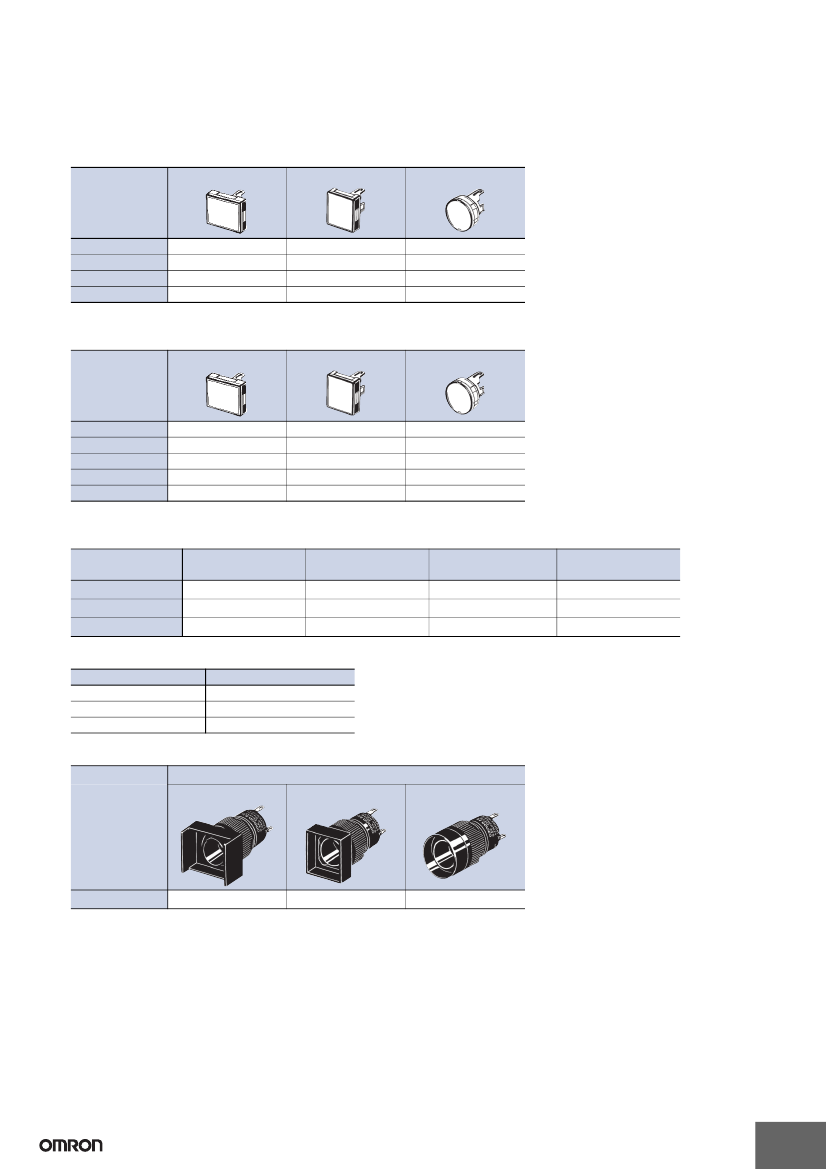

............... The Display, Lamp, and Socket Unit can be ordered separately. They can also be used as inventory for
maintenance parts.
Display (Lighted Models)
LED Lamp
Appearance
Rectangular
Square
Round
Button color
Red
Yellow
Green
White
A3CJ-500R
A3CJ-500Y
A3CJ-500GY
A3CJ-500W
A3CA-500R
A3CA-500Y
A3CA-500GY
A3CA-500W
A3CT-500R
A3CT-500Y
A3CT-500GY
A3CT-500W
Note: The red, yellow, and white Displays listed above can be used with either LED lamp-lighted models or incandescent lamp-lighted models.
Incandescent Lamp
Appearance
Rectangular
Square
Round
Button color
Red
Yellow
Green
White
Blue
A3CJ-500R
A3CJ-500Y
A3CJ-500G
A3CJ-500W
A3CJ-500A
A3CA-500R
A3CA-500Y
A3CA-500G
A3CA-500W
A3CA-500A
A3CT-500R
A3CT-500Y
A3CT-500G
A3CT-500W
A3CT-500A
Lamp
LED Lamp
Color
Rated voltage
5 VDC
12 VDC
24 VDC
Red
A16-5DR
A16-12DR
A16-24DR
Yellow
A16-5DY
A16-12DY
A16-24DY
Green
A16-5DG
A16-12DG
A16-24DG
White
A16-5DW
A16-12DW
A16-24DW
Incandescent Lamp
Rated voltage
6 VAC/DC
14 VAC/DC
28 VAC/DC
Model
A16-5
A16-12
A16-24
Socket Unit
Sealing
Rectangular
IP40
Square
Round
Appearance
Terminal
Solder terminals
M2CJ-7001
M2CA-7001
M2CT-7001
5
