E6D-CWZ1E 720P/R datasheet, PDF

Datasheet> All Categories > The sensor> Sensor/transducer> E6D-CWZ1E 720P/R

E6D-CWZ1E 720P/R: Description旋转编码器光学 720 正交，带刻度角（增量）垂直; CategoryThe sensor Sensor/transducer; File Size444KB，5 Pages; ManufacturerOmron Automation and Safety; Environmental Compliance

Download Datasheet Parametric View All

E6D-CWZ1E 720P/R Overview

旋转编码器光学 720 正交，带刻度角（增量）垂直

E6D-CWZ1E 720P/R Parametric

Parameter Name	Attribute value
category
Maker	Omron Automation and Safety
series	E6D
Package	Bulk
Encoder type	Optics
Output type	Orthogonal, with scale angle (incremental)
Number of pulses per revolution	720
Voltage - Power supply	5V
Actuator type	6mm diameter flat tip
pawl	none
Built-in switch	none
Installation type	Base installation
direction	vertical
Termination style	Cable leads
Rotation life (minimum number of times)	-
Basic product number	E6D-CWZ1

Preview

Download Datasheet

View All

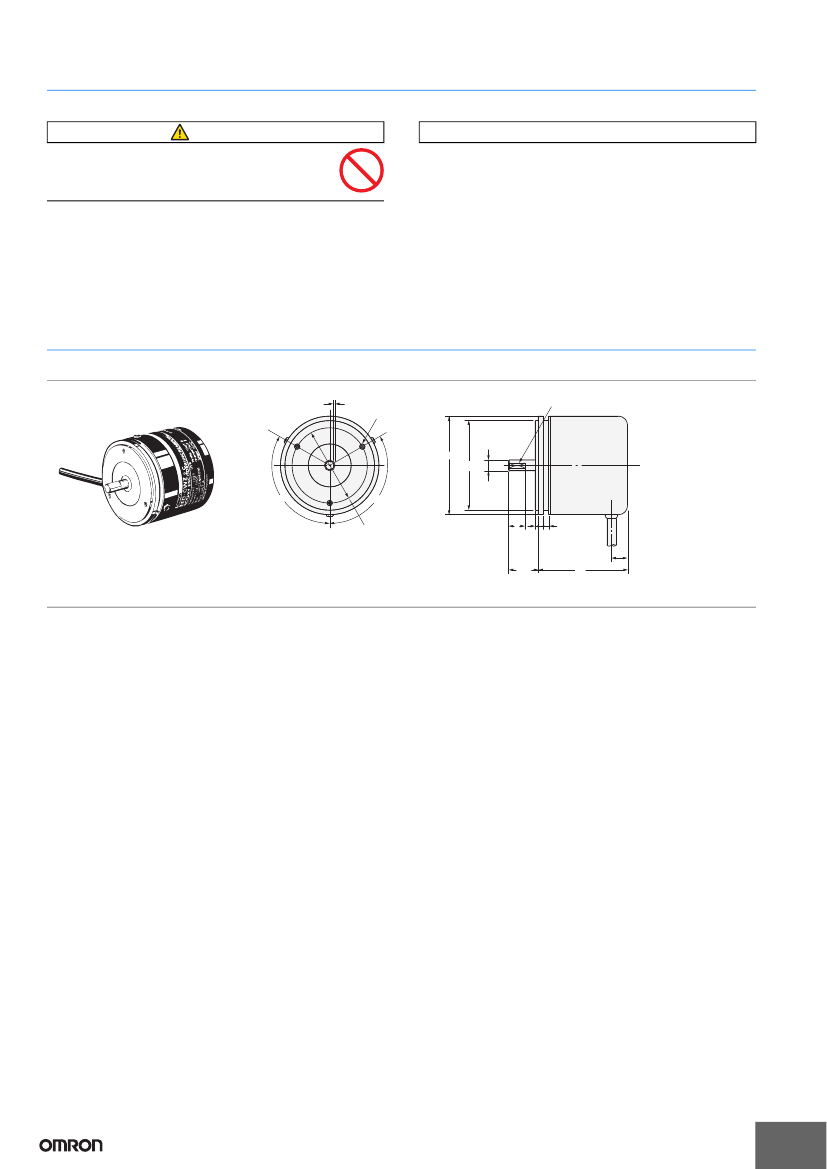

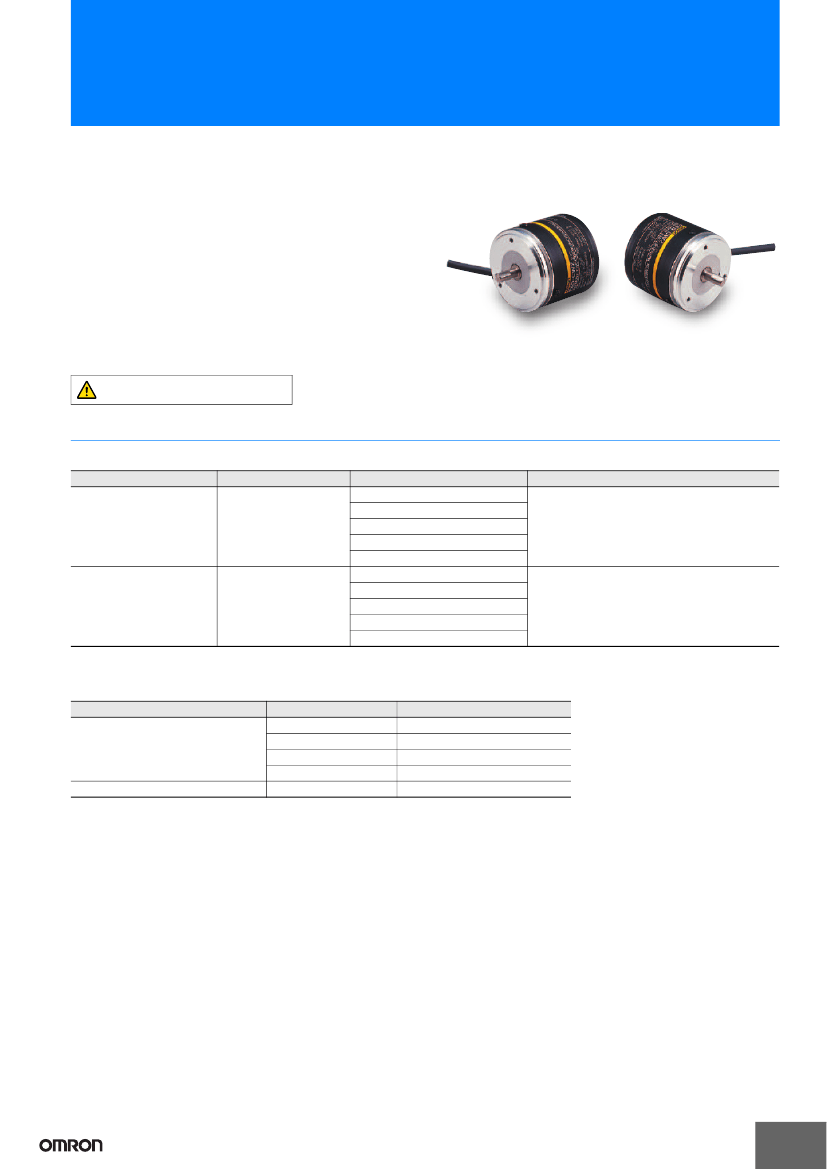

High-resolution Encoder with Diameter of 55 mm

E6D-C

CSM_E6D-C_DS_E_5_1

High-resolution Encoder

• Incremental model

• External diameter of 55 mm.

• Resolution of up to 6,000 ppr.

Be sure to read

Safety Precautions

page 4.

Ordering Information

Encoders

[Refer to

Dimensions

on page 4.]

Power supply voltage

Output configuration

Resolution (pulses/rotation)

1,000

2,000

3,600

5,000

6,000

1,000

2,000

3,600

5,000

6,000

Model

5 VDC

Voltage output

E6D-CWZ1E (resolution) 0.5M

Example: E6D-CWZ1E 1000P/R 0.5M

12 VDC

Open-collector output

E6D-CWZ2C (resolution) 0.5M

Example: E6D-CWZ2C 1000P/R 0.5M

Note: In addition to the models listed at the left, models with either voltage outputs or open-collector outputs are also available with the following resolutions (pulses/

rotation): 720, 800, 1,024, 1,200, 1,500, 1,800, 2,048, 2,500, 3,000, 3,200, and 4,096.

Accessories (Order Separately)

[Refer to

Dimensions

Rotary Encoder Accessories.]

Name

Model

E69-C06B

E69-C68B

E69-C610B

E69-C06M

E69-2

Remarks

Provided with the product.

Different end diameter

Metal construction

Provided with the product.

Couplings

Servo Mounting Bracket

Refer to

Accessories

for details.

Terms and Conditions Agreement

Read and understand this catalog.

Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you

have any questions or comments.

Warranties.

(a) Exclusive Warranty.

Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship

for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron

disclaims all other warranties, express or implied.

(b) Limitations. OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT

NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCTS. BUYER

ACKNOWLEDGES THAT IT ALONE HAS DETERMINED THAT THE

PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE.

Omron further disclaims all warranties and responsibility of any type for claims or expenses based on infringement by the

Products or otherwise of any intellectual property right. (c) Buyer Remedy.

Omron’s sole obligation hereunder shall be, at

Omron’s election, to (i) replace (in the form originally shipped with Buyer responsible for labor charges for removal or

replacement thereof) the non-complying Product, (ii) repair the non-complying Product, or (iii) repay or credit Buyer an amount

equal to the purchase price of the non-complying Product; provided that in no event shall Omron be responsible for warranty,

repair, indemnity or any other claims or expenses regarding the Products unless Omron’s

analysis confirms that the Products

were properly handled, stored, installed and maintained and not subject to contamination, abuse, misuse or inappropriate

modification. Return of any Products by Buyer must be approved in writing by Omron before shipment. Omron Companies shall

not be liable for the suitability or unsuitability or the results from the use of Products in combination with any electrical or

electronic components, circuits, system assemblies or any other materials or substances or environments. Any advice,

recommendations or information given orally or in writing, are not to be construed as an amendment or addition to the above

warranty.

See

http://www.omron.com/global/

or contact your Omron representative for published information.

Limitation on Liability; Etc.

OMRON COMPANIES SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES,

LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS,

WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE OR STRICT LIABILITY.

Further, in no event shall liability of Omron Companies exceed the individual price of the Product on which liability is asserted.

Suitability of Use.

Omron Companies shall not be responsible for conformity with any standards, codes or regulations which apply to the

combination of the Product in the Buyer’s application or use of the Product. At Buyer’s request, Omron will provide applicable

third party certification documents identifying ratings and limitations of use which apply to the Product. This information by itself

is not sufficient for a complete determination of the suitability of the Product in combination with the end product, machine,

system, or other application or use. Buyer shall be solely responsible for determining appropriateness of the particular Product

with respect to Buyer’s application, product or system. Buyer shall take application responsibility in all cases.

NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY OR IN LARGE

QUANTITIES WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS,

AND THAT THE OMRON PRODUCT(S) IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE

OVERALL EQUIPMENT OR SYSTEM.

Programmable Products.

Omron Companies shall not be responsible for the user’s programming of a programmable Product, or any consequence

thereof.

Performance Data.

Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining

suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate

it to actual application requirements. Actual performance is subject to the Omron’s

Warranty and Limitations of Liability.

Change in Specifications.

Product specifications and accessories may be changed at any time based on improvements and other reasons. It is our

practice to change part numbers when published ratings or features are changed, or when significant construction changes are

made. However, some specifications of the Product may be changed without any notice. When in doubt, special part numbers

may be assigned to fix or establish key specifications for your application.

Please consult with your Omron’s representative at

any time to confirm actual specifications of purchased Product.

Errors and Omissions.

Information presented by Omron Companies has been checked and is believed to be accurate; however, no responsibility is

assumed for clerical, typographical or proofreading errors or omissions.

2014.1

In the interest of product improvement, specifications are subject to change without notice.
