MAN6940E datasheet, PDF - EEWORLD Datasheet

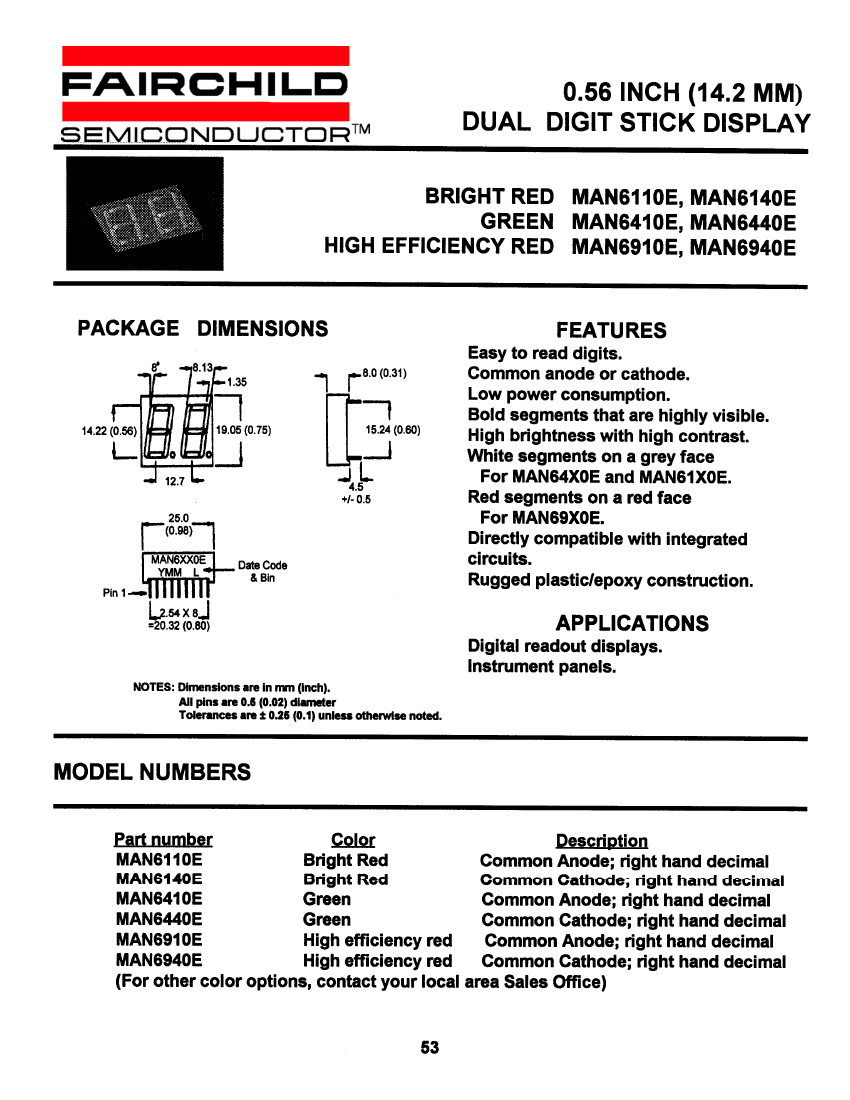

MAN6940E: Description显示器模块 - LED 字符与数字红色 7 段 2 字符共阴极 2V 20mA 0.750" 高 x 0.984" 宽 x 0.315" 直径（19.05mm x 25.00mm x 8.00mm） 18-DIP（0.600"，15.24mm）; CategoryLED optoelectronic/LED display; File Size274KB，7 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric View All

MAN6940E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MAN6940E	-	-	View	Buy Now

显示器模块 - LED 字符与数字红色 7 段 2 字符共阴极 2V 20mA 0.750" 高 x 0.984" 宽 x 0.315" 直径（19.05mm x 25.00mm x 8.00mm） 18-DIP（0.600"，15.24mm）

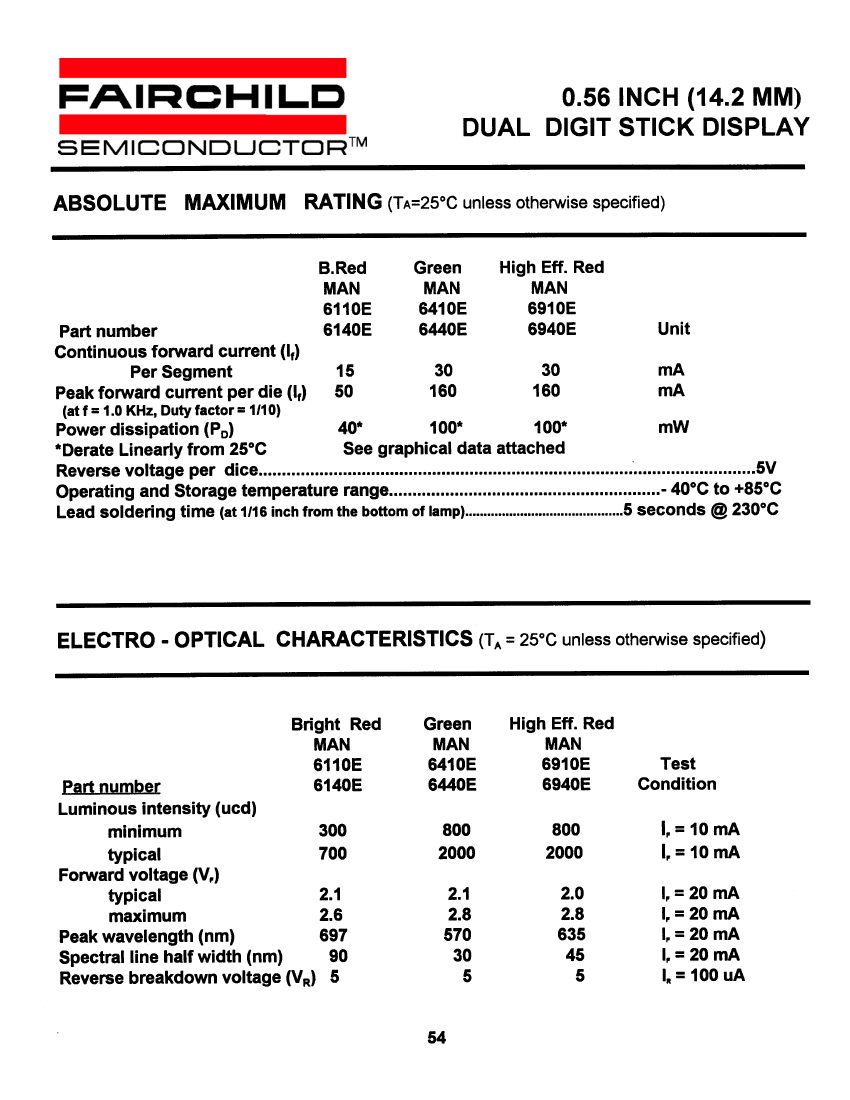

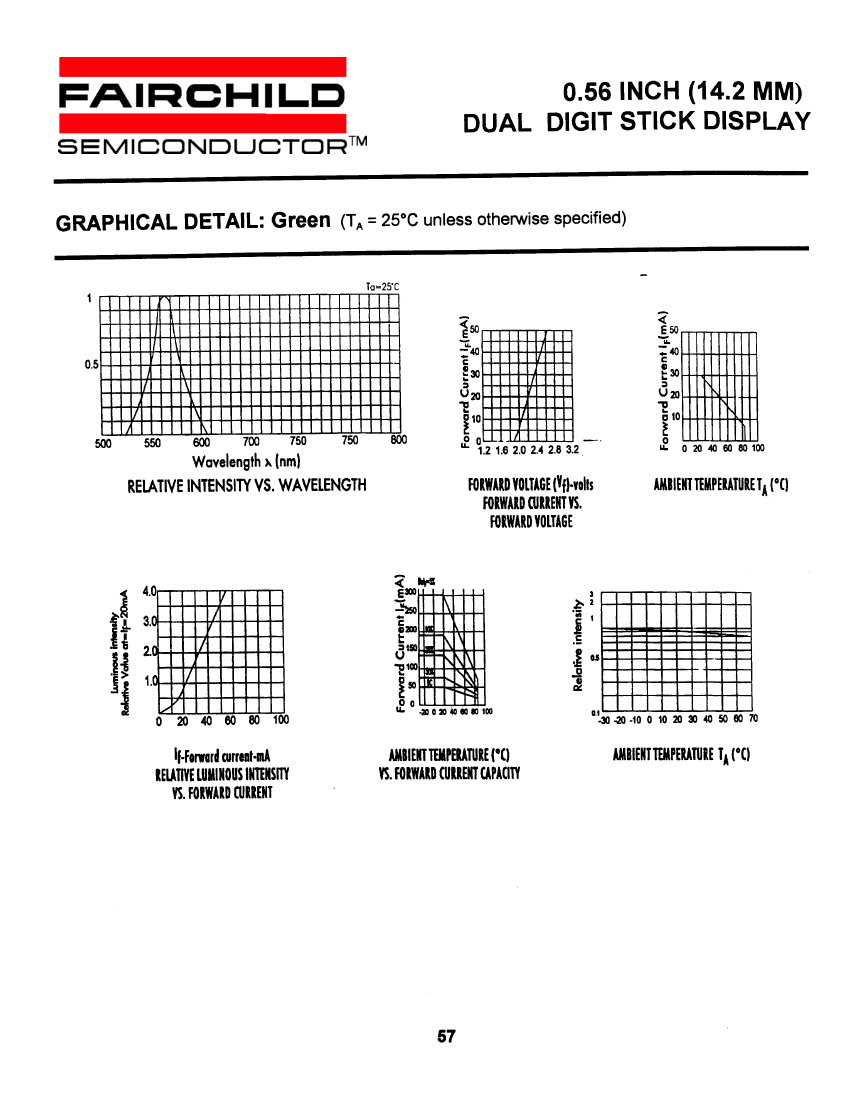

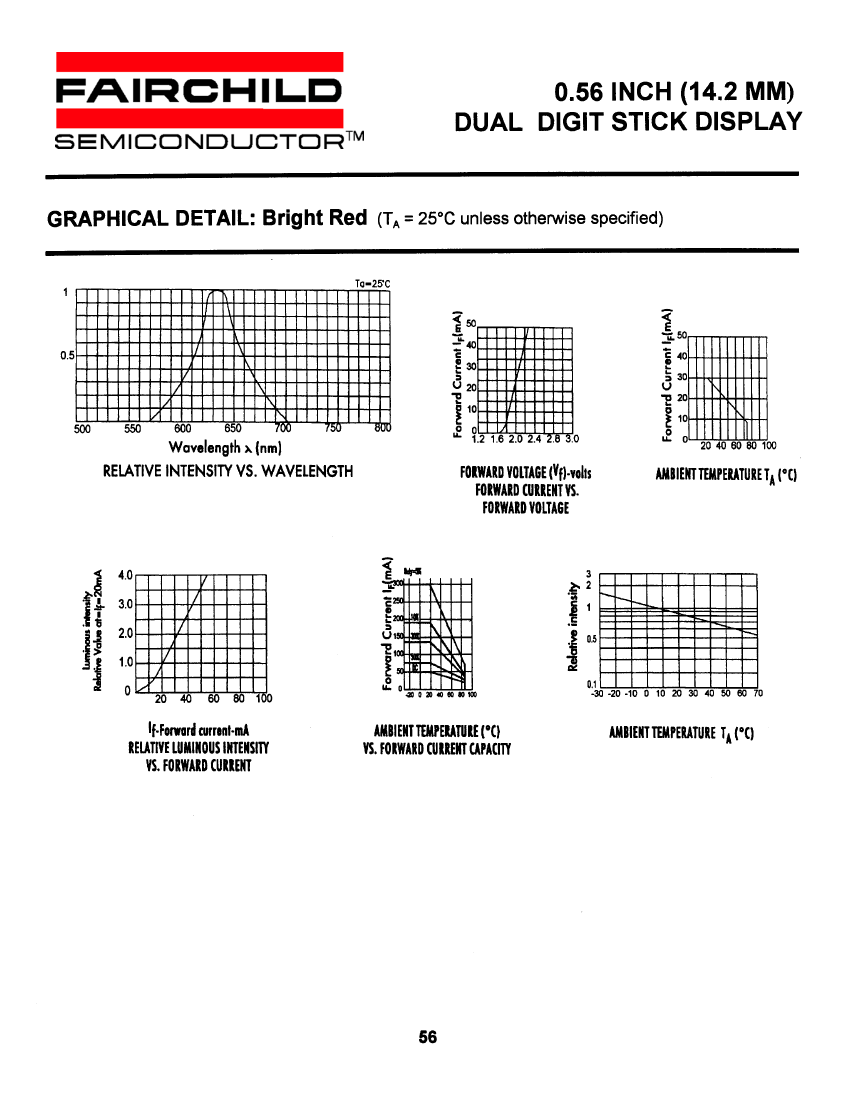

Parameter Name	Attribute value
category
Maker	ON Semiconductor
series	-
Package	Bulk
Number of characters	2
size/dimensions	0.750" high x 0.984" wide x 0.315" diameter (19.05mm x 25.00mm x 8.00mm)
Number/letter size	0.56"（14.22mm）
display type	7 paragraphs

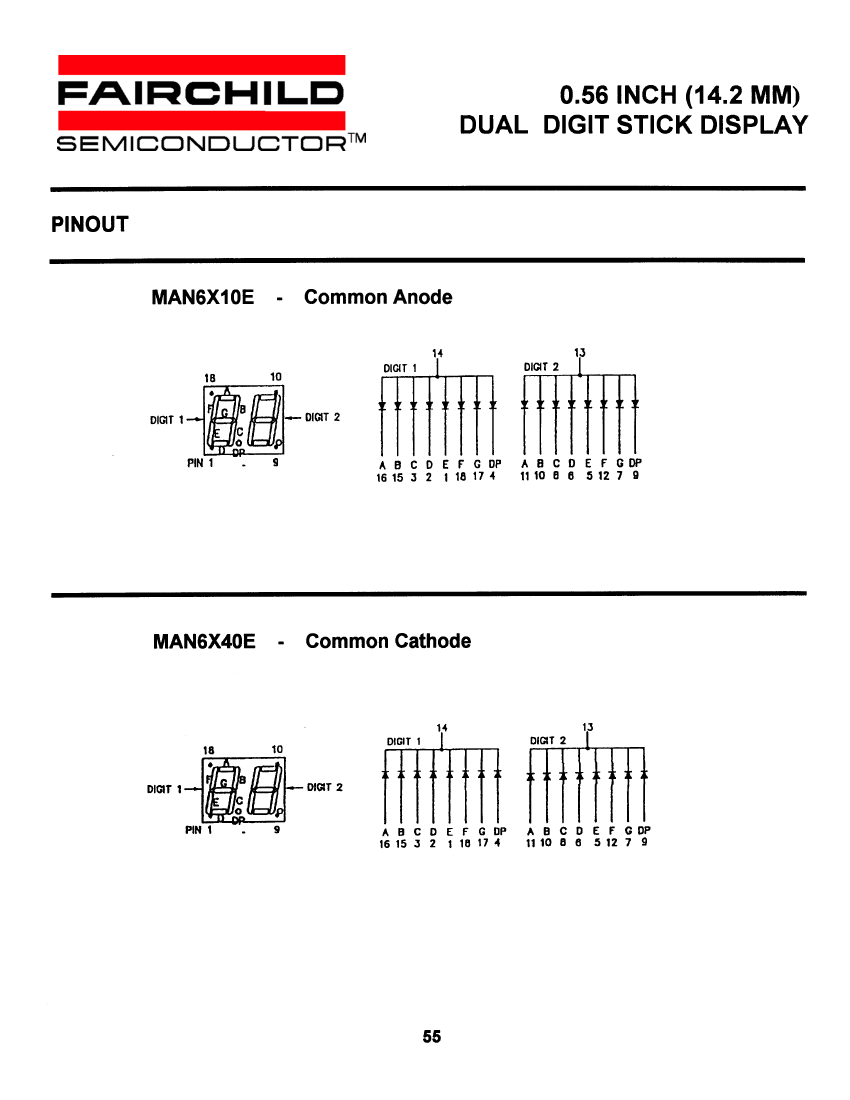

Common pins	common cathode
color	red
Voltage - Forward (Vf) (Typical)	2V
Current - Test	20mA
millicandela level	2mcd
Wavelength - Peak	635nm
Power dissipation (maximum)	100mW
Package/casing	18-DIP（0.600"，15.24mm）
Basic product number	MAN69
