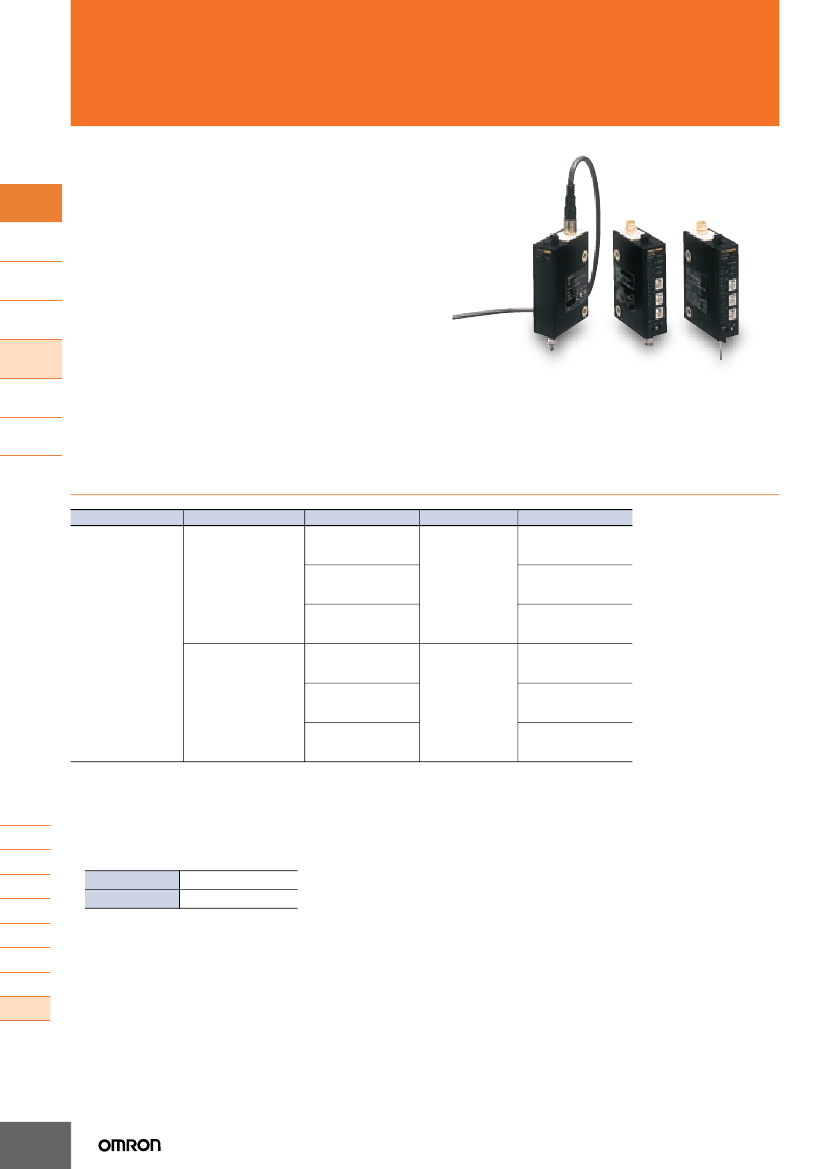

Contact Displacement Sensor Built into Amplifier
D5V
Displacement/
Length Sensors
Contact Displacement Sensor
Integrated with Amplifier Enables
Inline Measurement of a Wide Range
of Objects at a Low Operating Force
Sensing
■
Works with a low operating force (0.29 N) to detect a wide
Guide
variety of objects including glass, plastic, and rubber
objects.
Smart
Sensors
■
Models with digital output for B7A Units and models with
Displacement
Sensors
Length
Sensors
Other
Information
4- to 20-mA linear output corresponding to the 0- to 5-mm
measurement range are available.
■
Three types of measurement head can be selected
according to the object: Ball, pin, or flat.
■
The XS3 Sensor I/O Connector makes Sensor connections
simple.
Ordering Information
Measurement range Output specifications
Actuator
Ball type
10
µ
m
Resolution
Model
D5VA-3B1
4 to 20 mA
Pin type
D5VA-3P1
Flat type
*1
5 mm
Ball type
B7A serial communica-
Pin type
tions output
*2
Flat type
*1
1
µ
m
D5VA-3F1
D5VM-3B1
D5VM-3P1
D5VM-3F1
*1. Flat-type actuators have a hole 5-mm deep for an M2.5 screw in the tip so that an actuator can be mounted externally.
*2. Use the D5VM-3@1 in combination with the B7A Link Terminal Output Unit or a C200H or CQM1 B7A Interface Unit. Use 16- or 32-point Units with a standard
transmission delay time (19.2 ms). (A high-speed type cannot be used).
Z300
Z500
Z550
Z4D-F
Z4W-V
E4PA-N
E4DA
D5V
Approved Standard Ratings
Conformance to EN50081-1, pr50082-2
Rated current
Rated voltage
100 mA
24 VDC
442
D5V
Ratings and Specifications
Item
Power Supply voltage
Current consumption
Measurement range
Maximum actuator travel distance
Offset adjustment range
Resolution
Linearity
Repeat accuracy
Response time
Operating force
Output
Mounting method
Indicators
Mechanical durability
Temperature influence
Operating temperature
Storage temperature
Humidity range
Insulation resistance
Dielectric strength
Noise resistance
Vibration resistance
Shock resistance
Connection cable
Weight
Material
Model
12 to 24 VDC
±
10%
*1
80 mA max.
5 mm
Approx. 5.7 mm
D5VA-3@1
D5VM-3@1
±
0.25 mm
10
µ
m
0.5% FS max.
10
µ
m max.
6 ms max.
0.3 N max.
Linear current output: 4 to 20 mA
(Allowable load resistance: 0 to 300
Ω
)
Two M4 screws
Power and overtravel indicators
10,000,000 operations min.
Power, overtravel, setting, and output indicators
B7A serial communications output
(BCD and multipoint ON/OFF output modes
*2)
37 ms max. (including transmission delay time)
1
µ
m
Displacement/
Length Sensors
Sensing
Guide
Smart
Sensors
Displacement
Sensors
Length
Sensors
Other
Information
±
0.04% FS/
°
C max.
−
10 to 55
°
C (with no icing or condensation)
−
25 to 65
°
C (with no icing or condensation)
35% to 85% (with no icing or condensation)
100 M
Ω
min. (at 100 VDC)
1,000 VAC, 50/60 Hz for 1 min
Noise level: 1.5 kV with a pulse width of 100 ns to 1
µ
s
10 to 55 Hz, 0.75-mm double amplitude
196 m/s
2
2 m (XS3F-M421-402-R provided)
Approx. 80 g (without cable)
ABS and PC polymer alloy
*1. If power is supplied to both the D5VM-3@1 and B7A Output Link Terminal from a single power supply, the supply voltage must be 24 VDC
±
10%.
*2. BCD or multipoint output mode can be selected with the mode selector.

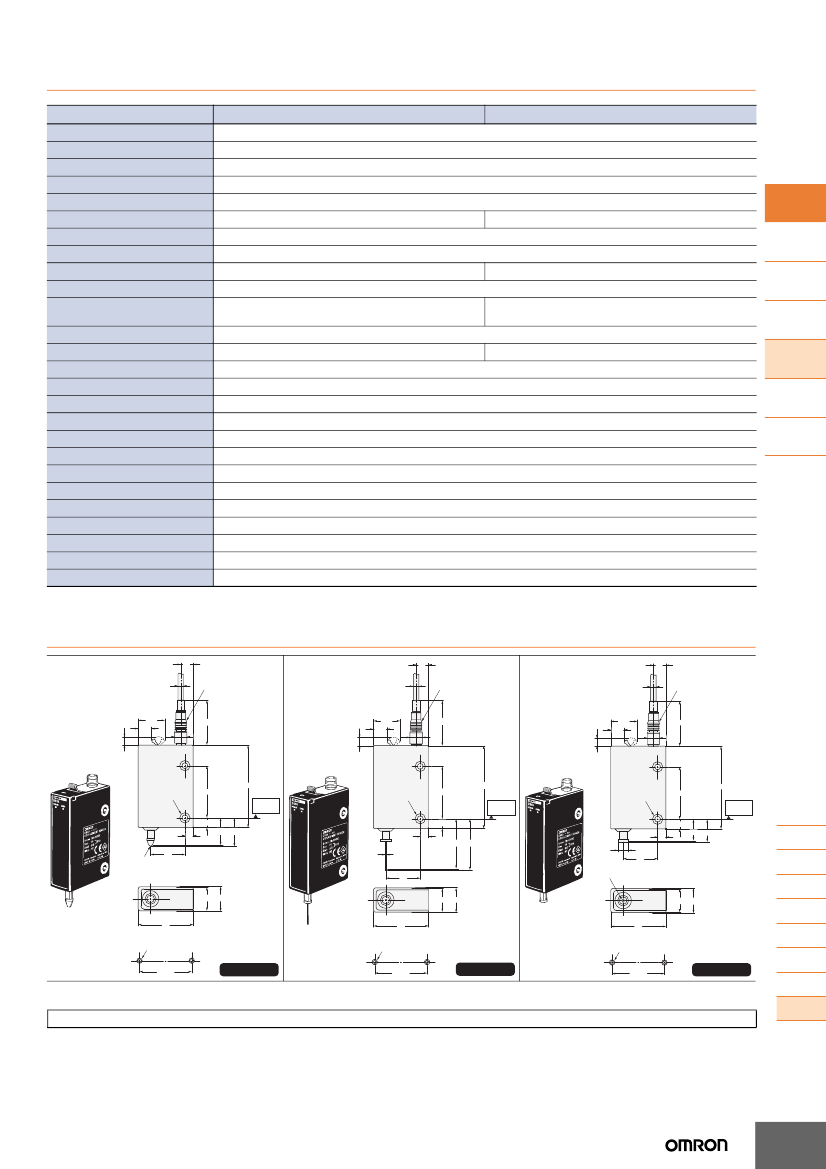

Dimensions
(The illustration shows the D5VA-@@@.)
D5VA-3B1
D5VM-3B1
9
4 dia.
XS3F-M421-402-R
Connection cable
(Length: 2 m)
(Unit: mm)
9
4 dia.
XS3F-M421-402-R
Connection cable
(Length: 2 m)
D5VA-3P1
D5VM-3P1
D5VA-3F1
D5VM-3F1
9
4 dia.
XS3F-M421-402-R
Connection cable
(Length: 2 m)
18.6
10.4
32.7
9 dia.
18.6
10.4
32.7
9 dia.
18.6
10.4
32.7
9 dia.
5.7
5.7
5.7
60
Two, 4.2 dia.
38
±0.1
Reference
Plain
60
Two, 4.2 dia.
38
±0.1
Reference
Plain
60
Two, 4.2 dia.
38
±0.1
Reference
Plain
7
6
25
L20.5 FP (20.7)
1 dia.
25
17.6 18
6
7
L31 FP (31.2)
6
5.5 dia.
25
M2.5 (Depth: 5 mm)
7
L16 FP (16.2)
Z300
Z500
Z550
SR1.5
17.6 18
17.6 18
Z4D-F
40
40
40
Mounting Hole Dimensions
Two, M4 or 4.3 dia.
Mounting Hole Dimensions
Two, M4 or 4.3 dia.
Mounting Hole Dimensions
Two, M4 or 4.3 dia.
Z4W-V
E4PA-N
38
±0.3
CAD data
38
±0.3
CAD data
38
±0.3
CAD data
E4DA
D5V
The output at position “L” is set at the factory to 4 mA for the D5VA, and to 0000 for the D5VM (BCD mode). In the free position (FP), EEEE is output, and when pressed
in excess of the measurement range, FFFF is output.
For safety precautions and further details, refer to
Contact Displacement Sensors Series Catalog
(Cat. No. X071).
Cat. No. F802-E1-01
In the interest of product improvement, specifications are subject to change without notice.
443
