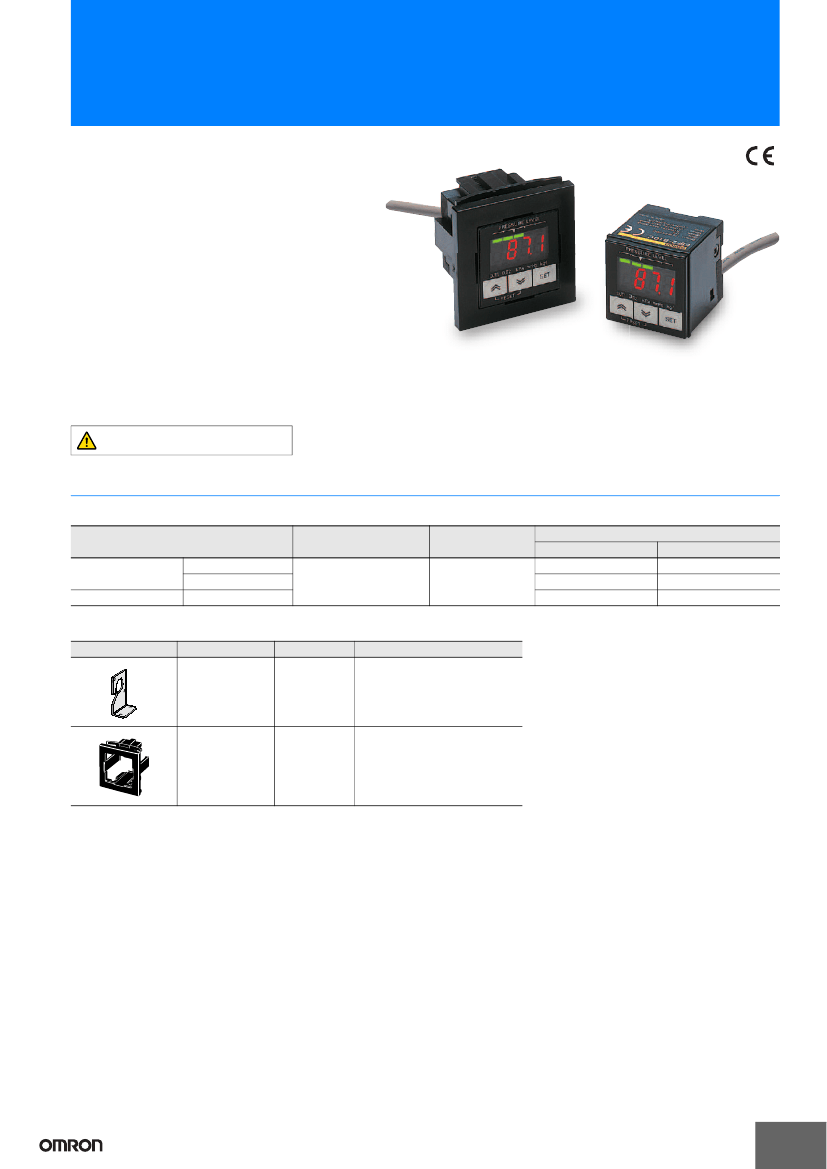

Digital Pressure Sensor
E8F2
CSM_E8F2_DS_E_4_3
Pressure Sensor with
Easy-to-Read LED Display
• Pressure status can be checked at a glance from the
digital display and bar display.
• Measurement pressure prevents incorrect outputs due
to momentary pressure changes. (*)
• Perform automatic teaching simply by teaching pressure
values for good and bad products.
• Industry’s smallest models at just 28
×
28
×
29 mm.
* Only in hysteresis mode.
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Be sure to read
Safety Precautions
on page 6.
Ordering Information
Sensors
(Refer to Dimensions on page 7.)
Pressure range
Positive pressure
Negative pressure
0 to 100 kPa
0 to 1 MPa
0 to
−101
kPa
ON/OFF output
Open collector
(two independent outputs)
Linear output
Model
NPN output
E8F2-A01C
E8F2-B10C
E8F2-AN0C
PNP output
E8F2-A01B
E8F2-B10B
E8F2-AN0B
1 to 5 V
Accessories (Order Separately)
(Refer to Dimensions on page 7.)
Appearance
Name
Model
Remarks
Mounting Bracket
E89-F3
Provided with the E8F2.
Panel-mounting
Bracket
E89-F4
Spacer provided.
1
E8F2
Ratings and Specifications
Sensor
Item
Model
NPN output
PNP output
E8F2-A01C
E8F2-A01B
70 mA max.
*1
Gauge pressure
0 to 100 kPa
0 to 100 kPa
400 kPa
0 to 1 MPa
0 to 1 MPa
1.5 MPa
0 to
−101
kPa
0 to
−101
kPa
400 kPa
E8F2-B10C
E8F2-B10B
E8F2-AN0C
E8F2-AN0B
Power supply voltage
Current consumption
Pressure type
Rated pressure range
Pressure setting range
Withstand pressure
Applicable fluid
Operating mode
Repeat accuracy
(ON/OFF output)
Linearity (linear output)
Response time (ON/OFF output)
Linear output
ON/OFF outputs
Load current
Output applied voltage
Residual voltage
12 to 24 VDC±10% with a ripple (p-p) of 10% max.
Non-corrosive gas and non-flammable gas
Hysteresis mode, window mode, and automatic teaching mode
±1%FS max.
±1%FS max.
5 ms max.
1 to 5 V ±5% F.S. with an output impedance of 1 kΩ and a permissible resistive load of 500 kΩ.
NO or NC open collector (depending on whether the output configuration is NPN or PNP)
30 mA max.
30 VDC max.
NPN open collector output: 1 V max. with 30 mA load current
PNP open collector output: 2 V max. with 30 mA load current
3.5-digit red LED
Green LED bar indicator
The orange LED is lit for two independent outputs with output transistor turned ON.
Green unit indicator
±3%FS±1 digit max.
Reverse polarity protection, load short-circuit protection
Operating: 0 to 55°C
Storage:
−10
to 60°C (with no icing)
Operating/Storage: 35% to 85% (with no condensation)
±3%FS max.
±1.5%FS max.
100 MΩ min. (at 500 VDC) between current-carrying parts and case
1,000 VAC at 1 min
Destruction: 10 to 500 Hz, 1.0-mm double amplitude or 150 m/s
2
, three times each for 11 min in the X, Y,
and Z directions
Destruction: 300 m/s
2
3 times each in the X, Y, and Z directions
IP50 (IEC)
R (PT) 1/8 taper screw and M5 female screw
Pre-wired (standard length: 2 m)
Approved by UL
Approx. 110 g
Aluminum die-cast
Heat-resistive ABS
Mounting Bracket, Instruction manual
Display
*2
Display accuracy
Protection circuits
Ambient temperature range
Ambient humidity range
Temperature influence
Voltage influence
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Degree of protection
Pressure port
Connection method
Cable
Weight (packed state)
Material
Pressure port
Case
Accessories
*1. The current consumption is approximately 43 mA in energy-saving mode.
*2. Display Example of Digital Indicator
Model
E8F2-A01C
E8F2-B10C
E8F2-AN0C
Setting unit
kPa
Applied pressure
Digital display
100
1
0
0
0
1000
1
0
0
0
−101
−1
0
1
0
Note: The period ( ) in the display indicates the decimal point.
Its position will not change unless the setting unit is changed.
2
E8F2
Engineering Data (Reference Value)
Temperature vs. Linear Output Current Temperature vs. Operating Pressure Fluctuation
Fluctuation
E8F2-A01@
Linear output fluctuation (%FS)
+10
E8F2-A01@
Operating pressure fluctuation (%FS)
75
+10
+5
Rated pressure
+5
Pressure 0
0
0
−5
−5
−10
−25
0
25
50 55
−10
−25
0
25
50 55
75
Temperature (˚C)
Temperature (˚C)
Pressure vs. Linear Output
E8F2-A01@
Linear output voltage (V)
6
Linearity
E8F2-A01@
Linear Deviation (%FS)
+1
5
+0.5
4
3
0
2
−0.5
1
−1
0
0
20
40
60
80
100
25
50
75
100
Pressure (kPa)
Pressure (kPa)
3
E8F2

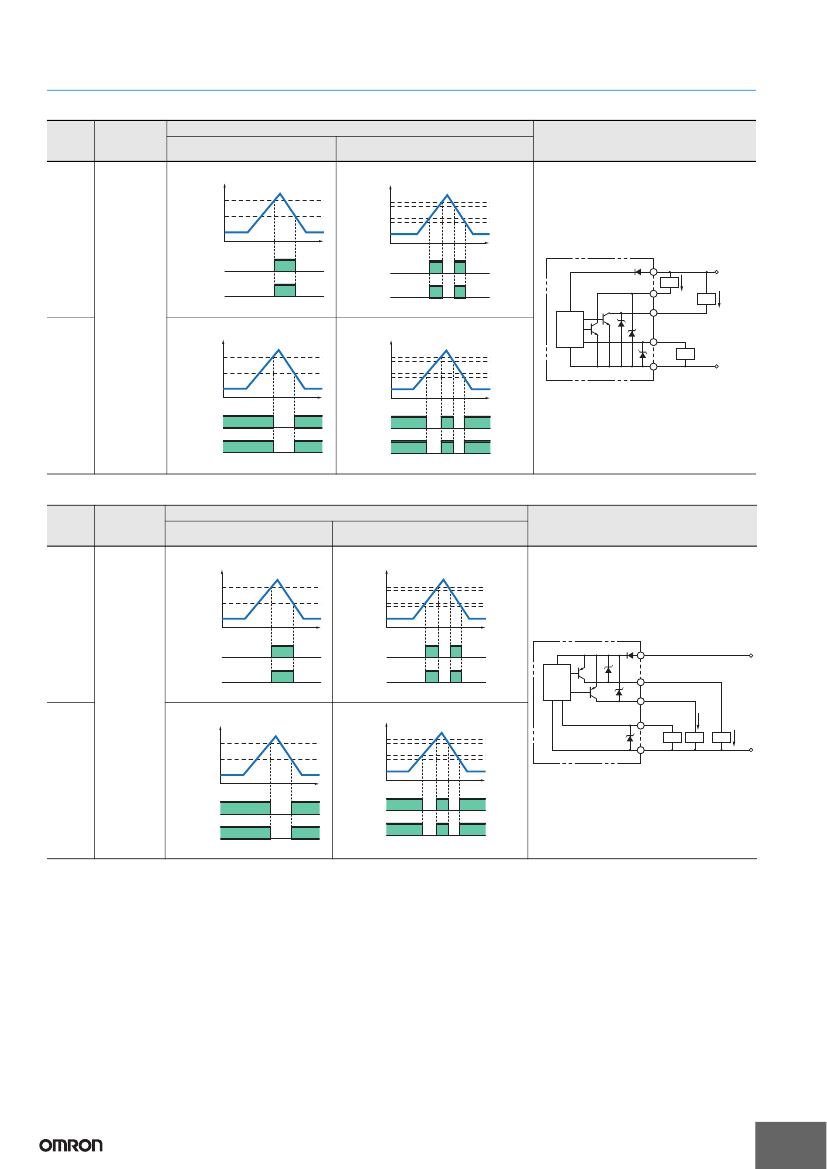

I/O Circuit Diagrams
NPN Output
Oper-
ating
mode
Timing chart
Model
Hysteresis mode
Window mode
Output circuit
Pressure
ON point
OFF point
Pressure
OFF point
ON point
OFF point
−10%
FS
max.
ON point
−10%
FS
max.
NO
Output
OUT
indicator
(orange)
T
T
Output
ON
OFF
ON
OFF
ON
OFF
Brown
Load
+12 to 24 V
30 mA
max.
30 mA
max.
E8F2-A01C
E8F2-B10C
E8F2-AN0C
OUT
ON
indicator
(orange)
OFF
Pressure
Sensor
main
circuit
OFF point
−10%
FS
max.
ON point
−10%
FS
max.
Load
Black
(ON/OFF1)
White (ON/OFF2)
Gray
(linear)
1 to 5 V
Load
Pressure
ON point
OFF point
Pressure
OFF point
ON point
Blue
0V
NC
Output
T
ON
OFF
Output
T
ON
OFF
OUT
indicator
ON
(orange)
OFF
OUT
indicator
ON
(orange)
OFF
PNP Output
Oper-
ating
mode
Timing chart
Model
Hysteresis mode
Window mode
Output circuit
Pressure
ON point
OFF point
Pressure
OFF point
ON point
OFF point
−10%
FS
max.
ON point
−10%
FS
max.
NO
Output
OUT
indicator
(orange)
T
T
Output
ON
OFF
ON
OFF
ON
OFF
Pressure
sensor
main
circuit
Brown
+12 to 24 V
E8F2-A01B
E8F2-B10B
E8F2-AN0B
OUT
ON
indicator
(orange)
OFF
Black (ON/OFF1)
White (ON/OFF2)
Gray 1 to 5 V
(Linear)
Load
Load
Load
30 mA
max.
30 mA
max.
Pressure
ON point
OFF point
Pressure
OFF point
ON point
OFF point
−10%
FS
max.
ON point
−10%
FS
max.
Blue
0V
NC
Output
T
ON
OFF
Output
T
ON
OFF
OUT
indicator
ON
(orange)
OFF
OUT
indicator
ON
(orange)
OFF
4
E8F2
Nomenclature
(1)
(2)
(4)
(5)
(3)
(6)
(7)
(8)
Display Panel
(1) Bar Indicator (Green)
Indicates the degree of measured pressure in relation to the set
pressure.
(2) Numeric and Menu Display (Red)
Indicates measurement values and setting menu items.
(3) Unit indicator (Green)
Indicates the unit used for detection. The unit indicated on the
indicator is the one currently set.
(4) OUT1 Indicator (Orange)
Lit when OUT1 is turned ON.
(5) OUT2 Indicator (Orange)
Lit when OUT2 is turned ON.
Operation Keys
(6)
Up Key, (7)
Down Key
•
Used to select or change the set items, set contents, and set values
in setting mode.
•
Press either key to check the ON and OFF points in measurement
mode. The values are reset by pressing both keys simultaneously.
•
Use together with the SET Key for setting the Sensor to a special
setting mode or energy-saving mode.
(8)
SET Key
•
Used for entering the set contents and set values in setting mode.
•
Used for setting the Sensor to basic setting mode or pressure
setting mode.
SET
5
