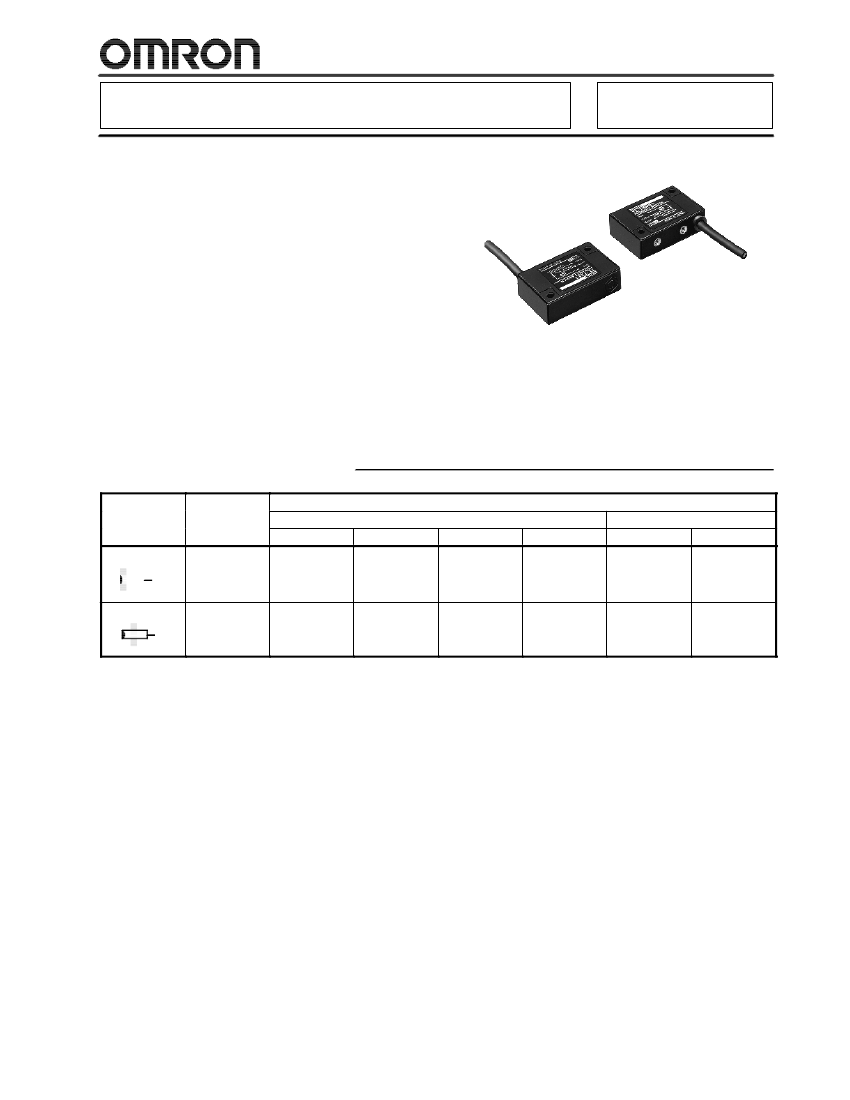

R
Slim Rectangular Inductive Prox
Miniature, Slim-styled Type Proximity
H
Space-saving prox ideal for timing cam
and dog detection
TL-T
H
Four mounting holes provided: two from
the side and two from the rear of the
housing
H
Ganged mounting possible for multiple
pulse generation
H
Alternate frequency models available to
avoid mutual interference
Ordering Information
Part number
Type
Shielded
Sensing
Distance
2 mm (0.08 in)
DC 3-wire switching type
NPN-NO
TL-T2E1
NPN-NC
TL-T2E2
PNP-NO
TL-T2F1
PNP-NC
TL-T2F2
AC switching type
SCR-NO
TL-T2Y1
SCR-NC
TL-T2Y2
Unshielded
5 mm (0.20 in)
TL-T5ME1
TL-T5ME2
TL-T5MF1
TL-T5MF2
TL-T5MY1
TL-T5MY2
Note: 1. To avoid mutual interference, this sensor can be ordered with a different oscillating frequency. Add a “5” to the end of the part
number (e.g. TL-N2E15).
2. Add suffix “G” to the model number when placing your order for European models with color-coded cables conforming to
CENELEC standard (EN50044). Refer to the color code table in the “Output Stage Circuit Diagram” for the cable color codes
of the European models.
TL-T
TL-T
Specifications
J
RATINGS/CHARACTERISTICS
Part number
Supply voltage (operating voltage range)
Current consumption
Leakage current
Sensing object
Sensing distance
Sensing distance (standard object)
Differential travel
Response frequency
Operating status (with sensing object
approaching)
TL-T2E1, TL-T2E2, TL-T2Y1, TL-T2Y2
TL-T2F1, TL-T2F2
TL-T5ME1, TL-T5ME2,
TL-T5MF1, TL-T5MF2
TL-T5MY1, TL-T5MY2
E and F models:
12 to 24 VDC (10 to 30 VDC), ripple (p-p): 20% max.
Y models:
100 to 220 VAC (90 to 250 VAC), 50/60 Hz
E and F models:
Y models:
15 mA max. at 24 VDC
2.5 mA max. at 200 VAC
5 mm
±10%
(0.19
±10%)
0 to 4 mm (iron, 15 x 15 x 1 mm)
0 to 0.157 in (iron 0.59 x 0.59 x 0.39 in)
E and F models:
Y models:
250 Hz,
20 Hz
Magnetic metal (The sensing distance decreases with non-magnetic metal.)
2 mm
±10%
(0.08
±10%)
0 to 1.6 mm (iron, 12 x 12 x 1 mm)
0 to 0.06 in (iron 0.47, 47 x 0.04 in)
10% max. of sensing distance
E and F models:
Y models:
E1 models:
E2 models:
F1 models:
Y1 models:
Y2 models:
E1:
E2:
F1:
F2:
800 Hz,
20 Hz
L output signal with load ON
H output signal with load OFF
H output signal with load ON
Load ON
Load OFF
Control output
Type
NPN-NO Y1: SCR-NO
NPN-NC Y2: SCR-NC
PNP-NO
PNP-NC
100 mA max. at 12 VDC and 200 mA max. at 24 VDC
10 to 200 mA
Reverse connection protection and surge absorber
Surge absorber
Switching
capacity
Circuit protection
Indicator
Ambient temperature
Ambient humidity
Temperature influence
Voltage influence
Operating
Operating
E and F models:
Y models:
E and F models:
Y models:
Operation indicator (red LED)
- 25°C to 70°C (- 13°F to 158°F) with no icing
-
-
35% to 95%
±10%
max. of sensing distance at 23°C (73.4°F) in the temperature range of
- 25°C to 70°C (- 13°F to 158°F)
-
-
E and F models:
±2.5%
max. of sensing distance within a range of
±15%
of the rated power
supply voltage
Y models:
±2.5%
max. of sensing distance within a range of
±10%
of the rated power supply
voltage
E and F models:
Y models:
1.0 V max. with a load current of 100 mA and a cord length of 2 m
Refer to

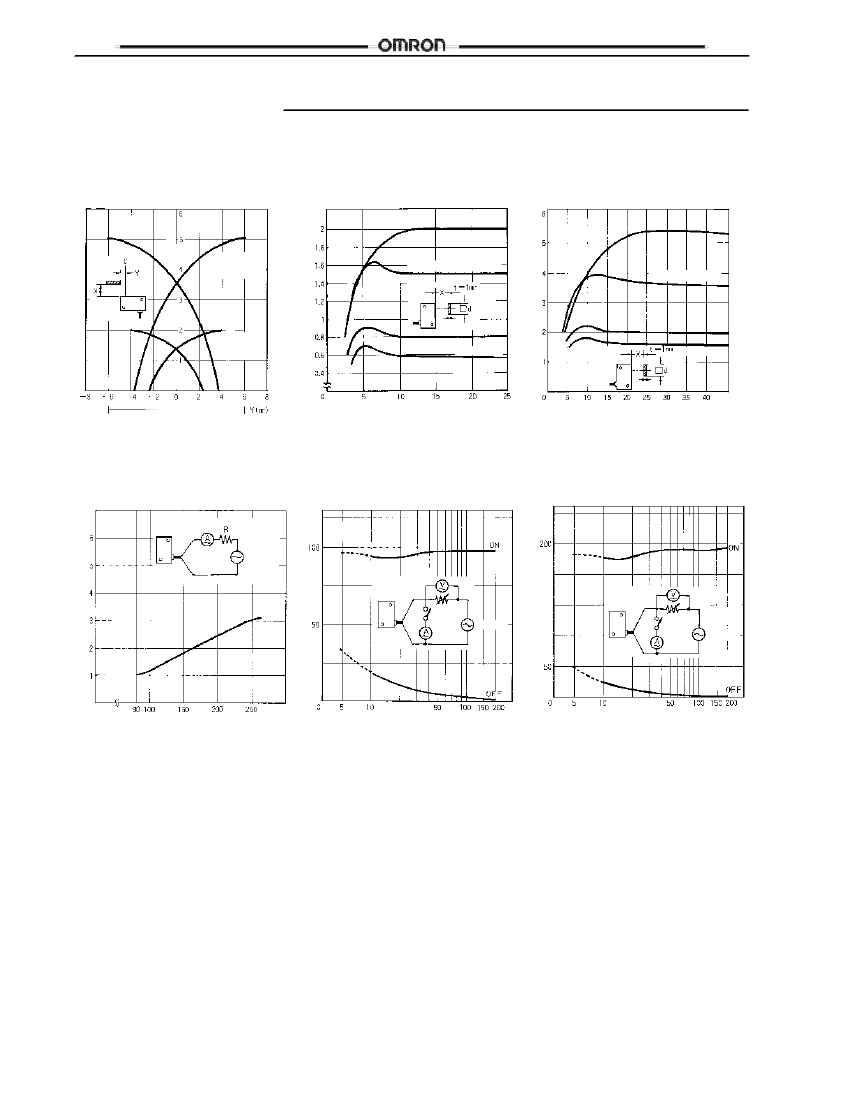

Residual Load Voltage (Typical)
on page 4.
1,000 VAC, 50/60 Hz for 1 min between case and current carry
2,000 VAC, 50/60 Hz for 1 min between case and current carry
Residual voltage
Insulation resistance
Dielectric strength
50 MΩ min. (at 500 VDC) between case and current carry parts
DC switching models:
parts
AC switching models:
parts
Vibration resistance
Shock resistance
Enclosure rating
Weight (with 2-m cord)
Material
Case
Sensing
surface
10 to 55 Hz, 1.5-mm (0.06 in)double amplitude for 2 hours each in X, Y, and Z directions
500 m/s
2
(1640 ft/s
2
) approx. 50G for 10 times each in X, Y, and Z directions
IEC IP67
Approx. 70 g (2.47 oz)
Heat-resistant ABS resin
Heat-resistant ABS resin
2
TL-T
TL- T
Dimensions
Unit: mm (inch)
Sensing
surface
Two, M3,
depth 6
Two, 3.1 dia. (0.122)
6 (0.24)
32
¦
0.2
(1.259
¦
0.008
)
16
¦
0.2
(0.0.63
¦
0.008
)
40
(1.57)
9 (0.35)
5 (0.19)
4 17
(0.787
¦
0.008
)
26
(1.02)
¦
0.2
4
12
(0.47)
Indicator
DC switching model: Three, 0.2-mm (0.007 in) conductors
AC switching model: Two, 0.3-mm (0.012 in) conductors
Oil- and vibration-resistant, vinyl-insulated round cord,
4 external dia.; standard length: 2 m (6.56 ft)
Precautions
J
CONNECTION TO THE LOAD
Be sure to connect the Proximity Sensor to the power source
through a load. Direct connection of the Sensor may damage the
Sensor.
J
MOUNTING
At the time of rear mounting, be sure that the tightening torque
does not exceed 6 kgf
S
cm (0.59 N
S
m) 5.22 in
S
lbf.
Load
90 to 250 VAC
Mounting screws, each tight-
ened to torque 6 kgf
S
cm
(0.59 N
S
m) max.
At the time of side mounting, be sure that the tightening torque
does not exceed 8 kgf
S
cm (0.78 N
S
m) 2.02 in
S
lbf.
Mounting screws, each tight-
ened to torque 8 kgf
S
cm
(0.78 N
S
m) max.
5
