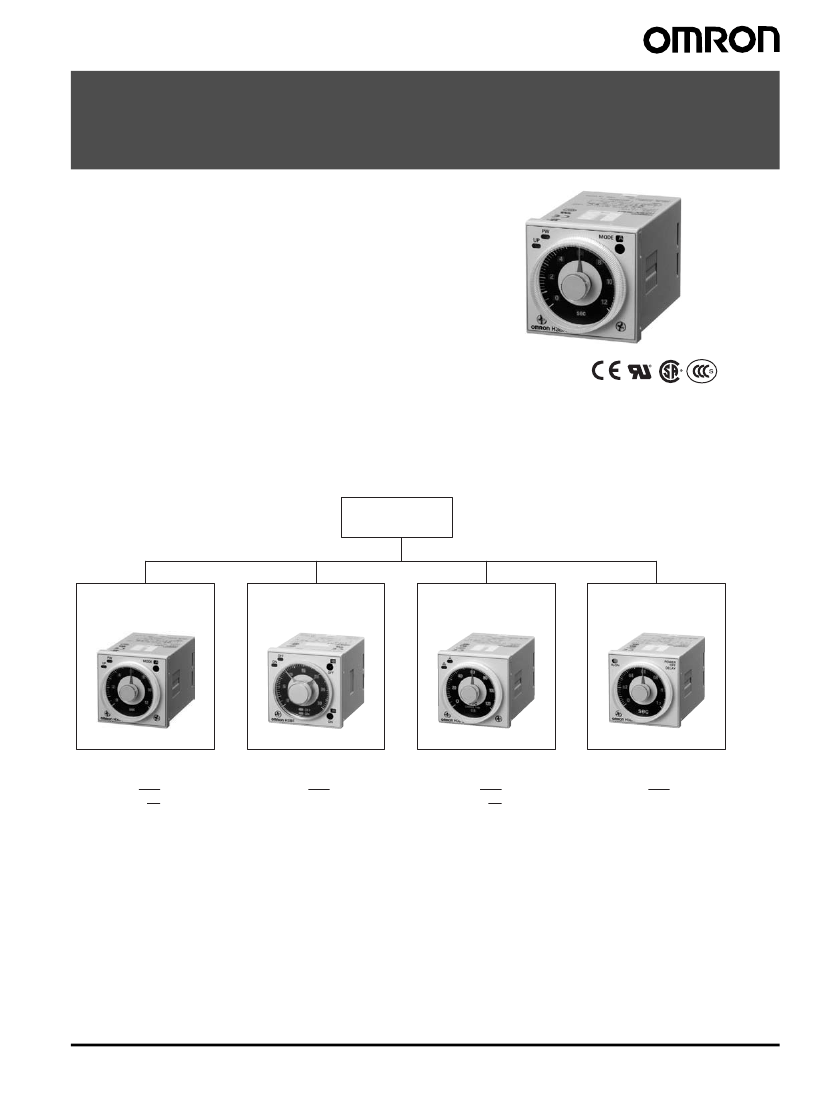

Solid-state Timer
H3BA-N
Please read and understand this catalog before purchasing the products.
Please consult your OMRON representative if you have any questions or
comments. Refer to
Warranty and Application Considerations
(page 21),
and
Safety Precautions
(page 17).
Solid-state Timer with Valuable Multiple-time
Ranges and Multiple-operating Modes
• Handles a wide range of applications through eight operating
modes.
• With H3BA-N8H models, the output type can be switched
between time-limit DPDT and time-limit SPDT + instantaneous
SPDT using a selector.
• Setting rings (order separately) to enable consistent settings
and to limit the setting range.
• Panel Covers (order separately) to enable various panel
designs.
• CE marking.
UL, CSA and CCC certification, conforms to LR.
■
Broad Line-up of H3B@-N Series
H3B@-N
H3BA-N
H3BF-N
H3BG-N
H3BH-N
instantaneous
instantaneous
contact output
contact output
and time-limit
output
Note:
Refer to the
H3BF-N/BG-N/BH-N Datasheet (Cat. No. L094-E1-02)
for details.
Multi-functional Timer
11-pin model
H3BA-N
8-pin with
H3BA-N8H
Twin Timer
H3BF-N8
8-pin model
Star-delta Timer
8-pin model
H3BG-N8
8-pin with
H3BG-N8H
Power OFF-delay Timer
8-pin model
H3BH-N8
Solid-state Timer
H3BA-N
1
Model Number Structure
■
Model Number Legend
H3BA-N@
1
1. Number of Pins/Output
None: 11-pin models/Time-limit DPDT
8H: 8-pin models/Time-limit SPDT and switchable SPDT (time-limit
↔
instantaneous)
Ordering Information
■
List of Models
Control output
Contact output: DPDT (time-limit output)
Supply voltage
110 VAC (50/60 Hz)
220 VAC (50/60 Hz)
24 VDC
Contact output: Time-limit SPDT and
switchable SPDT
(time-limit
↔
instantaneous)
110 VAC (50/60 Hz)
220 VAC (50/60 Hz)
24 VDC
11-pin models
H3BA-N 110 VAC
H3BA-N 220 VAC
H3BA-N 24 VDC
---
H3BA-N8H 110 VAC
H3BA-N8H 220 VAC
H3BA-N8H 24 VDC
---
8-pin models
■
Accessories (Order Separately)
Name/specifications
Flush Mounting Adapters
Y92F-30
Y92F-70
Y92F-71
Mounting Tracks
50 cm (l)
×
7.3 mm (t)
1 m (l)
×
7.3 mm (t)
1 m (l)
×
16 mm (t)
End Plate
Spacer
Protective Cover
Track Mounting/
Front Connecting Sockets
Back Connecting Sockets
Time Setting Rings
Panel Covers (See note 1.)
Hold-down Clips (See note 2.)
8-pin
11-pin
8-pin
11-pin
Setting a specific time
Limiting the setting range
Light gray (5Y7/1)
Black (N1.5)
For PL08 Socket
For PF085A Socket
Note: 1.
The Time Setting Ring and Panel Cover are sold together.
2.
Hold-down Clips are sold in sets of two.
PFP-50N
PFP-100N
PFP-100N2
PFP-M
PFP-S
Y92A-48B
P2CF-08
P2CF-11
P3G-08
P3GA-11
Y92S-27
Y92S-28
Y92P-48GL
Y92P-48GB
Y92H-1
Y92H-2
Models
2
Solid-state Timer
H3BA-N
Specifications
■
General
Item
Operating mode
H3BA-N
A: ON-delay
B: Flicker OFF start
B2: Flicker ON start
C: Signal ON/OFF-delay
D: Signal OFF-delay
E: Interval
G: Signal ON/OFF-delay
J: One-shot
11-pin
No-voltage input
DPDT (time-limit)
H3BA-N8H
A: ON-delay
H: ON-delay with instantaneous output contact
Pin type
Input type
Output type
Mounting method
Approved standards
EMC
8-pin
---
SPDT (time-limit) and switchable SPDT
(time-limit <---> instantaneous)
DIN track mounting, surface mounting, and flush mounting
UL508, CSA C22.2 No.14, LR, CCC
Conforms to EN61812-1 (Pollution degree 2 / Overvoltage category
III)
EN61812-1
(EMI)
Radiated Emissions: Emission EN 55011 class A
EN 55011 class A
AC Mains:
EN61812-1
(EMS)
EN 61000-4-2:
6 kV contact discharge,
ESD Immunity:
8 kV air discharge
EN 61000-4-3: 10 V/m (80 MHz to 1 GHz AM modulation)
Radiated Radio-Frequency
3 V/m (1.4 GHz to 2 GHz AM modulation)
Electromagnetic Field Immunity:
1 V/m (2 GHz to 2.7 GHz AM modulation)
10 V/m (900 MHz Pulse modulation)
Conducted disturbances: Burst EN 61000-4-6: 10 V (0.15 MHz to 80 MHz)
EN 61000-4-4:
2 kV power line
Immunity:
2 kV I/O signal line
EN 61000-4-5:
2 kV common mode
Surge Immunity:
1 kV differential mode
EN 61000-4-11
Voltage dips:
EN 61000-4-11
Voltage interruptions:
■
Time Ranges
Time unit
Full scale setting
1.2
3
12
30
sec
10 s
1.2 to 12
3 to 30
12 to 120
30 to 300
min
0.12 to 1.2
0.3 to 3
1.2 to 12
3 to 30
10 m
1.2 to 12
3 to 30
12 to 120
30 to 300
hrs
0.12 to 1.2
0.3 to 3
1.2 to 12
3 to 30
10 h
1.2 to 12
3 to 30
12 to 120
30 to 300
Set time
0.05 to 1.2
0.3 to 3
1.2 to 12
3 to 30
Solid-state Timer
H3BA-N
3
■
Ratings
Item
Rated supply voltage
(See notes 1 and 2)
Operating voltage range
(See note 3)
Power reset
No-voltage input
H3BA-N
110 VAC (50/60 Hz), 220 VAC (50/60 Hz), 24 VDC
85% to 110% of rated supply voltage
Minimum power-opening time: 0.1 s
ON impedance:
1 kΩ max.
ON residual voltage: 1 V max.
OFF impedance:
200 kΩ min.
110 VAC: Approx. 4.6 VA (1.5 W)
220 VAC: Approx. 7.6 VA (1.3 W)
24 VDC: Approx. 0.6 W
Contact:
110 VAC: Approx. 3.6 VA (1.6 W)
220 VAC: Approx. 7.8 VA (1.9 W)
24 VDC: Approx. 0.9 W
H3BA-N8H
Power consumption
Control outputs
5 A at 250 VAC, resistance load (cosφ = 1)
Note: 1.
DC ripple rate: 20% max.
2.
Models other than 24-VDC H3BA-N models cause an inrush current. Pay careful attention when attempting to turn on power to such
models with non-contact output from a device such as a sensor.
3.
90% or higher if the Timer is used continuously at a high ambient temperature.
■
Characteristics
Item
Accuracy of operating time
Setting error
Reset time
Influence of voltage
Influence of temperature
Insulation resistance
Dielectric strength
±5%
FS
±0.05
s max.
Min. power-opening time: 0.1 s max.
Min. pulse-input time:
50 ms
±0.5%
FS max. (±0.5%±10 ms in a range of 1.2 s)
±2%
FS max. (±2%±10 ms in a range of 1.2 s)
100 MΩ min. (at 500 VDC)
2,000 VAC, 50/60 Hz for 1 min between current-carrying metal parts and exposed non-current-carrying metal
parts
2,000 VAC, 50/60 Hz for 1 min between control output terminals and operating circuit
1,000 VAC, 50/60 Hz for 1 min between contacts not located next to each other (750 VAC for H3BA-N8H)
1 kV (between power terminals)
2 kV (between current-carrying terminal and exposed non-current-carrying metal parts,
1.5 kV for 24-VDC models)
AC models:
±1.5
kV (between power terminals), and
±600
V (between input terminals),
square-wave noise by noise simulator (pulse width: 100 ns/1
µs,
1-ns rise)
DC models:
±480
V (between power terminals), and
±600
V (between input terminals),
square-wave noise by noise simulator (pulse width: 100 ns/1
µs,
1-ns rise)
Malfunction: 4 kV
Destruction: 8 kV
Destruction: 10 to 55 Hz with 0.75-mm single amplitude each in three directions
Malfunction: 10 to 55 Hz with 0.5-mm single amplitude each in three directions
Destruction: 1,000 m/s
2
(approx. 100G) each in three directions
Malfunction: 100 m/s
2
(approx. 10G) each in three directions
Operating: –10°C to 55°C (with no icing)
Storage:
–25°C to 65°C (with no icing)
Operating: 35% to 85%
Mechanical: 10 million operations min. (under no load Mechanical: 10 million operations min. (under no
at 1,800 operations/h)
load at 1,800 operations/h)
Electrical: 100,000 operations min. (5 A at 250 VAC, Electrical: 100,000 operations min. (5 A at 250
resistive load at 1,800 operations/h)
VAC, resistive load at 360 operations/h)
Light gray (Munsell 5Y7/1)
IEC: IP40 (panel surface)
Approx. 95 g
H3BA-N
±0.3%
FS max. (±0.3%±10 ms in a range of 1.2 s)
H3BA-N8H
Impulse withstand voltage
Noise immunity
Static immunity
Vibration resistance
Shock resistance
Ambient temperature
Ambient humidity
Life expectancy
Case color
Enclosure ratings
Weight
Note:
For setting the time-limit of the Timer to a cycle of less than 3 seconds or applying the forced reset, use the H3BA-N in mode D (signal OFF-
delay).
4
Solid-state Timer
H3BA-N
Nomenclature
H3BA-N
Power Indicator (Green):
Lit when Timer operates.
Operating Mode Display Window
H3BA-N8H
Power Indicator (Green):
Lit when Timer operates.
Output Type Display Window
Output Type Selector:
Select a type from A
and H
A: Time-limit DPDT
(default setting)
H: Time-limit SPDT and
instantaneous SPDT
Scale Range Display
Windows
PW
MODE
A
1.5
PW
MODE
A
1.5
Output Indicator (Orange):
Lit when Timer outputs.
Time Range Selector:
Select one from
1.2, 3, 12, and 30.
UP
1
0.5
2
2.5
Operating Mode Selector:
Select a mode from
A, B, B2, C, D, E, G, and J.
Scale Range Display
Windows
Output Indicator (Orange):
Lit when Timer outputs.
Time Range Selector:
Select one from
1.2, 3, 12, and 30.
UP
1
0.5
2
2.5
0
sec
H3BA
3
0
sec
3
H3BA
Time setting knob (set time)
Time Unit Selector
Select a unit from
sec, 10 s, min, 10 m, hrs,
and 10 h.
Time setting knob (set time)
Time Unit Selector
Select a unit from sec,
10 s, min, 10 m, hrs,
and 10 h.
Solid-state Timer
H3BA-N
5
