OMRON
O
MRON
N
ETWORK
P
RODUCTS
®
1.0
Description

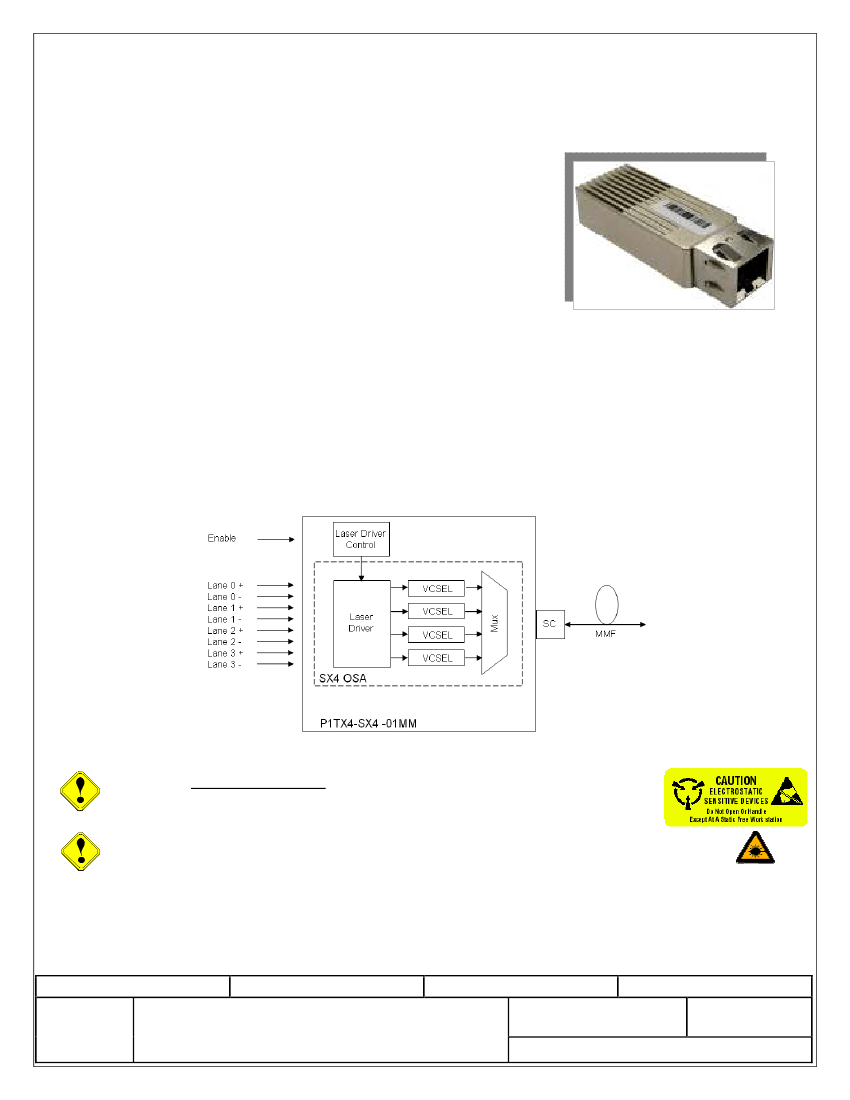

The P1TX4C-SX4x-01MM (TX-SX4 Module) is an
optical subassembly (OSA) that transmits four video- or
data-channels over one multimode fiber. Each channel
is capable of transmitting up to 1.65Gbps (model = V)
or 3.5Gbps (model = D). With a microcontroller
preprogrammed for optimal optical transmission on
board, TX-SX4 module is a fully integrated electrical to
optical transmitter versatile enough to be designed in to a variety of systems.
2.0
Features
•
•
•
•
Multiple signals over one multimode fiber
Integrated microcontroller for laser driver control
~ 0.5W power consumption
Metal enclosure with SC optical interface
This device is
EXTREMELY SENSITIVE
to Electrostatic Discharge (ESD). At a minimum, all handling must be
performed in accordance with an ANSI-compliant ESD Control Program (ANSI/ESD S20.20-2007) to mitigate
possible ESD-induced damage. Reliability and life of the device will be adversely affected if these precautions are
not met.
This device is a Class 3R Laser device (per IEC 60825-1:2007) and can cause damage to eye sight if used improperly. Refer to ANSI
Z136 for proper handling and usage of Class 3R devices.
ORIGINATOR:
OMRON
DATE:
7/8/2011
DOCUMENT NO.
REV
DOC002106
A
P1TX4C-SX4x-01MM Product Specification
SHEET
1
OF
6
C. ENG
OMRON
O
MRON
N
ETWORK
P
RODUCTS
®
3.0
Absolute Maximum Ratings
Parameter
Storage Temperature
3.3V Supply Voltage
2
Operating Surface Temperature
3
Operating Humidity
Durability – SC Connector
Durability – Plug-down Connector
1
Symbol
Tst
VCC1
Ta
RH
Min
-40
-0.3
0
Typ
Max
85
3.6
65
80
Units
°C
V
°C
%
cycles
cycles
200
50
4.0
Optical Characteristics
Parameter (per Channel)
Average Optical Power, per Lane
Optical Modulation Amplitude
Center Wavelength – Lane 0
Center Wavelength – Lane 1
Center Wavelength – Lane 2
Center Wavelength – Lane 3
Optical Rise/Fall Time
P1TX4C-SX4V-01
P1TX4C-SX4D-01
5
4
Symbol
Pout
Min
-3.0
-6.25
Typ
0.0
Max
Units
dBm
dBm
778
800
825
850
200
100
nm
nm
nm
nm
ps
1
Stresses listed may be applied without causing damage. Functionality at or above the values listed is not implied. Exposure to these
values for extended periods may affect reliability.
2
See outline drawing for measurement point.
3
Non condensing, 80% RH.
4
I= 5mA, T=25C. Measured at the end of a 2m section of 62.5µ fiber.
5
Rise and fall times measured from 20 - 80%
ORIGINATOR:
OMRON
DATE:
7/8/2011
DOCUMENT NO.
REV
DOC002106
A
P1TX4C-SX4x-01MM Product Specification
SHEET
2
OF
6
C. ENG
OMRON
O
MRON
N
ETWORK
P
RODUCTS
®
5.0
Electrical Specifications
Parameter
Data Rate per Wavelength
P1TX4C-SX4V-01
P1TX4C-SX4D-01
Total Jitter (RMS) per lane
Input Differential Voltage
Single-ended Input Voltage
Common mode input voltage
(AC-coupled input)
Operating Supply Voltage
Operating Supply Current
Vcc-Vee
Icc
7
6
Symbol
Min
Typ
Max
1.65
3.50
Units
Gb/s
ps
ohm
T
J1
320
160
0.85
10
100
2000
1000
VCC
2.6
3.15
3.30
140
3.45
Input Differential Impedance
mVp-p
mVp-p
V
V
mA
6.0
Fiber Transmission Distance
8
Data
Rate
1.65
Gbps
3.50
Gbps
Skew
Limit
OM1
200
200
100
100
100
OM2
400
400
200
200
200
OM3
1000
400
500
400
294
Units
m
m
m
m
m
None
2.42ns
None
2.42ns
1.78ns
6
Requires DC-balanced data pattern and a max run length of 80 bits. Measured with input signals conforming to HDMI rev 1.3a,
section 4.2.4, figure 4-18.
7
Based on a jitter-free source. For optimal performance, clocks should be transmitted on Lane 0
8
Max distance considers the worst-case conditions. Actual distance may be up to 4x specified distance.
ORIGINATOR:
OMRON
DATE:
7/8/2011
DOCUMENT NO.
REV
DOC002106
A
P1TX4C-SX4x-01MM Product Specification
SHEET
3
OF
6
C. ENG
OMRON
O
MRON
N
ETWORK
P
RODUCTS
®
7.0
Pin Numbers and Descriptions
The TX-SX4 plugs into a 30 pin connector. For information on the specifications
of the connector, contact Hirose (DF12(4.0)-30DP-0.5V(86)).
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Signal
GND
NC
+ IN0
NC
- IN0
NC
+ IN1
NC
- IN1
NC
+ IN2
NC
- IN2
NC
+ IN3
NC
- IN3
EN
GND
NC
NC
NC
NC
NC
NC
NC
NC
VCC
GND
VCC
Name
Ground
No connect
Ch 0 + Data Input
No connect
Ch 0 - Data Input
No connect
Ch 1 + Data Input
No connect
Ch 1 - Data Input
No connect
Ch 2 + Data Input
No connect
Ch 2 - Data Input
No connect
Ch 3 + Data Input
No connect
Ch 3 - Data Input
Enable
Ground
No connect
No connect
No connect
No connect
No connect
No connect
No connect
No connect
Voltage Input
Ground
Voltage Input
Description
Ground
No Connect
9
Positive differential input for 778nm channel
No Connect
9
Negative differential input for 778nm channel
No Connect
9
Positive differential input for 800nm channel
No Connect
9
Negative differential input for 800nm channel
No Connect
9
Positive differential input for 825nm channel
No Connect
9
Negative differential input for 825nm channel
No Connect
9
Positive differential input for 850nm channel
No Connect
9
Negative differential input for 850nm channel
3.3V=normal operation, 0V turns off lasers
Ground
No Connect
9
No Connect
9
No Connect
9
No Connect
9
No Connect
9
No Connect
9
No Connect
9
No Connect
9
+3.3 volt input
Ground
+3.3 volt input
8.0
Laser Safety
The P1TX4C-SX4x-01 meets Class-3 requirements.
9
NC = No Connect. Do not connect anything to this PIN.
ORIGINATOR:
OMRON
DATE:
7/8/2011
DOCUMENT NO.
REV
DOC002106
A
P1TX4C-SX4x-01MM Product Specification
SHEET
4
OF
6
C. ENG
OMRON
O
MRON
N
ETWORK
P
RODUCTS
®
9.0
Environmental Standards
Omron Network Products designs and manufactures its products to minimize the
negative impact on our environment. As such, the P1TX4C-SX4-01MM
conforms to a variety of environmental and safety standards
Standard
RoHS
Compliant
Yes
Certificate Available
Yes
ORIGINATOR:
OMRON
DATE:
7/8/2011
DOCUMENT NO.
REV
DOC002106
A
P1TX4C-SX4x-01MM Product Specification
SHEET
5
OF
6
C. ENG
