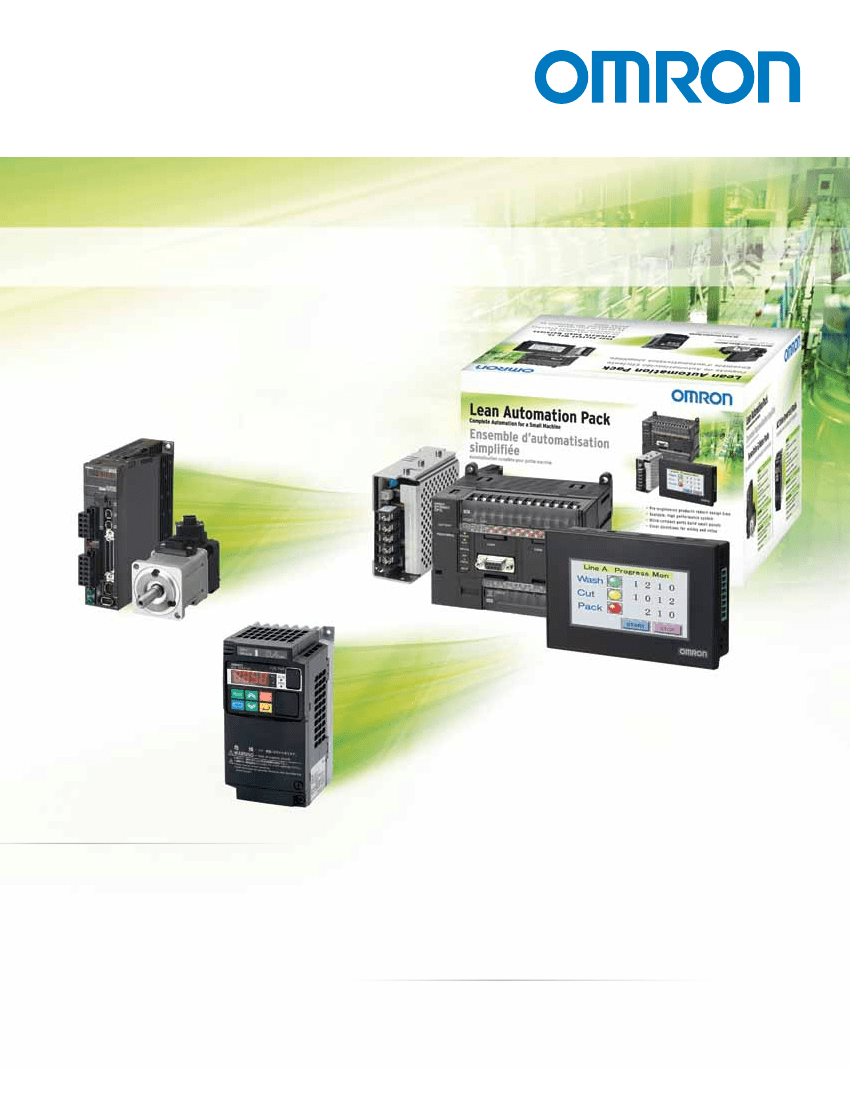

Lean Automation Packs
Packaged Solution for Standalone
Machine Control in One Box
Servo Option
Packs»include»everything»you»need:»micro»PLC,»
operator»interface»terminal,»software,»step-by-
step»setup»guide»and»more.»
OR
AC Drive Option
»
»S c a l a b l e, » h i g h » p e r fo r m a n c e » sy s te m
»
» U l t ra - c o m p a c t » p a r t s » b u i l d » s m a l l » fo o t p r i n t » p a n e l s
»
» Pre-engineered» products» cut» design» time» 50%» »
Your fastest way to
automate machinery
Lean Automation Packs
Omron delivers a one-box Lean Automation
solution for small machines that cuts your
upfront design, engineering and commissioning
costs by 50%. We take the guesswork out of
ordering powerful, scalable automation systems.
Streamline your process with:
• Pre-engineered, high-performance products
• Step-by-step installation instructions
• Detailed wiring diagrams
• Sample programs for popular functions
• Simplified ordering: One part number, one
supplier, no confusion
• 25% discounted price compared to parts
ordered separately
It all adds up to faster time to market and a
quicker return on your investment.
Ready-to-install, complete automation
Each pack builds a complete, compact and scalable
high-performance solution to handle speed control
with an AC Drive (inverter) or position control with a
servo drive and motor.
• Ultra-compact components build a space saving
panel with a small footprint
• Best-in-class, expandable controls offer a
scalable automation solution
• Two options:
position control (Servo) or speed
control (AC Drive) packs
One Software for your Entire Machine
Lean Automation Packs include CX-One Lite
software that sets up micro PLCs, operator
interfaces, motion logic and networks in a
single platform.
• Simple drag-and-drop setup
• Function block and device interface libraries cut
programming time
• Simulates PLC-HMI interaction without hardware
One servo-based Lean Automation Pack delivers a complete
solution for precise positioning on a labeling machine.
2
One Box... Two Options
Servo Drives and Motors
for Positioning
Achieve highly accurate
position control that meets
high throughput requirements
and manufacturing to the
highest quality standards.
Built-in vibration damping
shortens transit time and
improves position accuracy.
AC Drives
for Speed Control
Get high performance speed
control of any NEMA B
induction motor. Move high
torque loads from a standstill.
Built-in “Safe Torque Off”
function provides Category
3 safety.
Position Control Applications
•
•
•
•
Cut-to-length machines • Filling machines
• Packaging equipment
Labeling and printing
Rotary or linear indexing • Sealing
X-Y table
•
•
•
•
•
•
Speed Control Applications
Cutting & bending
Conveyors
Gate control
Grinding & polishing
Washing systems
Ventilation & exhaust
•
•
•
•
•
•
Pumps
Refrigeration
Spray & paint machines
Industrial ovens
Mixers
Stretch wrapping equipment
Part #
LAP200
LAP400
LAP750
Included with complete pack
One 200W SmartStep2 Drive with Servo Motor, 230V 1-Ph
One 400W SmartStep2 Drive with Servo Motor, 230V 1-Ph
One 750W G5-series Drive with Servo Motor, 230V 1-Ph
Part #
LAP187
LAP373
LAP746
Included with complete pack
One ¼ HP 3G3MX2 Drive, 230V 1-Ph
One ½ HP 3G3MX2 Drive, 230V 1-Ph
One 1 HP 3G3MX2 Drive, 230V 1-Ph
So Convenient…Everything You Need in One Box
Omron provides everything you need. You just supply a few basic tools
and a laptop computer.
In addition to the AC drive or Servo, you get:
1
Color Operator Interface Terminal - (NV3Q-SW21)
1
Micro PLC - (CP1L-M30DT1-D)
1
RS-232 Comm. Option Board - (CP1W-CIF01)
1
CX-One Lite Software - (CXONE-Lite)
1
Power Supply -
(S8JX-G05024CD)
Documentation
1
Quick Start Guide with simple step-by-step instructions.
1
Resource DVD with sample programs, manuals and documentation
Hardware and Tools
1
Operator Interface Terminal cable - (XW2Z-200T-3)
1
USB Cable - (USBAB6BLK)
1
Screwdriver, 2.4mm blade
3
