5962-9056901EA datasheet, PDF - EEWORLD Datasheet

5962-9056901EA: DescriptionDUAL 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16; CategoryAnalog mixed-signal IC The signal circuit; File Size289KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

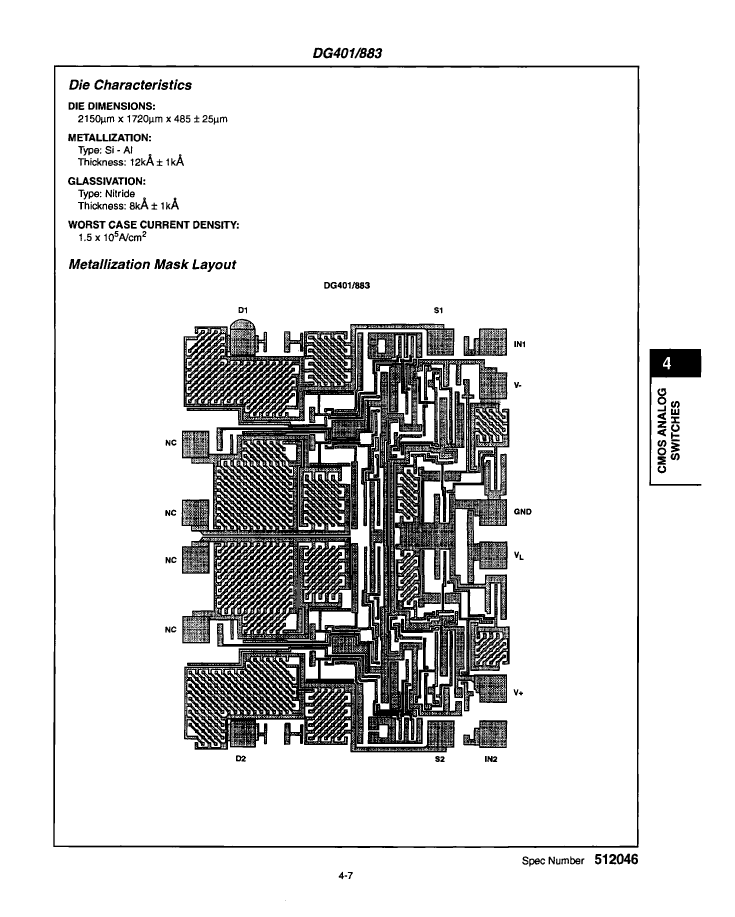

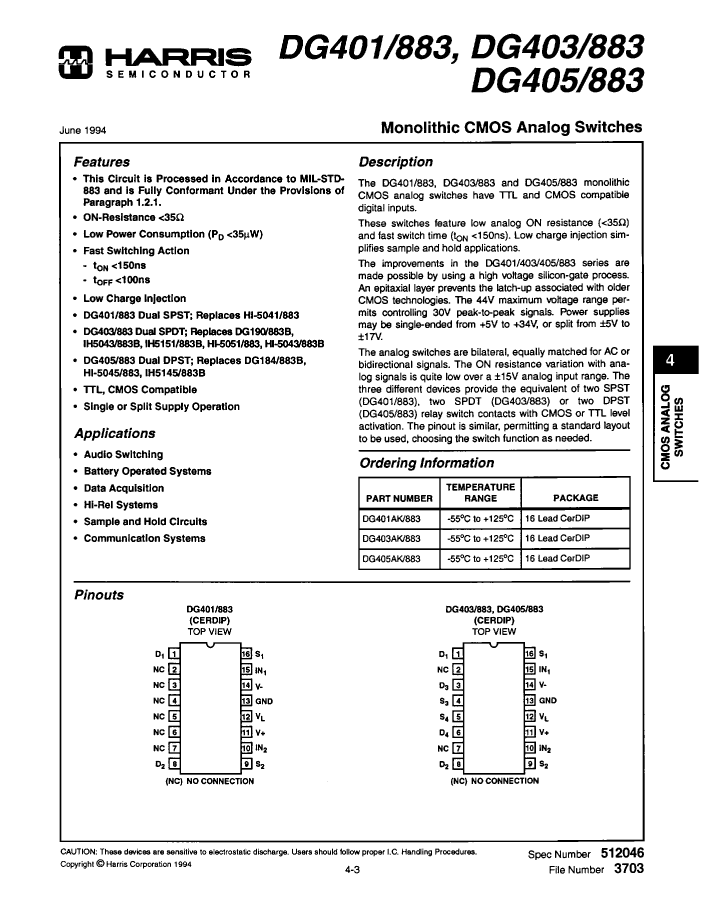

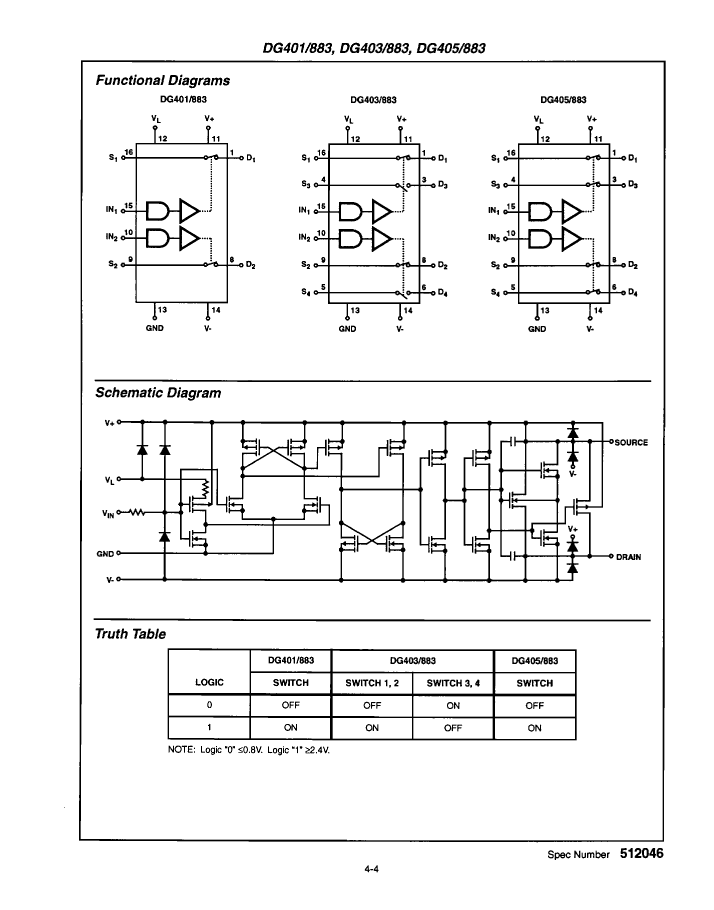

5962-9056901EA Overview

DUAL 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16

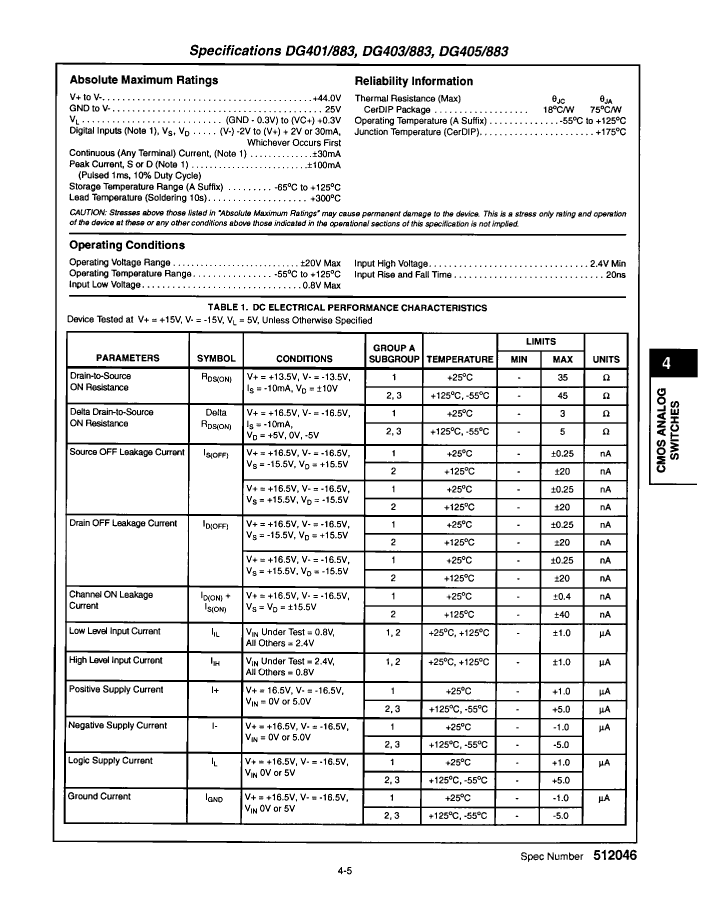

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	,
Contacts	16
Reach Compliance Code	not_compliant
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	2
Number of terminals	16
On-state resistance matching specifications	3 Ω
Maximum on-state resistance (Ron)	35 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply current (Isup)	0.005 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO

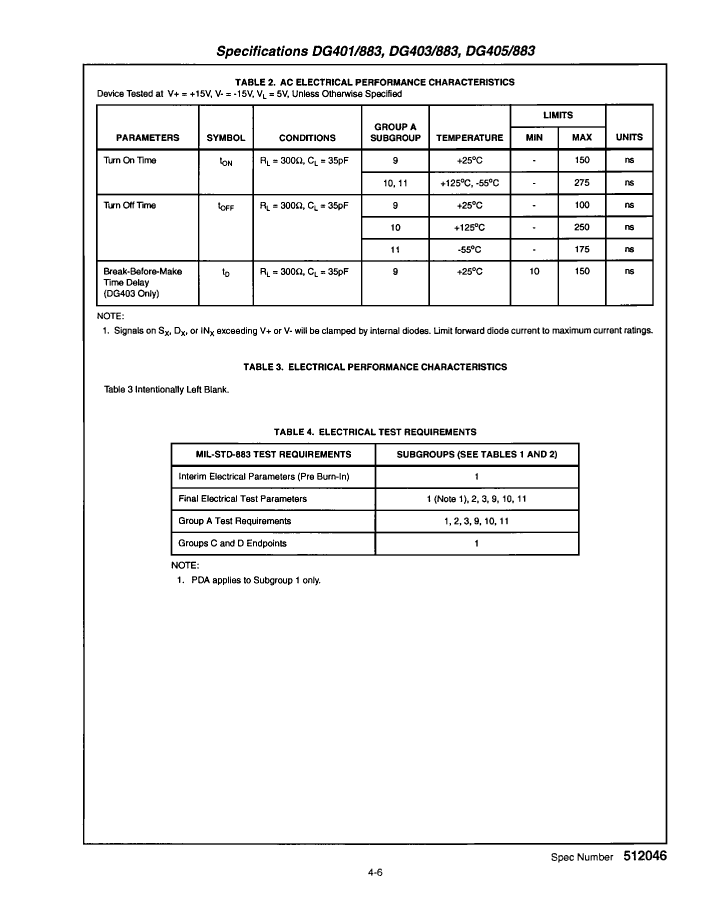

Maximum disconnect time	100 ns
Maximum connection time	150 ns
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	5962-9056901EA	5962-8976301MEA
Description	DUAL 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16	DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, CDIP16
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	DIP
Contacts	16	16
Reach Compliance Code	not_compliant	not_compliant
Analog Integrated Circuits - Other Types	SPST	SPDT
JESD-30 code	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of channels	1	1
Number of functions	2	2
Number of terminals	16	16
On-state resistance matching specifications	3 Ω	3 Ω
Maximum on-state resistance (Ron)	35 Ω	35 Ω
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
Maximum disconnect time	100 ns	100 ns
Maximum connection time	150 ns	150 ns
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL
Base Number Matches	1	1
