Conductive Polymer Aluminum
Solid Capacitors
Radial Lead Type
SEPF
series
Features
●
High voltage (35 V max.)
●
Large capacitance (1000 μF max.)
●
RoHS compliance, Halogen free
Specifications
Size code
Category temp. range
Rated voltage range
Nominal cap.range
Capacitance tolerance
DC leakage current
Dissipation factor (tan δ)
C55
C6
E7
–55
℃
to +105
℃
16 V to 35 V
22 μF to 180 μF
39 μF to 270 μF
82 μF to 560 μF
120 μF to 1000 μF
±20 % (120 Hz / +20
℃)
Please see the attached characteristics list
Please see the attached characteristics list
+105
℃
5000 h, rated voltage applied
Capacitance change
Within ±20 % of the initial value
Dissipation factor (tanδ)
DC leakage current
Damp heat
(Steady state)
≦
150 % of the initial limit
Within the initial limit
E12
F13
16 V to 32 V
22 μF to 150 μF
Endurance
+60
℃,
90 % to 95 % RH, 1000 h, No-applied voltage
Capacitance change
Within ±20 % of the initial value
Dissipation factor (tanδ)
DC leakage current
≦
150 % of the initial limit
Within the initial limit (after voltage processing)
Marking

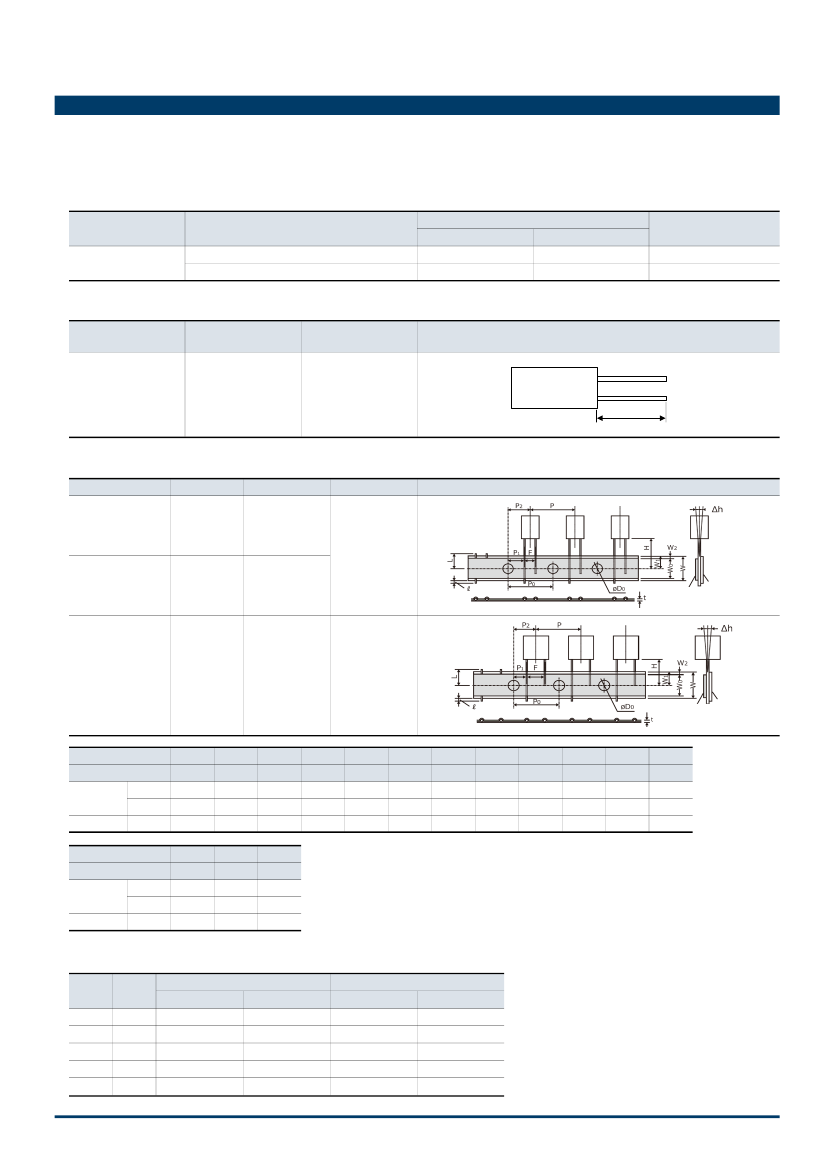

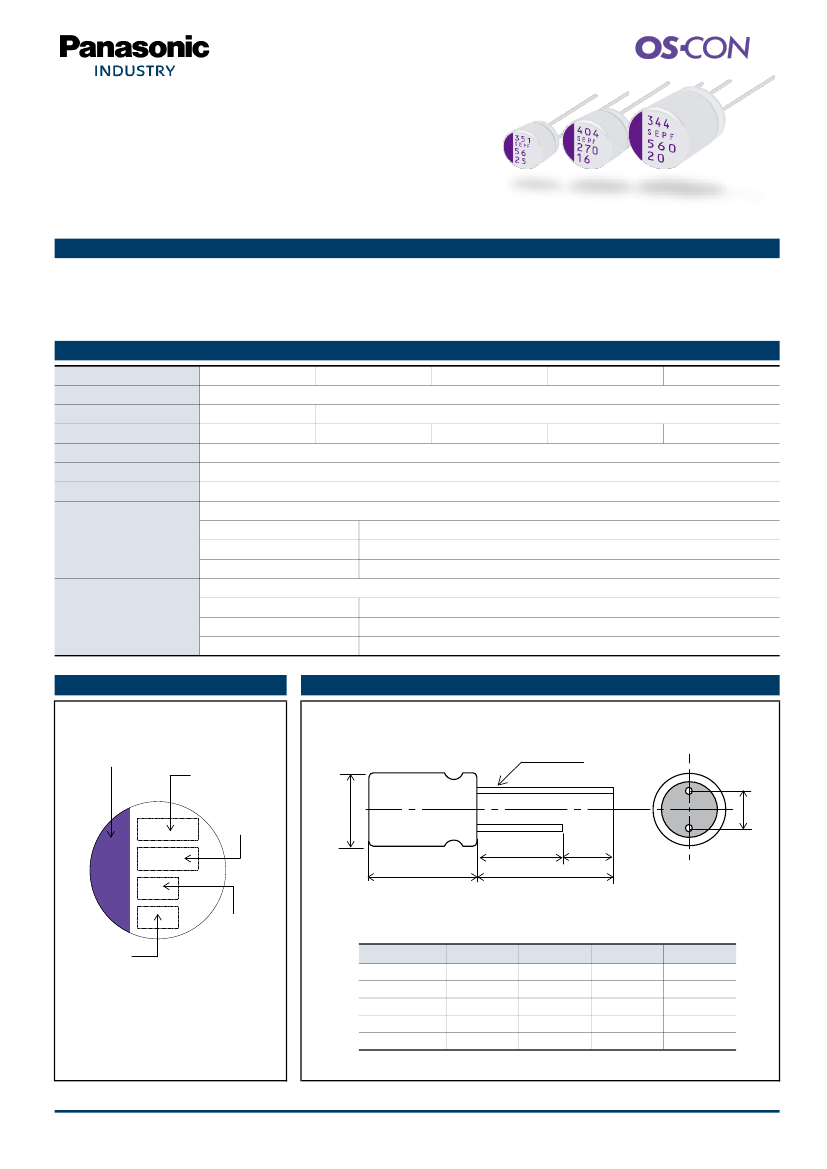

Dimensions (not to scale)
Polarity marking (−)
Lot No.
Series code*
ød
⊕
15 min.
L max.
19 min.
⊖
øD
4 min.
R. voltage
(V)
R. capacitance
(μF)
Unit：½½
* Depends on the case size.
Size code
C55
C6
E7
E12
F13
øD±0.5
6.3
6.3
8.0
8.0
10.0
L max.
5.5
6.0
7.0
12.0
13.0
F±0.5
2.5
2.5
3.5
3.5
5.0
ød±0.05
0.45
0.5
0.5
*1
0.6
0.6
*1: 32SEPF68M : 0.6±0.05
