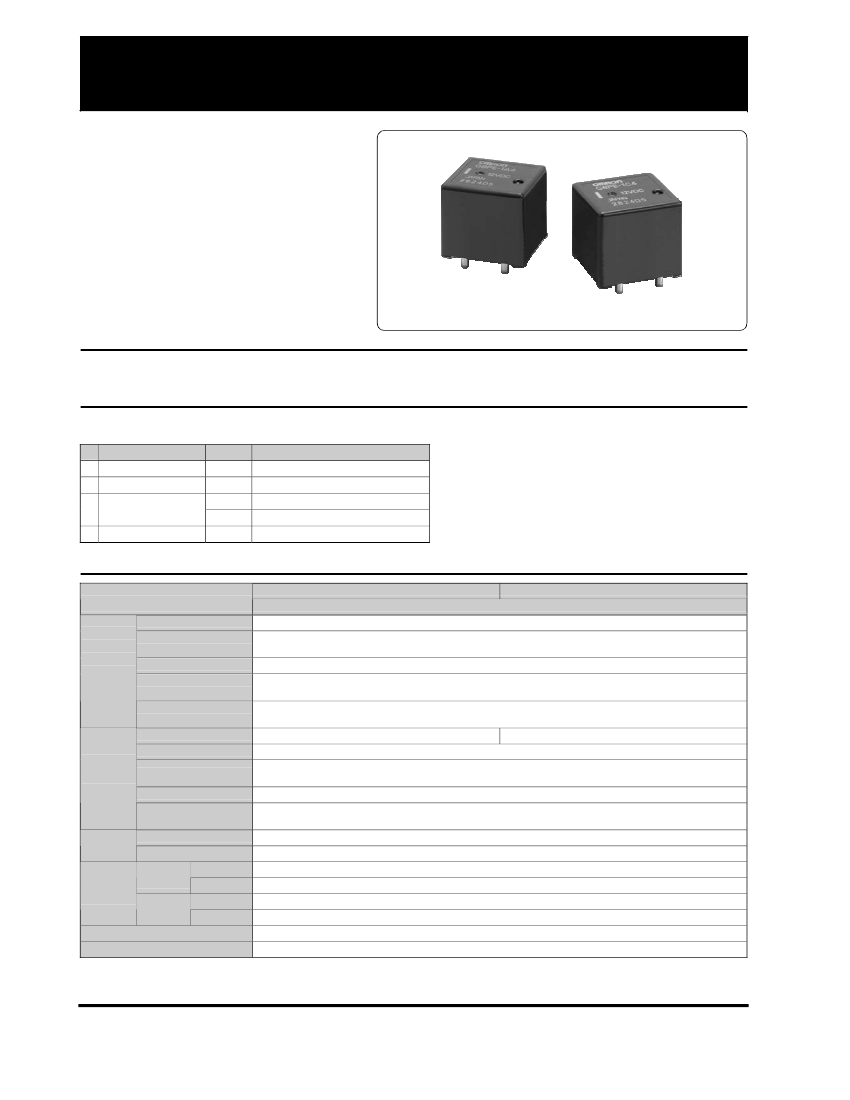

G8PE
PCB relay for automobile use (high wattage)
High current carrying and
switching automotive PCB
relay.
•
Capable of continuous energization at 40A.
Purpose
•
Blower fan, defogger, headlight
Type standard
G8PE
1
-
1
2
3
4
2
3
4
Classification
Basic type
Number of contact poles
Contact configuration
Protective construction
Symbol
G8PE
1
A
C
4
Meaning of the symbol
high power relay for automobile use
Number of contact poles
1a (SPST)
1c (SPDT)
Simple plastic seal
Ratings/Performance
Type
Item
Rated coil voltage
Coil resistance
(at 20°C)
Coil
Service voltage range
Operating voltage
(at 20°C)
Release voltage
(at 20°C)
Contact configuration
Contact material
Contact
Rated load
Max switching current
Continues switching cur-
rent
Endurance
(Lifetime)
Mechanical
Electrical (Rated load)
Impact
resistance
Vibration
resistance
Malfunction
Destruction
Malfunction
Destruction
1a(SPST)
AgSn type (non-cadmium)
12 VDC 40 A (at 20°C)
12 VDC 30 A (at 105°C)
Inrush: 180 A(NO)/60 A(NC)
40 A (NO)/25 A (NC)
1,000,000 times
100,000 times
100 m/s
2
1,000 m/s
2
5~400 Hz 44.1 m/s
2
5~100 Hz 44.1 m/s
2
-30~+105°C
About 20 g
G8PE-1A4
Standard
12 VDC
135Ω ±10%
10 to 16 VDC
6.8 V or less
1.0 V or more
1c(SPDT)
G8PE-1C4
Mechani-
cal
Ambient temperature range
Weight
www.omronauto.com
PNSPO
®
Copyright © 2005 Omron Automotive Electronics Inc.
G8PE Rev A
105194
Page 1 of 3
G8PE
Reference Data
•
Operating voltage/Release voltage
Sample: G8PE-1C4 12 VDC 135
Ω
30 pcs
50
Operate
Voltage
Release
Voltage
PCB relay for automobile use (high-wattage)
•
Operating time/Release time
Sample: G8PE-1C4 12 VDC 135
Ω
30 pcs
50
Operate Time
Operatng time
Release
time
Release
Time
40
40
30
30
20
20
10
10
0
0
1
2
3
4
5
6
7
8
9
10
0
0
1
2
3
4
5
6
7
8
9
10
Operating voltage and release voltage (V)
Operating time and release time (ms)
•
Contact resistance
Sample: G8PE-1C4 12 VDC 135
Ω
30 pcs
30
30
•
Coil temperature rise
Sample: G8PE-1C4 12 VDC 135
Ω
30 pcs
100
90
40 A
30 A
20 A
0A
25
25
80
70
60
20
20
15
15
50
40
10
10
30
5
20
10
0
0
1
2
3
4
5
6
7
8
9
10
N.O. Contact resistance (mΩ)
0
1
2
3
4
5
6
7
8
9
10
0
12
14
16
5
0
N.C. Contact resistance (mΩ)
Applied Coil Voltage (V)
•
Ambient temperature and service voltage range (Cold start)
G8PE-1C4
18
15
12
9
6
3
0
-60
-40
-20
0
20
40
60
80
100
120
Ambient temperature (°C)
Electrical endurance (Lifetime)
Spec
G8PE-1A4
G8PE-1C4
G8PE-1C4
Application/Load
240 W head lamp
Motor lock
Resistance
Load current
Input 100 A steady 20 A
Motor lock current 40 A
Steady 40 A
Switching
frequency
On1 s/Off6 s
On0.7 s/Off7.0 s
On2 s/Off3 s
Switching
time
200,000
105,000
200,000
www.omronauto.com
PNSPO
®
Copyright © 2005 Omron Automotive Electronics Inc.
G8PE Rev A
105194
Page 2 of 3
G8PE

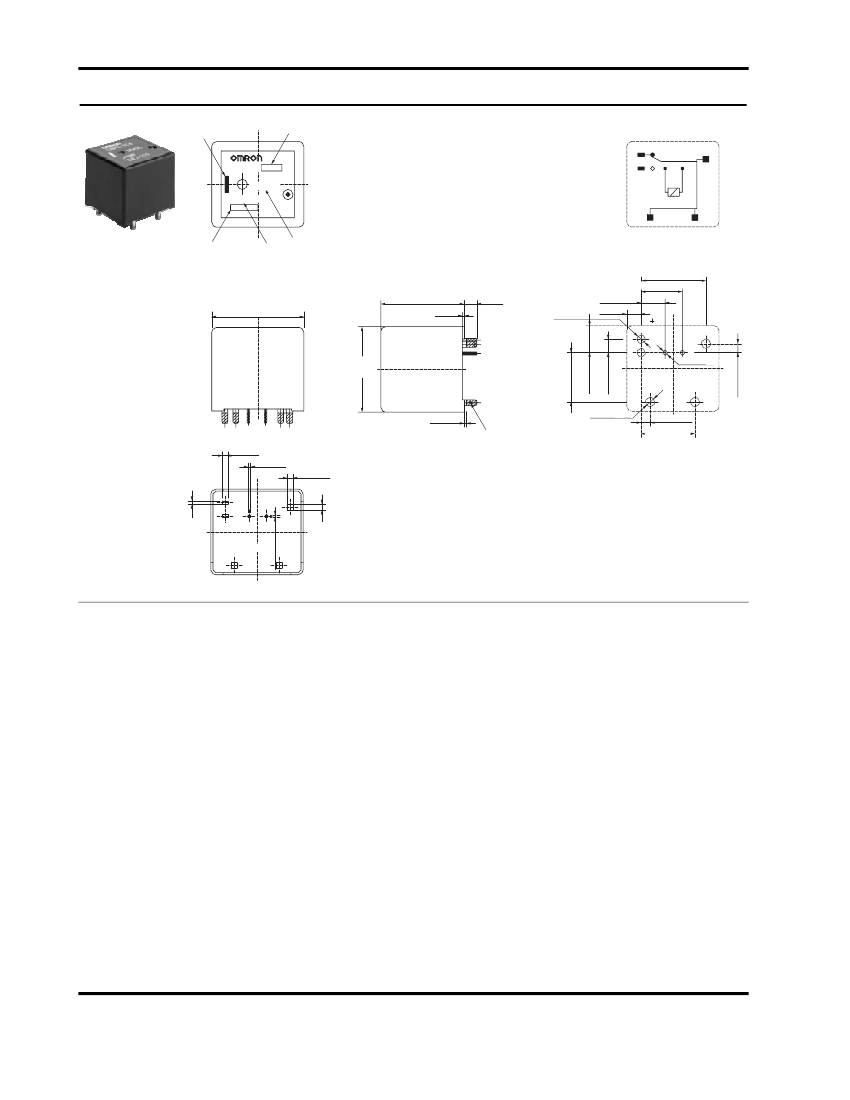

Dimensions (unit: mm)
G8PE-1C4
Mounting Orientation
Mark
Type
PCB relay for automobile use (high-wattage)
Terminal layout/Internal connection
(BOTTOM VIEW)
G8PE-
12VDC
JAPAN
Lot No. Country of Origin
Rated Voltage
PWB processing dimension
(BOTTOM VIEW)
21.0 MAX.
20.5 TYP.
0.5±0.25
15.9±
0.2
10.1±
0.2
1.0
3.0
+
±
−0.5
- 0.5
23.0 MAX.
22.6 TYP.
5.9±
0.2
2-Φ2.1
+00.1
-
3.5±
0.6
0
12.1±
0.3
6.6±
0.3
3.3±
0.3
0.5 MAX.
SOLDERING
0.4
2-1.4
+0.05
-
0.4
2-0.6
+0.05
-
0.4
3-1.4
+0.05
-
3-Φ2.3
+00.1
-
0
2.2±
0.2
13.2±
0.2
0.4
2-0.8
+0.05
-
3-1.4
- 0.05
+ 0.4
0.4
2-0.5
+0.05
-
* Tolerance unless otherwise specified
Less than 1 mm:
Less than 1~3 mm:
3 mm or more:
±0.1 mm
±0.2 mm
±0.3 mm
www.omronauto.com
PNSPO
®
Copyright © 2005 Omron Automotive Electronics Inc.
G8PE Rev A
105194
Page 3 of 3
2.2±
0.2
21.5 MAX.
21.0 TYP.
2-Φ1.3
- 0
+ 0.1
0
