Digital Panel Meter
K3TE
CSM_K3TE_DS_E_3_1
Easy-to-use, Low-cost Digital Panel Meter
that Accepts DC Input
• Compact DIN-size (96 x 48 (W x H)) body.
• Mounting thickness of only 3.5 mm required.
• Highly visible display with 14.2-mm-high LEDs.
• Easy-to-mount snap-in construction.
• Conforms to EMC standards EN61010-1 (IEC61010-1).
For the most recent information on models that have been
certified for safety standards, refer to your OMRON website.
Note:
This Panel Meter does not support scaling.
Model Number Structure
I
Model Number Legend
K3TE -
1
2
3
4
1, 2. Input Code
V1:
V2:
V3:
V4:
A1:
A2:
A3:
A4:
A5:
±199.9
mV
±1.999
V
±19.99
V
±199.9
V
±199.9 µA
±1.999
mA
±19.99
mA
±199.9
mA
±1.999
A
3. Series No.
1: Current series
4. Supply Voltage
4: 100 to 120 VAC
5: 200 to 240 VAC
6: 24 VDC (internally insulated)
1
K3TE
Specifications
■
Ratings
Supply voltage
Operating voltage range
Power consumption
Insulation resistance
Dielectric strength
100 to 120 VAC; 200 to 240 VAC (50/60 Hz); 24 VDC (internally insulated)
−15%
to +10% of supply voltage
3 VA (at max. AC load); 1.3 W (at max. DC load) (see note)
10 MΩ min. (at 500 VDC) between external terminal and case
AC model:
2,000 VAC min. for 1 min between input terminal and power supply
DC model:
500 VDC min. for 1 min between input terminal and power supply
AC/DC model: 2,000 VAC min. for 1 min between external terminal and case
AC model:
DC model:
Malfunction:
Destruction:
Malfunction:
Destruction:
Operating:
Storage:
Operating:
±1,500
V on power supply terminals in normal or common mode
±480
V on power supply terminals in normal mode
±1,500
V on power supply terminals in common mode
10 to 55 Hz, 0.5-mm single amplitude for 10 min each in X, Y, and Z directions
10 to 55 Hz, 0.75-mm single amplitude for 2 hrs each in X, Y, and Z directions
98 m/s
2
for 3 times each in 6 directions
294 m/s
2
for 3 times each in 6 directions
−10°
to 55°C (with no icing)
−20°
to 65°C (with no icing)
35% to 85% (with no condensation)
Noise immunity
Vibration resistance
Shock resistance
Ambient temperature
Ambient humidity
Ambient operating atmosphere
EMC
No corrosive gas
(EMI)
Emission Enclosure:
Emission AC Mains:
(EMS)
Immunity ESD:
EN61326+A1
Industry
CISPR 11 Group 1 class A: CISRP16-1/-2
CISPR 11 Group 1 class A: CISRP16-1/-2
EN61326+A1
Industry
EN61000-4-2:
4 kV contact discharge (level 2)
8 kV air discharge (level 3)
Immunity RF-interference:
EN61000-4-3:
10 V/m (amplitude-modulated,
80 MHz to 1 GHz) (level 3)
Immunity Fast Transient Noise: EN61000-4-4:
2 kV (power line) (level 3)
Immunity Burst Noise:
1 kV line to line (I/O signal line)
Immunity Surge:
EN61000-4-5:
1 kV line to line
2 kV line to ground (power line)
Immunity Conducted Disturbance EN61000-4-6:
3 V (0.15 to 80 MHz) (level 2)
Immunity Voltage Dip/Interrupting EN61000-4-11:
0.5 cycles, 0, 180°, 100% (rated voltage)
Conforms to EN61326+A1, EN61010-1 (IEC61010-1)
Conforms to VDE0106/P100 (finger protection) when the terminal cover is mounted.
Approved standards
Note: 1.
An inrush current of approximately 0.5 A will flow at the moment the power is turned on and continued for approximately 2 ms.
2.
The K3TE-V4@@ does not conform to CE marking standards.
■
Characteristics
Input signal
A/D conversion method
Sampling period
Display refresh period
Max. displayed digits
Display
Decimal point display position
Sign display
Overflow/underflow display
Zero suppression
External control
Degree of protection
DC voltage/current
Double integral method
2.5 times/s
2.5 times/s
3 1/2 digits (±1999)
7-segment red LED
By short-circuiting terminals
“−” is displayed automatically with a negative input signal
Overflow:
1@@@
Underflow:
−1@@@
Not supported.
Process value hold (terminals on rear panel short-circuited)
Front panel: IEC IP51 (see note)
Case:
IEC IP20
Terminals: IEC IP00
Note:
IP51 is maintained when the water-resistive soft cover and bracket are used. IP50 will be, however, maintained without these water-resistive
accessories.
3
K3TE
■
Measuring Ranges
Input range
DC voltage
Measuring range
±199.9
mV
±1.999
V
±19.99
V
±199.9
V
DC current
±199.9 µA
±1.999
mA
±19.99
mA
±199.9
mA
±1.999
mA
Max. resolution
100
µV
1 mV
10 mV
100 mV
100 nA
1
µA
10
µA
100
µA
1 mA
Input impedance
100 MΩ
100 MΩ
10 MΩ
10 MΩ
1 kΩ
100
Ω
10
Ω
1
Ω
0.1
Ω
Accuracy
±0.1%rdg ±1
digit
±0.1%rdg ±1
digit
±0.1%rdg ±1
digit
±0.1%rdg ±1
digit
±0.1%rdg ±1
digit
±0.1%rdg ±1
digit
±0.1%rdg ±1
digit
±0.1%rdg ±1
digit
±0.3%rdg ±1
digit
Max. permissible load
±250
V
±250
V
±250
V
±350
V
±10
mA
±50
mA
±150
mA
±500
mA
±3
A
Note:
The above accuracy is at an ambient temperature of 23±5°C.
Connections
■
External Connections
Connector and connector screws are provided with the model.
AC Power Supply
DC Power Supply
1
2
3
4
5 6
7
8 9 10 11 12 13 14 15 16 17 18
1 2
3
4
5 6
7
8 9 10 11 12 13 14 15 16 17 18
+
−
COM HOLD
10
3
10
2
10
1
AC power supply
+
−
COM HOLD
10
3
10
2
10
1
DC power supply
Signal input
Decimal position
Signal input
Decimal position
Note: 1.
Terminals 3 and 7 of the AC and DC models are not internally insulated. Connect a relay with high contact reliability and insulation
(with a minimum load current of 0.3 mA) or a photocoupler with high insulation (with a residual voltage of 1 V max. and a current
leakage of 0.1 mA max.) to these terminals for external control.
2.
The terminals marked with a white rectangular box are not used. Do not use these terminals for transmission of signals.
Nomenclature
Select the decimal position
with terminal 12, 13, or 14
on the rear panel.
10
3
10
2
10
1
PV display
Unit name
4
K3TE

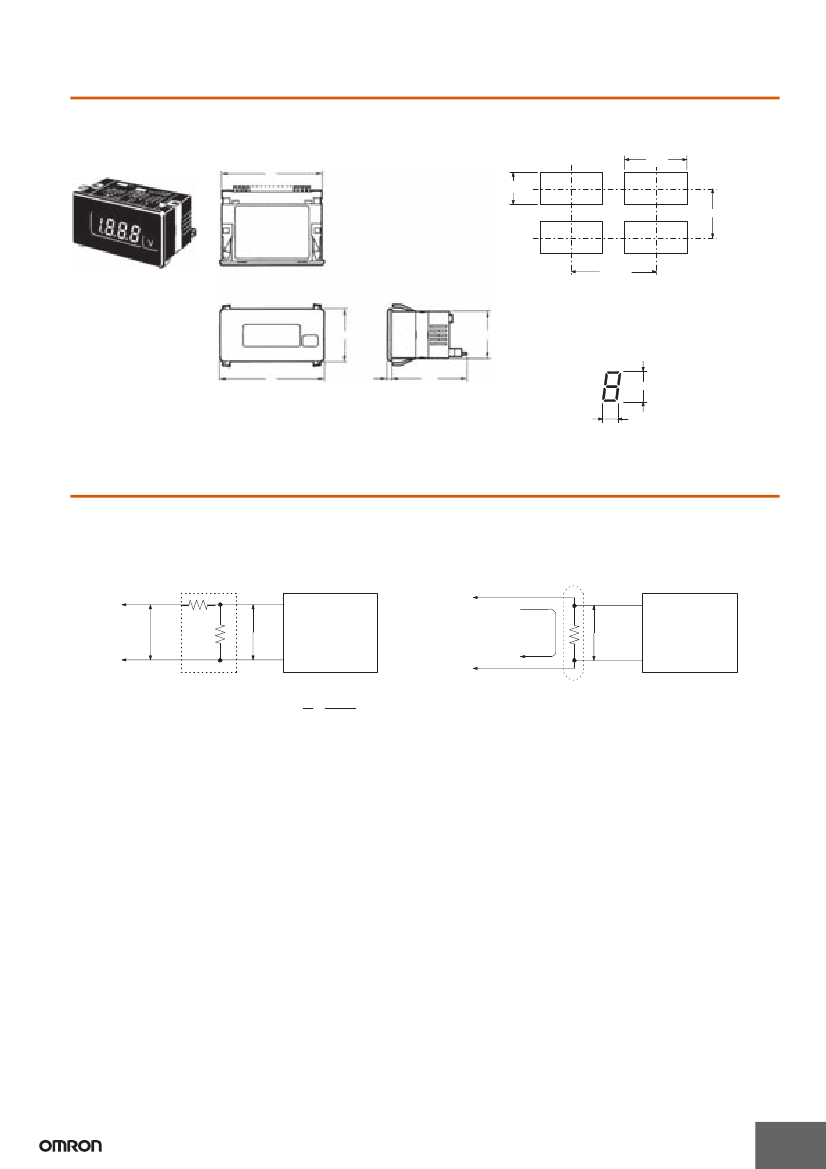

Dimensions
Note:
All units are in millimeters unless otherwise indicated.
Panel Cutouts
92
+0.8
−0
92
45
+0.6
−0
75 min.
120 min.
48
43
Note:
The values above are recommended
values. Do not group-mount the meters
at intervals less than the
recommended ones.
LED Indicator Size
96
3.5
70
14.2 mm
7.8 mm
Application Examples
High DC Voltage Measurement
When voltage exceeding the maximum voltage in the
standard range is measured (for example: more than
200 V), a divider is connected externally.
Divider
R
1
Input
E
1
R
2
E
2
Large DC Current Measurement
When large DC current exceeding 2 A is measured, a
shunt is connected externally.
Hi
Digital
panel
meter
Hi
Hi
Digital
panel
meter
Input
Current
Voltage
(mV)
Lo
Lo
E
2
= R
2
E
1
R
1
+ R
2
Lo
Shunt
Lo
When current range DPM is
used, disconnect the internal
shunt resistor.
5
