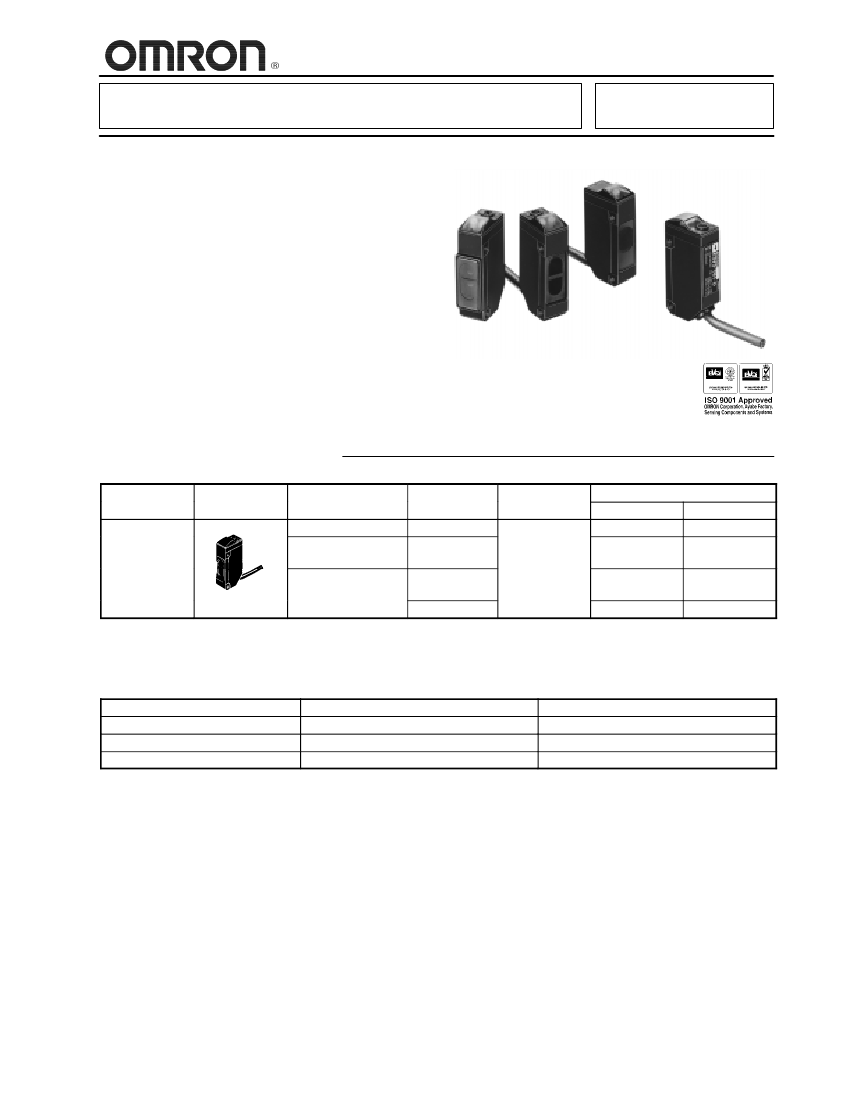

Built-in Amplifier Photoelectric Sensor
Easy-to-use, Low-cost Photoelectric
Sensor
Incorporating indicators that can be
clearly seen from a distance
E3V3
Conforms to EN and IEC standards
Incorporating polarizing function, thus
accurately detecting lustrous objects
Resin-filled construction resists vibration
and ensures IP67 water-resistance
Replaces E3V sensor
Ordering Information
Connection
Method
Cord connection
Appearance
Cord length: 2 m
g
Sensing Method
g
Through-beam
Retroreflective
(polarized)
Diffuse reflective
Detection
Distance
7 m (23 ft)
2 m (6.6 ft)
0.5 to 8 cm
(0.20 to 3.15 in)
70 cm (2.3 ft)
Note:
Mounting brackets are not provided with the E3V3. Order them separately.
Operating Mode
Light-ON
g
Dark-ON
(selectable by
wiring)
Output
NPN
E3V3-T61
E3V3-R61
E3V3-D61
E3V3-D62
PNP
E3V3-T81
E3V3-R81
E3V3-D81
E3V3-D82
ACCESSORIES (ORDER SEPARATELY)
Attachments
Name
Retroreflector
Retroreflector (tape type)
Slit for Through-beam Sensor
Remarks
Corner cube reflector
Glass bead adhesive back
0.5, 1, 2 dia. slits
Part Number
E39-R3
E39-RSA, E39-RSB
E39-S7
E3V3
Mounting Brackets
Part Number
E39-L104
E39-L44
E39-L43
E39-L98
E39-L93
E39-L104
E39-L44
E39-L43
Remarks
Standard vertical-mounting bracket
Rear-mounting bracket
Side-mounting bracket
Metal cover
Sensor adjustor
E39-L98
E39-L93
E3V3

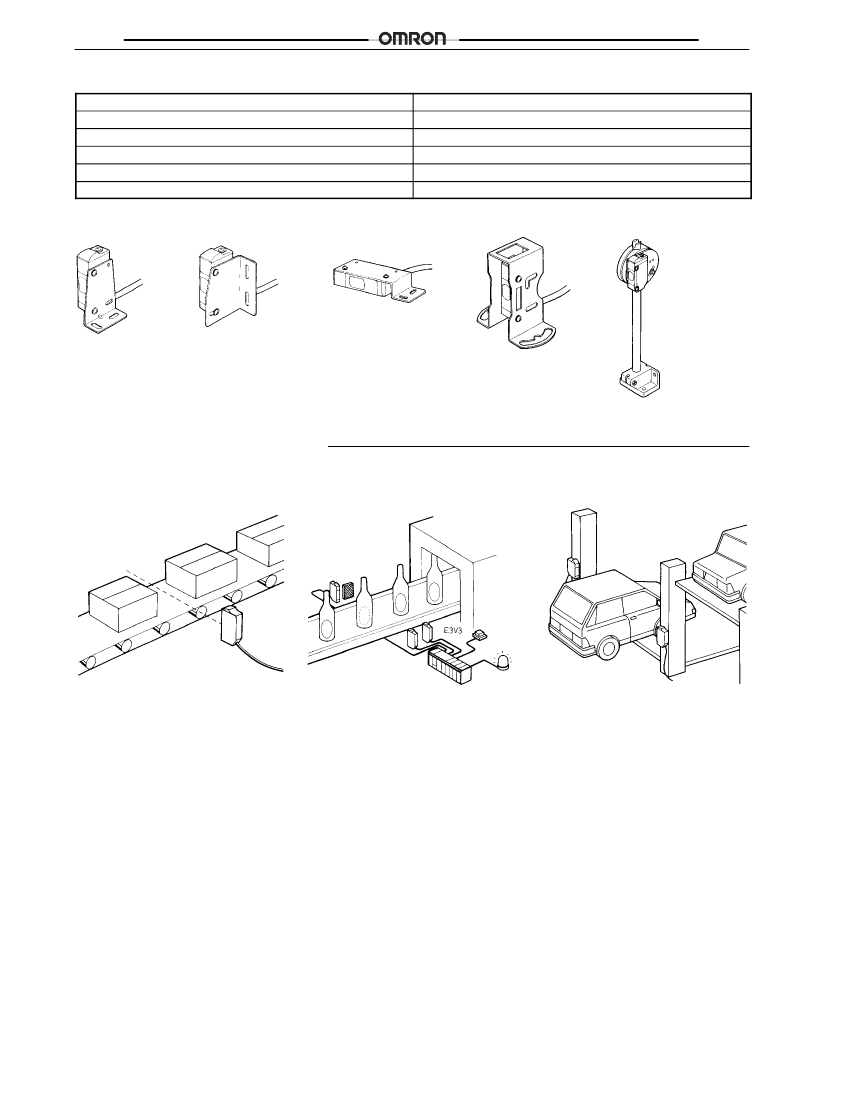

Application Examples
Detection of Cardboard Boxes
Detection of Labels
Detection of Automobiles at Indoor
Parking Lots
Labeler
E3V3
E3V3
Reset
button
E3V3
CQM1 PC
Rotating indicator
E3V3
E3V3
Specifications
Sensing Method
NPN output
PNP output
LED light source
Sensitivity adjustment
Connection method
Weight
Control output selection
Circuit protection
Indicators
Materials
Attachments
Note:
Case
Lens
Through-beam
E3V3-T61
E3V3-T81
Infrared LED
Adjustor
Drawing cord-Standard length: 2 m (6.6 ft)
Approx. 160 g (with 2-m
cord)
Approx. 80 g (with 2-m cord)
Retroreflective
(with MSR function)
E3V3-R61
E3V3-R81
Red LED
Diffuse Reflective
E3V3-D61
E3V3-D81
Infrared LED
E3V3-D62
E3V3-D82
Cord wiring method (Light-ON or Dark-ON)
Overload protection, reversed connection protection, and mutual interference prevention function (except
for through-beam models)
Operation indicator (orange), stability indicator (green), emission indicator for through-beam models only
(orange)
Heat-resistive ABS
Methacrylic resin
Instruction sheet and reflector (E39-R1 retroreflective model only) (see note)
The mounting brackets are sold separately.
RATINGS/CHARACTERISTICS
Through-beam
E3V3-T61/-T81
50 mA max.
7m
Opaque object: 7 mm
min. (0.28 in)
3° to 15°
Retroreflective
(with MSR function)
E3V3-R61/-R81
40 mA max.
0.1 to 2 m (with E39-R1)
Opaque object: 30 mm
min.
(1.18 in)
Receiver/Emitter: 2° to
10°
Reflector: 30° min.
0.5 to 8 cm
10 x 10 cm white
paper
---
70 cm
20 x 20 cm white paper
Diffuse Reflective
E3V3-D61/-D81
E3V3-D62/-D82
Sensing Method
Part number
Power supply voltage
Current consumption
Detection distance
Standard detectable object
12 to 24 VDC
±10%,
ripple (p-p): 10% max.
Directional angle
Differential travel
Response time
Control output
Ambient
illumination
Ambient
be
temperature
Ambient
be
humidity
Incandescent
lamp
Sunlight
Operating
Storage
Operating
Storage
---
1 ms max. for both operation and release
20% max. of detection distance
100 mA max. at 30 VDC, open collector output (residual voltage: 1 V max.)
Illumination on optical spot:
Illumination on optical spot:
3,000
x max.
10,000
x max.
--25°C to 55°C (--13°F to 131°F) with no icing
--40°C to 70°C (--40°F to 158°F)
35% to 85%
35% to 95%
20 MΩ min. (at 500 VDC)
1,000 VAC, 50/60 Hz for 1 min
10 to 55 Hz, 1.5-mm double amplitude for 2 hrs each in X, Y, and Z directions
500 m/s
2
(approx. 50G) 3 times each in X, Y, and Z directions
IP67
Insulation resistance
Dielectric strength
Vibration
resistance
Shock
resistance
Enclosure
rating
Destruction
Destruction
IEC
E3V3
Retroreflector Specifications
Item
Detection distance (with E3V3)
Directional angle
Ambient
be
temperature
Ambient humidity
be
u d y
Enclosure rating
Note:
Operating
Storage
Operating
Storage
IEC
E39-R3
5 to 100 cm
30° min.
--25°C to 55°C (--13°F to 131°F)
--40°C to 70°C (--40°F to 158°F)
35% to 85%
35% to 95%
IP67 (see note 2)
E39-RSA
20 to 50 cm
E39-RSB
20 to 80 cm
E3V3
1. The E39-R3, E39-RSA, and E39-RSB are polarizing reflectors.
2. Do not cut or scratch E39-R3, E39-RSA, or E39-RSB Reflectors, otherwise they will not be water resistant.

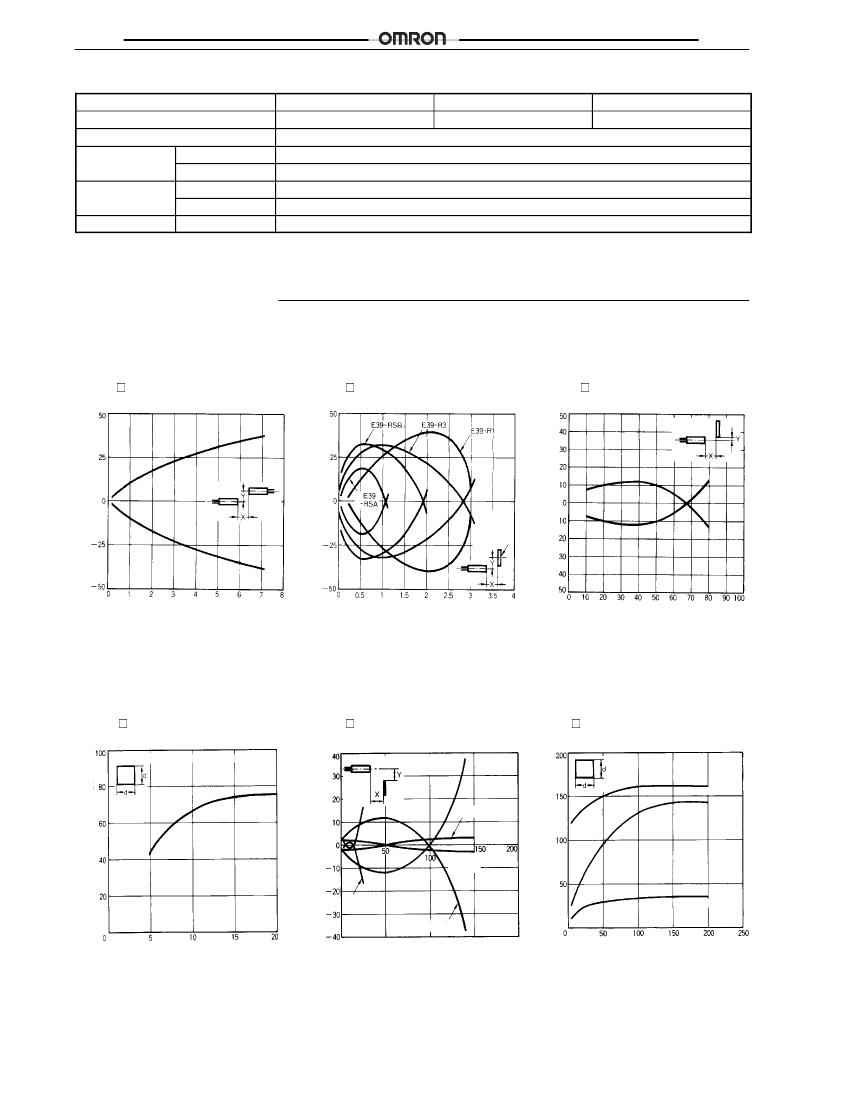

Engineering Data
PARALLEL OPERATING
RANGE (TYPICAL)
E3V3-T 1
REFLECTOR PARALLEL
MOVEMENT (TYPICAL)
E3V3-R 1
OPERATING RANGE
(TYPICAL)
E3V3-D 2
Parallel operating range Y (mm)
Parallel operating range Y (cm)
Reflector
placed
vertically
Detection distance X (m)
Detection distance X (m)
Operating position Y (mm)
Detection distance X (cm)
DETECTION DISTANCE VS.
OBJECT SIZE (TYPICAL)
COLOR OF OBJECT VS.
OPERATING RANGE
(TYPICAL)
DETECTION DISTANCE VS.
OBJECT SIZE (TYPICAL)
E3V3-D 2
Detectable object: White paper
E3V3-D 1
Detectable object
(200 x 200 mm)
E3V3-D 1
Parallel operating range Y (mm)
Detection distance (cm)
SUS (lustrous)
Detection distance
X (mm)
Black
carbon
White paper
Detection distance (mm)
SUS (lustrous)
White
paper
Black carbon
Size of object d (cm)
Detection distance X (mm)
Size of object d (mm)
E3V3
E3V3

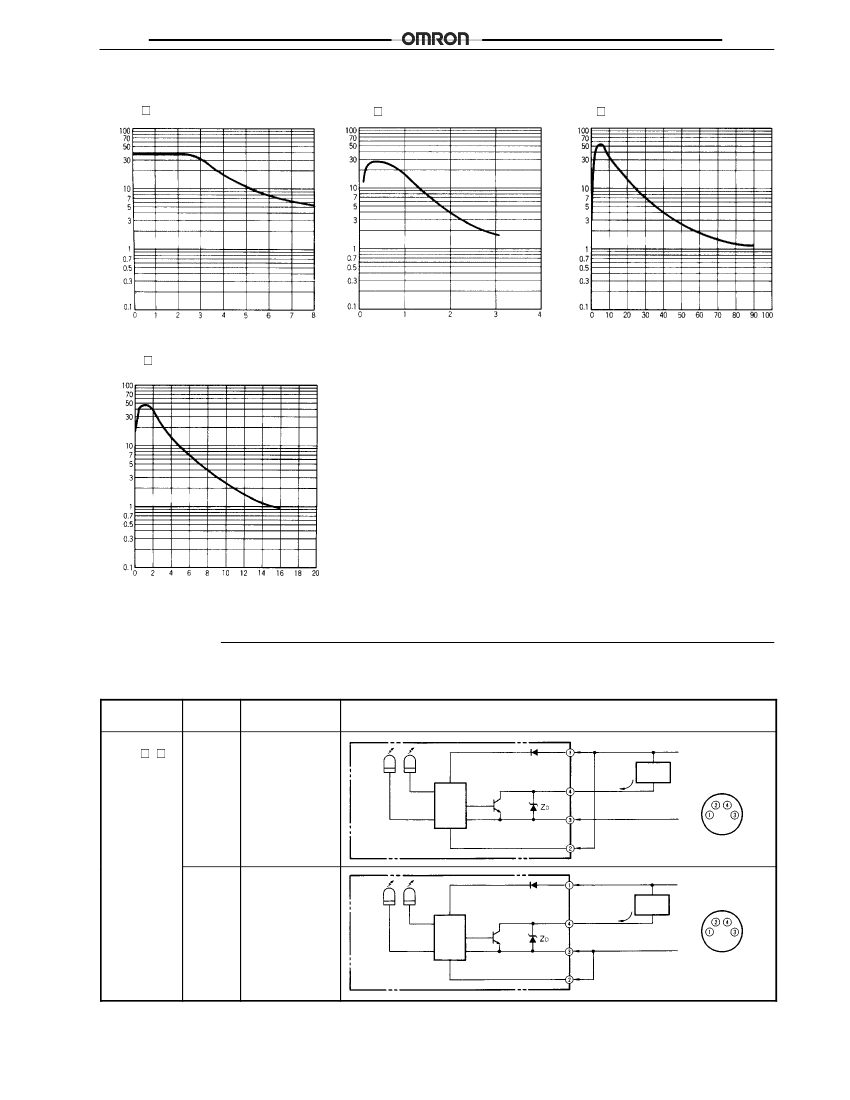

EXCESS GAIN VS. SET DISTANCE (TYPICAL)
E3V3-T 1
E3V3-R 1
E3V3-D 2
Excess gain ratio
Excess gain ratio
Operating level
Operating level
Excess gain ratio
Operating level
Distance (m)
E3V3-D 1
Distance (m)
Distance (cm)
Excess gain ratio
Operating level
Distance (cm)
Operation
OUTPUT CIRCUITS
Mode
Switch
Light-ON
Connection
Method
Connect the pink
cord to the brown
cord. (see note)
Output Circuits
Brown
Operation
indicator
(Orange)
Stability
indicator
(Green)
Output
Configuration
NPN
(E3V3- 6 )
12 to 24 VDC
Load
(relay)
100 mA
Black max.
Blue
Connector Pin
Arrangement
Main
circuit
0V
Pink
Operating selection
Dark-ON
Connect the pink
cord to the blue
cord or
disconnect the
pink cord from the
blue cord. (see
note)
Brown
Operation
indicator
(Orange)
Stability
indicator
(Green)
12 to 24 VDC
Load
(relay)
Connector Pin
Arrangement
100 mA
Black max.
Blue
Main
circuit
0V
Pink
Operating selection
