HawkEye
®
40T & 45T
Auto-Switch Between
Symbologies
High Performance
Handheld Imagers
The HawkEye 40T and HawkEye 45T are the
most aggressive industrial handheld imagers
available for decoding low contrast direct part
marks of linear barcodes and 2D symbols.
These high performance readers are used for
part identification and unit level traceability
applications where the positioning flexibility of
a handheld reader is required.

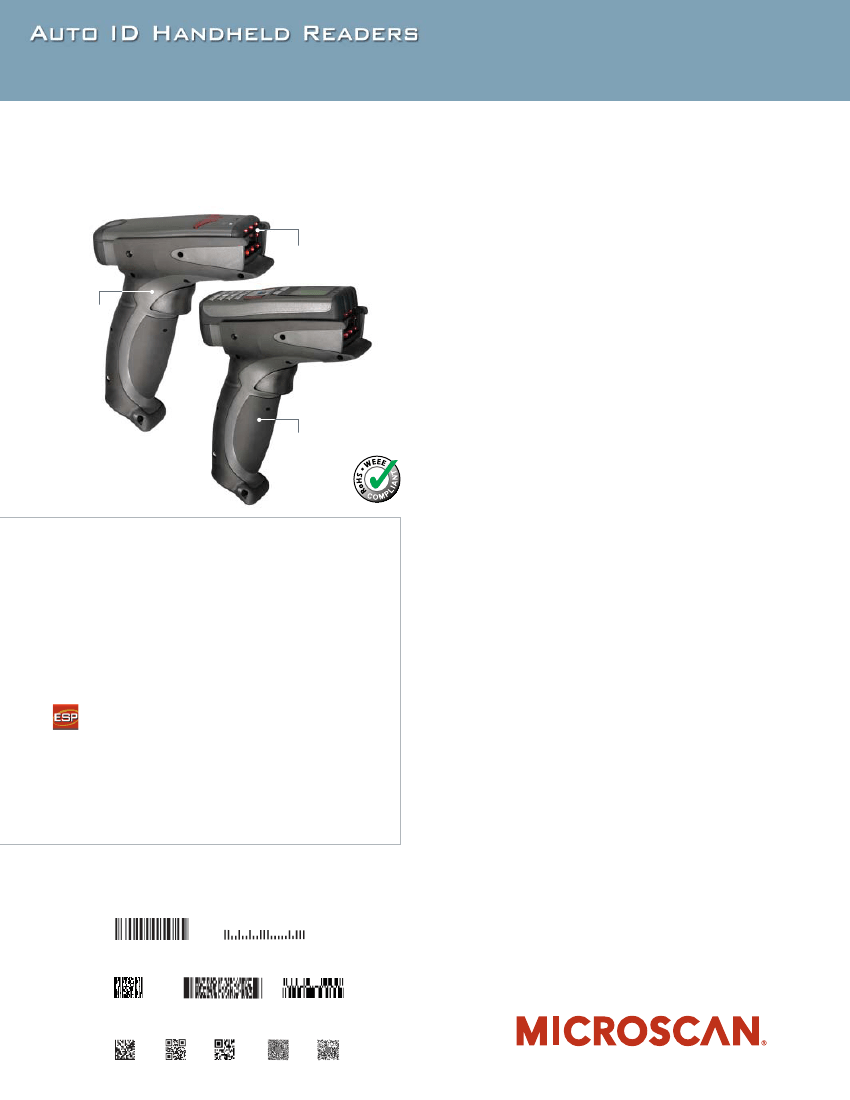

Ergonomic
Design
Detachable
Handle
HawkEye 40T & 45T: At a Glance
• Decodes/second: up to 10
• Read Range: 2 to 16” (51 to 406 mm)
• Bluetooth, USB, RS-232 Interface Options
•
Rugged Handle Options:
- Cabled
- 3900 mAH
Powerful Performance
Advanced image processing
algorithms allow high
performance reading of
direct part marks and
low contrast codes. With
powerful decode abilities for
low contrast and damaged
codes, the HawkEye 40T
and 45T are especially
suitable for direct part marks
which were created by laser
markers, dot peen systems
or inkjet.
Integrated Display
The HawkEye 45T includes
an integrated display that
shows read data, allows
reader configuration,
and provides display
of messages from the
application. With the
HawkEye 45T’s integrated
keypad it is also possible
to enter data into the
application (e.g. counting
operations).
System Integration
All HawkEye handheld
imagers are available in
three configuration options
including batch, cabled
and wireless Bluetooth.
Application Examples
Automotive
Identification of power
train components
Aerospace
Dot peen marks on gas
turbine blades
U.S. Dept. of Defense
UID marks on government
equipment
UID mark validation
Medical Devices
Laser marks on medical
device components &
enclosures
Electronics
Laser marks on ESD-
sensitive components
Semiconductors
Laser marks on packed
semiconductor devices,
heat sinks or heat
spreaders
ESP®Easy Setup Program:
Single-point
software provides quick and easy setup and
configuration of all Microscan readers.
For more information on this product, visit
www.microscan.com.
HawkEye 40T & 45T: Available Codes
All Standard
Postal Codes
Linear
MicroPDF
PDF417
GS1 Databar
Stacked
Data
Matrix
QR
Micro QR Aztec
Maxicode
2D
H
AWK
E
YE
®
40T & 45T S
PECIFICATIONS
IMAGER MECHANICAL
Height:
1.3" (33 mm)
Width:
1.8" (46 mm)
Depth:
4.3" (109 mm)
Weight:
4 oz. (113g) not including cable
Cable Length:
6' (1.8 m)
AND
O
PTIONS

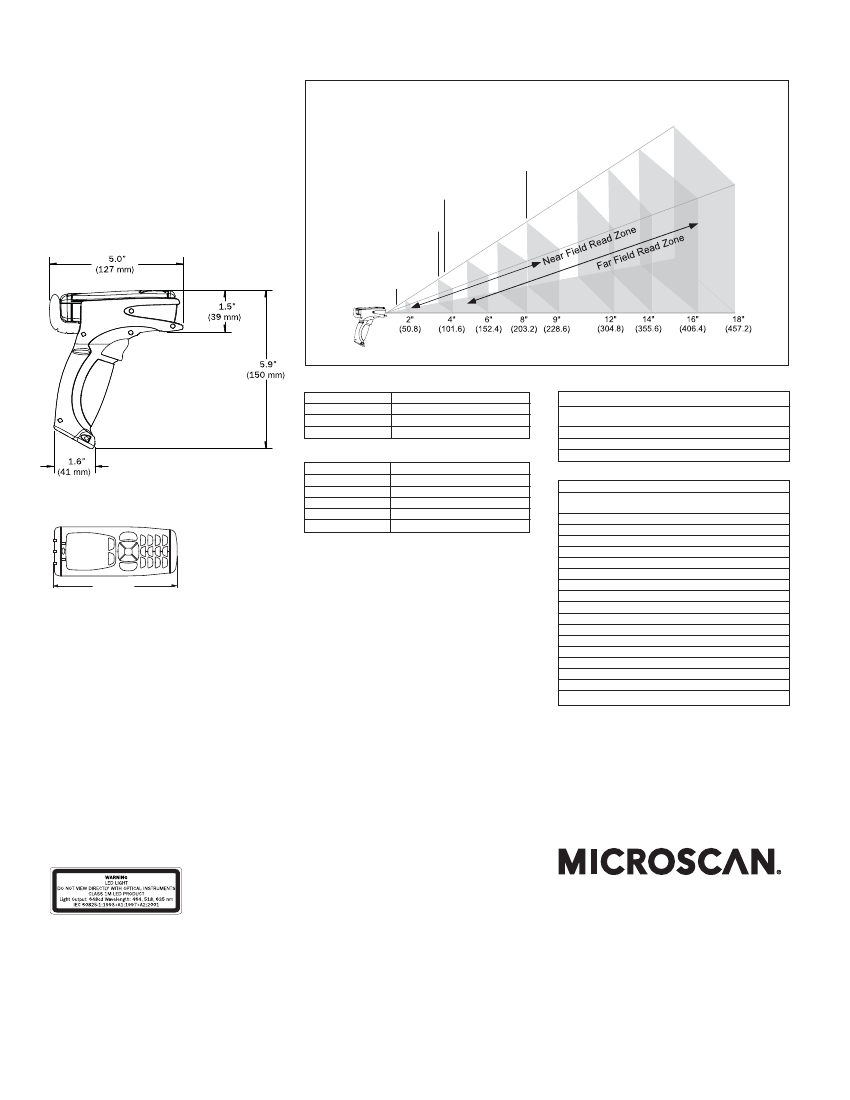

NEAR/FAR FIELD FOCAL DISTANCE COMPARISON CHART
MEASUREMENT
Shown in inches (mm)
HANDLE & BATTERY CHARACTERISTICS
Cabled weight:
4.0 oz. (113)
Cabled weight with imager :
7.2 oz. (204 g)
With 3900 mAH battery:
6.4 oz. (181 g)
With 3900 mAH battery/imager:
9.6 oz. (272 g)
Standard Res, Far Field Focal Pt
X-dimension=3.65” (92.7)
Y-dimension=1.83” (46.4)
High Res, Far Field Focal Pt
X-dimension=1.67” (42.4)
Y-dimension=1.03” (26.1)
Standard Res, Near Field Focal Pt
X-dimension=1.52” (38.6)
Y-dimension=1.14” (30.0)
High Res, Near Field Focal Pt
X-dimension=1.02” (25.9)
Y-dimension=0.63” (15.9)
BATTERY BLANK HANDLE VIEW
FOCAL DISTANCE
READ RANGES, STANDARD RESOLUTION
Narrow Bar-Width
.0075" (0.191 mm)
.015" (0.381 mm)
.020" (0.508 mm)
Read Range Distance
3.2 to 3.9" (81 to 99 mm)
3.0 to 9.0" (76 to 229 mm)
3.0 to 16.0" (76 to 406 mm)
FIELD OF VIEW, STANDARD RESOLUTION
Near Field of View
Distance
(inches/mm)
Field of View Size
(1024 x 640 pixel, Default)
READ RANGES, HIGH RESOLUTION
Narrow Bar-Width
.005" (0.127 mm)
.0075" (0.191 mm)
.010" (0.254 mm)
.015" (0.381 mm)
.020" (0.508 mm)
Read Range Distance
1.75 to 2.5" (44.4 to 63.5 mm)
1.75 to 4" (44.4 to 101.6 mm)
1.75 to 4.75" (44.4 to 102.6 mm)
1.75 to 6" (44.4 to 152.3 mm)
1.75 to 6.5" (44.4 to 165.1 mm)
4" (101.6)
Far Field of View
9" (228.6)
1.52 x 1.14" (38.6 x 30 mm)
3.65 x 1.83" (92.7 x 46.4 mm)
FIELD OF VIEW, HIGH RESOLUTION
Near Field of View
Distance
inches/mm
HAWKEYE 45T KEYPAD MECHANICAL
Top
Field of View Size
(1024 x 640 pixel, Default)
Ranges based on Grade A symbols. Data subject to change.
4.35"
(110.5 mm)
ENVIRONMENTAL
Operating Temperature:
0° to 40°C (32° to 104°F)
Storage Temperature:
-20° to 60°C (-4° to 140°F)
Humidity:
5% to 95% (non-condensing)
Shock:
Withstands 100+ drops of 6.5' (2 meters)
to concrete
DISPLAY (HawkEye 45T)
128 x 128 monochrome
LIGHT SOURCE
Type:
Visible laser light, Class 2 with 630 nm
SYMBOLOGY TYPES
Linear Barcodes:
Code 39, Code 128, I2 of 5,
UPC/EAN, Codabar, Codablock F, Code 93, PLANET,
PostNet, KIX Code, Postal Codes
Stacked Symbologies:
PDF417, Micro PDF417,
GS1 Databar
2D Symbologies:
Data Matrix, MaxiCode, Aztec Code,
QR Code, Micro QR Code
COMMUNICATION PROTOCOLS
Standard Interface:
USB
Optional Interface:
RS-232,
Bluetooth Class 1 Radio at 328' (100 m)
2" (50.8)
2.5" (63.5)
2.75" (69.9)
3" (76.2)
3.5" (88.9)
4" (101.6)
Far Field of View
2" (50.8)
2.5" (63.5)
3" (76.2)
3.5" (88.9)
4" (101.6)
4.5" (114.3)
5" (127)
5.5" (139.7)
6" (152.7)
6.5" (165.1)
.74 x .46" (18.8 x 11.6 mm)
.93 x .57" (23.5 x 14.5 mm)
1.02 x .63" (25.9 x 15.9 mm)
1.11 x .68" (28.3 x 17.4 mm)
1.3 x .80" (33 x 20.3 mm)
1.48 x .91" (37.7 x 23.2 mm)
.74 x .46" (18.8 x 11.6 mm)
.93 x .57" (23.5 x 14.5 mm)
1.11 x .68" (28.2 x 17.4 mm)
1.3 x .80" (32.9 x 20.3 mm)
1.48 x .91" (37.6 x 23.2 mm)
1.67 x 1.03" (42.4 x 26.1 mm)
1.85 x 1.14" (47.1 x 28.9 mm)
2.04 x 1.25" (51.8 x 31.8 mm)
2.22 x 1.37" (56.5 x 34.7 mm)
2.41 x 1.48" (61.2 x 37.6 mm)
LIGHT COLLECTION OPTIONS
Sensor:
CMOS 1.33 MP (1024 x 1280) 256 gray scale
Focal Point:
Near:
1.9" (50 mm)
Far:
14.8" (375 mm)
Field of View:
Near:
0.98" x 0.6" (25 mm x 15 mm) at 1.9" (50 mm)
distance
Far:
5.9" x 3.5" (150 mm x 90 mm) at 14.8" (375 mm)
distance
IMAGE OUTPUT OPTIONS
Format:
JPEG, Raw (uncompressed)
©2011 Microscan Systems, Inc. SP031D 01/11
Performance data is determined using high quality Grade A symbols
per ISO/IEC 15415 and ISO/IEC 15416 in a 25°C environment. For
application-specifi c results, testing should be performed with symbols
used in the actual application. Microscan Applications Engineering is
available to assist with evaluations. Results may vary depending on
symbol quality.
Warranty–One
year limited warranty on parts and labor.
Free extended 3 year warranty upon online product registration.
READ PARAMETERS
Pitch:
±60° (front to back)
Skew:
±60°
Tilt:
360°
Focal Range:
1 to 16" (25 to 406 mm)
Rotational Tolerance:
±180°
Print Contrast Resolution:
25 percent (bar codes);
35 percent (PDF417); absolute dark/light reflectance
differential, measure at 650 nm.
Target Beam:
Visible Laser Diode at 630 nm. Class 2
Ambient Light Immunity:
Sunlight: Up to 9,000 ft-
candles 96,890 lux
ELECTRICAL
Power Requirements:
5 VDC (mA)
Typical:
140
Peak:
310
Idle:
NA/
Bluetooth Radio at 295' (90 m) away (mA):
Typical:
280
Peak:
350
Idle:
96
Sleep:
3
Bluetooth Radio at 33' (10 m) away (mA):
Typical:
260
Peak:
350
Idle:
96
Sleep:
3
Life of 3900 mAH Battery with Radio:
Will support
8000 read/transmits per charge including 16 hours of
standby interval.
Batch Memory:
Minimum of 1MB
SAFETY CERTIFICATIONS
FCC, CE
Microscan Systems, Inc.
Tel 425 226 5700 / 800 251 7711
Fax 425 226 8250
Microscan Europe
Tel 31 172 423360 / Fax 31 172 423366
Microscan Asia Pacific
Tel 65 6846 1214 / Fax 65 6846 4641
ROHS/WEEE COMPLIANCE
ISO CERTIFICATION
Certified ISO 9001:2008 Quality Management System
www.microscan.com
Product Information:
info@microscan.com
Auto ID Support:
helpdesk@microscan.com
Vision Support:
visionsupport@microscan.com
NERLITE Support:
nerlitesupport@microscan.com
