362-574-1410H

Description
Blindmate Connector, Male, Panel Mount, Cable Mount, Solder Terminal, Plug
CategoryThe connector    The connector
File Size96KB,1 Pages
ManufacturerWinchester Electronics
Download Datasheet Parametric View All

362-574-1410H Overview

Blindmate Connector, Male, Panel Mount, Cable Mount, Solder Terminal, Plug

362-574-1410H Parametric

Parameter NameAttribute value
MakerWinchester Electronics
Reach Compliance Codeunknown
Other featuresAPPLICABLE CABLE: RG-402, CAPTIVE CENTER CONTACT, VSWR MAX AT 22 GHZ
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeBLINDMATE CONNECTOR
Contact point genderMALE
Coupling typeSLIDE ON
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.13 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceNO
Manufacturer's serial numberBMA
Installation methodRIGHT ANGLE
Installation typeCABLE
Maximum operating frequency18 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeSOLDER
voltage standing wave ratio1.16
Base Number Matches1

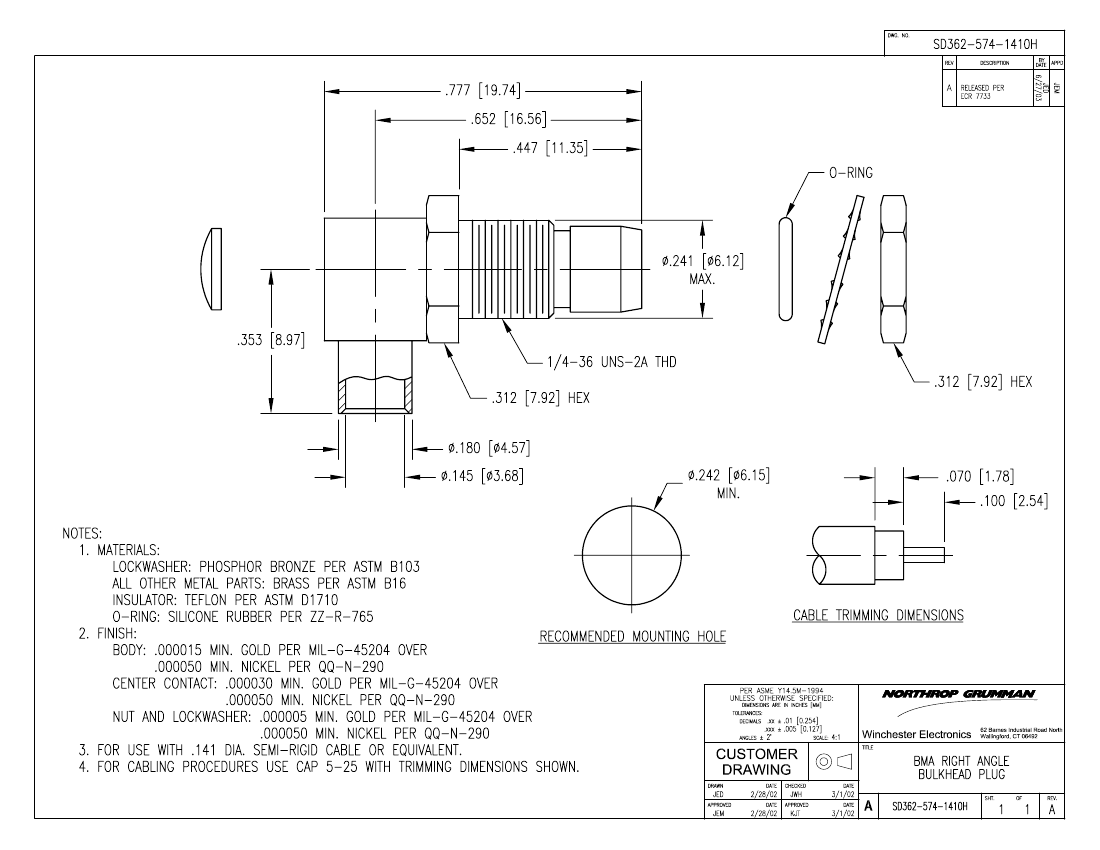

June 2006 - This drawing became the property of Winchester Electronics Corporation, Wallingford, CT.
