ER3A-ER3J
Technical Data
Data Sheet N0133, Rev. B
ER3A-ER3J SURFACE
MOUNT SUPER FAST RECTIFIER
Features
Glass Passivated Die Construction
Ideally Suited for Automatic Assembly
Low Forward Overload Drop, High Efficiency
Low Power Loss
Super-Fast Recovery Time
Plastic Case Material has UL Flammability
Classification Rating 94V-O
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
SMC

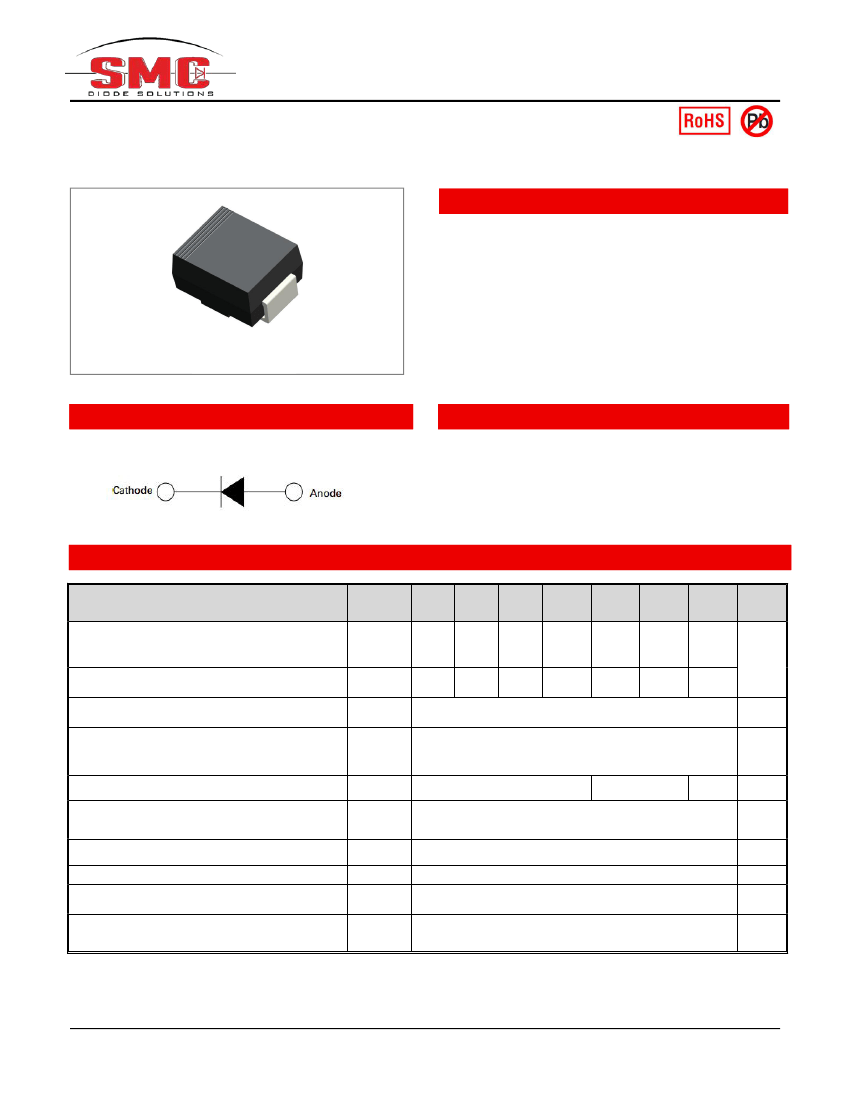

Circuit Diagram
Mechanical Data
Case: Low Profile Molded Plastic
Terminals: Solder Plated, Solderable per MIL-STD-750,
Method 2026
Polarity: Cathode Band or Cathode Notch
Marking: Type Number
Weight: 0.23grams(approx)
Maximum Ratings and Electrical Characteristics
@T
A
=25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current @T
L
=75°C
Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on
rated load (JEDEC Method)
Forward Voltage
@I
F
= 3.0A, T
J
=25°C
T
A
= 25°C
T
A
= 125°C
Maximum DC reverse current
at rated DC blocking voltage
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
Io
I
FSM
V
F
I
R
C
J
Trr
R
θJL
T
J
,T
STG
0.95
5.0
100
45
35
16
-65 to +150
ER3A ER3B ER3C
50
35
100
70
150
105
ER3D
200
140
3.0
100
1.25
1.7
ER3E
300
210
ER3G
400
280
ER3J
600
420
A
A
V
µA
pF
ns
°C/W
°C
Units
V
Typical junction capacitance (Note 1)
Maximum Reverse Recovery Time (Note 2)
Typical thermal resistance (Note 3)
Operating junction and storage temperature
range
Note:
1. Measured at 1.0 MHZ and applied reverse voltage of 4.0 V
DC
2. Measured with I
F
=0.5A, I
R
=1.0A, I
rr
=0.25A,
3. Mounted on P.C. Board with 8.0mm
2
lead area
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
ER3A-ER3J
Technical Data
Data Sheet N0133, Rev. B

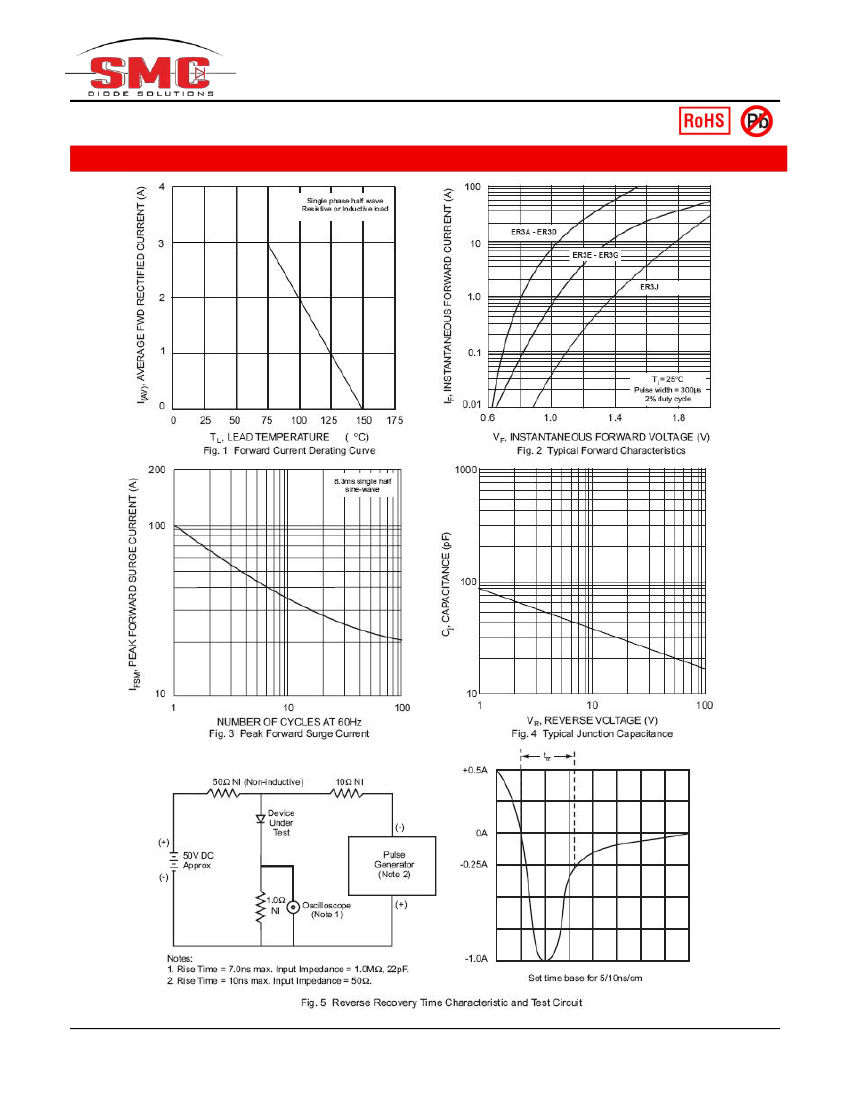

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
ER3A-ER3J
Technical Data
Data Sheet N0133, Rev. B

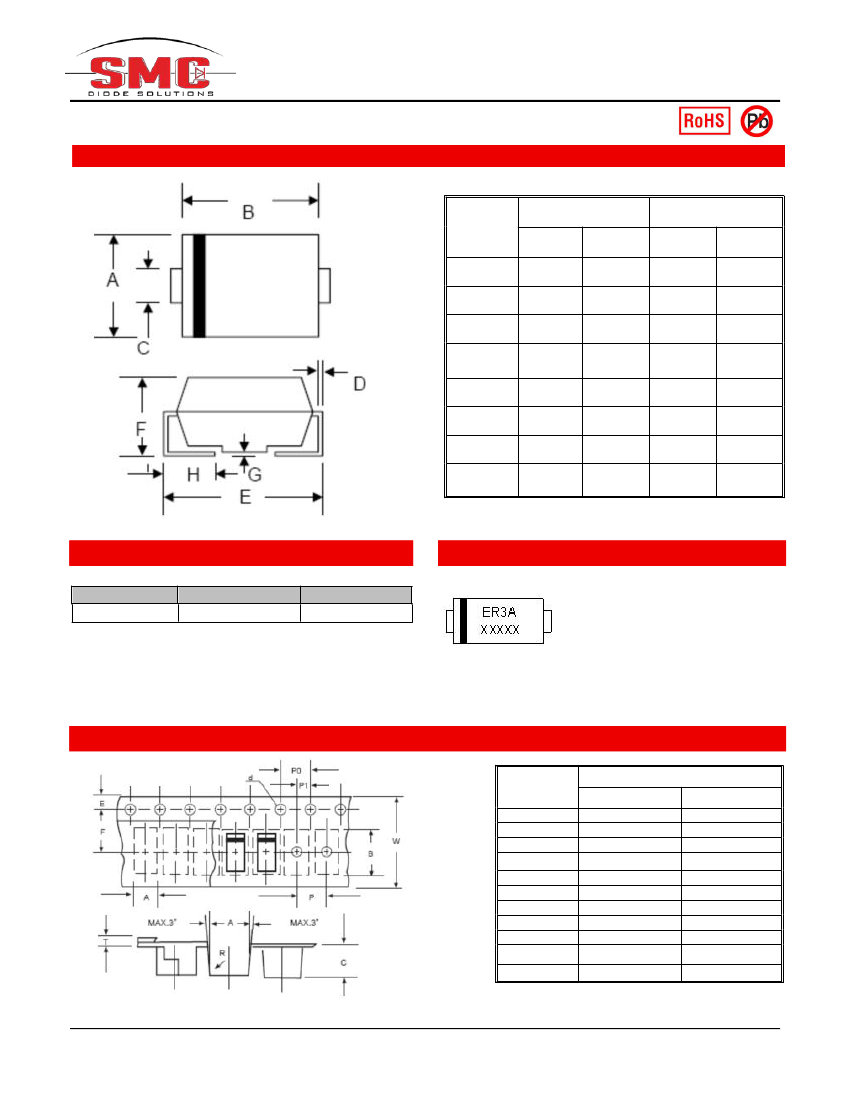

Mechanical Dimensions SMC
Millimeters
Min.
5.59
6.60
2.75
0.152
7.75
2.00
0.051
0.76
Max.
6.22
7.11
3.25
0.305
8.25
2.95
0.203
1.60
Inches
Min.
0.220
0.260
0.108
0.006
0.305
0.079
0.002
0.030
Max.
0.245
0.280
0.128
0.012
0.325
0.116
0.008
0.063
SYMBOL
A
B
C
D
E
F
G
H
Ordering Information
Device
ER3A-ER3J
SMC (Pb-Free)
Marking Diagram
3000pcs / reel
Package
Shipping
Where XXXXX is YYWWL
ER
3
A
YY
WW
L
= Device Type
= Forward Current (3A)
= Reverse Voltage (50V)
= Year
= Week
= Lot Number
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Cautions：Molding
resin
Epoxy resin UL:94V-0
Carrier Tape Specification SMC
SYMBOL
A
B
C
d
E
F
P
P0
P1
T
W
5.90
8.20
2.40
1.40
1.40
7.60
7.90
3.90
3.90
-
15.80
Millimeters
Min.
Max.
6.10
8.40
2.60
1.60
1.60
7.70
8.10
4.10
4.10
0.600
16.20
