SLWSTK6060B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Wireless rf/communication> SLWSTK6060B

SLWSTK6060B: Descriptionseries 收发器 For Use With EFR32FG14; CategoryTopical application Wireless rf/communication; File Size1MB，34 Pages; ManufacturerSilicon Labs; Websitehttps://www.silabs.com

Download Datasheet Parametric View All

SLWSTK6060B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SLWSTK6060B	-	-	View	Buy Now

SLWSTK6060B Overview

series 收发器 For Use With EFR32FG14

SLWSTK6060B Parametric

Parameter Name	Attribute value
category
Maker	Silicon Labs
series	Flex Gecko
Package	Bulk
type	transceiver
frequency	915MHz，2.4GHz
Supporting use/related products	EFR32FG14
What's included	boards, cables, accessories
Basic product number	SLWSTK6060

Preview

Download Datasheet

View All

UG317: EFR32FG14 2400/915 MHz 19 dBm

Dual Band Radio Board and Wireless

Starter Kit User's Guide

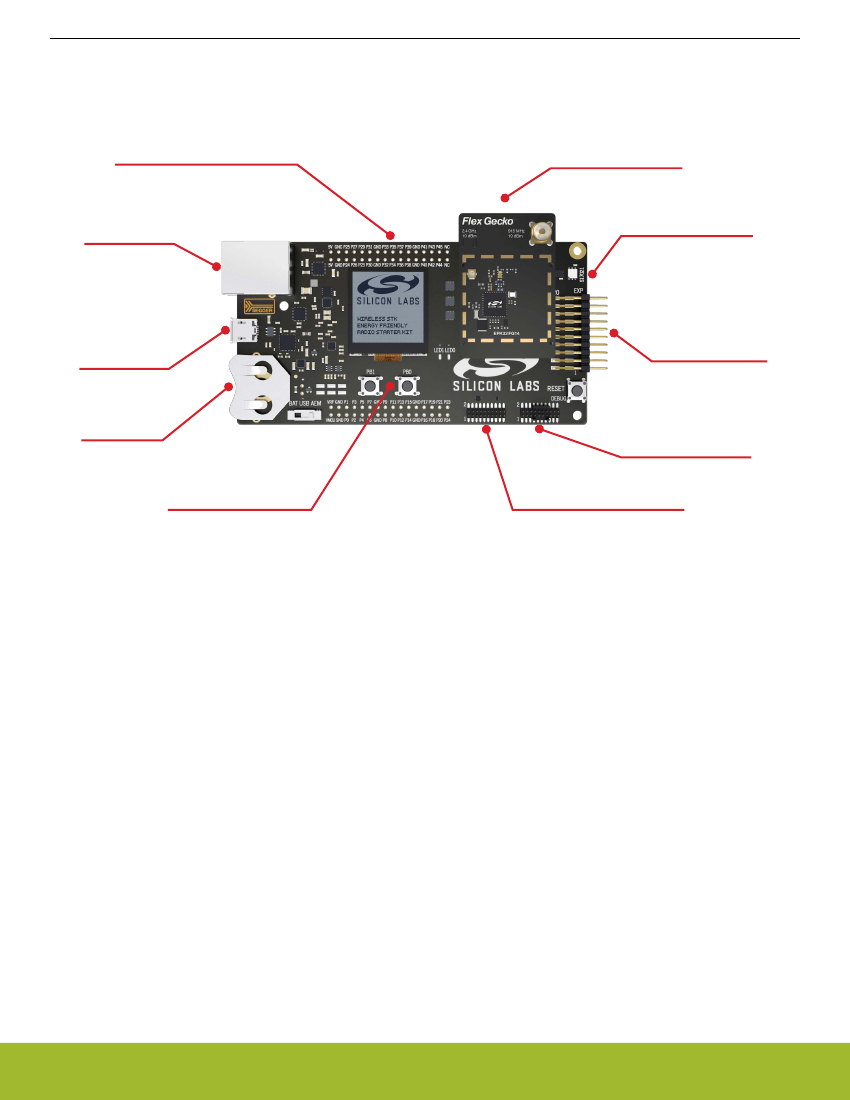

A Wireless Starter Kit with the BRD4257A Radio Board is an ex-

cellent starting point to get familiar with the EFR32™ Flex Gecko

Wireless System-on-Chip, and it provides all necessary tools for

developing a Silicon Labs wireless application.

BRD4257A is a plug-in board for the Wireless Starter Kit Mainboard. It is a complete ref-

erence design for the EFR32FG14 Wireless SoC, with matching networks for 19 dBm

output power, a 2.4 GHz PCB antenna, and an SMA connector for the 915 MHz band.

The Wireless Starter Kit Mainboard contains an on-board J-Link debugger with a Packet

Trace Interface and a Virtual COM port, enabling application development and debug-

ging the attached radio board as well as external hardware. The Mainboard also con-

tains sensors and peripherals for easy demonstration of some of the EFR32's many ca-

pabilities.

This document describes how to use the BRD4257A Radio Board together with a Wire-

less Starter Kit Mainboard.

BRD4257A RADIO BOARD FEATURES

• EFR32FG14 Flex Gecko Wireless SoC

with 256 kB Flash, and 32 kB RAM

(EFR32FG14P233F256GM48)

• Dual band integrated radio transceiver

• 19 dBm output power

• Inverted-F PCB antenna (2.4 GHz)

• SMA antenna connector (915 MHz)

• 8 Mbit low-power serial flash for over-the-

air upgrades.

WIRELESS STK MAINBOARD FEATURES

• Advanced Energy Monitor

• Packet Trace Interface

• Virtual COM Port

• SEGGER J-Link on-board debugger

• External device debugging

• Ethernet and USB connectivity

• Silicon Labs Si7021 Relative Humidity and

Temperature sensor

• Low Power 128x128 pixel Memory LCD

• User LEDs / Pushbuttons

• 20-pin 2.54 mm EXP header

• Breakout pads for Wireless SoC I/O

• CR2032 coin cell battery support

SOFTWARE SUPPORT

• Simplicity Studio™

• Energy Profiler

• Network Analyzer

ORDERING INFORMATION

• SLWSTK6060B

• SLWRB4257A

silabs.com

| Building a more connected world.

Rev. 1.00

UG317: EFR32FG14 2400/915 MHz 19 dBm Dual Band Radio Board and Wireless Starter Kit User's Guide

Introduction

1. Introduction

The EFR32FG14 Flex Gecko Wireless SoC itself is featured on a Radio Board that forms a complete reference design, including the

RF section and other components.

The Radio Board plugs directly into a Wireless Starter Kit Mainboard. The Mainboard features several tools for easy evaluation and

development of wireless applications. An on-board J-Link debugger enables programming and debugging on the target device over

USB or Ethernet. The Advanced Energy Monitor (AEM) offers real-time current and voltage monitoring. A virtual COM port interface

(VCOM) provides an easy-to-use serial port connection over USB or Ethernet. The Packet Trace Interface (PTI) offers invaluable debug

information about transmitted and received packets in wireless links.

All debug functionality, including AEM, VCOM and PTI, can also be used towards external target hardware instead of the attached radio

board.

To further enhance its usability, the Mainboard contains sensors and peripherals demonstrating some of the many capabilities of the

EFR32FG14.

1.1 Radio Boards

A Wireless Starter Kit consists of one or more mainboards and radio boards that plug into the mainboard. Different radio boards are

available. Each featuring different Silicon Labs devices with different operating frequency bands.

Since the mainboard is designed to work with all different radio boards, the actual pin mapping from a device pin to a mainboard feature

is done on the radio board. This means that each radio board has its own pin mapping to the Wireless Starter Kit features such as

buttons, LEDs, the display, the EXP header and the breakout pads. Because this pin mapping is different for every radio board, it is

important that the correct document be consulted which shows the kit features

in context

of the radio board plugged in.

This document explains how to use the Wireless Starter Kit when the EFR32FG14 2400/915 MHz 19 dBm Radio Board (BRD4257A) is

combined with a Mainboard. The combination of these two boards is hereby referred to as a Wireless Starter Kit (Wireless STK).

1.2 Ordering Information

BRD4257A can be obtained as part of the SLWSTK6060B Wireless Starter Kit, or as a separate radio board SLWRB4257A.

Table 1.1. Ordering Information

Part Number

Description

Contents

2x BRD4001A Wireless Starter Kit Mainboard

2x BRD4257A EFR32FG14 2400/915 MHz 19 dBm Dual Band Radio Board

2x 915 MHz dipole antenna (Linx ANT-916-CW-HWR-SMA)

2x USB Type A to Mini-B cable

1x BRD8010A Debug Adapter

SLWRB4257A

EFR32FG14 2400/915 MHz 19 dBm

Dual Band Radio Board

1x BRD4257A EFR32FG14 2400/915 MHz 19 dBm Dual Band Radio Board

1x 915 MHz dipole antenna (Linx ANT-916-CW-HWR-SMA)

SLWSTK6060B EFR32FG14 2400/915 MHz Wireless

Starter Kit

1.3 Getting Started

Detailed instructions for how to get started can be found on the Silicon Labs web pages:

http://www.silabs.com/start-efr32fg

silabs.com

| Building a more connected world.

Rev. 1.00 | 4
