FN332-6/05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> FN332-6/05

FN332-6/05: Description250V, 50/60 HZ, SINGLE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE; CategoryAnalog mixed-signal IC filter; File Size167KB，2 Pages; ManufacturerSchaffner; Environmental Compliance

Download Datasheet Parametric Compare View All

FN332-6/05 Overview

250V, 50/60 HZ, SINGLE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE

FN332-6/05 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE
Reach Compliance Code	compliant
Other features	INDUCTANCE 0.8 MILLIHENRY
Certification	UL; CSA; ENEC-14
filter type	SINGLE PHASE EMI FILTER
high	24.8 mm
high potential	2000 V
Maximum leakage current	0.34 mA
length	40 mm
Manufacturer's serial number	FN332
Installation type	PANEL MOUNT
working frequency	50/60 Hz
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
physical size	L40.0XB28.0XH24.8 (mm)/L1.575XB1.102XH0.976 (inch)
Rated current	7.3 A
Rated voltage	250 V
Terminal surface	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

Performance filter

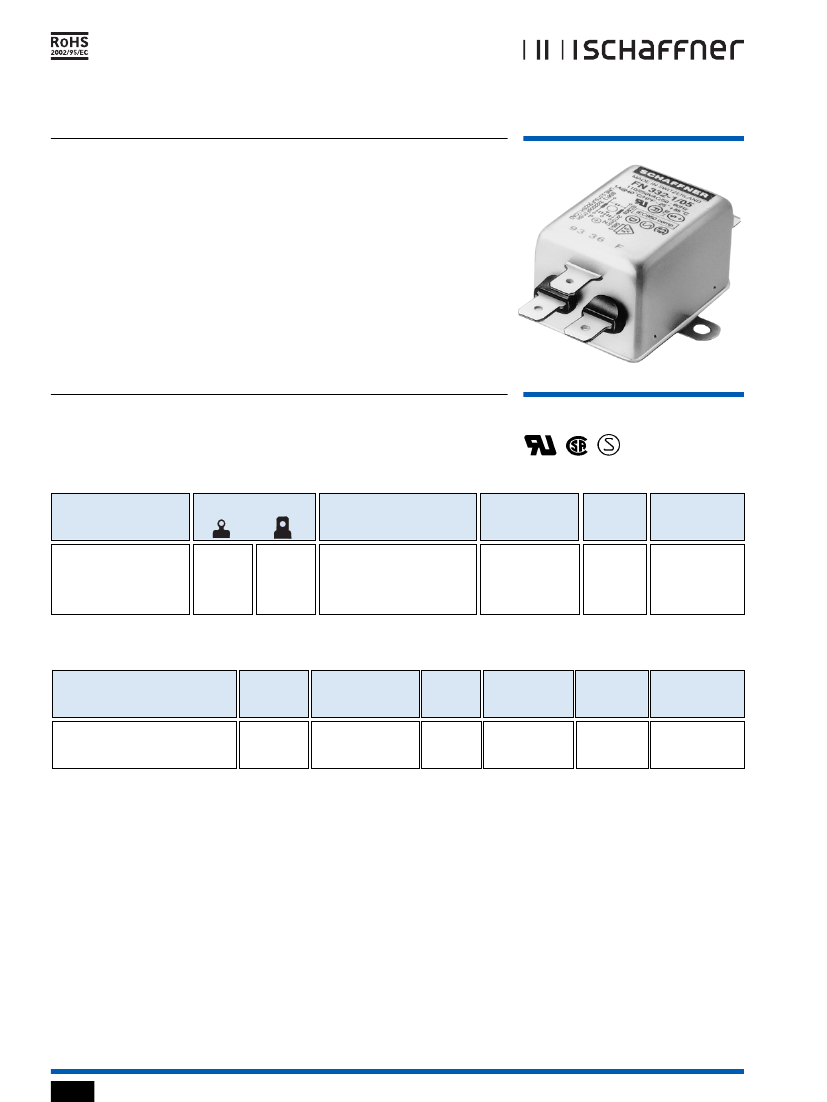

• 1 to 10A current ratings

• Compact housing with solder or fast-on connections

• Optional surge voltage protection (Z types)

• Nennströme von 1 bis 10A

• Kompaktgehäuse mit Lötfahnen oder Steckzungen

• Optionaler Stoßspannungsschutz (Z-Typen)

• Courants de service de 1 à 10A

• Boîtier compact avec connexions par cosses à souder ou fast-on

• Protection contre les surtensions (types Z)

FN 332

Filter selection table

Choose the family

FN xxx

with the required current rating and features, and add

/??

to determine input/output (line/load) connection style. Example: FN 332-6/01 is a 6A

filter with solder lug connections.

Family

Connections

Current ratings

Approvals

EN 133’200

IEC 60939

Inductance

Housing

Weight

at 40°C (25°)

332

-1

-3

-6

-10A

/??

/01

/05

(1.2)

(3.6)

(7.3)

(12)

0.8

0.5

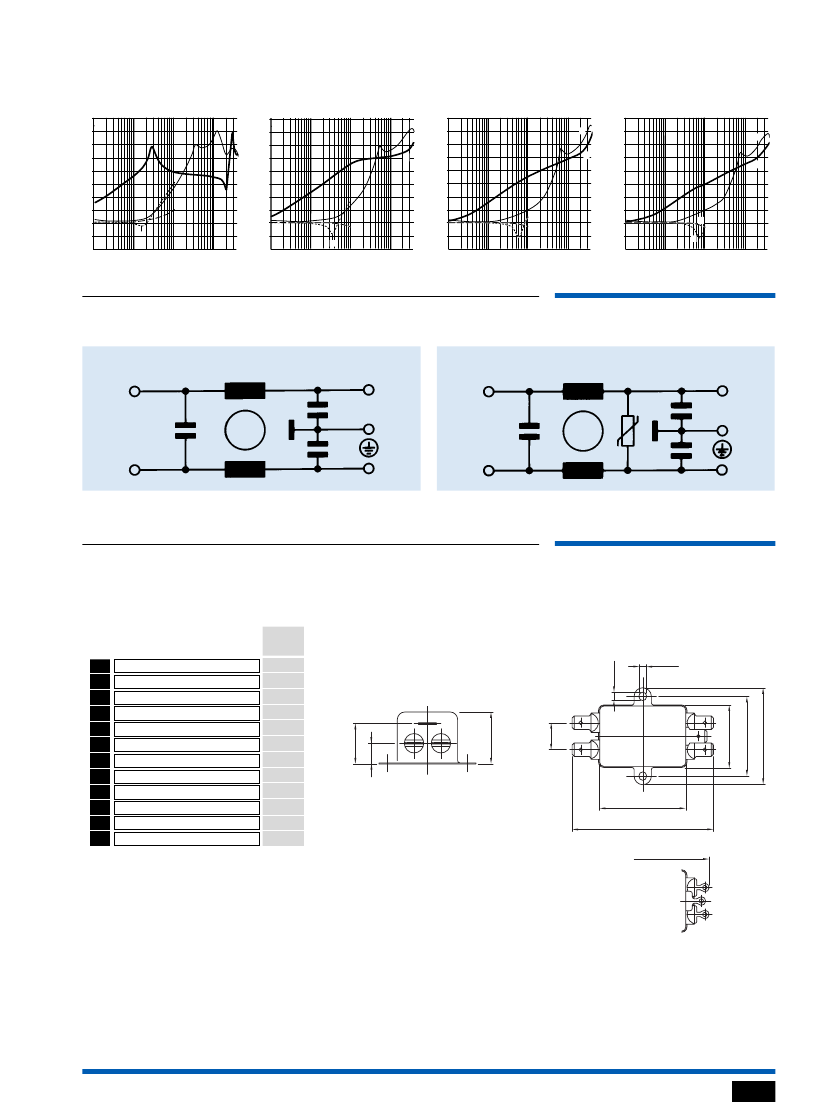

Additional specifications

Filter type

Capacitance

Standard types

FN 332Z types (surge protected)

2.2

Surge

Energy

current absorption

Maximum

leakage

Maximum

operating voltage

Operating

frequency

Hipot test voltage

μA/phase

190

VAC

250

50/60

DC to 400

PN E P N

VAC VAC

2000

760

250

1200

MTBF at 40°C, 230V, per Mil-HB-217F: 710,000 hours.

FN332-6/05 Related Products

	FN332-6/05	FN332-3/05	FN332-1/01
Description	250V, 50/60 HZ, SINGLE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE	250V, 50/60 HZ, SINGLE PHASE EMI FILTER, ROHS COMPLIANT PACKAGE	250 V, 50/60 HZ, SINGLE PHASE EMI FILTER
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant
Other features	INDUCTANCE 0.8 MILLIHENRY	INDUCTANCE 2 MILLIHENRY	SOLDER-LUG CONNECTIONS; SURGE VOLTAGE PROTECTION
Certification	UL; CSA; ENEC-14	UL; CSA; ENEC-14	UL; CSA; SEMKO
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high potential	2000 V	2000 V	2000 V
Maximum leakage current	0.34 mA	0.34 mA	0.19 mA
Manufacturer's serial number	FN332	FN332	FN332
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	50/60 Hz	50/60 Hz	50/60 Hz
Rated current	7.3 A	3.6 A	1.2 A
Rated voltage	250 V	250 V	250 V
Terminal surface	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
package instruction	ROHS COMPLIANT PACKAGE	ROHS COMPLIANT PACKAGE	-
high	24.8 mm	24.8 mm	-
length	40 mm	40 mm	-
Maximum operating temperature	100 °C	100 °C	-
Minimum operating temperature	-25 °C	-25 °C	-
physical size	L40.0XB28.0XH24.8 (mm)/L1.575XB1.102XH0.976 (inch)	L40.0XB28.0XH24.8 (mm)/L1.575XB1.102XH0.976 (inch)	-
Base Number Matches	1	1	-
