Chip Inductors– 1008HQ (2520)
• Highest Q factors of any Coilcraft chip this body size, roughly
20% higher than our popular 1008CS and HS parts.
• Exceptional SRFs, tight tolerance and batch consistency
Coilcraft
Designer’s Kit C323
contains samples of all
5% inductance tolerance parts. Kits with 2% tolerance
are also available. To order, contact Coilcraft or purchase
on-line at
http://order.coilcraft.com.
Q
70 @ 1500 MHz
75 @ 1500 MHz
75 @ 500 MHz
60 @ 500 MHz
70 @ 500 MHz
62 @ 350 MHz
62 @ 350 MHz
75 @ 350 MHz
65 @ 350 MHz
75 @ 350 MHz
75 @ 350 MHz
75 @ 350 MHz
80 @ 350 MHz
80 @ 350 MHz
62 @ 350 MHz
Core material
Ceramic
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
32.4 – 35.7 mg; 17.1 – 17.7 mg (Low profile parts)
Ambient temperature
–40°C to +125°C with
Irms
current, +125°C
to +140°C with derated current
Storage temperature
Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +125 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
One per billion hours / one billion hours, calculated per Telcordia SR-332
Packaging
2000/7″ reel; 7500/13″ reel
Standard height parts: Plastic tape: 8 mm wide, 0.23 mm thick,
4 mm pocket spacing, 1.8 mm pocket depth
Low profile parts: Plastic tape: 8 mm wide, 0.3 mm thick,
4 mm pocket spacing, 1.6 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
Part
1008HQ-3N0X_L_
2
1008HQ-4N1X_L_
1008HQ-7N8X_L_
2
1008HQ-10NX_L_
1008HQ-12NX_L_
1008HQ-18NX_L_
1008HQ-22NX_L_
1008HQ-33NX_L_
1008HQ-36NX_L_
1008HQ-39NX_L_
1008HQ-47NX_L_
1008HQ-56NX_L_
1008HQ-68NX_L_
1008HQ-82NX_L_
1008HQ-R10X_L_
number
1
Inductance
3
(nH)
3.0 @ 50 MHz
4.1 @ 50 MHz
7.8 @ 50 MHz
10 @ 50 MHz
12 @ 50 MHz
18 @ 50 MHz
22 @ 50 MHz
33 @ 50 MHz
36 @ 50 MHz
39 @ 50 MHz
47 @ 50 MHz
56 @ 50 MHz
68 @ 50 MHz
82 @ 50 MHz
100 @ 50 MHz
Percent
tolerance
4
5
5
5
5,2
5,2
5,2,1
5,2
5,2
5,2
5,2
5,2,1
5,2,1
5,2,1
5,2
5,2
min
5
SRF min
6
(GHz)
8.10
6.20
3.80
3.60
2.80
2.70
2.05
1.70
1.40
1.30
1.45
1.23
1.15
1.06
0.82
DCR max
7
(Ohms)
0.04
0.05
0.05
0.06
0.06
0.07
0.07
0.09
0.09
0.09
0.12
0.12
0.13
0.16
0.16
Irms
8
(A)
1.6
1.6
1.6
1.6
1.5
1.4
1.4
1.3
1.3
1.3
1.2
1.2
1.1
1.1
1.0
1. When ordering, specify
tolerance, termination
and
packaging
codes:
1008HQ-R10XGLC
Tolerance:
F
= 1%
G
= 2%
J
= 5%
(Table shows stock tolerances in bold.)
Termination: L
= RoHS compliant silver-palladium-platinum-glass frit.
Special order:
T
= RoHS tin-silver-copper
(95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (2000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape Factory order only, not stocked (7500 parts
per full reel).
2. Part is wound on low profile coilform.
3. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/
HP 4286A impedance analyzer with Coilcraft-provided correlation
pieces.
4. Tolerances in bold are stocked for immediate shipment.
5. Q measured using an Agilent/HP 4291A with an Agilent/HP 16193 test
fixture.
6. For SRF less than 6 GHz, measured using an Agilent/HP 8753D network
analyzer and a Coilcraft SMD-D test fixture. For SRF greater than
6 GHz, measured using an Agilent/HP 8722ES network analyzer and a
Coilcraft SMD-D test fixture.
7. DCR measured on a Cambridge Technology micro-ohmmeter and a
Coilcraft CCF840 test fixture.
8. Current that causes a 15°C temperature rise from 25°C ambient.
9. Electrical specifications at 25°C.
For part marking data, visit http://www.coilcraft.com/colrcode.cfm.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 190-1
Revised 01/18/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 190-2

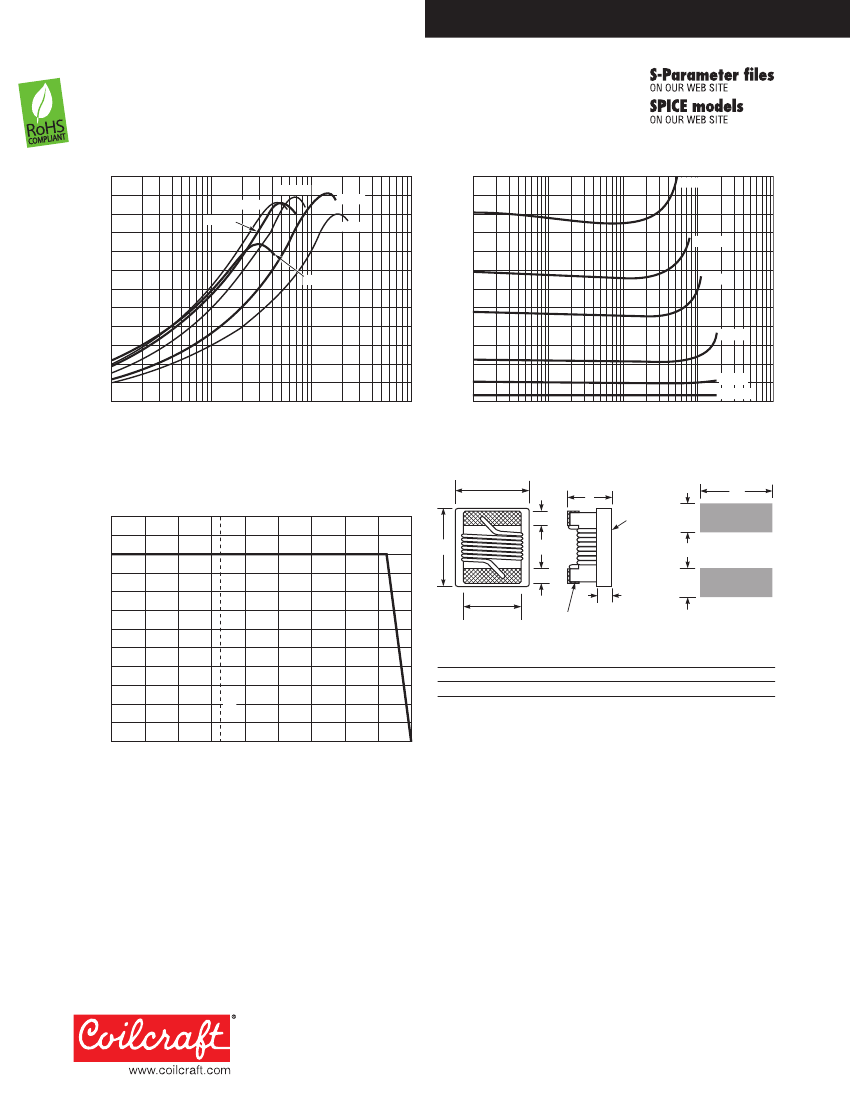

Chip Inductors – 1008HQ Series (2520)
Typical Q vs Frequency
120
110
100
90
80
47 nH
68 nH
Typical L vs Frequency
22 nH
120
10 nH
3.0 nH
100 nH
110
100
90
68 nH
Inductance (nH)
80
70
60
50
40
30
20
10
Q Factor
70
60
50
40
30
20
10
0
10
100
100 nH
47 nH
22 nH
10 nH
3.0 nH
1000
10000
0
1
10
100
1000
10000
Frequency (MHz)
Frequency (MHz)
Irms Derating
120
110
100
A
B
overall
F
G
F
E
terminal
C
H
Pick and
place
material
I
J
I
Percent of rated
I
rms
90
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
120 140
D
Terminal wraparound:
approx 0.015/0,38 both ends
Recommended
Land Pattern
25°C
A
B
C
D
max max max* ref
E
F
G
H
I
J
0.115 0.110 0.080 0.020 0.080 0.020 0.060 0.100 0.040 0.050 inches
2,92 2,79 2,03 0,51 2,03 0,51 1,52 2,54 1,02 1,27 mm
* Low profile parts: 0.050/1,27
Height dimension (C) is before optional solder application. For maximum
height dimension including solder, add 0.006 in / 0,152 mm.
Ambient temperature (°C)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 190-2
Revised 01/18/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
