39-26-5501 datasheet, PDF - EEWORLD Datasheet

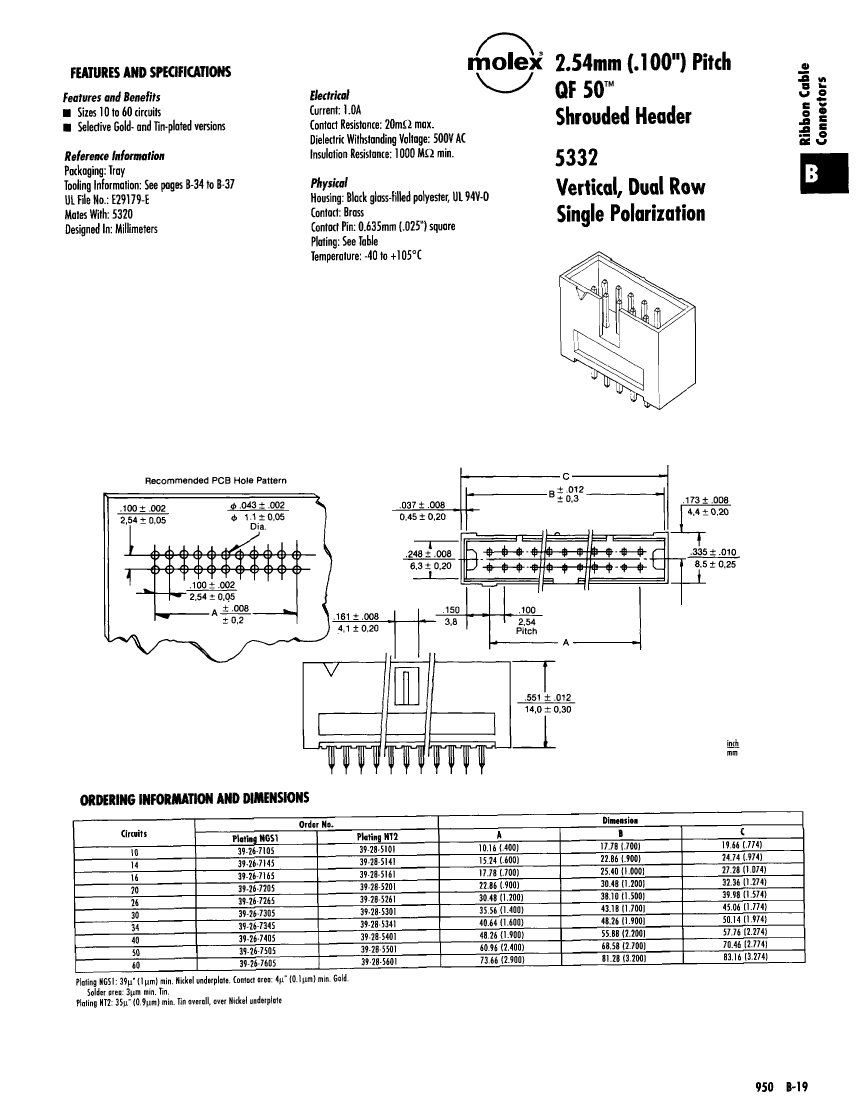

39-26-5501: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39-26-5501 Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	QF 50
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5332
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

	39-26-5501	39-26-5601	39-26-5401
Description	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal
Maker	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown
Other features	QF 50	QF 50	QF 50
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	5332	5332	5332
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	50	60	40
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
