5821SMJ-TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 5821SMJ-TR

5821SMJ-TR: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-214AB,; CategoryDiscrete semiconductor diode; File Size106KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

5821SMJ-TR Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-214AB,

5821SMJ-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SMCJ, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.67 V
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-J2
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
Maximum reverse current	1500 µA
Reverse test voltage	30 V
surface mount	YES
technology	SCHOTTKY
Terminal form	J BEND
Terminal location	DUAL
Base Number Matches	1

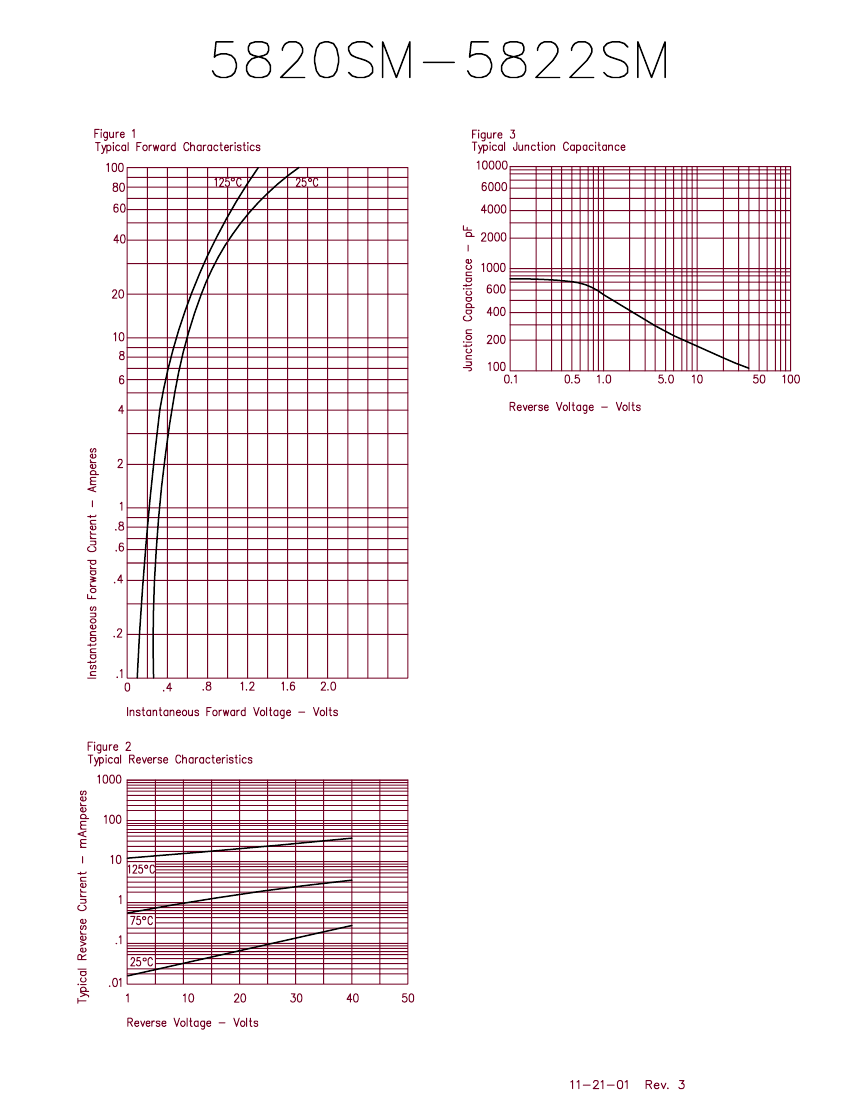

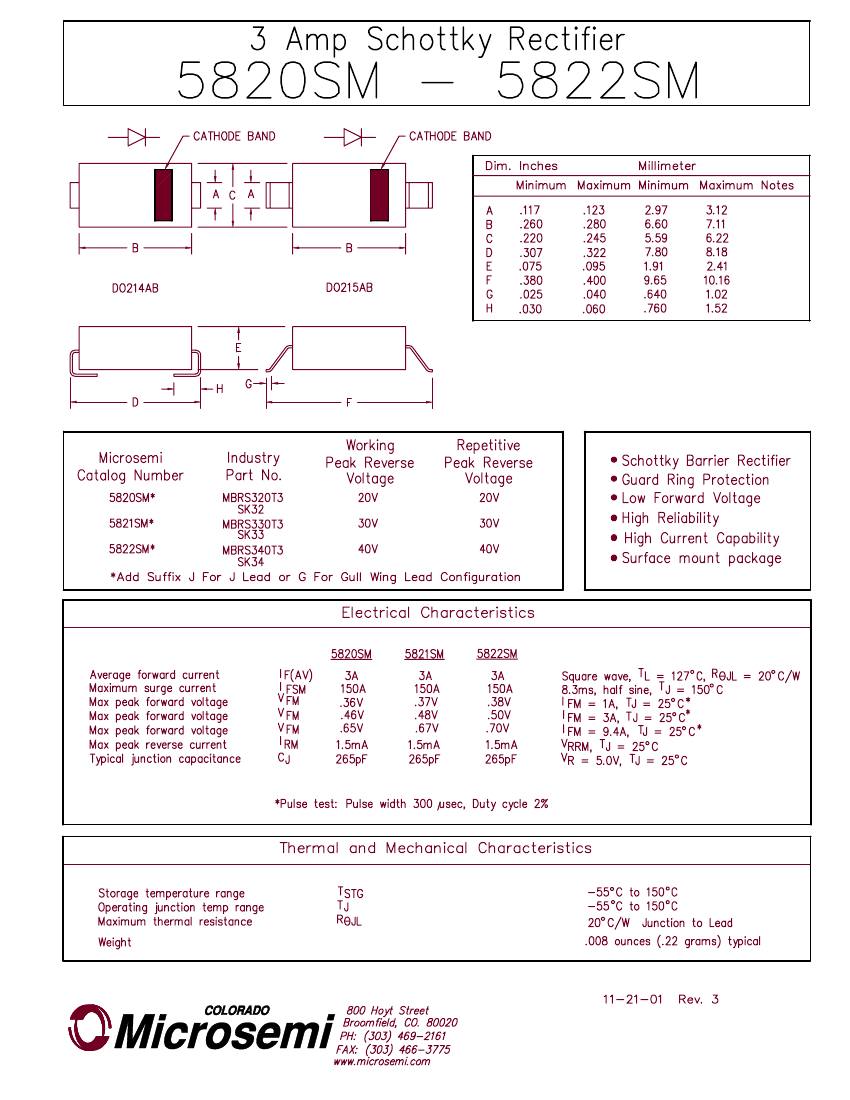

Preview

Download Datasheet

View All

5821SMJ-TR Related Products

	5821SMJ-TR	5822SMJ-TR	5821SMG-TR	5820SMJ-TR
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-214AB,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-214AB,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 30V V(RRM), Silicon, DO-215AB,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 20V V(RRM), Silicon, DO-214AB,
package instruction	SMCJ, 2 PIN	R-PDSO-J2	SMCG, 2 PIN	R-PDSO-C2
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-214AB	DO-214AB	DO-215AB	DO-214AB
JESD-30 code	R-PDSO-J2	R-PDSO-J2	R-PDSO-G2	R-PDSO-C2
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	30 V	40 V	30 V	20 V
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	J BEND	J BEND	GULL WING	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1
Is it Rohs certified?	incompatible	incompatible	incompatible	-
Maximum forward voltage (VF)	0.67 V	0.7 V	0.67 V	-
Maximum reverse current	1500 µA	1500 µA	1500 µA	-
Reverse test voltage	30 V	40 V	30 V	-
