HMC547ALC3
v01.0317
GaAs MMIC SPDT NON-REFLECTIVE
SWITCH, DC - 28.0 GHz
Typical Applications
the hMc547ALc3 is ideal for:
Features
high isolation: 45 dB @ 10 Ghz
39 dB @ 20 Ghz
Low insertion Loss: 1.9 dB @ 10 Ghz
2.2 dB @ 20 Ghz
Fast Switching: 6 ns
Non-Reflective Design
16 Lead ceramic 3x3 mm SMt Package: 9mm
2
SwitcheS - SPDt - SMt
• Fiber Optics & Broadband telecom
• Microwave Radio & VSAt
• Military Radios, Radar, & ecM
• test instrumentation

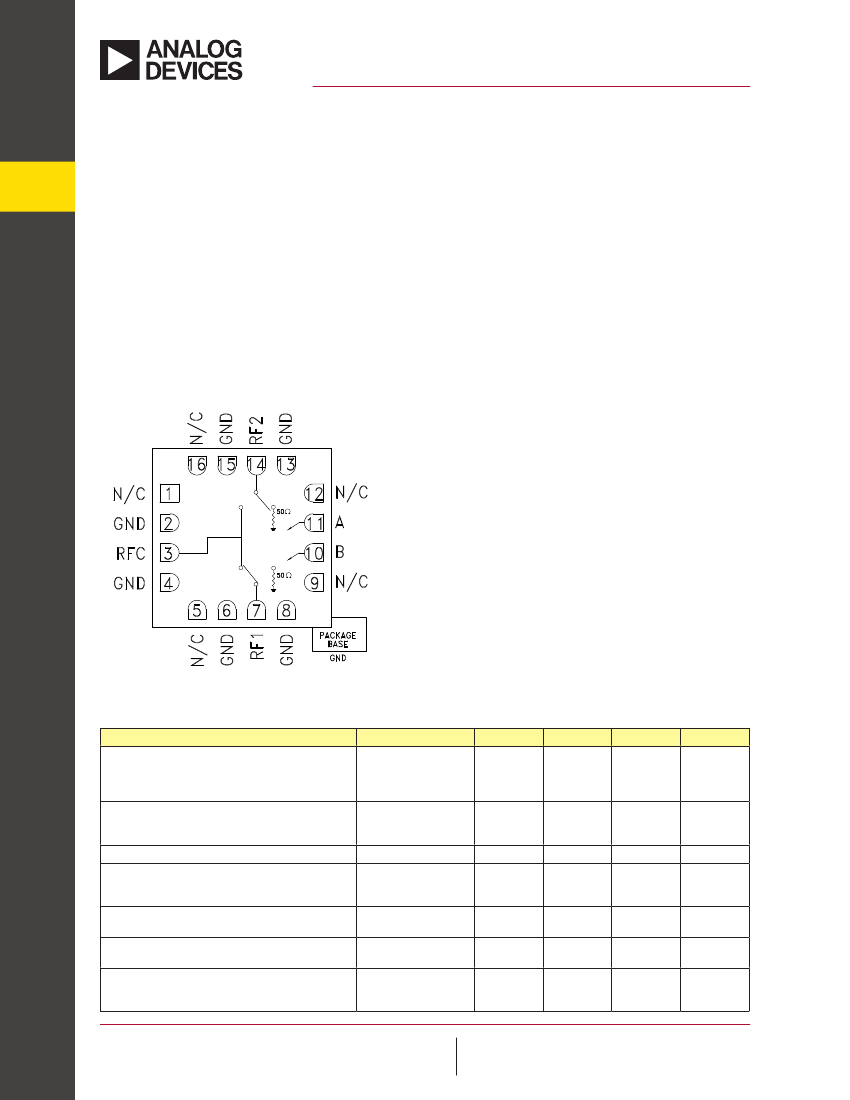

Functional Diagram
General Description
the hMc547ALc3 is a general purpose broadband
high isolation non-reflective GaAs pheMt SPDt
switch in a ceramic 3x3 mm leadless surface mount
package. covering Dc to 28.0 Ghz, the switch offers
over 40 dB isolation and less than 2 dB insertion loss
at midband. the wide bandwidth, fast switching, and
compact size make this absorbtive SPDt ideal for
military ew/ecM and test equipment applications.
the switch operates using complementary negative
control voltage logic lines of -5/0V and requires no
bias supply.
Electrical Specifications,
T
A
= +25° C, With 0/-5V Control, 50 Ohm System
Parameter
Frequency
Dc - 10.0 Ghz
10.0 - 20.0 Ghz
20.0 - 26.0 Ghz
26.0 - 28.0 Ghz
Dc - 10.0 Ghz
10.0 - 20.0 Ghz
20.0 - 28.0 Ghz
“On State”
“Off State”
Dc - 28.0 Ghz
Dc - 10.0 Ghz
10.0 - 20.0 Ghz
20.0 - 28.0 Ghz
Dc - 0.5 Ghz
0.5 - 28.0 Ghz
Dc - 0.5 Ghz
0.5 - 28.0 Ghz
Dc - 28.0 Ghz
20
40
34
30
Min.
typ.
1.9
2.2
2.8
3.1
45
40
34
17
25
15
8
16
26
35
46
3
6
Max.
2.4
2.8
3.4
3.7
Units
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
dBm
ns
ns
insertion Loss
isolation
Return Loss
Return Loss RF1, RF2
input Power for 1 dB compression
input third Order intercept
(two-tone input Power= +7 dBm each tone)
Switching characteristics
tRiSe, tFALL (10/90% RF)
tON, tOFF (50% ctL to 10/90% RF)
1
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
HMC547ALC3
v01.0317
GaAs MMIC SPDT NON-REFLECTIVE
SWITCH, DC - 28.0 GHz

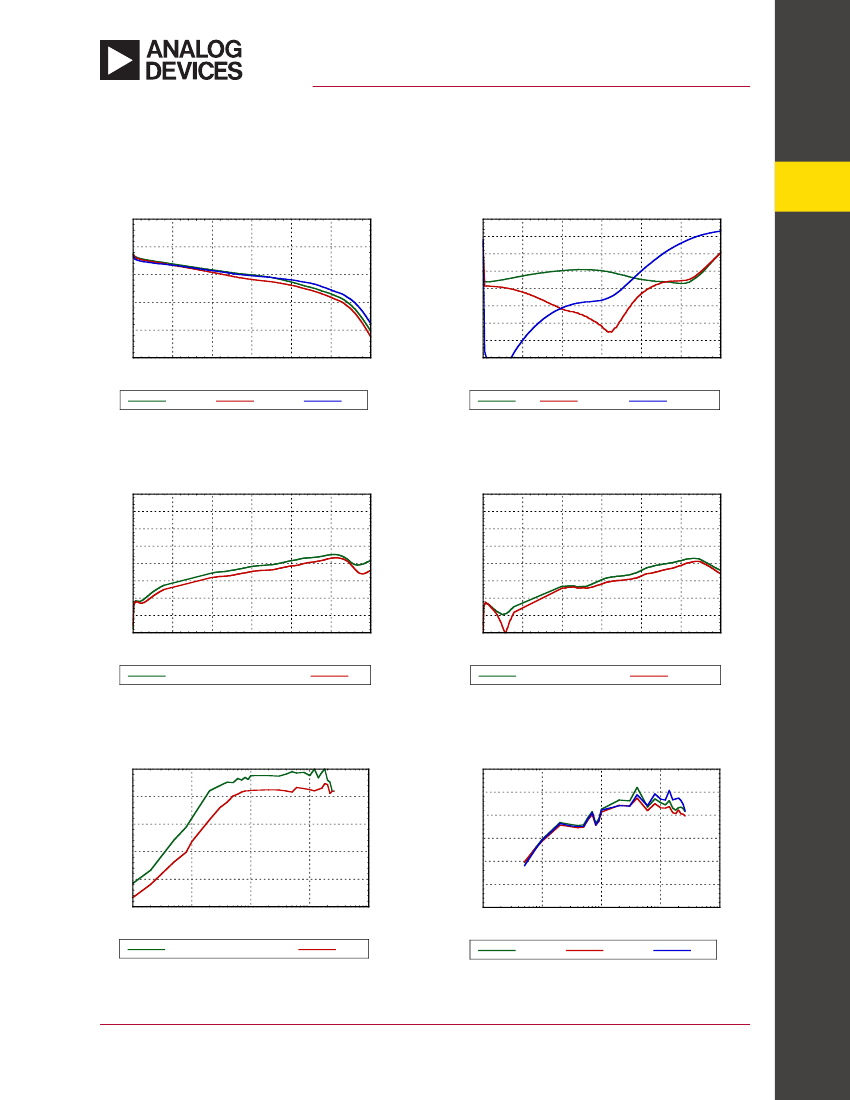

Insertion Loss
0
-1
-2
-3
-4
-5
0
5
10
15
20
25
30
FREQUENCY (GHz)
+25 C
+85 C
-40 C
RFC
Return Loss
0
RETURN LOSS (dB)
-10
-15
-20
-25
-30
-35
-40
0
5
10
15
20
25
30
FREQUENCY (GHz)
RF1, RF2 ON
RF1, RF2 OFF
Isolation Between Ports RFC and RF1/RF2
0
-10
-20
Isolation (dB)
-30
-40
-50
-60
-70
-80
0
5
10
15
20
25
30
FREQUENCY (GHz)
RF1
RF2
Isolation Between Ports RF1 and RF2
0
-10
-20
Isolation (dB)
-30
-40
-50
-60
-70
-80
0
5
10
15
20
25
30
FREQUENCY (GHz)
RF2 PATH ON
RF1 PATH ON
Input P1dB and P0.1dB
Compression Point
30
25
Input P1dB (dB)m
Input Third Order Intercept Point
55
50
INPUT IP3 (dBm)
45
40
35
30
25
0
0.1
1
FREQUENCY (GHz)
P0.1 dB
20
15
10
5
0
0.1
1
FREQUENCY (GHz)
P1 dB
10
100
10
100
+ 25C
+85 C
-40 C
For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
SwitcheS - SPDt - SMt
2
-5
INSERTION LOSS (dB)
HMC547ALC3
v01.0317
GaAs MMIC SPDT NON-REFLECTIVE
SWITCH, DC - 28.0 GHz
Absolute Maximum Ratings
RF input Power (Vctl = -5V)
+29 dBm
+0.5V to -7.5 V
+23 dBm
150 °c
0.55w
A
118 °c/w
+25dBm
high
Low
Control Voltages
State
Low
high
Bias condition
0 to -0.2V @ 10 uA Max.
-5V @ 10 uA typ. to -7V @ 40 uA typ. (± 0.5V)
SwitcheS - SPDt - SMt
control Voltage Range (A & B)
hot Switch Power Level
(Vctl = -5V)
channel temperature
continuous Pdiss (t=85°c)
(derate 8.5 mw/°c above 85°c)
(insertion Loss Path)
thermal Resistance
(insertion Loss Path)
terminated Power Level
(Vctl =-5V)
continuous Pdiss (t=85°c)
(derate 5.0 mw/°c above 85°c)
(terminated Path)
thermal Resistance
(terminated Path)
Storage temperature
Operating temperature
eSD Sensitivity (hBM)
Truth Table
control input
B
Low
high
Signal Path State
RFc to RF1
On
Off
RFc to RF2
Off
On
0.32w
200 °c/w
-65 to +150 °c
-40 to +85 °c
class 0; Passed 150V
eLectROStAtic SeNSitiVe DeVice
OBSeRVe hANDLiNG PRecAUtiONS
3
For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
HMC547ALC3
v01.0317
GaAs MMIC SPDT NON-REFLECTIVE
SWITCH, DC - 28.0 GHz

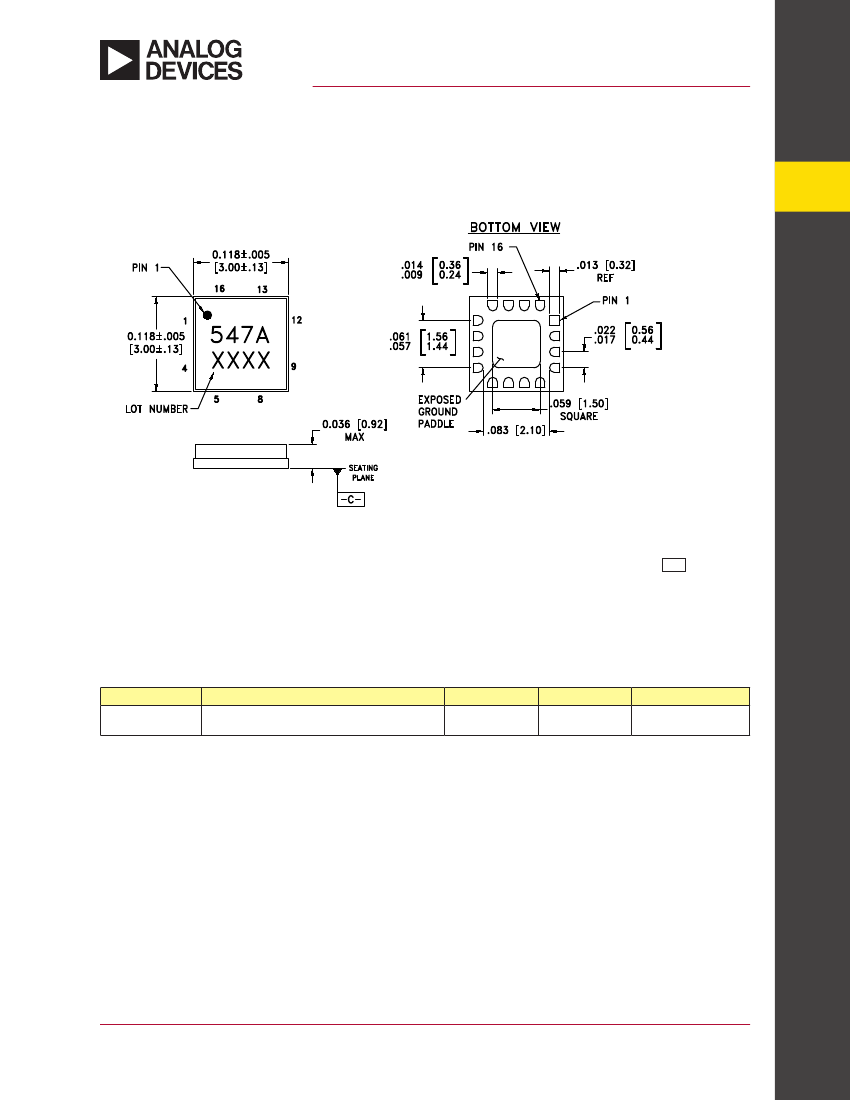

Outline Drawing
NOteS:
1. PAcKAGe BODY MAteRiAL: ALUMiNA.
2. LeAD AND GROUND PADDLe PLAtiNG: GOLD FLASh OVeR NicKeL.
3. DiMeNSiONS ARe iN iNcheS (MiLLiMeteRS).
4. LeAD SPAciNG tOLeRANce iS NON-cUMULAtiVe.
5. PAcKAGe wARP ShALL NOt eXceeD 0.05MM DAtUM – c –
6. ALL GROUND LeADS AND GROUND PADDLe MUSt Be SOLDeReD tO
PcB RF GROUND.
Package Information
Part Number
hMc547ALc3
Package Body Material
Alumina, white
Lead Finish
Gold over Nickel
MSL Rating
MSL3
[1]
Package Marking
[2]
547A
XXXX
[1] Max peak reflow temperature of 260 °c
[2] 4-Digit lot number XXXX
For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
SwitcheS - SPDt - SMt
4
HMC547ALC3
v01.0317
GaAs MMIC SPDT NON-REFLECTIVE
SWITCH, DC - 28.0 GHz
Pin Descriptions
Pin Number
Function
N/c
Description
this pin should be connected to PcB RF ground to
maximize isolation
Package bottom has exposed metal paddle that must also
be connected to PcB RF ground.
this pin is Dc coupled and matched to 50 Ohm. Blocking
capacitors are required if RF line potential is not equal to 0V.
See truth table and control voltage table.
interface Schematic
SwitcheS - SPDt - SMt
1, 5, 9, 12, 16
2, 4, 6, 8, 13, 15
GND
3, 7, 14
RFc, RF1, RF2
10
B
11
A
See truth table and control voltage table.
5
For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
