SSP3A225F7T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> SSP3A225F7T

SSP3A225F7T: DescriptionRelays/Accessories; CategoryLED optoelectronic/LED photoelectric; File Size78KB，4 Pages; ManufacturerSCHNEIDER ELECTRIC; Environmental Compliance

Download Datasheet Parametric View All

SSP3A225F7T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SSP3A225F7T	-	-	View	Buy Now

SSP3A225F7T Overview

Relays/Accessories

SSP3A225F7T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SCHNEIDER ELECTRIC
Reach Compliance Code	unknown
Optoelectronic device types	TRIGGER OUTPUT SSR
Base Number Matches	1

Preview

Download Datasheet

View All

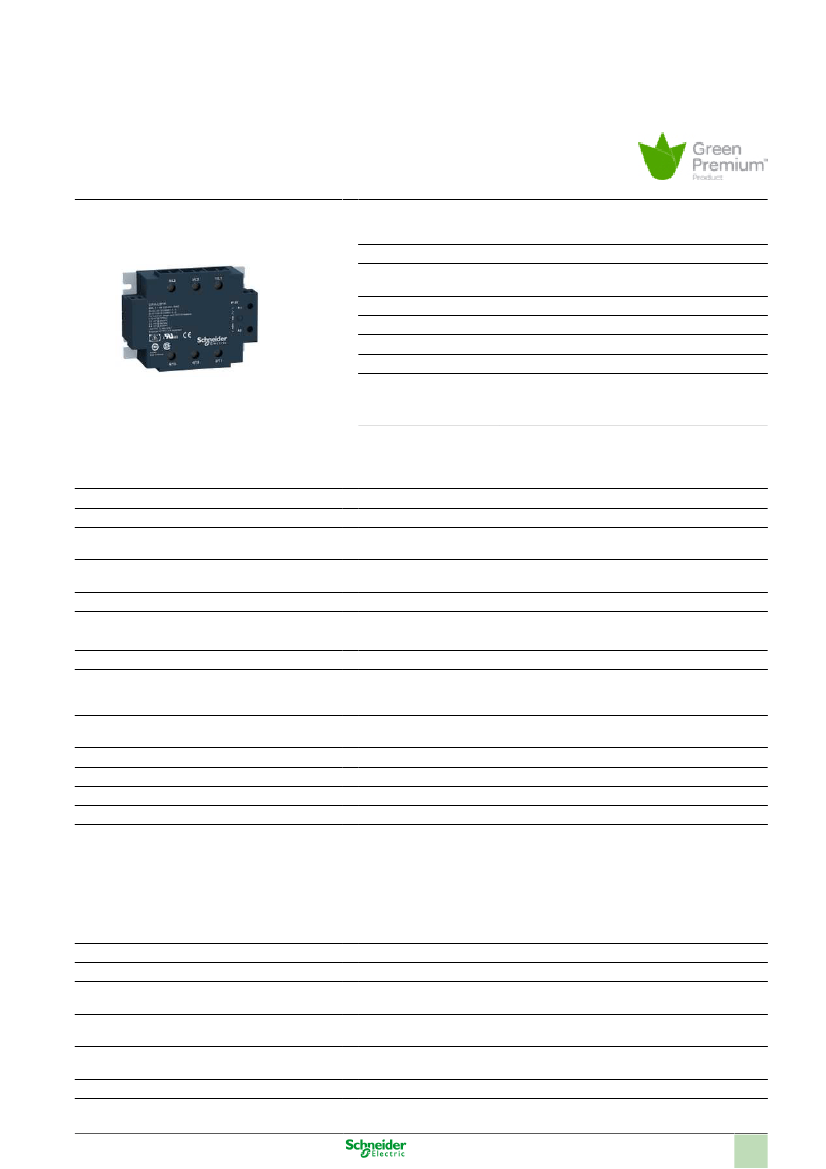

Product data sheet

Characteristics

SSP3A225F7T

solid state relay -panel-input 90-140VAC,

output 48-530VAC,25A-Thermal Interface

Main

Range of product

Product or component

type

Provided accessory

Device short name

Mounting support

Number of phases

Contacts type and

conifguration

Solid state output type

Zelio Relay

Solid state relay

Thermal interface

SSP

Panel

3 phases

3 NO

Zero voltage switching

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.

This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.

It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.

Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.

Complementary

Control type

Control circuit voltage

Switching voltage

Response time

Input current

Output voltage

Load current

Transient overvoltage

Surge current

Without test button

90...140 V AC

<= 10 V AC turn-off

>= 90 V AC turn-on

20 ms turn-on

30 ms turn-off

7...16 mA

48...530 V AC

0.1...25 A

1200 V

<= 275 A for 20 ms

<= 300 A for 16.6 ms

<= 85 A for 1 s

380 A².s for 10 ms at 50 Hz half cycle

370 A².s for 8.3 ms at 60 Hz half cycle

<= 3 mA off-state

<= 1.35 V on-state

500 V/µs off-state at maximum voltage

>= 0.5 with maximum load

0.75 hp at 40 °C 120 V AC

1 hp at 40 °C 240 V AC

3 hp at 40 °C 480 V AC

4.4 hp at 40 °C 530 V AC

0.56 kW at 40 °C 120 V AC

0.74 kW at 40 °C 240 V AC

2.22 kW at 40 °C 480 V AC

3.24 kW at 40 °C 530 V AC

>= 1000 MOhm at 500 V DC

<= 8 pF for input/output

4 kV AC for input/output

4 kV AC for input or output to case

0.9...1.1 N.m for input

1.7...2.2 N.m for output

Screw terminals : 1 x 0.2...1 x 2.5 mm², (AWG 24...AWG 14) for input

Screw terminals : 1 x 1.5...1 x 10 mm², (AWG 16...AWG 8) for output

0.24 °C/W

LED, green for input

Maximum I²t for fusing

Leakage current

Voltage drop

DV/Dt

Power factor

Motor controller rating

Motor power kW

Insulation resistance

Maximum capacitance

Dielectric strength

Tightening torque

Connections - terminals

Thermal resistance

LED indicator

Sep 29, 2016
