Please read this notice before using the TAIYO YUDEN products.
[ For General Electronic Equipment
(General Environment) ]
REMINDERS
■
Product information in this catalog is as of October 2017. All of the contents specified herein are subject to change
without notice due to technical improvements, etc. Therefore, please check for the latest information carefully
before practical application or use of our products.
Please note that TAIYO YUDEN shall not be in any way responsible for any damages and defects in products or
equipment incorporating our products, which are caused under the conditions other than those specified in this
catalog or individual product specification sheets.
■
Please contact TAIYO YUDEN for further details of product specifications as the individual product specification
sheets are available.
■
Please conduct validation and verification of our products in actual condition of mounting and operating
environment before using our products.
■
The products listed in this catalog are intended for use in general electronic equipment (e.g., AV equipment, OA
equipment, home electric appliances, office equipment, information and communication equipment including,
without limitation, mobile phone, and PC) and medical equipment classified as Class I or II by IMDRF. Please be
sure to contact TAIYO YUDEN for further information before using the products for any equipment which may
directly cause loss of human life or bodily injury (e.g., transportation equipment including, without limitation,
automotive powertrain control system, train control system, and ship control system, traffic signal equipment,
disaster prevention equipment, medical equipment classified as Class III by IMDRF, highly public information
network equipment including, without limitation, telephone exchange, and base station).
Please do not incorporate our products into any equipment requiring high levels of safety and/or reliability (e.g.,
aerospace equipment, aviation equipment*, medical equipment classified as Class IV by IMDRF, nuclear control
equipment, undersea equipment, military equipment).
*Note: There is a possibility that our products can be used only for aviation equipment that does not directly affect the safe operation of aircraft (e.g.,
in-flight entertainment, cabin light, electric seat, cooking equipment) if such use meets requirements specified separately by TAIYO YUDEN.
Please be sure to contact TAIYO YUDEN for further information before using our products for such aviation equipment.
When our products are used even for high safety and/or reliability-required devices or circuits of general electronic
equipment, it is strongly recommended to perform a thorough safety evaluation prior to use of our products and to
install a protection circuit as necessary.
Please note that unless you obtain prior written consent of TAIYO YUDEN, TAIYO YUDEN shall not be in any way
responsible for any damages incurred by you or third parties arising from use of the products listed in this catalog
for any equipment requiring inquiry to TAIYO YUDEN or prohibited for use by TAIYO YUDEN as described above.
■
Information contained in this catalog is intended to convey examples of typical performances and/or applications
of our products and is not intended to make any warranty with respect to the intellectual property rights or any
other related rights of TAIYO YUDEN or any third parties nor grant any license under such rights.
■
Please note that the scope of warranty for our products is limited to the delivered our products themselves and
TAIYO YUDEN shall not be in any way responsible for any damages resulting from a fault or defect in our products.
Notwithstanding the foregoing, if there is a written agreement (e.g., supply and purchase agreement, quality
assurance agreement) signed by TAIYO YUDEN and your company, TAIYO YUDEN will warrant our products in
accordance with such agreement.
■
The contents of this catalog are applicable to our products which are purchased from our sales offices or
authorized distributors (hereinafter
“TAIYO
YUDEN’official sales channel” Please note that the contents of this
s
).
catalog are not applicable to our products purchased from any seller other than TAIYO YUDEN’official sales
s
channel.
■
Caution for Export
Some of our products listed in this catalog may require specific procedures for export according to
“U.S.
Export
Administration Regulations”
,
“Foreign
Exchange and Foreign Trade Control Law”of Japan, and other applicable
regulations. Should you have any questions on this matter, please contact our sales staff.
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our product specification sheets.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our website (http://www.ty-top.com/) .
1
8
113

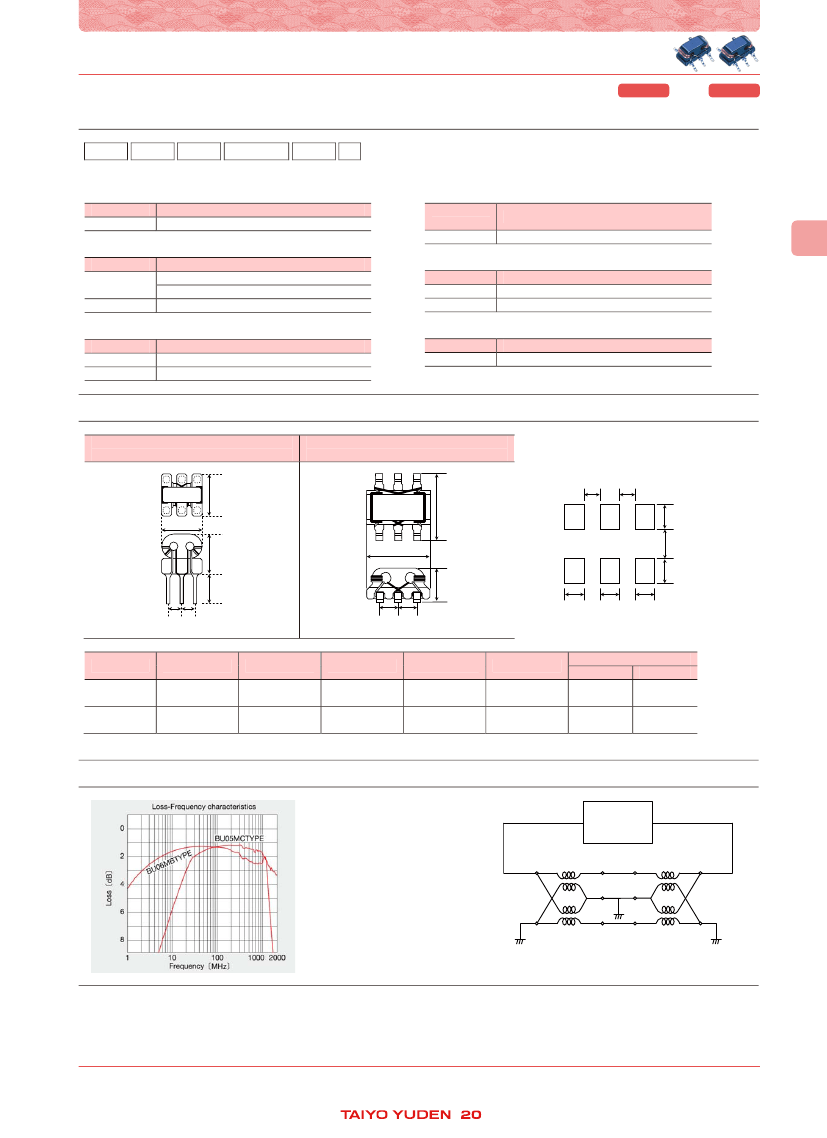

SMD COMMON MODE CHOKE COILS FOR DC AND SIGNAL LINES，
BALUN TRANSFORMERS

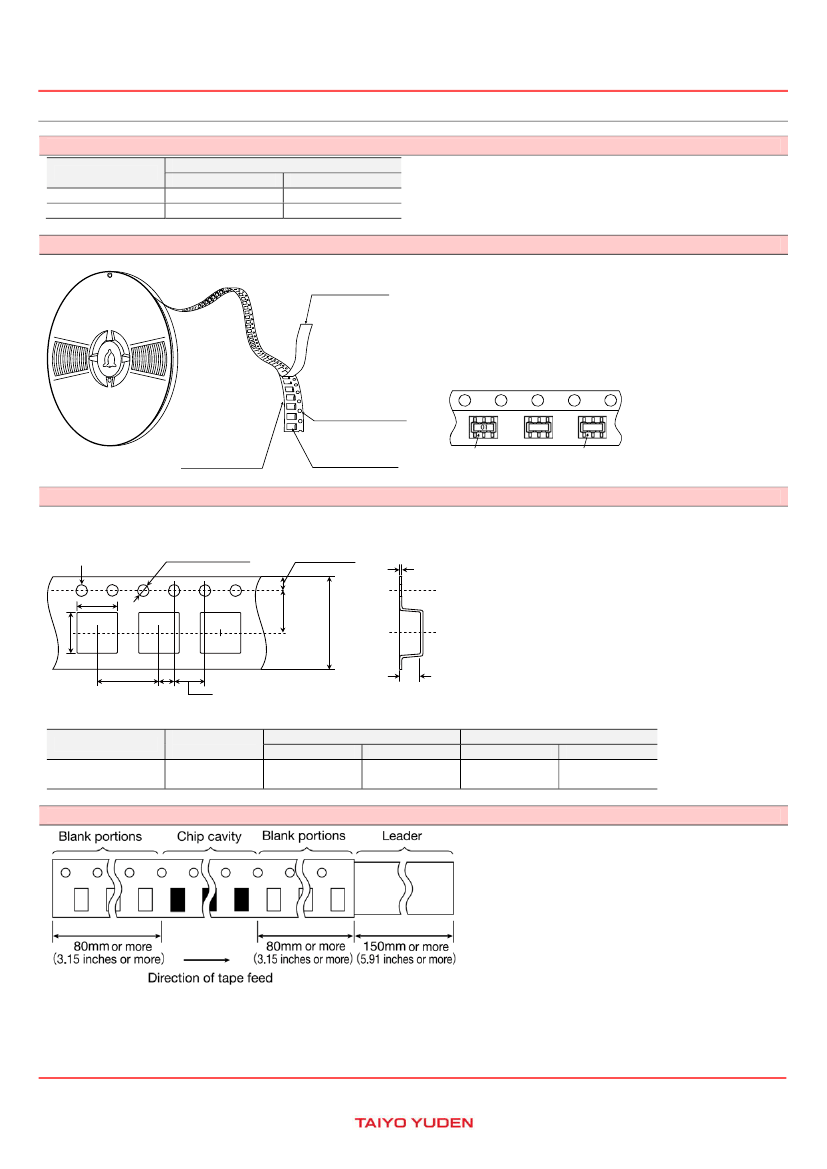

■PACKAGING
①Minimum Quantity
Type
BU05MC
BU06MB
②Tape material
●Embossed
Tape
Minimum Quantity [pcs]
Box
Taping
－
2500
150
－
Top tape
Chip Filled
Sprocket hole
Base tape
③Taping dimensions
●Embossed
tape 12mm wide (0.472 inches wide)
φ1.5＋0.1/－0
(φ0.059＋0.004/-0)
1.75±0.1
(0.069±0.004）
5.5±0.1
(0.217±0.004)
Chip cavity
First pin
Chip
Sprocket hole
T
A
B
12.0±0.3
(0.472±0.012)
K
F
2.0±0.1
(0.079±0.004)
4.0±0.1
(0.157±0.004)
Unit：mm（inch）
Chip cavity
A
B
5.2±0.1
5.6±0.1
(0.205±0.004)
(0.220±0.004)
Tape thickness
K
T
3.2±0.1
0.4±0.05
(0.126±0.004)
(0.016±0.002)
Unit：mm（inch）
Type
BU05MC
Insertion
pitch
8.0±0.1
(0.315±0.004)
④Leader and Blank portion
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
coil_smd_trans_pack_e-E05R01
⑤Reel size
2.0±0.5
（0.079±0.020）
φ13.0±0.5
（φ0.512±0.020）
R1.0
φ21.0±0.8
（φ0.827±0.031）
φd
φD
W
Type
BU05MC
φ
D
330±2.0
（12.99±0.079）
φ
d
80±1.0
（3.15±0.039）
W
13.5±1.0
（0.53±0.039）
Unit：mm（inch）
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
coil_smd_trans_pack_e-E05R01
SMD COMMON MODE CHOKE COILS FOR DC AND SIGNAL LINES，
BALUN TRANSFORMERS
■PRECAUTIONS
1. Circuit Design
◆Operating environment
1. The products described in this specification are intended for use in general electronic equipment, (office supply equipment,
telecommunications systems, measuring equipment, and household equipment). They are not intended for use in mission-critical
equipment or systems requiring special quality and high reliability (traffic systems, safety equipment, aerospace systems, nuclear
control systems and medical equipment including life-support systems,) where product failure might result in loss of life, injury or
damage. For such uses, contact TAIYO YUDEN Sales Department in advance.
Precautions
2. PCB Design
Precautions
◆Land pattern design
1. Please contact any of our offices for a land pattern, and refer to a recommended land pattern of specifications.
◆Land pattern design
Surface Mounting
・ Mounting and soldering conditions should be checked beforehand.
・ Applicable soldering process to these products is reflow soldering only.
・ Recommended Land Patterns
【BU05MC】
0.5
Technical
considerations
0.5
1.4
3.2
1.4
1
1
1
Unit：mm
3. Considerations for automatic placement
Precautions
Technical
considerations
4. Soldering
◆Reflow soldering
1. Please contact any of our offices for a reflow soldering, and refer to the recommended condition specified.
2. This product can be used reflow soldering only.
3. Please do not add any stress to a product until it returns in normal temperature after reflow soldering.
◆Lead free soldering
1. When using products with lead free soldering, we request to use them after confirming adhesion, temperature of resistance to soldering
heat, soldering etc sufficiently.
◆Recommended conditions for using a soldering iron
【BU05MC】
・ Put the soldering iron on the land-pattern.
・ Soldering iron's temperature - Below 350℃
・ Duration - 3 seconds or less
・ The soldering iron should not directly touch the inductor.
◆Reflow soldering
1. If products are used beyond the range of the recommended conditions, heat stresses may deform the products, and consequently
degrade the reliability of the products.
◆Recommended conditions for using a soldering iron
If products are used beyond the range of the recommended conditions, heat stresses may deform the products, and consequently degrade
the reliability of the products.
◆Adjustment of mounting machine
1. Excessive impact load should not be imposed on the products when mounting onto the PC boards.
2. Mounting and soldering conditions should be checked beforehand.
◆Adjustment of mounting machine
1. When installing products, care should be taken not to apply distortion stress as it may deform the products.
Precautions
Technical
considerations
5. Cleaning
Precautions
◆Cleaning conditions
1. Please contact any of our offices for a cleaning.
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
