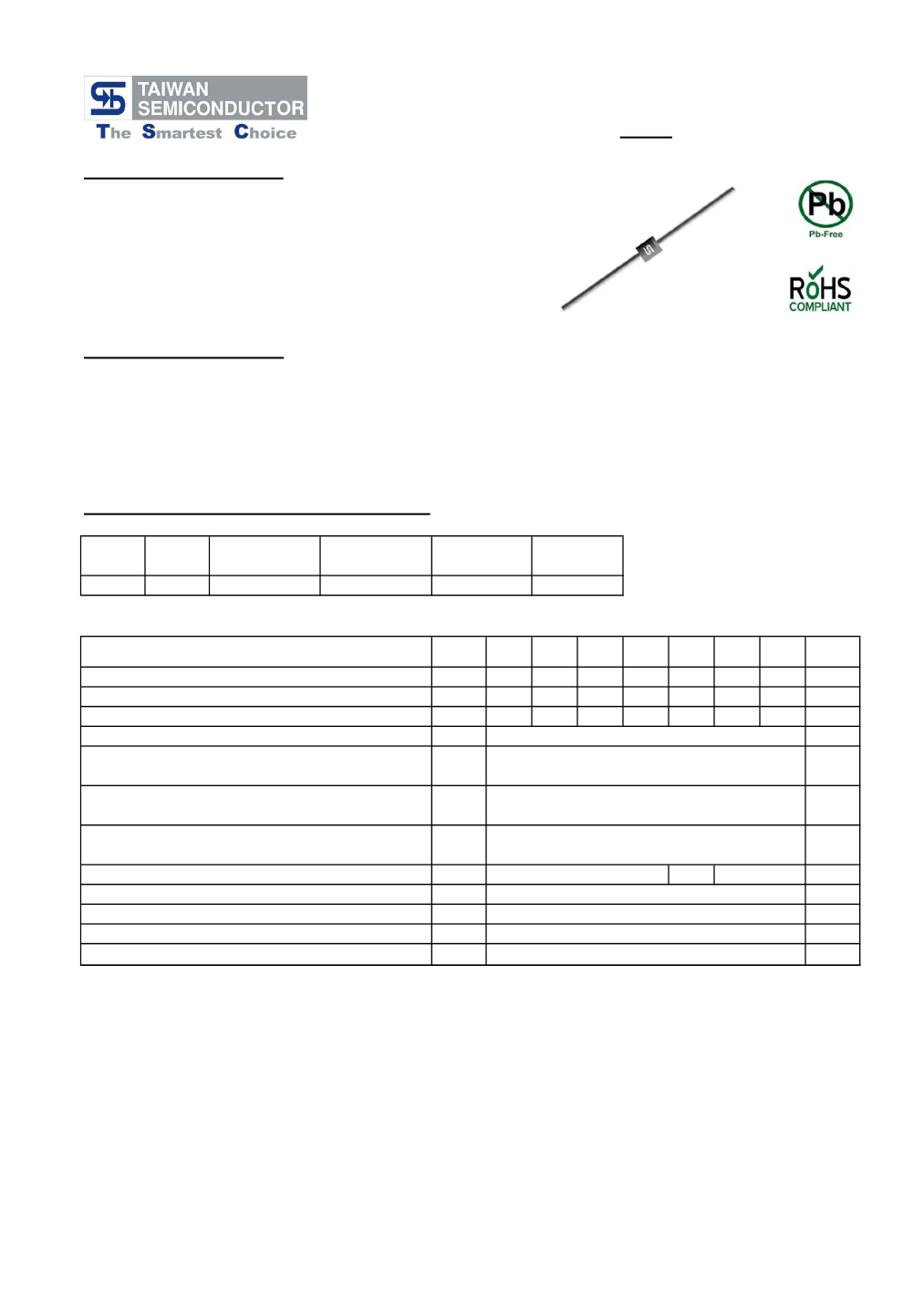

FR101G - FR107G
1.0AMP Glass Passivated Fast Recovery Rectifiers
DO-41
Features
Glass passivated chip junction
High efficiency, Low VF
High current capability
High reliability
High surge current capability
Low power loss
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Cases: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Pure tin plated, lead free, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: Color band denotes cathode end
High temperature soldering guaranteed: 260℃/10s
Weight: 0.34 grams
Ordering Information (example)
Part No.
FR101G
Package
DO-41

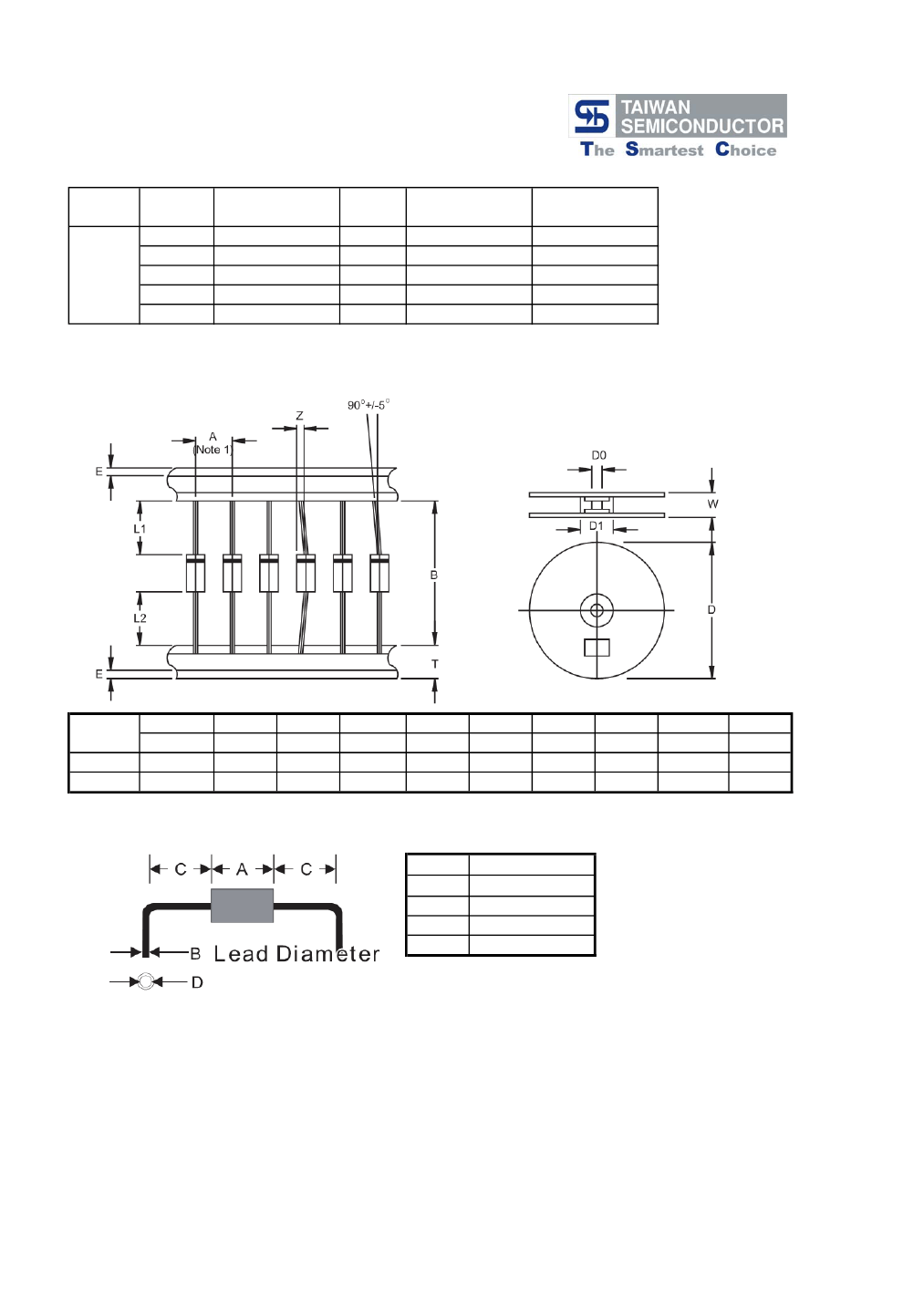

Packing
3K / AMMO box
INNER
TAPE
52mm
Packing code
A0
Packing code
(Green)
A0G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Parameter
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@1A
Maximum DC Reverse Current at
Rated DC Blocking Voltage
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
@ T
A
=25
℃
@ T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJA
T
J
T
STG
FR
101G
50
35
50
FR
102G
100
70
100
FR
103G
200
140
200
FR
104G
400
280
400
1
30
1.3
5
100
FR
105G
600
420
600
FR
106G
800
560
800
FR
107G
1000
700
1000
Units
V
V
V
A
A
V
uA
uA
Maximum Reverse Recovery Time (Note 2)
150
10
70
250
500
O
nS
pF
C/W
O
O
- 55 to + 150
- 55 to + 150
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:E13

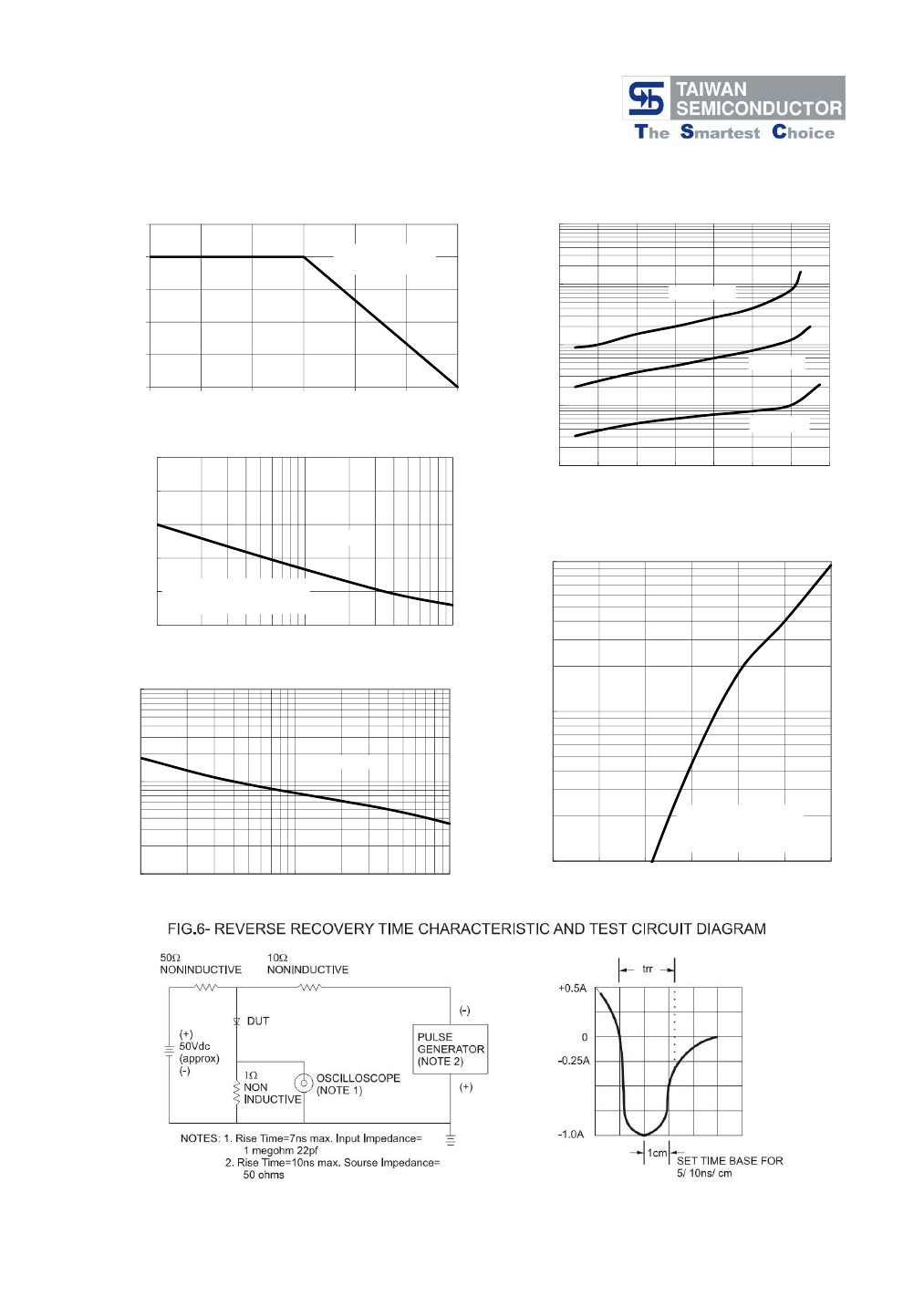

RATINGS AND CHARACTERISTIC CURVES (FR101G THRU FR107G)
FIG.1- MAXIMUM FORWARD CURRENT DERATING
CURVE
RESISTIVE OR
INDUCTIVE LOAD
INSTANTANEOUS REVERSE CURRENT (uA)
100
TA=125℃
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
1000
1.25
AVERAGE FORWARD CURRENT (A)
1
0.75
0.5
0.25
0
0
25
10
TA=75℃
50
75
100
AMBIENT TEMPERATURE (
o
C)
125
150
1
TA=25℃
50
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
PEAK FORWARD SURGE
CURRENT (A)
40
30
TA=25℃
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3mS Single Half Sine Wave
JEDEC Method
INSTANTANEOUS FORWARD CURRENT (A)
10
FIG. 5- TYPICAL FORWARD CHARACTERISTICS
100
FIG. 4- TYPICAL JUNCTION CAPACITANCE
1
JUNCTION CAPACITANCE (pF)
TA=25℃
10
TA=25℃
Pulse Width=300us
1% Duty Cycle
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
1
1
10
REVERSE VOLTAGE (V)
100
FORWARD VOLTAGE (V)
Version:E13
