TANFILM
®
ULTRA PRECISION
SIP NETWORK
MIL-PRF-83401 QUALIFIED
AND COMMERCIAL
ISO-9001
Registered
High alumina
substrate
Sputtered
tantalum nitride
with
passivation
oxide layer
4700
SERIES
•
High precision
•
Low profile
•
Absolute TCR to 10 ppm/°C
•
Superior TCR tracking available to 2 ppm/°C
•
3 standard sizes
•
Proven reliability
•
Custom configurations available

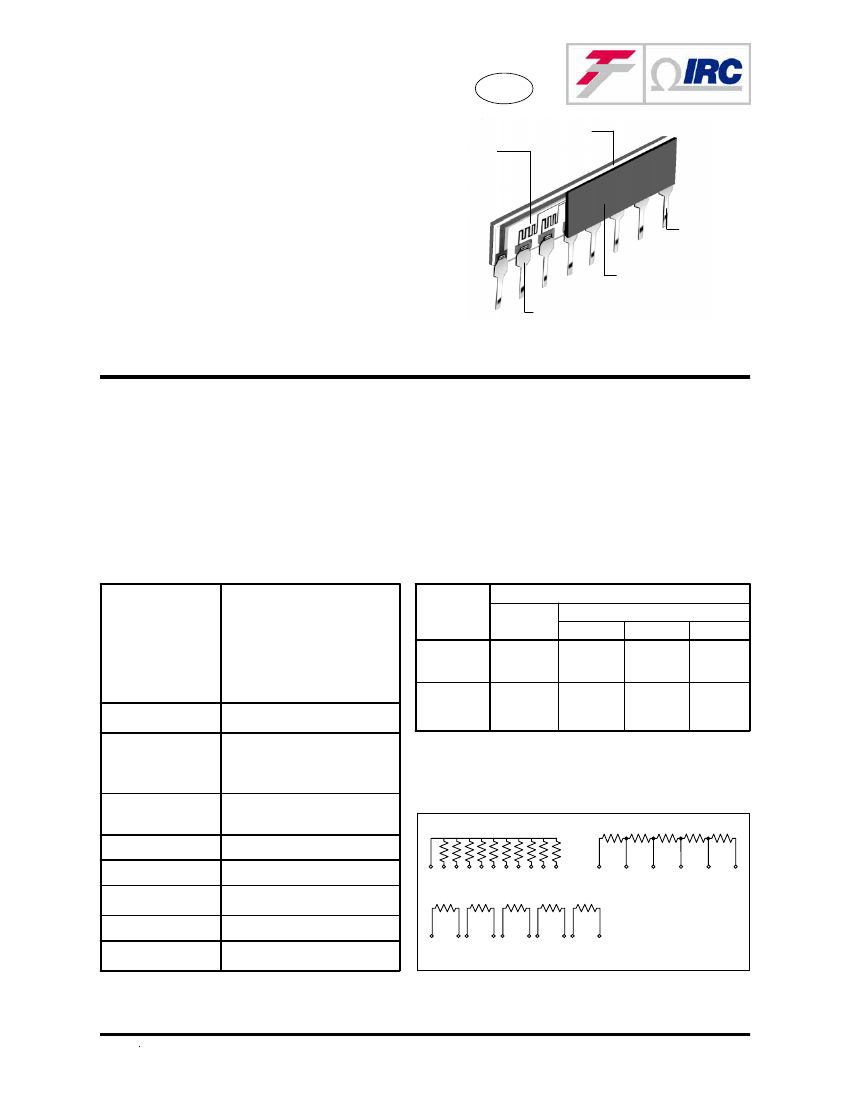

Thermal
compression
bonded lead
terminations provide
exceptional reliability
Lid and
ceramic
substrate
totally filled
with an
epoxy
adhesive
Copper leads
electroplated
with gold
over nickel,
hot tinned
leads
available
IRC’s 4700 series brings all of the TaNFilm
®
precision
network benefits to the latest low profile MIL SIP
configuration. Our SIP product line is qualified to 50 ppm/
°C TCR and 0.1% tolerance. Absolute TCRs to 10 ppm/
°C and tolerances to 0.01% can also be achieved using
the same processes and equipment. Custom circuit
configuration and screening is readily available when
required.
Our TaNFilm
®
manufacturing process of sputtering tantalum
nitride on to ceramic substrates ensures uniform temperature
characteristics of all the resistors in the network. The resistance
film is then passivated to improve its stability and make it virtually
impervious to environmental elements.
When you need high precision and ultimate reliability in a limited
space, the TaNFilm
®
4700 SIP series is the solution.
SPECIFICATIONS:
Resistance Ranges
(ohms)
Mil Qualified
Schematic C: 100 to 100K
Schematic G: 100 to 100K
Commercial
Schematic C: 49.9 to 200K
Schematic F: 20 to 150K
Schematic G: 20 to 400K
Higher and lower resistance values
available
Standard Resistance
Tolerance (±%)
Temperature
Coefficient
[TCR (ppm/°C)]
0.05, 0.1, 0.25, 0.5, 1, 2
(0.01 available)
Mil Qualified:
±50, ±100, ±300
Commercial:
Available to ±15 ppm
5 ppm/°C (except Schematic C below
500 ohms 20 ppm/°C)
2 ppm/°C available
-55°C to +125°C
POWER RATING AT 70°C:
Wattage
Network
Schematic
C,F
(commercial
or military)
G
Military
Commercial
Resistor
0.12
6 Pin
0.60
8 Pin
0.84
10 Pin
1.08
0.12
0.2
0.36
0.60
0.48
0.80
0.60
1.00
TCR Tracking
STANDARD CIRCUITS:
Schematic "C"
R
1
Schematic "F"
R
1
N
1
2
3
4
N
Temperature Range
Noise Level
Lead Material
Substrate Material
Construction
Less than -30 db
Gold Plated Copper
(hot tin/lead available)
99.6% pure alumina ceramic
Lid and ceramic substrate totally filled
with an epoxy adhesive
1
2 3 4
Schematic "G"
R
1
1
2 3
4
N-1
N
Consult factory for any special features required.
Custom circuits and special testing available.
ADVANCED FILM DIVISION
4222 South Staples Street
•
Corpus Christi, Texas 78411
103098
•
Tel: 512-992-7900
•
Fax: 512-992-3377
•
www.irctt.com
ISO-9001
Registered
4700 SERIES ENVIRONMENTAL TESTING:
Test Per MIL-PRF-83401
Thermal Shock and Power Conditioning
Low Temperature Operation
Short Term Overload
Terminal Strength
Resistance to Solder Heat
Moisture Resistance
Shock
Vibration
Life
High Temperature Exposure
Low Temperature Storage
25°C Double Load
MIL-PRF-83401 Limits (Delta R%)
M
0.7
0.5
0.5
0.25
0.25
0.5
0.25
0.25
2.0
1.0
0.5
2.0
K
0.7
0.25
0.25
0.25
0.25
0.5
0.25
0.25
0.5
0.5
0.25
0.5
H
0.5
0.1
0.1
0.1
0.1
0.4
0.25
0.25
0.5
0.2
0.1
0.5
TaNFilm Test Data
(Delta R%)
Max
Typical
0.10
0.05
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.05
0.02
0.02
0.02
0.02
0.02
0.02
0.02
0.02
0.02
0.02
0.02
0.02

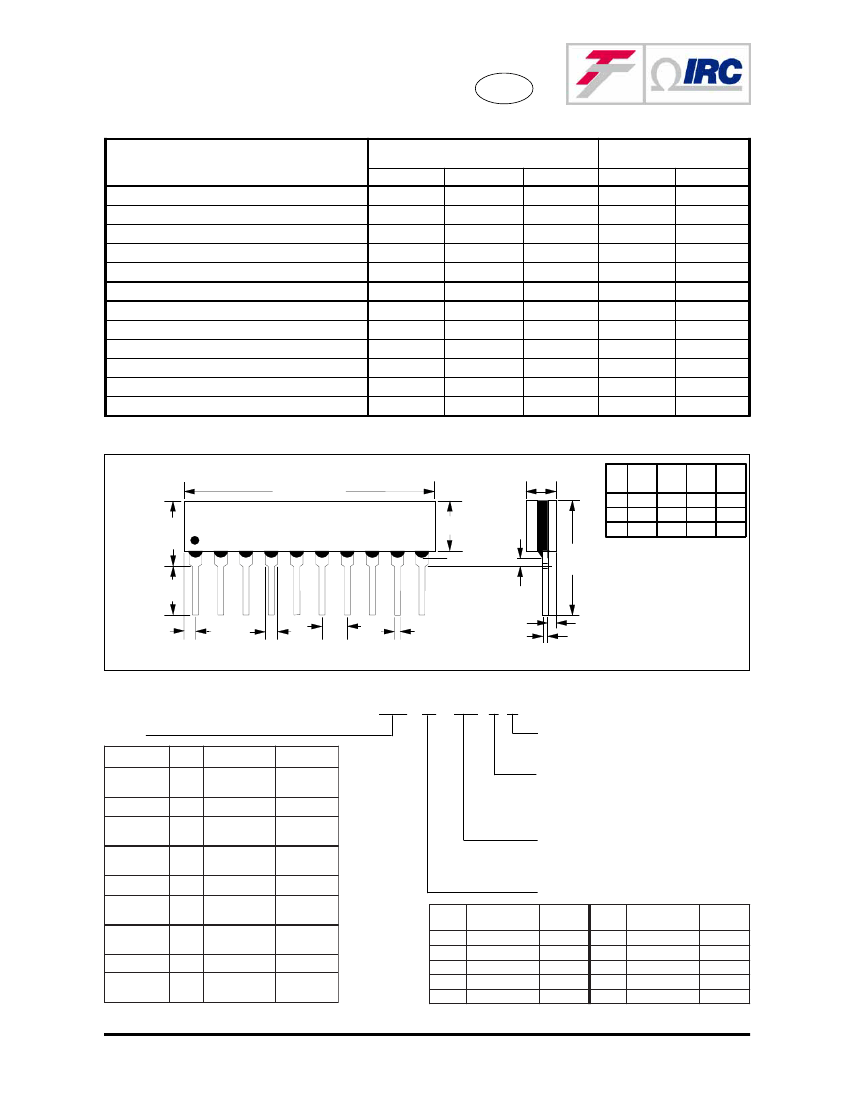

DIMENSIONS
(Inches):
0.070±0.010
Dim A
IRC
Std
No.
Model Mil Spec
Pins Number Style
Hi Rel
Mil
Style
Dim.
A
6
8
476X
478X
470X
RZ070
RZ080
RZ090
RZ210
RZ220
RZ230
0.498
0.598
0.996
0.130+0.008/-0.010
0.187±0.010
0.322 Ref
10
0.135
+0.015/-0.010
0.015 min
Clean Lead
Above Seating Plane
0.026±0.003
0.020±0.003
0.050±0.003
0.100±0.005
0.010±0.001
0.045±0.015
HOW TO ORDER:
Sample Part No.
SIP - 4781 - 03 - 1001 B X
Ratio Tolerance to R
1
(if specified)
Model
Model
4761
4761HR
4768
4769
4769HR
4781
4781HR
4788
4789
4789HR
4701
4701HR
4708
4709
4709HR
Pins
6
6
6
8
8
8
10
10
10
Schematic
C
F
G
C
F
G
C
F
G
MIL Type
RZ070
RZ210
N/A
R7070
RZ210
RZ080
RZ220
N/A
RZ080
RZ220
RZ090
RZ230
N/A
RZ090
RZ230
Absolute Tolerance Code
A=±0.05%; B=±0.1%; C=±0.25%;
D=±0.5%; F=±1.0%;G=±2.0%;
J=±5%; Q=±0.02%; T=0.01%
Resistance
Standard MIL resistance code.
Example: 1001 = 1000 ohms
Characteristic
Code
01
02
03
04
05
Classification
Commercial
Commercial
Commercial
MIL-PRF-83401
MIL-PRF-83401
TCR
(ppm/°C)
100
50
25
300
100
Code
06
07
10
11
10
Classification
MIL-PRF-83401
Military Screened
Commercial
Commercial
Commercial
TCR
(ppm/°C)
50
25
20
15
10
