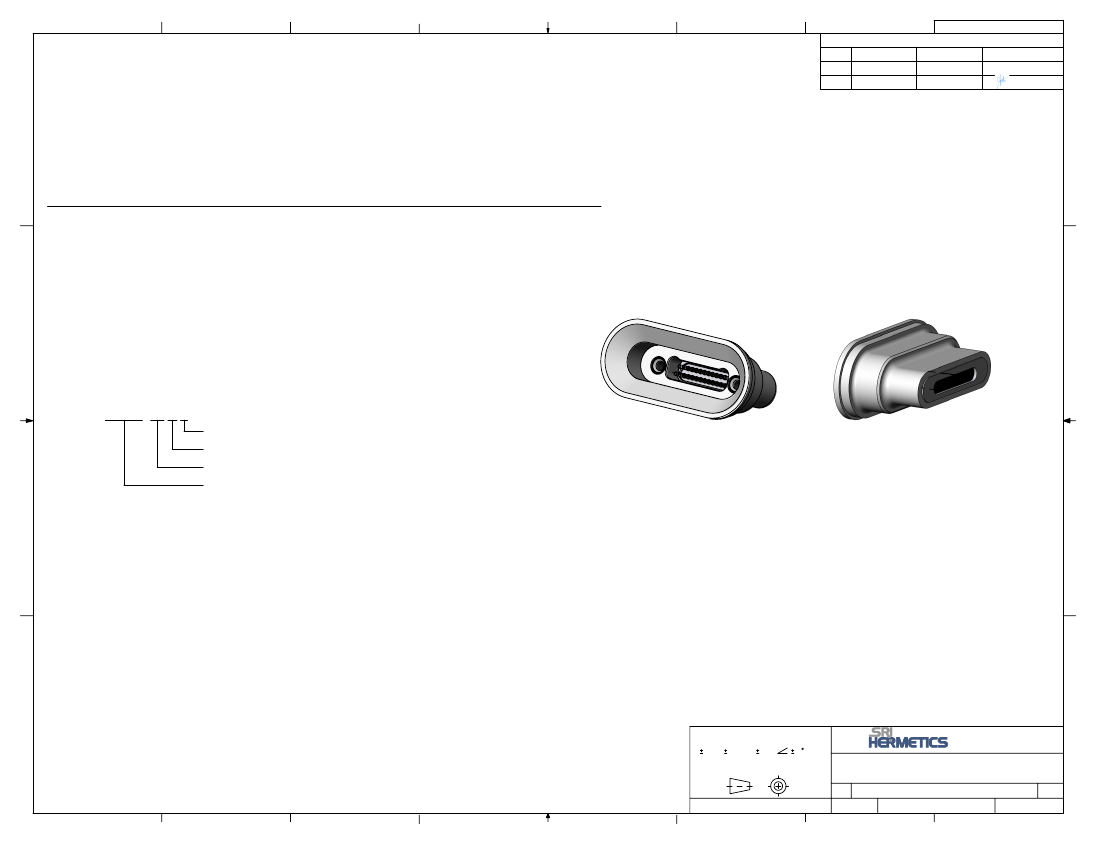

ALUMINUM COMPATIBLE LASER WELDABLE EXTENDED TOP FLANGE NANO DUAL LOBE CONNECTOR
• CONFIGURATION WITH THE FLANGE LOCATED AT THE TOP OF THE CONNECTOR
REVISIONS
REVISION DATE
3/25/2013
4/2/2015
D
• DESIGNED TO LASER WELD INTO A LOW-PROFILE ELECTRONIC CHASSIS WALL
• INTERFACE CONFORMS TO MIL-DTL-32139 AND ARE AVAILABLE IN 9, 15, 21, 25, 31, 37 AND 51
COUNT PIN/SOCKET CONFIGURATIONS.
• INCORPORATES BERYLLIUM-COPPER PIN/SOCKETS INDIVIDUALLY SEALED USING
CERAMAX® PROPRIETARY CERAMIC TO ESTABLISH A DURABLE HERMETIC SEAL.
• THE INTERNAL PINS CAN BE CONFIGURED TO ACCEPT INSULATED WIRE, AUTOMATIC
WIRE BONDS, RIBBON WELDS, SOLDER CONNECTIONS OR FLEX CIRCUIT.
D
1. LEAK RATE: LESS THAN OR EQUAL TO 1X10E-9 CC/SEC He AT ONE ATMOSPHERE DIFFERENTIAL PRESSURE.
2. INTERFACE AND MOUNTING HOLES IN ACCORDANCE WITH MIL-DTL-32139/4.
3. MATERIALS:
CONTACT: BERYLLIUM-COPPER ALLOY 172/173 IN ACCORDANCE WITH ASTM B196/197.
INSULATOR: CERAMAX PROPRIETARY CERAMIC.
WELD FLANGE: ALUMINUM ALLOY 4032 IN ACCORDANCE WITH ASTM B247.
C
4. FINISH:
CONTACTS: NICKEL PLATE PER QQ-N-290, .000100 / .000250 THICK.
GOLD PLATE PER ASTM B488, TYPE III, CODE A, .000050/.000100 THICK.
PLATE ENTIRE EXPOSED PIN, BOTH ENDS.
PLATING IN SOCKETS NOT REQUIRED BENEATH BLEED HOLE.
FLEXTAIL OPTION ONLY, PRE-TIN SOLDER PIN ENDS USING SN63PB37 PER J-STD-006.
SHELL: CHEMICAL CONVERSION COAT IN ACCORDANCE WITH MIL-DTL-5541, TYPE I, CLASS 1A.
5. ORDERING INSTRUCTIONS:
SPECIFY BASE NUMBER FOLLOWED BY DASH NUMBERS INDICATING PIN COUNT AND CONFIGURATION (SEE SHEET 2+):
EXAMPLE: SRIND509 - 25 - A 1
DETAILED CONFIGURATION
PIN END STYLE (SEE VIEW A)
NUMBER OF CONTACTS, X
BASE NUMBER
C
B
B
A
DIMENSIONING IAW ASME Y14.5M-1994
DIMENSIONS APPLY AFTER PROCESSES
DIMENSIONS IAW US CUSTOMARY UNITS
.X .1, .XX .01, .XXX .005,
.5
.010 MAX OUTSIDE R, .005 MAX INSIDE R
63 RMS SURFACE FINISH
THIRD ANGLE PROJECTION
A
(321) 254-4067
www.srihermetics.com
TITLE
a division of WINCHESTER
CONNECTOR, 250 DL, EXTENDED TOP FLANGE, AC LBW
SIZE DOCUMENT
DO NOT SCALE DRAWING
SCALE
A
6:1
CAGE CODE
SRIND509
3PJY7
SHEET
REV
A
1 OF 3
FORM 300067 REV A
7
6
5
4
3
2
1
8
7
6
W±.001
5
4
3
.210
2
DOCUMENT
SRIND509
45°
ALL AROUND
A±.010
D
.400±.001
.080
D
.105 ALL AROUND
B±.010
PIN EXTENSIONS (SEE SH 3)
.108 ALL AROUND
.055 ALL AROUND
C
.015 ALL AROUND
.030±.002
.003 MAX BREAK
ALL AROUND
C
.080
.230
.435
Y±.001
.025±.002

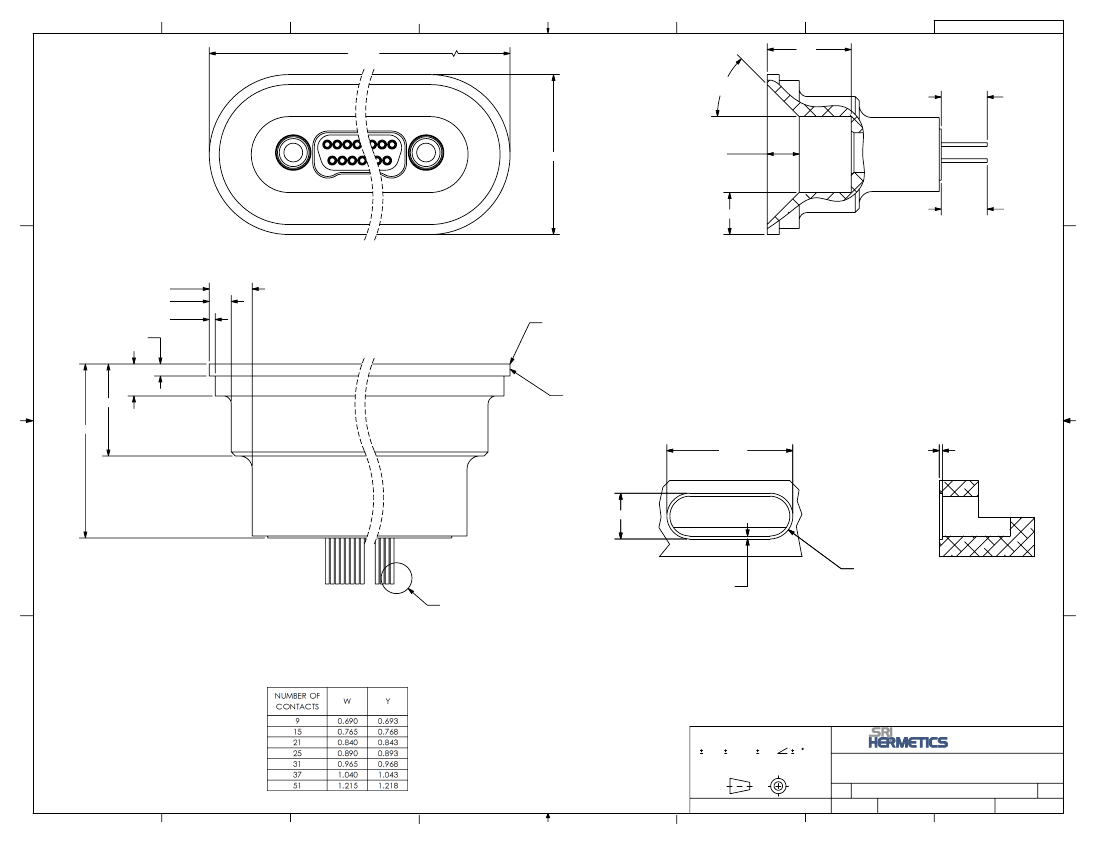

WELD FLANGE
B
.403±.001
B
2X R
.010
O
SUGGESTED HOLE DETAIL
VIEW A
PIN END STYLE:
A=STRAIGHT CUT
B=WIREBOND FLAT
C=FLEX TAIL
A
DIMENSIONING IAW ASME Y14.5M-1994
DIMENSIONS APPLY AFTER PROCESSES
DIMENSIONS IAW US CUSTOMARY UNITS
.X .1, .XX .01, .XXX .005,
.5
.010 MAX OUTSIDE R, .005 MAX INSIDE R
63 RMS SURFACE FINISH
THIRD ANGLE PROJECTION
A
(321) 254-4067
www.srihermetics.com
TITLE
a division of WINCHESTER
CONNECTOR, 250 DL, EXTENDED TOP FLANGE, AC LBW
SIZE DOCUMENT
DO NOT SCALE DRAWING
SCALE
A
6:1
CAGE CODE
SRIND509
3PJY7
SHEET
REV
A
2 OF 3
FORM 300067 REV A
7
6
5
4
3
2
1
8
7
6
5
4
3
2
DOCUMENT
SRIND509
STRAIGHT PIN END STYLE, A
D
PIN EXTENSION A, B
WIREBOND FLAT PIN END STYLE, B
PIN EXTENSION A, B
.015
A
FLEX TAIL PIN END STYLE, C
A
D
.000/.010
.005 MIN THICK
.012 MIN WIDE
C
C
PART NUMBER
SRIND509 - X - A 1
A
.110
B
.110
PART NUMBER
SRIND509 - X - B 1
A
.060
B
.040
PART NUMBER
SRIND509 - X - C 1
A
.037
B
B
A
DIMENSIONING IAW ASME Y14.5M-1994
DIMENSIONS APPLY AFTER PROCESSES
DIMENSIONS IAW US CUSTOMARY UNITS
.X .1, .XX .01, .XXX .005,
.5
.010 MAX OUTSIDE R, .005 MAX INSIDE R
63 RMS SURFACE FINISH
THIRD ANGLE PROJECTION
A
(321) 254-4067
www.srihermetics.com
TITLE
a division of WINCHESTER
CONNECTOR, 250 DL, EXTENDED TOP FLANGE, AC LBW
SIZE DOCUMENT
DO NOT SCALE DRAWING
SCALE
A
6:1
CAGE CODE
SRIND509
3PJY7
SHEET
REV
A
3 OF 3
FORM 300067 REV A
7
6
5
4
3
2
1
