3.5

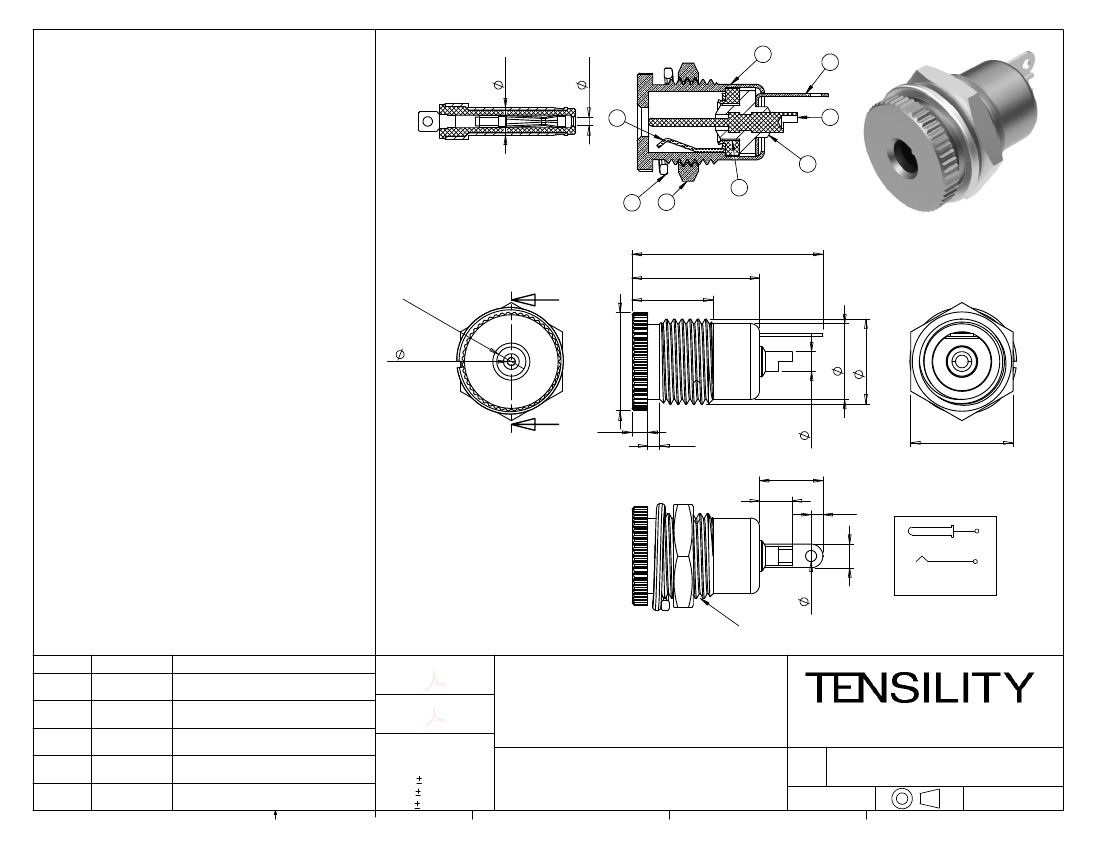

Materials
1. Insulator: PBT, black
2. Pin: copper alloy, nickel plated
3. Shell: brass, nickel plated
4. Spring contact: stainless steel, nickel plated
5. Spring contact collar: copper alloy, nickel plated
6. Solder tab: brass, nickel plated
7. Split washer p/n 56-00001: cold rolled steel, nickel plated
8. Nut p/n 56-00000: brass, nickel plated
Electrical Requirements
Dielectric strength: 1 min @ 500 Vac
Insulation resistance: 100 MΩ @ 500 Vdc
Contact resistance: 50 mΩ or less
Mechanical Requirements
Insertion force: 0.3-3 kgf
Withdrawal force: 0.2-3 kgf
Terminal strength: a static load of 150 gf shall be applied
to the terminal for 15 seconds in any direction.
Life cycle: 5000 mating cycles while maintaining less than 100 mΩ
contact resistance, 50MΩ insulation resistance minimum, and
dielectric strength of 500 Vac for 1 minute withstand voltage.
Soldering
Solderability: 75% minimum coverage when terminals dipped 2mm
in 245 ±5 °C solder bath for 3 ±0.5 seconds
Solder bath durability: no deformation when immersed in 255 ±5 °C
bath for 5 seconds or less
Solder iron durability: no deformation when exposed to 350 ±10 °C
for 3 ±0.5 seconds
Environmental Requirements
Cold test: -25 ±3 °C for 48 hours without deformation
Heat test: 70 ±2 °C for 48 hours without deformation
Humidity test: 40 ±2 °C, relative humidity 90-95% for 48 hours
without deformation
1.1
Ratings
Operating temperature range: -10° to 60° C
Flammability: UL 94 V-0
3
6
4
Mating Plug
5
7
8
SECTION A-A
24.2 ±0.50
16.2
M3
.7x
0.7
2
1
A
10.3
12.5 ±0.30
2
2.5
A
10.8
9.6
0
1 -0.05
1.5
8
4.2
1.5
13
Installation Details
Panel thickness: 1.0 - 4.5 mm
Panel cutout Ø: 11.0 - 12.0 mm
A
3
B
Schematic
M11 x 1.0
Revision:
A
A1
A2
Date:
8/04/2016
1/03/2017
8/25/2017
Description:
Initial release
Updated materials list
Updated notes
Prepared:
Notes:
RoHS compliant
Function test: no open, no short circuit, no
intermittent
tel
fax
RS
Digitally signed by RS
Date: 2018.11.01
11:41:20 -07'00'
PS
Verified:
Digitally signed by PS
Date: 2018.11.05 13:12:05
-08'00'
1.4
1.541.323.3228
1.541.323.4202
Dimensions are in
millimeters.
Tolerances:
0.5 mm
X:
X.X:
0.3 mm
X.XX: 0.05 mm
4
800
web
877.670.7118
tensility.com
Description:
Size: Part number:
Connector, dc jack, 3.5x1.1xL24.2 mm, panel mount,
54-00060
A
threaded, nut and washer, brass, nickel
Scale: 2:1
3
2
1
Sheet 1 of 2
5

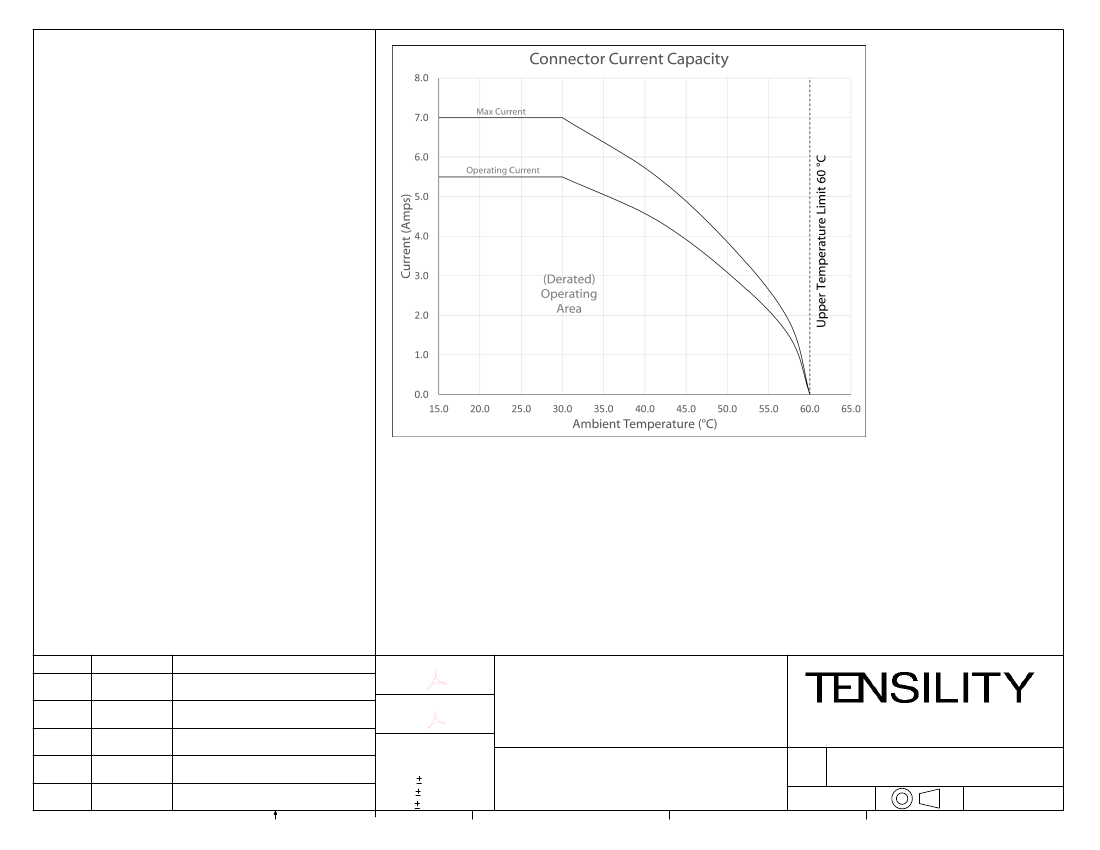

Ratings
Maximum Operating Voltage: 48 Vdc
Maximum Operating Current: 5.5 A
Testing based on IEC 60512-5-2. Max current curve generated with isolated test article under controlled environmental conditions,
and does not take into account external factors such as housings, mating cables, or other circuitry. Operating current curve
(derated by 20% of maximum values) accounts for external factors, and manufacturing variation.
Revision:
A
A1
A2
Date:
8/04/2016
1/03/2017
8/25/2017
Description:
Initial release
Updated materials list
Updated notes
Prepared:
RS
Digitally signed by RS
Date: 2018.11.01
11:41:30 -07'00'
Notes:
RoHS compliant
Function test: no open, no short circuit, no
intermittent
tel
fax
PS
Verified:
Digitally signed by PS
Date: 2018.11.05 13:22:00
-08'00'
Dimensions are in
millimeters.
Tolerances:
X:
0.5 mm
X.X:
0.3 mm
X.XX: 0.05 mm
4
1.541.323.3228
1.541.323.4202
800
web
877.670.7118
tensility.com
Size: Part number:
Description:
Connector, dc jack, 3.5x1.1xL24.2 mm, panel mount,
54-00060
A
threaded, nut and washer, brass, nickel
Scale: 2:1
3
2
1
Sheet 2 of 2
5
