Materials
1. Shell, stainless steel, nickel plated
2. Pins, brass, 5
μ"
gold and tin plating
3. Insulator, PBT, black
Electrical
Rated voltage: 30 Vdc
Rated current: 3 A
Dielectric strength: 1 min @ 500 Vac
Insulation resistance: 500 MΩ @ 500 Vdc
Contact resistance: 50 mΩ or less
Mechanical
Insertion force: 3.5 kgf maximum
Withdrawal force: 1.0 kgf minimum
Durability: 1500 cycle minimum life; less than 100 mΩ
contact resistance, minimum 100 MΩ insulation
resistance
Terminal strength: 0.3 kgf in any direction without
damage or looseness
Soldering
Solderability: 75% minimum coverage when terminals
dipped 2 mm in 245 ±5 °C solder bath for 3 ±0.5
seconds
Solder bath durability: no deformation when immersed
in 255 ±5 °C up to surface of the board for 5 seconds
or less
Solder iron durability: no deformation when exposed to
350 ±10 °C for 3 ±0.5 seconds
Environmental
Cold test: -40 ±3 °C for 48 hours without deformation
Heat test: 85 ±2 °C for 48 hours without deformation
Humidity test: 40 ±2 °C and humidity between 90 and
98 % for 48 hours without deformation
Operating range
-40 ~ 85 °C
5.7 ±0.15

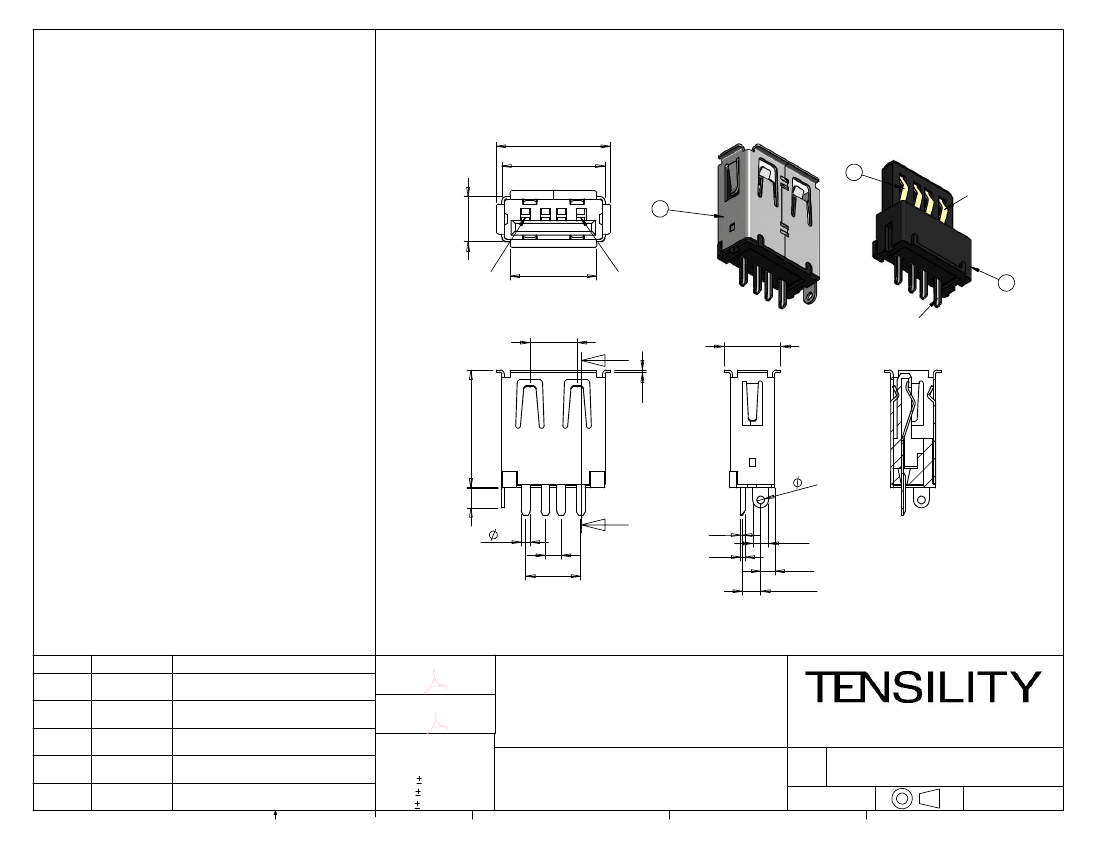

USB A jack molding style
14.5 ±0.20
13.2 ±0.15
2
1
gold plating
Pin 4
11
Pin 1
3
tin plating
6
A
0.3
7.1 ±0.20
15 ±0.20
1
2.5
A
1.1
2
7
0.3
0.6
2
1.8
2.33
SECTION A-A
Revision:
A
A1
Date:
12/16/2015
07/24/2018
Description:
Initial release
Corrected operating temp range
GL
RS
Prepared:
Digitally signed by GL
Date: 2018.08.06
09:24:23 -07'00'
Notes:
RoHS and REACH compliant
Function test: no open, no short circuit, no
intermittent
Description:
Connector, USB A Jack, molding style, 180°, nickel
shell, ground, black insulator
3
2
tel
fax
Verified:
Digitally signed by RS
Date: 2018.08.09
09:26:59 -07'00'
Dimensions are in
millimeters.
Tolerances:
X:
0.5 mm
X.X:
0.3 mm
X.XX: 0.05 mm
5
4
1.541.323.3228
1.541.323.4202
Part number:
800
web
877.670.7118
tensility.com
Size:
A
Scale:
50-00491
2:1
1
Sheet 1 of 1
