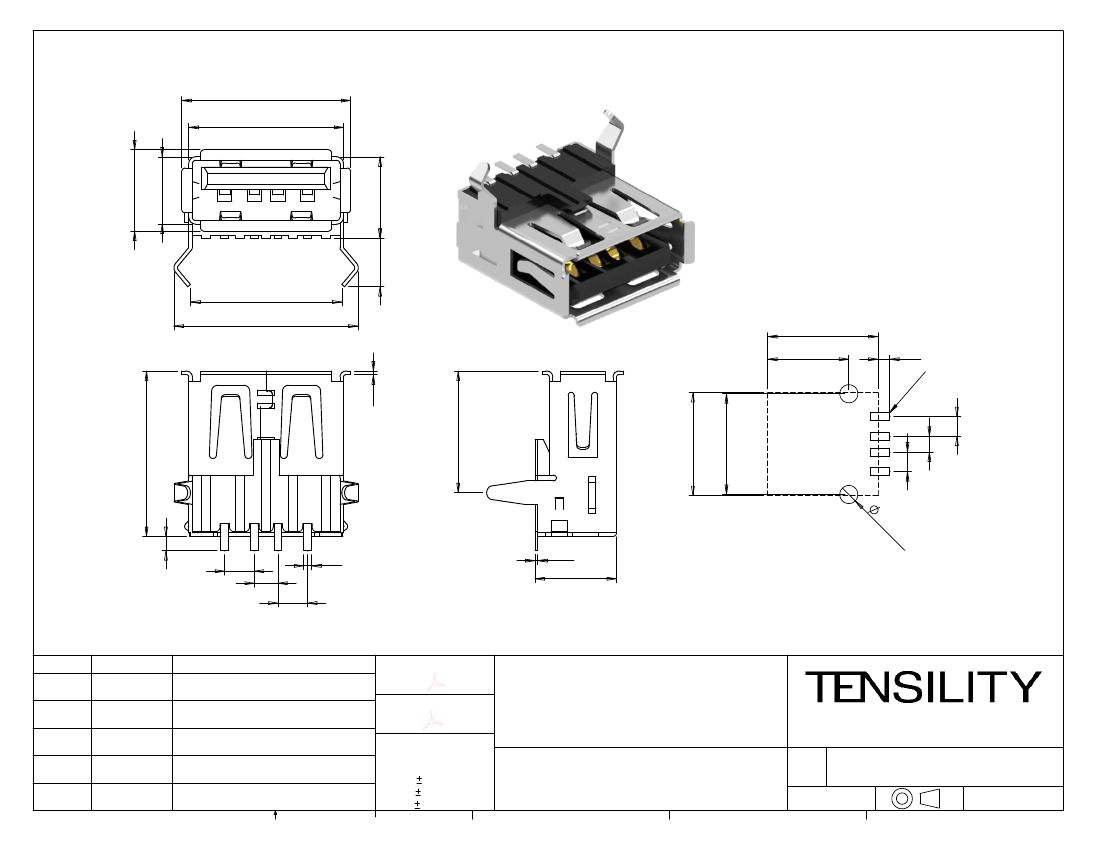

USB A jack 90° SMT mount
14.5 ±0.20
13.1
1
2
3
4
12.8 ±0.5
15.8 ±0.5
14
10.3
0.3
1.5
1.0 x 2.5 (x4)
1
14 ±0.20
10.3
13.1
12.8
2.5
2
3
4
2
1.2
PCB Layout
2.5
0.7
2
2.5
0.2
7
Revision:
A
A1
A2
Date:
09/28/2015
07/24/2018
9/4/2018
Description:
Initial release
Corrected operating temp range
Changed insulator material
Prepared:
Notes:
Digitally signed by AG
Date: 2018.09.05 13:54:16
-07'00'
AG
Verified:
RoHS and REACH compliant
Function test: no open, no short circuit, no
intermittent
Description:
Connector, USB A jack, SMT mount, 90°, nickel shell,
board lock, black insulator, tray
3
2
tel
fax
PS
Digitally signed by PS
Date: 2018.09.05
14:03:31 -07'00'
Dimensions are in
millimeters.
Tolerances:
X:
0.5 mm
X.X:
0.3 mm
X.XX: 0.05 mm
4
1.541.323.3228
1.541.323.4202
Part number:
800
web
877.670.7118
tensility.com
Size:
A
Scale:
54-00003
2:1
1
Sheet 1 of 2
5
To see a custom version of this cable assembly, call Tensility at 541-323-3228 or email engineering@tensility.com
7.1 ±0.20
5.7 ±0.20
4 ±0.2
7
2.5
3
2.
2)
(x

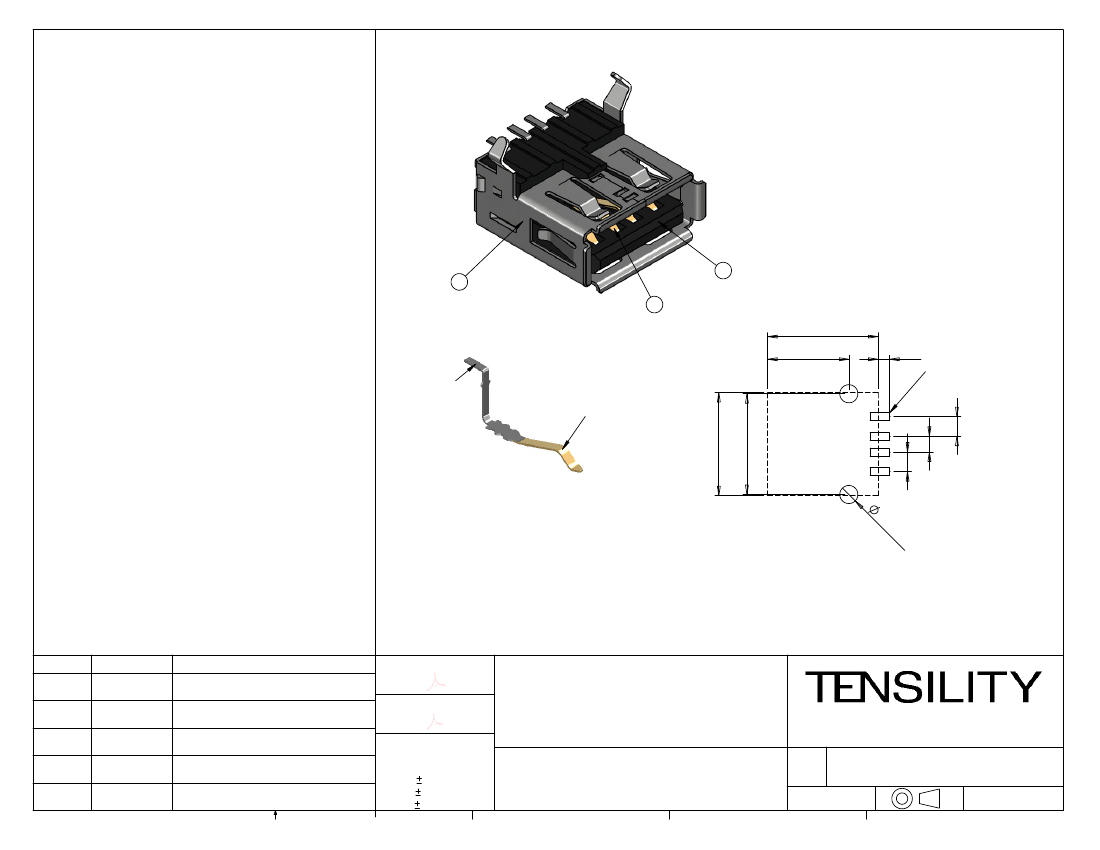

Materials
1. Shell, steel, nickel plated
2. Pins, brass, 5
μ"
gold and tin plating
3. Insulator, PA46, black
Electrical
Rated voltage: 30 Vdc
Rated current: 3 A
Dielectric strength: 500 Vac for 1 min without damage
Insulation resistance: 500 MΩ after 500 Vdc for 1 min
Contact resistance: 50 mΩ or less
Mechanical
Insertion force: 3.5 kgf maximum
Withdrawal force: 1.0 kgf minimum
Durability: 1500 cycles unloaded, while maintaining:
Contact resistance: 100 mΩ,
Insulation resistance: 100 MΩ
Dielectric strength: 100 Vac for 1 min without damage
Terminal strength: 0.3 kgf in any direction for 15
seconds without damage or looseness
Soldering
Solderability: 75% minimum coverage when terminals
dipped 2 mm in 255 ±5 °C solder bath for 3 ±0.5
seconds
Solder bath durability: no deformation when immersed
in 260 ±5 °C up to surface of the board for 5 seconds
or less
Solder iron durability: no deformation when exposed to
350 ±10 °C for 3 ±0.5 seconds
Environmental
Cold test: -40 ±3 °C for 48 hours without deformation
Heat test: 85 ±2 °C for 48 hours without deformation
Humidity test: 40 ±2 °C and humidity between 90 and
98 % for 48 hours without deformation
Operating range
-40 ~ 85 °C
USB A jack 90° SMT mount
1
2
3
14
10.3
Tin
Gold
13.1
12.8
1
2.5
2
3
4
2
3
2.
2)
(x
800
web
1.5
1.0 x 2.5 (x4)
Pin plating detail
PCB Layout
Revision:
A
A1
A2
Date:
09/28/2015
07/24/2018
9/4/2018
Description:
Initial release
Corrected operating temp range
Changed insulator material
Prepared:
Notes:
Digitally signed by AG
Date: 2018.09.05
13:54:30 -07'00'
AG
Verified:
RoHS and REACH compliant
Function test: no open, no short circuit, no
intermittent
Description:
Connector, USB A jack, SMT mount, 90°, nickel shell,
board lock, black insulator, tray
3
2
tel
fax
PS
Digitally signed by PS
Date: 2018.09.05 14:01:30
-07'00'
Dimensions are in
millimeters.
Tolerances:
X:
0.5 mm
X.X:
0.3 mm
X.XX: 0.05 mm
4
1.541.323.3228
1.541.323.4202
Part number:
Size:
A
Scale:
54-00003
2:1
1
Sheet 2 of 2
5
2.5
877.670.7118
tensility.com
PCB Design
