REVISION Y
C
(No OF POS x .03937[1.0000])
+ .092 [2.34] REF
(No OF POS x .03937[1.0000])
+ .03937[1.0000] REF
01
03
.109 2.77 REF
FC1-XX-XX-XX-XX
No OF POSITIONS
-05 THRU -25
(SEE NOTE 8 )
LEAD STYLE
-01 VERTICAL (SEE FIG 2, C-136-01-X)
-02 HORIZONTAL (SEE FIG. 1) (C-136-02-X)
-L1 VERTICAL (LOW INSERTION FORCE) (C-136-03-X)
-L2 HORIZONTAL (LOW INSERTION FORCE) (C-136-04-X)
PLATING
OPTIONS
-WT: WELD TAB (LEAD
STYLE -02 & -L2 ONLY)
-LC: LOCKING CLIP (SEE FIG 3)
(LEAD STYLE -01 & -L1 ONLY)
-K: POLYIMIDE FILM PAD
(LEAD STYLE -01 & -L1 ONLY)
[SEE NOTE 7]
-TR: TAPE & REEL
DO NOT
SCALE FROM
THIS PRINT
02
{(NO OF POS - 1 ) x
.03937 [1.0000]} .002 [.05]
-T: MATTE TIN CONTACT AND TAIL
-TM: MATTE TIN CONTACT AND TAIL
RECOMMENDED CABLE WIDTH
-01 / -L1 [VERTICAL LEAD STYLES]
FC1-XX-S
"B"
WT-10-01-XX
"A" REF
C-136-02-XX
OR
C-136-04-XX
.203 5.16
.2450±.0030 6.223±0.076
'A'
.060 1.524 REF
01
.012 0.30 REF
"B"
2 MAX SWAY
(TYP)
(SEE NOTE 6)
.03937 1.0000 (TO BE MEASURED AT THE TAIL TIP)
C
{(NO. OF POSITIONS x .03937 [1.0000])
+ .040 [1.00] +/- .010 [.25] }
.033 0.84 REF
.132 3.35
REF
C
.204±.003 5.182±0.08
C
.004[.10]
.026 0.67
C-136-01-XX
OR
C-136-03-XX
.004 [.10]
.065 1.638 REF
SAME AS FIG. 1 EXCEPT AS SHOWN
-01 /-L1: VERTICAL
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
.001 0.03
FIG 2

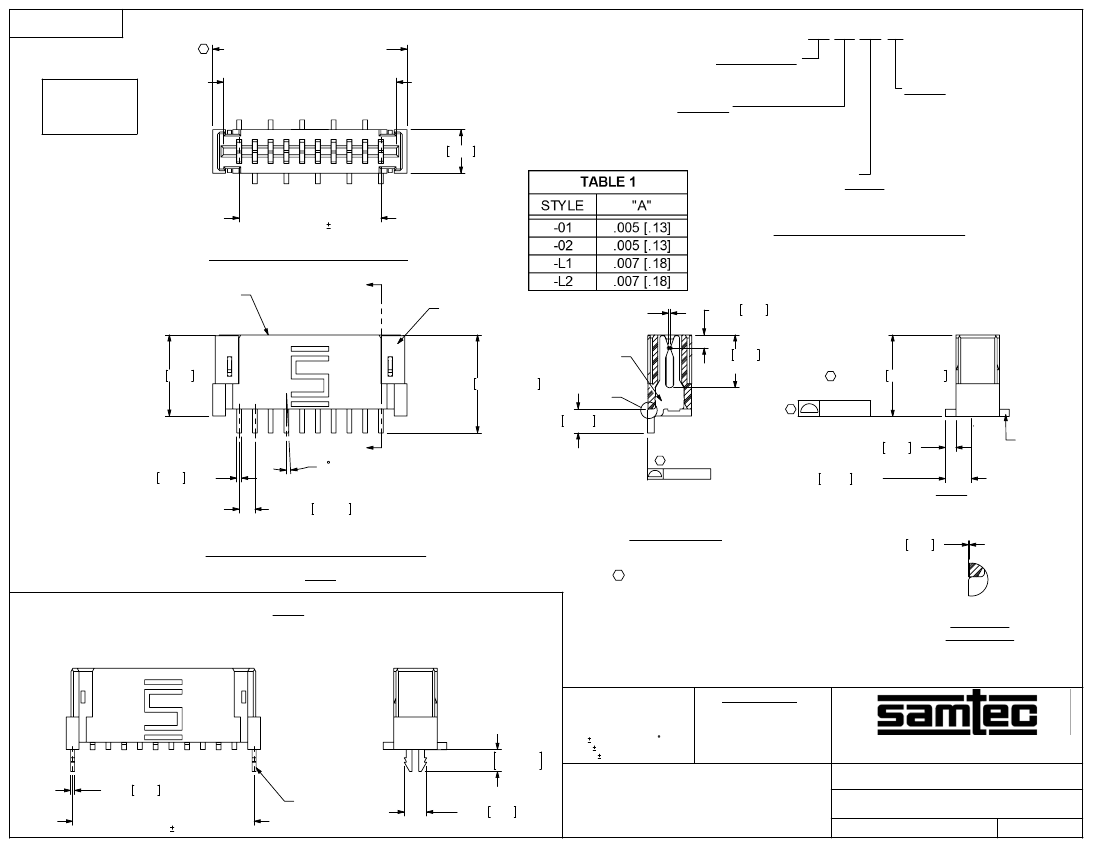

-02 / -L2 [HORIZONTAL LEAD STYLES]
FIG 1
FIG 3
-LC OPTION
SAME AS FIG. 2 EXCEPT AS SHOWN
SECTION "B"-"B"
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. NOTE DELETED
3. BURR ALLOWANCE: .0015[.038] MAX.
4. MAXIMUM CUT FLASH: .010 [.25].
5. MINIMUM PUSHOUT FORCE: .5 LB.
DETAIL 'A'
6. TAIL SWAY MUST BE IN SAME DIRECTION
SCALE 8 : 1
ON ALL CONTACT TAILS.
7. KAPTON PAD (-K) AVAILABLE ON ALL POSITIONS FOR LEAD STYLE
-01 & -L1 (SEE FIG. 4).
8. -05 THRU -10 POSITIONS ARE 2 PARTS PER AND REQUIRE MULTI-CUTTING.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.055
- .000
1.40
.010 0.25 REF
{(NO OF POS x .03937 [1.0000])
+ .059 [1.50]} .005 [.13]
LC-06-TM
+.010
+0.25
0.00
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.508]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.056 1.42 REF
HOUSING: BLACK LCP
CONTACT: PHOSPHOR BRONZE
WELD TABS: BRASS
F:\DWG\MISC\MKTG\FC1-XX-XX-XX-XX-MKT.SLDDRW
1MM SOCKET
FC1-XX-XX-XX-XX
3/1/1999
SHEET
1
OF
2
BY:
G. PURVIS
REVISION Y
C
"R"
(SEE NOTE)
"S"
(SEE NOTE)
.024±.010 0.62±0.25
C
L
.211 5.359
FIG 4
-K: POLYIMIDE FILM PAD
STYLE -01 & -L1 ONLY
NOTE: "R" = USED MEASURED DIMENSION (REF)
"S" = {("R"-.1575 [4.00])/2} .020 [.51]
.1575±.0050 4.001±0.127

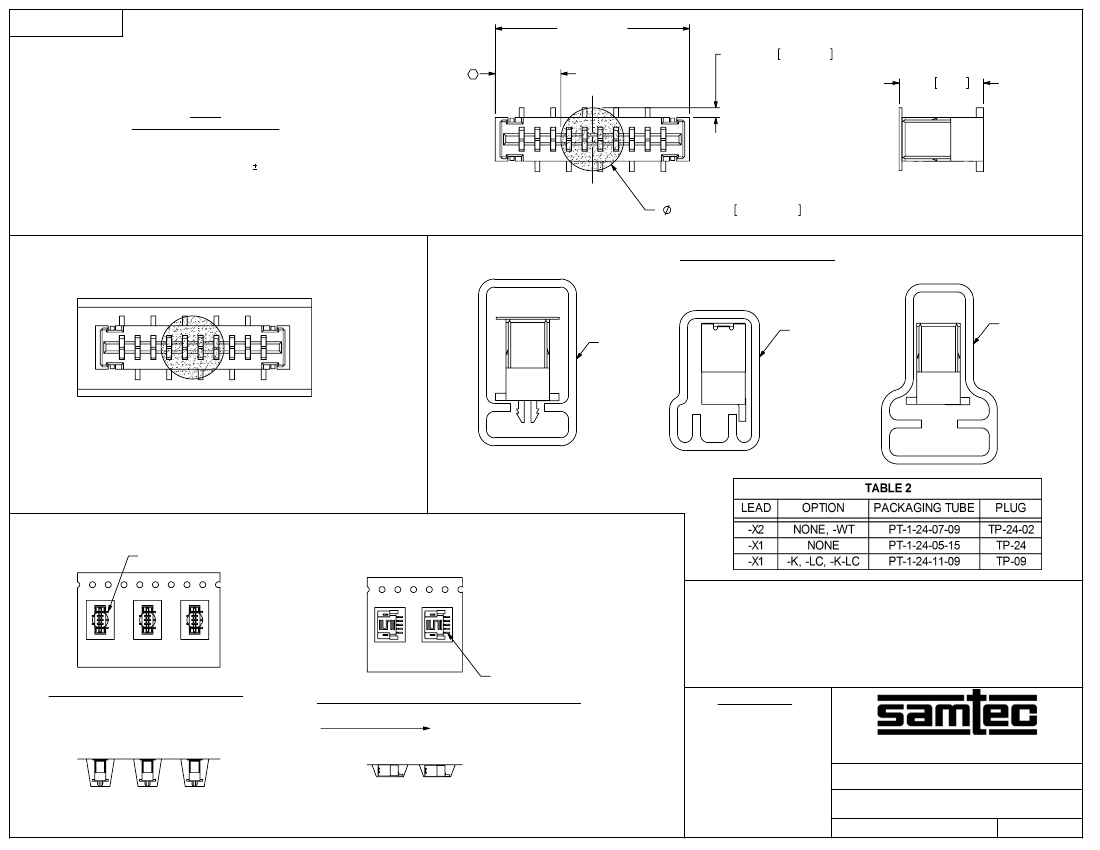

PACKAGING TUBE VIEWS
01
PT-1-24-11-09
PT-1-24-07-09
PT-1-24-05-15
POSITION #01 TO BE LOCATED AS SHOWN
WITH POSITION #01 IN DIRECTION OF ARROW ON TUBE
(PKG. VIEW FOR -01/-L1 SHOWN)
POS 1
TAPE & REEL VIEW FOR VERTICAL PARTS
POS 1
TAPE & REEL VIEW FOR HORIZONTAL PARTS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
USER DIRECTION OF UNREELING
POCKETS NOT DETAILED
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
1MM SOCKET
FC1-XX-XX-XX-XX
3/1/1999
SHEET
2
OF
2
F:\DWG\MISC\MKTG\FC1-XX-XX-XX-XX-MKT.SLDDRW
BY:
G. PURVIS
