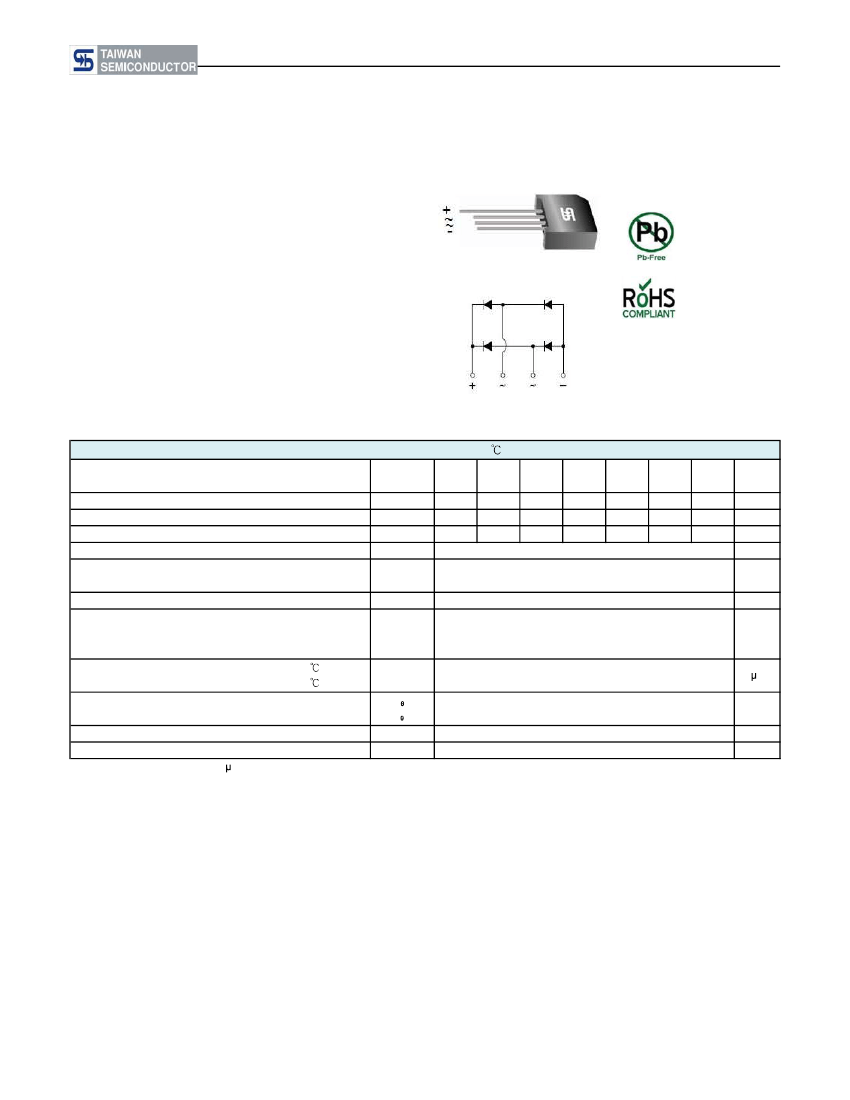

KBL401G thru KBL407G
Taiwan Semiconductor
Glass Passivated Bridge Rectifiers
FEATURES
- Glass passivated junction
- Ideal for printed circuit board
- Reliable low cost construction
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
KBL
MECHANICAL DATA
Case:
KBL
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Polarity:
Polarity as marked on the body
Weight:
5.6 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Rating for fusing (t<8.3mS)
Maximum instantaneous forward voltage (Note 1)
I
F
= 2A
I
F
= 4A
Maximum DC reverse current
at rated DC blocking voltage
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse Test with PW=300 s,1% Duty Cycle
T
J
=25
T
J
=125
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
KBL
401G
50
35
50
unless otherwise noted)
KBL
403G
200
140
200
KBL
404G
400
280
400
4
150
93
1.0
1.1
10
500
2.4
19
- 55 to +150
- 55 to +150
O
KBL
402G
100
70
100
KBL
405G
600
420
600
KBL
406G
800
560
800
KBL
407G
1000
700
1000
Unit
V
V
V
A
A
A
2
s
V
I
R
R
R
JL
JA
A
C/W
O
O
T
J
T
STG
C
C
Document Number: DS_D1311025
Version: G13
KBL401G thru KBL407G
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
KBL40xG
(Note 1)
PACKING CODE
T0
GREEN COMPOUND
CODE
Suffix "G"
KBL
500 / Tray
PACKAGE
PACKING
Note 1: "x" defines voltage from 50V (KBL401G) to 1000V (KBL407G)
EXAMPLE
PREFERRED P/N
KBL407G T0
KBL407G T0G
PART NO.
KBL407G
KBL407G
PACKING CODE
T0
T0
G
Green compound
GREEN COMPOUND
CODE
DESCRIPTION

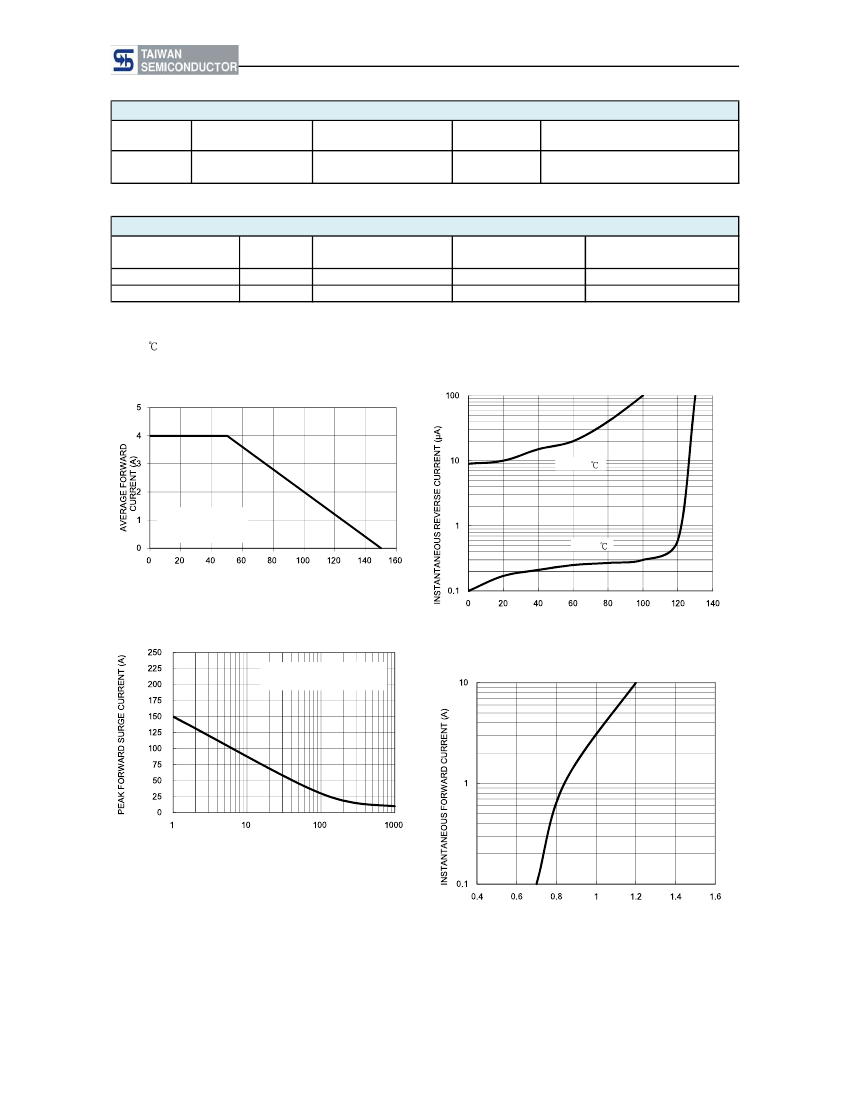

RATINGS AND CHARACTERISTICS CURVES
(TA=25
unless otherwise noted)
FIG.1 FORWARD CURRENT DERATING CURVE
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
TJ=125
RESISTIVE OR
INDUCTIVELOAD
WITH HEATSINK
TJ=25
AMBIENT TEMPERATURE (
o
C)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
8.3ms Single Half Sine Wave
(JEDEC Method)
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
NUMBER OF CYCLES AT 60 Hz
FORWARD VOLTAGE (V)
Document Number: DS_D1311025
Version: G13
KBL401G thru KBL407G
Taiwan Semiconductor

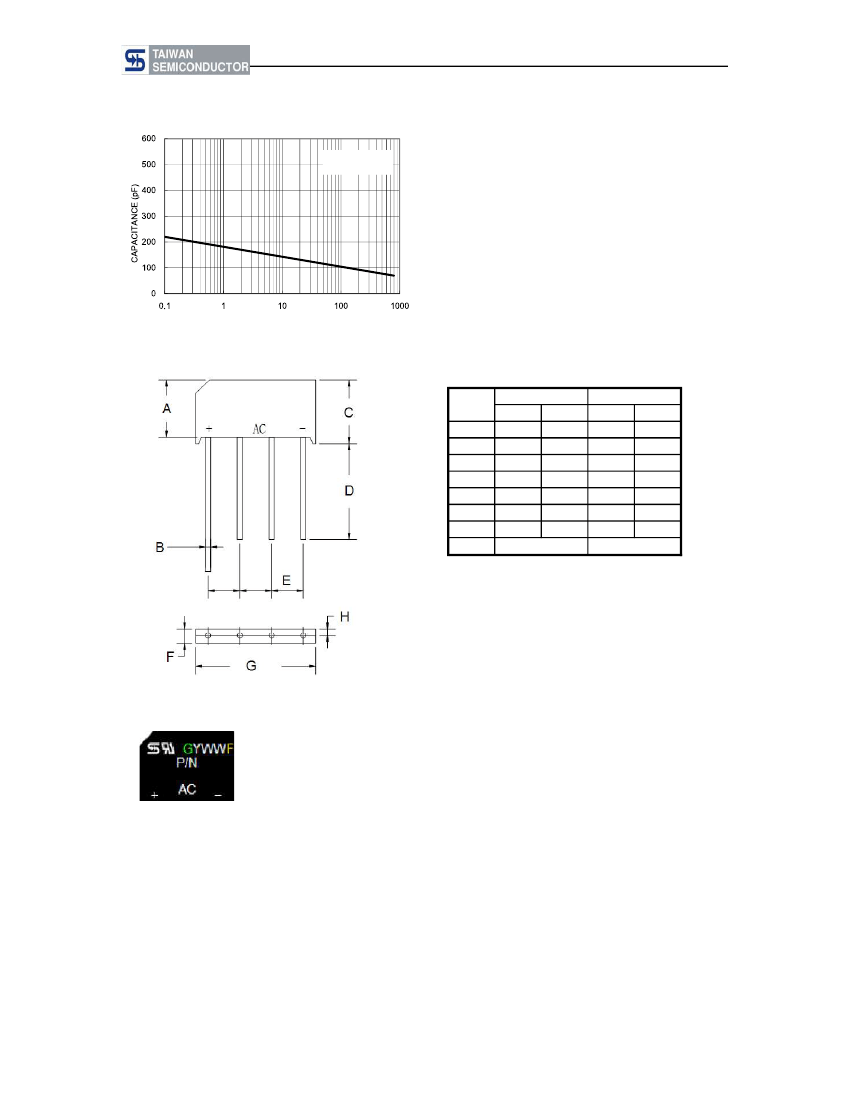

FIG. 5 TYPICAL JUNCTION CAPACITANCE
f=1.0MHz
Vslg=50mVp-p
REVERSE VOLTAGE (V)
PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
13.70
1.20
15.20
19.00
4.60
5.50
18.50
Max
14.70
1.30
16.30
-
5.60
6.50
19.50
Unit (inch)
Min
0.539
0.047
0.598
0.748
0.181
0.217
0.728
Max
0.579
0.051
0.642
-
0.220
0.256
0.768
DIM.
A
B
C
D
E
F
G
H
2.1 (TYP)
0.083 (TYP)
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1311025
Version: G13
KBL401G thru KBL407G
Taiwan Semiconductor
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1311025
Version: G13
