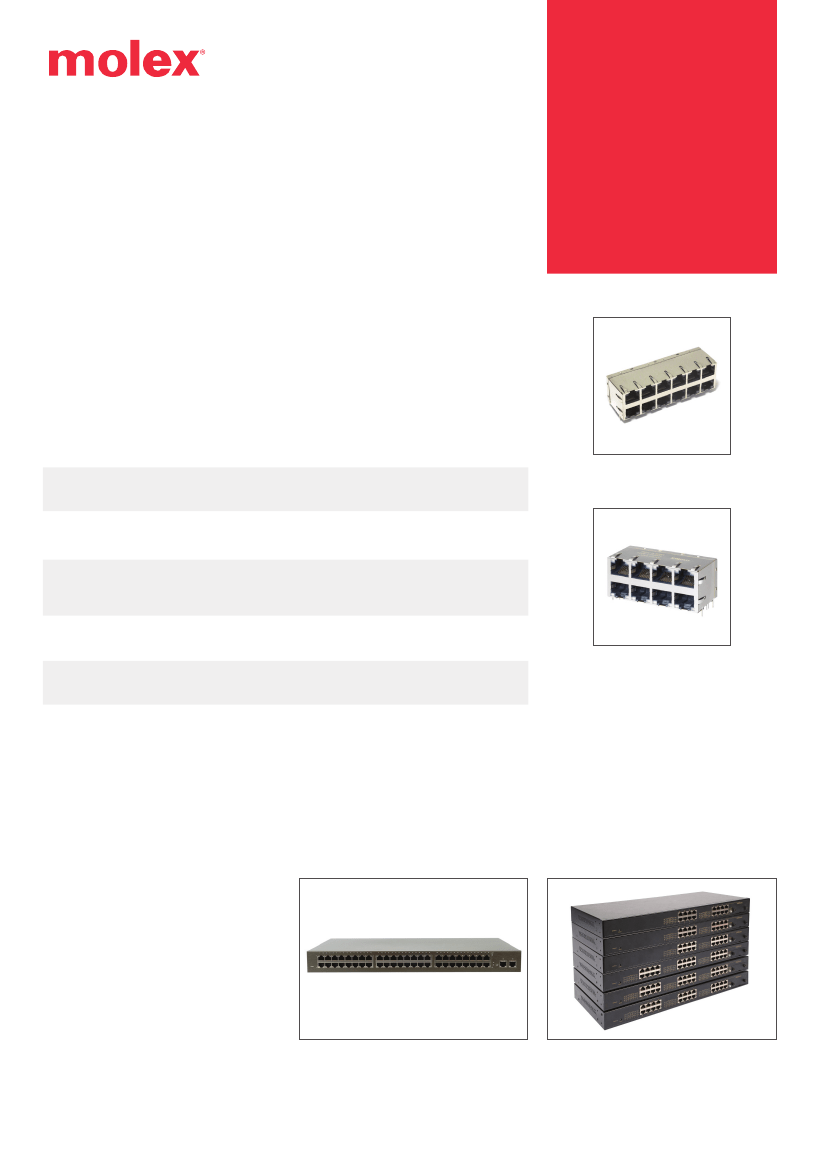

EMI optimized and qualified 12-port (2x6) and 8 port
(2x4) RJ45 magnetic jacks supporting Gigabit Ethernet
connectivity in accordance with IEEE802.3ab result
in lowered placement costs and improved production
yields for manufacturers of high port-count switches
and routers
Magnetic jacks are integrated devices that combine network magnetics and
RJ45 connectors. In addition to connectivity, magnetic jacks provide signal
conditioning, electromagnetic interference (EMI) compliance and electrical
isolation. Ganged gigabit magnetic jacks are widely used in telecom and
data networking applications.
The 85728 series, 12-port and 85727, 8-port Gigabit Magnetic Jacks with
integrated gigabit magnetics are designed for use in high port-count gigabit
switches and routers.
The modules are designed with through-hole pins for wave soldering.
Transmission is according to the IEEE802.3ab standard. For more information
please visit www.molex.com/product/magneticmodularjacks.html
Magnetic Jacks:
Gigabit 12-Port
(2x6) and 8-Port
(2x4) RJ45 with
LEDs
85728
2x6, Gigabit Magnetic
RJ45 with LEDs
85727
2x4, Gigabit Magnetic
RJ45 with LEDs
Features and Benefits
Ganged 12-port and 8-port RJ45
modules
Compliant with IEEE802.3ab
standard
Gigabit magnetics compatible
with a variety of Gigabit Ethernet
transceiver PHYs
Industry-standard footprint
Two single- or bi-colour LED’s
per port
Fully parametric, HiPot and DC
tested modules with excellent EMI
filtering
High-density port-count
Lower placement costs
Capable of 10/100/1000Mbit
transmission
Proven parametric and EMI solution
for main PHY vendors
Drop-in replacement for competitor
products; second source for customer
Supports multiple status indicators
and colour requirements
Ensures high reliability and low
yield-loss in customer applications
Easier IEEE and regulatory
qualifications
Gigabit Magnetic 8-Port
(2x4) Ganged RJ45 Jack
with LEDs
Gigabit Magnetic 12-Port
(2x6) Ganged RJ45 Jack
with LEDs
Applications
Gigabit Ethernet Switch and
router applications:
Datacom / telecommunications
Industrial networking
Consumer / small office / home office
Network Switch
Network Switch
Specifications
REFERENCE INFORMATION
Packaging: Tray
UL File No.: Pending
Mates With: Plugs according to
IEC 60603-7
(series 95043, 44915)
Designed In: Millimetres
RoHS: Yes
LEDs
Connection: Single or bi-polar
(see table below)
Colours: Multiple options available
Forward voltage: 2.4V max. at 20mA
PhySICAL
Housing: E-85572-088 PBT
30% Green
Shield: C2680 – pre-plated brass
Contact: Phosphor Bronze CuSn8
(Wieland B18)
Plating:
Contact Area — Gold (Au)
Solder Tail Area — Tin (Sn)
PCB Thickness: 2.21mm
Operating Temperature: 0 to +70°C
MEChANICAL
Connector insertion and
removal force: 20N (4.5 lbf)
Locking force: 50N (11 lbf) min.
Durability: 750 cycles
Magnetic Jacks:
Gigabit 12-Port
(2x6) and 8-Port
(2x4) RJ45 with
LEDs
ELECTRICAL
HiPot isolation: 2250V DC
OCL: 350µH at 8mA min.
Insertion loss:
-0.80 at 100 MHz
(typical)
Return loss:
-15.0 at 100 MHz
(typical)
NEXT: -33 at 100 MHz
(typical)
CMR: -40 at 100 MHz
(typical)
Ordering Information
Order No.
12-Port
(2x6)
85728-1001
85728-1002
85728-1003
85728-1004
85728-1016
Order No.
8-Port
(2x4)
85727-1001
85727-1002
85727-1003
85727-1004
85727-1016
Gigabit Magnetics
Attribute
LED Colour*
Left
Green
Green - Orange
Green
Green - Orange
Green
LED Colour*
Right
Green
Green
Yellow
Green – Orange
Green – Yellow
*Additional LED configurations available on request. Contact Molex for further details.
www.molex.com/product/magneticmodularjacks.html
Order No. 987650-8240
Printed in EUR/GF/2012.11
©2012 Molex
