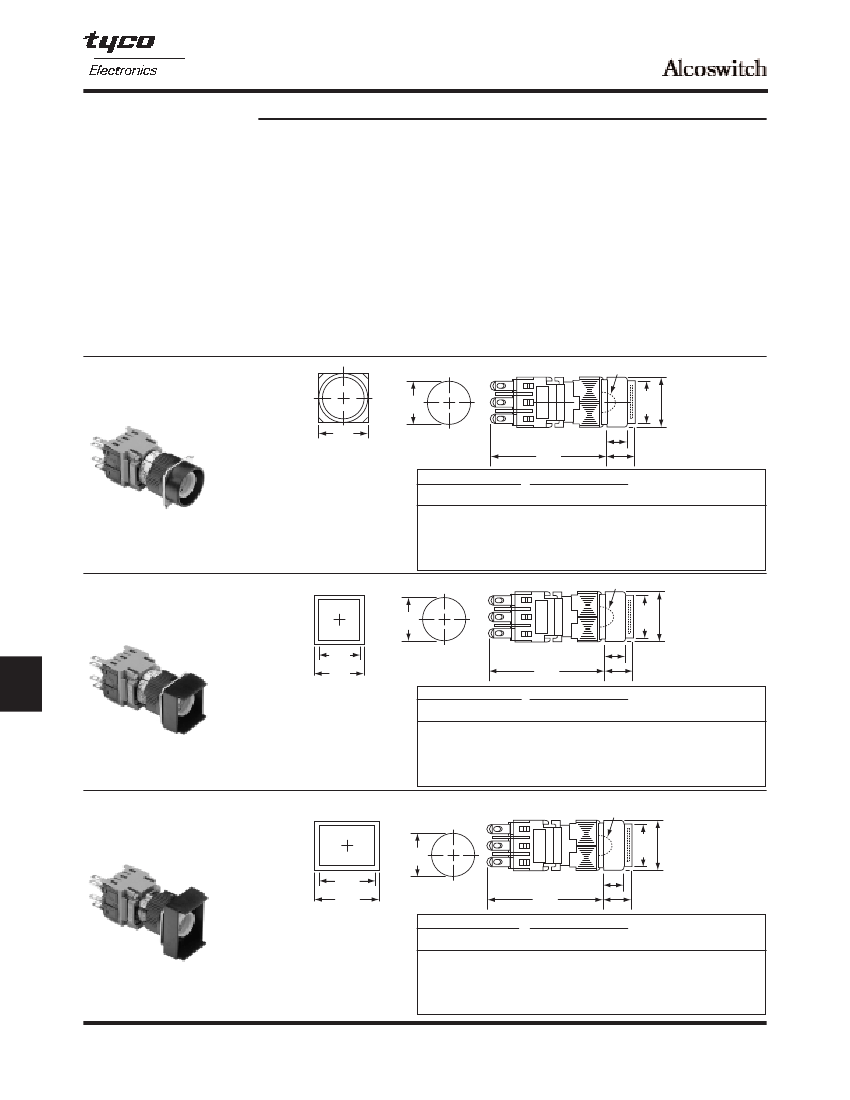

Command Series
Pushbutton Switches, 16mm, Illuminated
FEATURES:
Command Series Illuminated Pushbuttons are instrument-grade
switches having snap-acting double break contacts, silver clad and
gold plated to satisfy the requirements of logic level and power
switching.
Contacts are electrically independent of one another
and are isolated from the lamp circuit.
Tactile feel is excellent
and maintained models have latching feature for visible indication
of status. Uses T1-3/4 midget flanged base lamp, relampable from
front of panel. Legends may be provided using printed transparent
tape affixed to inner button. UL Recognized, File E-51302,
CSA LR-20479
Note: Recommended panel thickness 4mm max.
MATERIAL SPECIFICATIONS:
Contacts ..................................Gold plate over silver clad
TYPICAL PERFORMANCE CHARACTERISTICS:
Contact Rating ........................0.4 VA @ 20 VDC or Peak AC
5 A @ 250 VAC or 24 VDC (Resistive)
Initial Contact Resistance ........20 Milliohms max.
Insulation Resistance ..............100 Megohms min.
Dielectric Strength ..................1,500 VAC
Life Expectancy ......................100,000 Operations @ rated current
ENVIRONMENTAL SPECIFICATIONS:
Operating Temperature............-4°F to +122°F (-20°C to +50°C)
Oiltight ....................................IP65, NEMA 1, 12 & 13
Non-oiltight..............................IP40
LAMP
.708
(18.0)
.590
(15.0)
DIA.
.276
(7.0)
1.673
(42.5)
ROUND
Lens set and lamps not supplied.
.625
15.87
DIA.NOM.
.708
(18.00)
.394
(10.0)
164EL11
Application Note: For lens sets, accessories
and lamps, see page I18 to I20
Non-Oiltight
Tyco
Alcoswitch
Electronics
1437569-2 164EL11
1437569-3 164EL22
—
164EL33
1437569-5 164EL511
1437569-6 164EL522
1437569-7 164EL533
Oiltight
Tyco
Alcoswitch
Electronics
4-1437569-2 165EL11
4-1437569-3 165EL22
—
165EL33
4-1437569-4 165EL511
4-1437569-5 165EL522
—
165EL533
LAMP
Contact
1 N.O. & N.C.
2 N.O. & N.C.
3 N.O. & N.C.
1 N.O. & N.C.
2 N.O. & N.C.
3 N.O. & N.C.
.708
(18.0)
.590
(15.0)
DIA.
Action
Momentary
Momentary
Momentary
Push on/Push off
Push on/Push off
Push on/Push off
SQUARE
Lens set and lamps not supplied.
.625
15.87
DIA.NOM.
.59
(15.00)
.708
(18.00)
.276
(7.0)
1.673
(42.5)
I
Command Series
164SL11
.394
(10.0)
Application Note: For lens sets, accessories
and lamps, see page I18 to I20
Non-Oiltight
Tyco
Alcoswitch
Electronics
2-1437569-5 164SL11
2-1437569-6 164SL22
2-1437569-7 164SL33
2-1437569-9 164SL511
3-1437569-0 164SL522
3-1437569-1 164SL533
Oiltight
Tyco
Alcoswitch
Electronics
4-1437569-9 165SL11
5-1437569-0 165SL22
—
165SL33
5-1437569-1 165SL511
5-1437569-2 165SL522
—
165SL533
Contact
1 N.O. & N.C.
2 N.O. & N.C.
3 N.O. & N.C.
1 N.O. & N.C.
2 N.O. & N.C.
3 N.O. & N.C.
.708
(18.0)
.590
(15.0)
DIA.
Action
Momentary
Momentary
Momentary
Push on/Push off
Push on/Push off
Push on/Push off
RECTANGULAR
Lens set and lamps not supplied.
.625
15.87
DIA.NOM.
.827
(21.00)
.945
(24.00)
.276
(7.0)
1.673
(42.5)
LAMP
.394
(10.0)
164TL11
Application Note: For lens sets, accessories
and lamps, see page I18 to I20
Non-Oiltight
Tyco
Alcoswitch
Electronics
3-1437569-4 164TL11
3-1437569-5 164TL22
3-1437569-6 164TL33
3-1437569-8 164TL511
3-1437569-9 164TL522
4-1437569-0 164TL533
Oiltight
Tyco
Alcoswitch
Electronics
5-1437569-4 165TL11
5-1437569-5 165TL22
—
165TL33
5-1437569-6 165TL511
5-1437569-7 165TL522
5-1437569-8 165TL533
Contact
1 N.O. & N.C.
2 N.O. & N.C.
3 N.O. & N.C.
1 N.O. & N.C.
2 N.O. & N.C.
3 N.O. & N.C.
Action
Momentary
Momentary
Momentary
Push on/Push off
Push on/Push off
Push on/Push off
I16
Catalog 1308390
Issued 9-04
www.tycoelectronics.com
Dimensions are in inches
and millimeters unless otherwise
specified. Values in parentheses
or brackets are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967

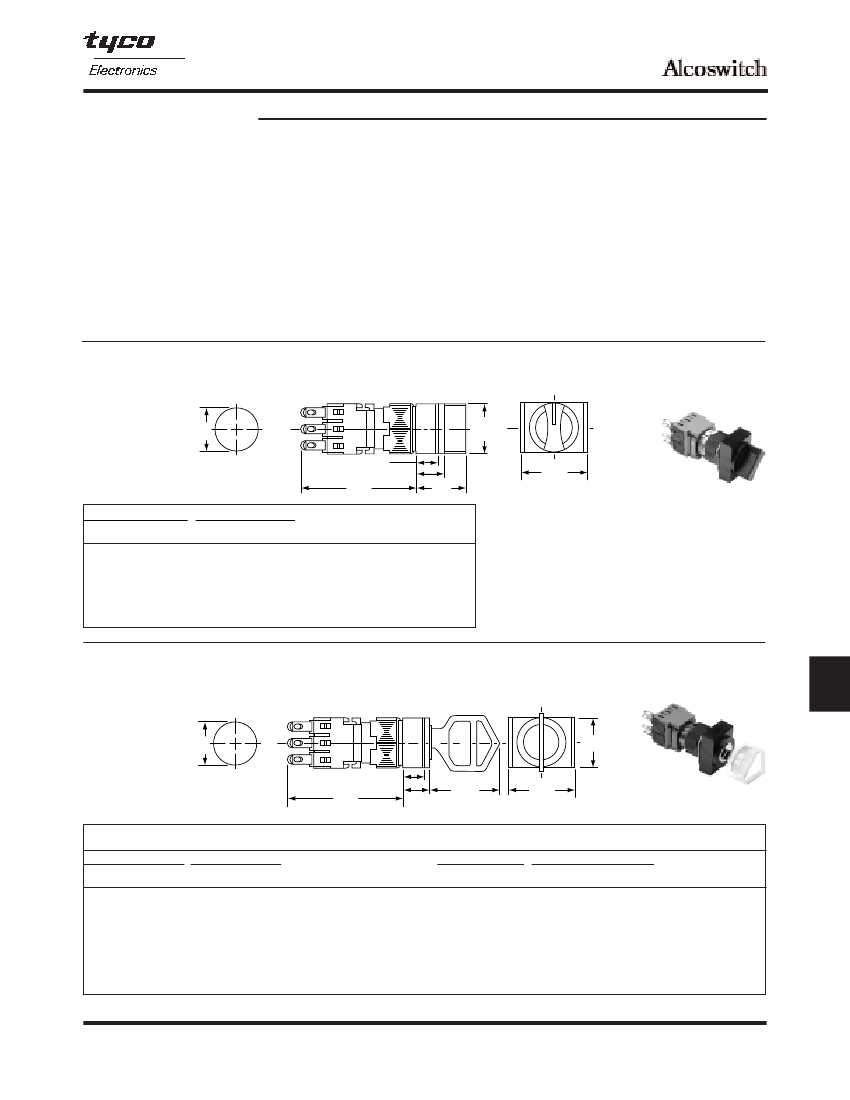

Command Series
Selector or Keylock Switches, 16mm
FEATURES:
Command Series Selector & Keylock Switches are 2 & 3-position
rotary types with snap-acting double break contacts. All models
have 90° throw. Contacts are silver-clad and gold-plated to
provide reliable operation at logic levels as well as for power
switching applications. Contacts are electrically isolated from one
another. Keylock types are supplied with two keys. Oiltight
models meet NEMA 1, 12 & 13 requirements.
UL Recognized File E-51302
CSA LR-20479
MATERIAL SPECIFICATIONS:
Contacts ..................................Gold plate over silver clad
TYPICAL PERFORMANCE CHARACTERISTICS:
Contact Rating ........................0.4 VA @ 20 VDC or Peak AC
5 A @ 250 VAC or 24 VDC (Resistive)
Initial Contact Resistance ........20 Milliohms max.
Insulation Resistance ..............100 Megohms min.
Dielectric Strength ..................1,500 VAC
Life Expectancy ......................100,000 Operations at rated current
ENVIRONMENTAL SPECIFICATIONS:
Operating Temperature............-4°F to +158°F (-20°C to +70°C)
SELECTORS
.625
15.87
DIA.NOM.
.334
(8.50)
.413
(10.50)
1.673
(42.49)
.709
(18.00)
DIA.
.945
(24.00)
.728
(18.49)
164P2B11
Non-Oiltight
Tyco
Alcoswitch
Electronics
2-1437569-0
2-1437569-1
—
1-1437569-9
—
2-1437569-2
2-1437569-3
164P2B11
164P2B22
164P2B33
164P0B22
164P0B33
164P3B22
164P3B33
Oiltight
Tyco
Alcoswitch
Electronics
4-1437569-8 165P2B11
—
165P2B22
—
165P2B33
Contact
1N.0. & N.C.
2N.0. & N..C.
3N.0. & N.C.
2N.0. & N.C.
3N.O. & N.C.
2N.O. & N.C.
3N.O. & N.C.
Action
2 Pos. Maintained
2 Pos. Maintained
2 Pos. Maintained
2 Pos. Momentary Right
2 Pos. Momentary Right
3 Pos. Center Off/Maintained
3 Pos. Center Off
—
—
165P3B22
165P3B33
KEYLOCKS
I
Command Series
ALCO
.625
15.87
DIA.NOM.
.334
(8.50)
1.673
(42.49)
.413
(10.50)
.709
(18.00)
1.004
(25.50)
.945
(24.00)
164J2A11
2 Position Keylocks
Non-Oiltight
Oiltight
Tyco
Tyco
Alcoswitch
Alcoswitch
Electronics
Electronics
1-1437569-1
1-1437569-2
—
1-1437569-3
1-1437569-4
—
1437569-9
1-1437569-0
—
164J2A11
164J2A22
164J2A33
164J2B11
164J2B22
164J2B33
164J0A11
164J0A22
164J0A33
4-1437569-7
—
—
—
—
—
165J2A11
165J2A22
165J2A33
165J2B11
165J2B22
165J2B33
Contact
1N.O. & N.C.
2N.O. & N.C.
3N.O. & N.C.
1N.O. & N.C.
2N.O. & N.C.
3N.O. & N.C.
1N.O. & N.C.
2N.O. & N.C.
3N.O. & N.C.
Action
Maintained, key pull left
Maintained, key pull left
Maintained, key pull left
Maintained, key pull both
Maintained, key pull both
Maintained, key pull both
Momentary right, key pull left
Momentary right, key pull left
Momentary right, key pull left
3 Position Keylocks
Oiltight
Non-Oiltight
Tyco
Tyco
Alcoswitch
Alcoswitch Contact
Electronics
Electronics
—
1-1437569-5
—
—
1-1437569-6
—
—
1-1437569-8
164J3A22
164J3A33
164J3E22
164J3E33
164J3C22
164J3C33
164J7A22
164KA
—
—
—
—
—
—
—
—
165J3A22
165J3A33
165J3E22
165J3E33
165J3C22
165J3C33
165J7A22
—
2N.O. & N.C.
3N.O. & N.C.
2N.O. & N.C.
3N.O. & N.C.
2N.O. & N.C.
3N.O. & N.C.
2N.O. & N.C.
—
Action
Maintained, key pull left
Maintained, key pull left
Maintained, key pull center
Maintained, key pull center
Maintained, key pull all
Maintained, key pull all
Momentary right, key pull left
Spare Keys
I17
Catalog 1308390
Issued 9-04
www.tycoelectronics.com
Dimensions are in inches
and millimeters unless otherwise
specified. Values in parentheses
or brackets are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967

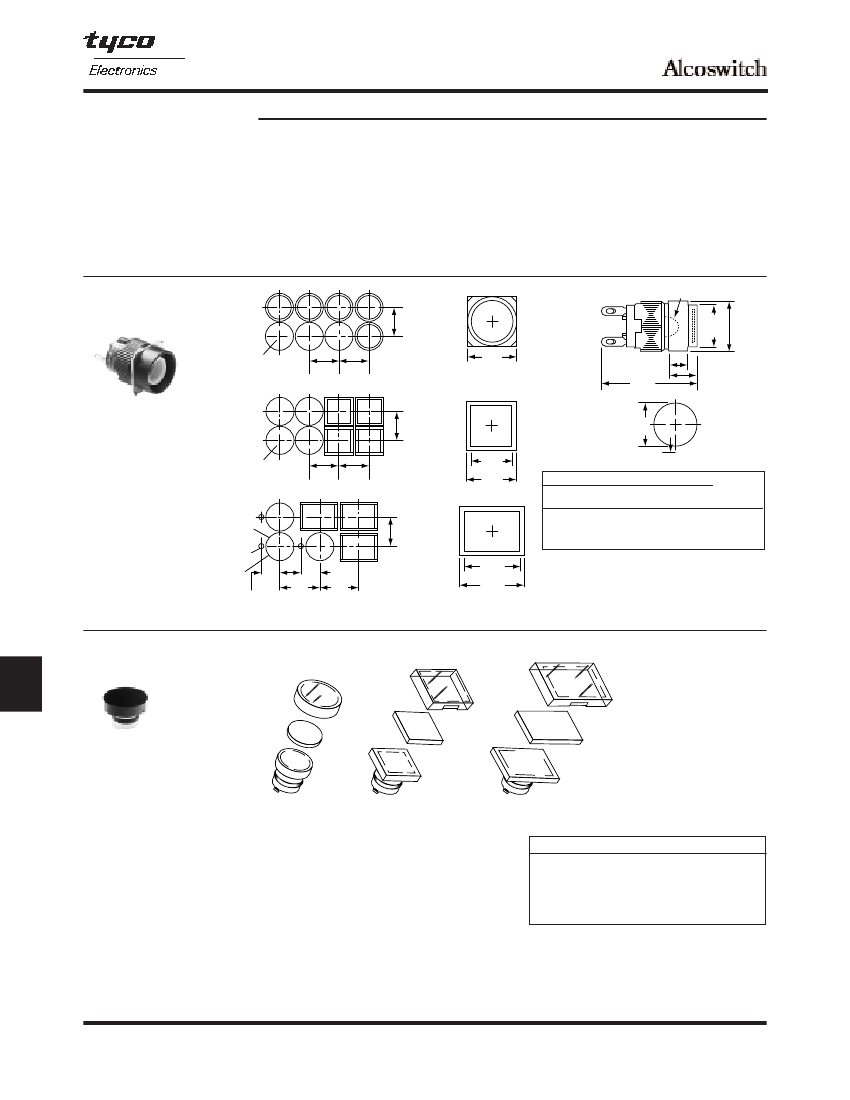

Command Series
Pilot Light Indicators or Lens Sets, 16mm
FEATURES
Command Series Pilot Light Indicators match the appearance of
both lighted and unlighted Command Series pushbuttons. The
same lens buttons are snapped into place and legends may be easily
inserted. Illumination is from T - 1 3/4 midget flange based lamps,
which are installed from the front panel. Lenses and lamps are
ordered separately. Oiltight models meet NEMA 1, 12 & 13
requirements. UL File No. E-51302
CSA LR-20479
TYPICAL PERFORMANCE CHARACTERISTICS:
LAMP DISSIPATION
1.2W MAX.
Insulation Resistance ..............100 Megohms min.
Dielectric Strength ..................1,500 VAC
ENVIRONMENTAL SPECIFICATIONS:
Operating Temperature............-4°F to +122°F (-20°C to +50°C)
PILOT LIGHT
INDICATORS
.625
(15.90)
DIA.
PANEL
HOLE
.709
.709
(18.00) (18.00)
LAMP
.709
(18.00)
.709
(18.00)
.590
(14.98)
DIA.
.709
(18.00)
.275
(6.98)
.945
(24.00)
.625
15.90
DIA.NOM.
.590
(14.98)
.709
(18.00)
.393
(9.98)
164EZ
.625
(15.90)
DIA.
PANEL
HOLE
.709 .709
(18.00) (18.00)
.709
(18.00)
Non-Oiltight
Oiltight
Tyco
Tyco
Alcoswitch
Alcoswitch Description
Electronics
Electronics
1437569-8
3-1437569-2
4-1437569-1
164EZ
164SZ
164TZ
—
—
—
165EZ
165SZ
165TZ
Round
Square
Rectangular
.625
(15.90)
DIA.
.075
(1.90)
DIA.
PANEL
HOLE
.409
(10.40)
.709
(18.00)
.950
(24.00)
.409
(10.40)
.950
(24.00)
.827
(21.00)
.945
(24.00)
Lens set and lamp not supplied,
order separately, see below.
U.L. Recognized E-51302

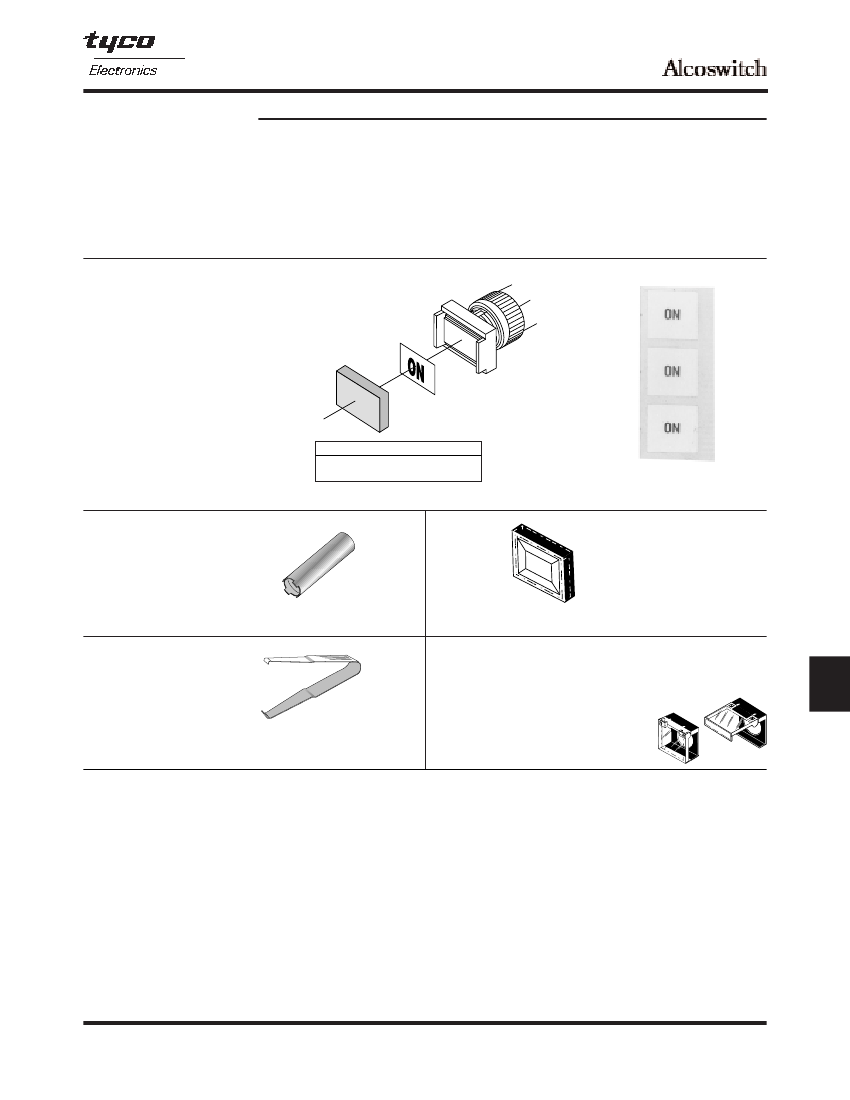

LENS SET
I
Command Series
64E
64E
64S
64T
Model
Description
64E(*)
Round lens set
64S(*)
Square lens set
64T(*)
Rectangular lens set
All fit oiltight and non-oiltight indicators.
(*) Specify color by adding suffix number: (2) Red,
(3) Orange, (4) Yellow, (5) Green, (6) Blue, (9) White/Clear.
Application Note:
Lens sets include, button, diffuser and cap.
I18
Catalog 1308390
Issued 9-04
www.tycoelectronics.com
Dimensions are in inches
and millimeters unless otherwise
specified. Values in parentheses
or brackets are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Command Series, Accessories
Accessories and Tools, 16mm
FEATURES:
Standard Legends on Transparent Adhesive Tape are available for
Illuminated Command Series switches and pilot lights. Legends are
easily affixed to the translucent white button and are protected by
the lens cap. The black lettering is back-lit by the lamp and the
inscription is visible through the lens cap. This method of
providing legends is also suitable in some applications using non-
illuminated white (clear), yellow or orange lens caps.
Standard legends, listed below, are intended to be used with round,
square or rectangular pushbuttons and pilot lights. Sold only in
sheets of 10 identical legends.
LEGEND MODEL NUMBERS
Tyco Electronics
Alcoswitch
616
On
6-1437569-3
6-1437569-2
616
Off
Note: Model numbers must include complete legend nomenclature.
Legend (film)
Accessories
MOUNTING WRENCH
Sturdy tubular brass wrench fits mounting
nuts on all Command Series switches.
SPLASH PROOF SEAL
Flexible clear seal fits all rectangular
pushbuttons and pilot lights.
Tyco Electronics
6-1437569-0
Alcoswitch
601-AG
Tyco Electronics
9-1437569-2
Alcoswitch
668
LENS REMOVER
Dual purpose metal tool facilitates
removal of lenses, buttons.
Tyco Electronics
9-1437569-4
9-1437569-3
FLIP COVER SWITCH GUARD
669 used with rectangular series pushbutton switches.
671 used with square and round series pushbutton switches.
Alcoswitch
669 Rectangular
Square and Round
671-AG
I
Command Series and Accessories
Tyco Electronics
6-1437569-9
Alcoswitch
618-AG
I19
Catalog 1308390
Issued 9-04
www.tycoelectronics.com
Dimensions are in inches
and millimeters unless otherwise
specified. Values in parentheses
or brackets are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Command Series
Socket for 16mm Command Series Switches
697-PL
.472
(11.99)
.052
Typ.
(1.32)
.705
(17.91)
1.905
(48.39)
.563
(14.30)
.213
(5.41)
.248
(6.30)
9-1437569-5
.708
(17.98)
.138
(3.51)
.189
(4.80)
.708
(17.98)
Recommended PCB Footprint
Lamp
Contacts
Switch
Unit
N.O. N.C.
N.C. N.O.
1.996
(50.69)
T1 3/4 Series Midget Incandescent Lamps
Average Life ratings indicate the lamp life obtained in controlled
laboratory conditions while operating lamps at the design voltage
(AC) (DC will shorten life by 50%). The life of a subminiature
lamp is inversely proportional to the 12th power of the applied
voltage.
I
Command Series
ALCOSWITCH subminiature lamps are a "T" class, meaning that
the envelopes are made of glass tubing, the "T" number indicating
the diameter of the tubing in eights of an inch.
Tyco
Electronics
9-1437620-6
1-1437620-8
1437620-7
1437620-8
1437620-9
1-1437620-1
1437620-5
Alcoswitch
7333
815-AG
381-AG
382-AG
385
387
327-AG
Rated Volts
5.0
—
6.3
14.0
28.0
28.0
28.0
Design Amps
.060
.115
.20
.08
.04
.04
.04
Rated MSCP
.05
.147
.40
.30
.20
.30
.34
Average
Rated Hours
40,000
40,000
50,000
50,000
50,000
25,000
7,000
2.28
(5.79)
MAX.
0.26
(6.60)
2.52
±
.010
(6.40
±
.025)
FLANGE BASE- T1 3/4
.630
(16.0)
MAX.
2.91
±
.005
(7.39
±
.127)
I20
Catalog 1308390
Issued 9-04
www.tycoelectronics.com
Dimensions are in inches
and millimeters unless otherwise
specified. Values in parentheses
or brackets are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
京公网安备 11010802033920号
EEWORLD
