The LCIT Series DC operated linear position transducers are
based on a patented design that features all of the benefits of
current LVDT inductive technology, but at a significantly lower
cost. Utilizing a simplified coil design and a low-mass
conductive spoiler which replaces the traditional
ferromagnetic core, the LCIT bridges the gap between price
and performance for volume applications.
Like in an LVDT, there is no physical contact between the
movable spoiler and the coil structure, thus making the LCIT
a frictionless device while offering excellent resolution and
repeatability characteristics. The high frequency response of
the electronics and the low mass of the spoiler make the LCIT
sensor ideal for dynamic applications.
Operating on a wide range of supply voltages (+7 to +36VDC),
the LCIT Series delivers an extremely linear and low noise
+0.5 to +4.5VDC output. A rugged stainless steel housing and
solid internal construction ensures excellent tolerance to
shock and vibration.
APPLICATIONS
OEM volume, cost sensitive
applications
Dynamic measurements
Tool position
Punch presses / metal stamping
Valve position
X-Y table position
SENSOR SOLUTIONS
/// LCIT Series Rev 7
07/2017
Page 1
LCIT SERIES
OEM Linear Position Transducer
PERFORMANCE SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
Parameter
Stroke range
Sensitivity, VDC/inch [VDC/mm]
Input voltage
Line regulation
Input current
Output voltage
Output @ null
Non-linearity
Output ripple
Stability
Temp. coefficient of sensitivity
Output impedance
Frequency response
LCIT 250
LCIT 500
LCIT 1000
LCIT 2000
LCIT 4000
0.25 [6.35]
0.5 [12.7]
1 [25.4]
2 [50.8]
4 [101.6]
16 [0.63]
8 [0.31]
4 [0.16]
2 [0.08]
1 [0.04]
+7 to +36VDC
1mV/VDC maximum; 0.2mV/VDC typical
20mA maximum; 15mA typical
+0.5 to +4.5VDC (
Increases when the core is displaced towards the lead-wires)
+2.5 VDC
±0.25% of FR maximum
10mVRMS maximum
0.125% of FSO
0.028%/ºF [0.05%/ºC]
1 Ohm maximum
1,000 Hertz @ -3dB
ENVIRONMENTAL SPECIFICATIONS & MATERIALS
Operating temperature
Survival temperature
Shock survival
Vibration tolerance
Housing material
Spoiler (core) material
Electrical connection
IEC 60529 rating
-13°F to +185°F [-25°C to +85°C]
-67°F to +257°F [-55°C to +125°C]
250 g (11ms half-sine)
10 g up to 2kHz
AISI 300 Series stainless steel
Aluminum
Important:
Only connect non-conductive extension rods to the spoiler;
materials such as plastics or fiberglass are acceptable.
3 lead wires, 28AWG, stranded copper, 12 inches [0.3 meter] long
IP61
Notes:
All values are nominal unless otherwise noted
Dimensions are in inch [mm] unless otherwise noted
FR: Full Range is the stroke range, end to end; FR=S for 0 to S stroke range
FSO (Full Scale Output): Largest absolute value of the outputs measured at the ends of the range
WIRING INFORMATION
SENSOR SOLUTIONS
/// LCIT Series Rev 7
07/2017
Page 2
LCIT SERIES
OEM Linear Position Transducer

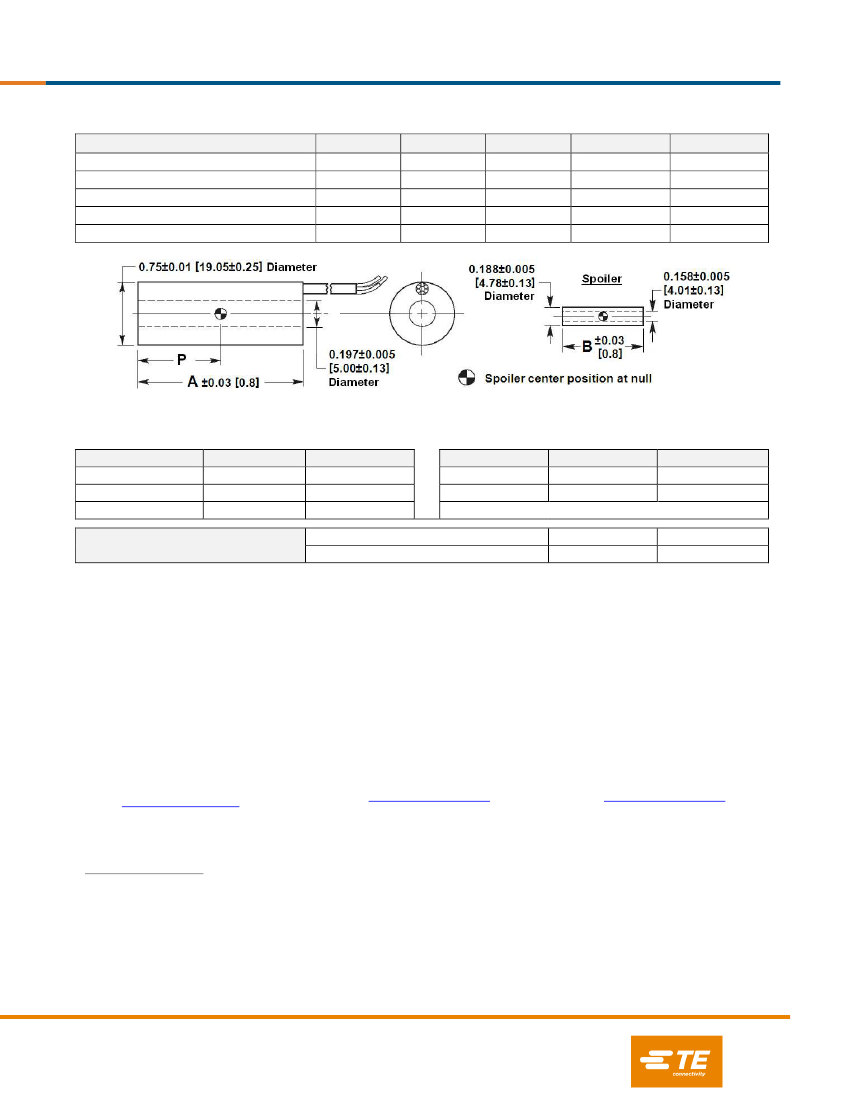

MECHANICAL SPECIFICATIONS
Parameter
Main body length “A”
Spoiler length “B”
Center of spoiler position at null “P”
Body weight, oz [gram]
Core weight, oz [gram]
LCIT 250
2.60 [66.0]
0.85 [21.6]
1.30 [33.0]
1.4 [40]
0.04 [1]
LCIT 500
2.60 [66.0]
1.30 [33.0]
1.30 [33.0]
1.4 [40]
0.05 [1.5]
LCIT 1000
3.54 [89.9]
1.50 [38.1]
1.77 [45.0]
1.8 [50]
0.07 [2]
LCIT 2000
5.54 [140.7]
2.70 [68.6]
2.77 [70.4]
2.5 [70]
0.07 [2]
LCIT 4000
10.37 [263.4]
5.00 [127.0]
5.19 [131.8]
4.6 [130]
0.14 [4]
Dimensions are in inch [mm]
ORDERING INFORMATION
Description
0.25 inch LVDT
0.5 inch LVDT
1 inch LVDT
Model
LCIT 250
LCIT 500
LCIT 1000
Part Number
02520000-000
02520001-000
02520002-000
Description
2 inch LVDT
4 inch LVDT
Model
LCIT 2000
LCIT 4000
Part Number
02520003-000
02520004-000
02291339-000
04560950-000
ACCESSORIES
DC power supply (15VDC)
Mounting Block
PSD 40-15
