MATERIALS:
DOME NUT & GLAND BODY : BRASS CuZn39Pb3, NICKEL-PLATED
LAMELLAR INSERT: POLYAMIDE PA6 V-2
SEALING RING: POLYCHLOROPRENE-NITRILE RUBBER CR/NBR
O-RING: NITRILE RUBBER NBR
"A"
C
"E"

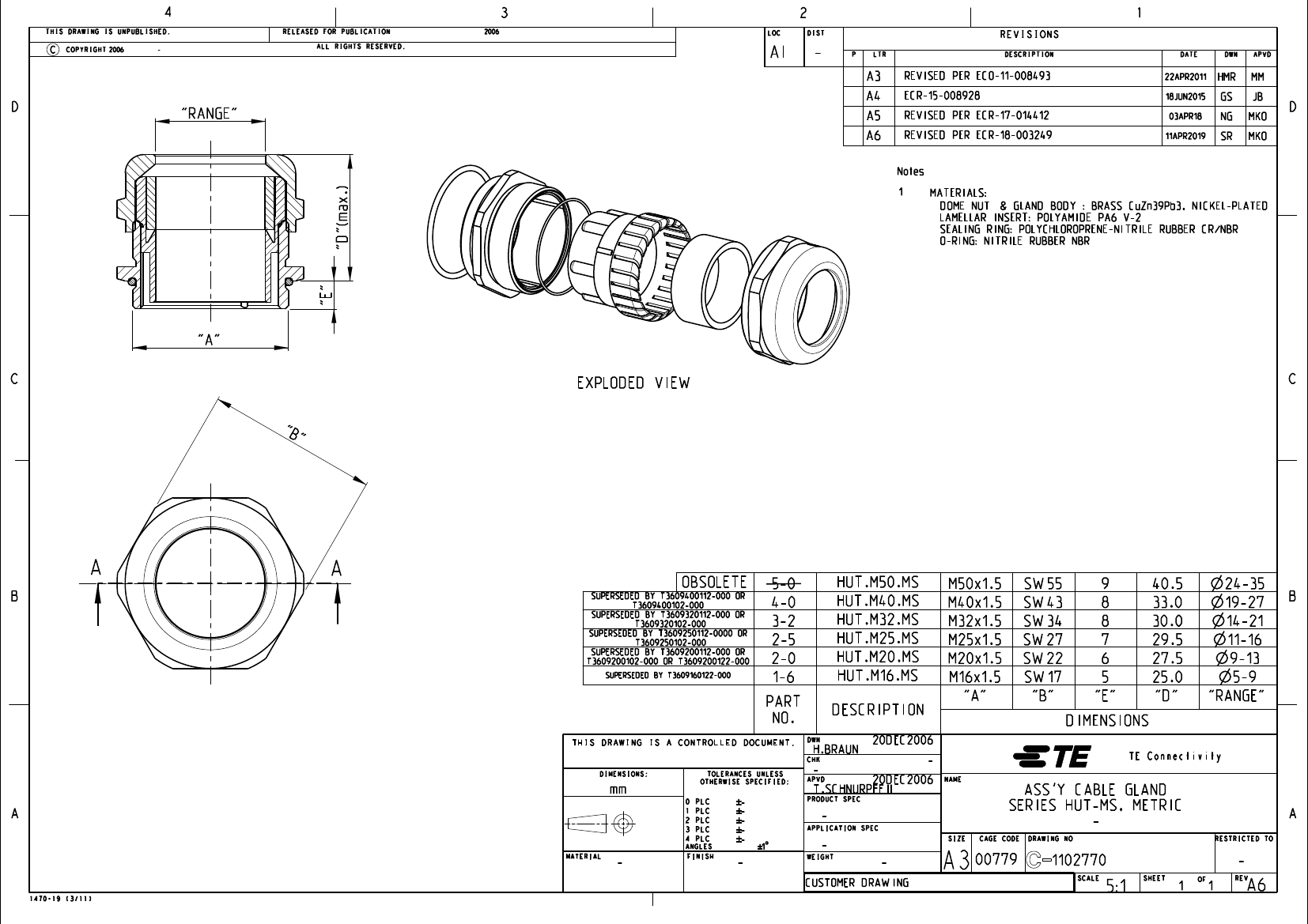

EXPLODED VIEW
C
"B
"
B
SUPERSEDED BY T3609400112-000 OR
T3609400102-000
SUPERSEDED BY T3609320112-000 OR
T3609320102-000
SUPERSEDED BY T3609250112-0000 OR
T3609250102-000
SUPERSEDED BY T3609200112-000 OR
T3609200102-000 OR T3609200122-000
SUPERSEDED BY T3609160122-000
OBSOLETE
5-0
4-0
3-2
2-5
2-0
1-6
PART
NO.
HUT.M50.MS
HUT.M40.MS
HUT.M32.MS
HUT.M25.MS
HUT.M20.MS
HUT.M16.MS
DESCRIPTION
DWN
CHK
M50x1.5
M40x1.5
M32x1.5
M25x1.5
M20x1.5
M16x1.5
"A"
SW55
SW43
SW34
SW27
SW22
SW17
"B"
9
8
8
7
6
5
"E"
40.5
33.0
30.0
29.5
27.5
25.0
"D"
B
"RANGE"
THIS DRAWING IS A CONTROLLED DOCUMENT.
H.BRAUN
-
20DEC2006
-
NAME
DIMENSIONS
TE Connectivity
DIMENSIONS:
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
A
MATERIAL
0
1
2
3
4
ANGLES
PLC
PLC
PLC
PLC
PLC
-
-
-
-
-
PRODUCT SPEC
20DEC2006
T.SCHNURPFEIL
APPLICATION SPEC
-
-
FINISH
-
1 $
WEIGHT
-
-
CUSTOMER DRAWING
1470-19 (3/11)
A3
SIZE
CAGE CODE
ASS'Y CABLE GLAND
SERIES HUT-MS, METRIC
-
DRAWING NO
A
RESTRICTED TO
00779
1102770
SCALE
5:1
SHEET
1
OF
1
REV
-
A6
