30-00793 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> Multi-core cable> 30-00793

30-00793: Description2 芯多芯线缆黑色 18AWG - 16.40'（5.00m）; CategoryWire/cable Multi-core cable; File Size156KB，1 Pages; ManufacturerTensility International Corporation; Websitehttp://tensility.com/; Environmental Compliance

Download Datasheet Parametric View All

30-00793 Overview

2 芯多芯线缆黑色 18AWG - 16.40'（5.00m）

30-00793 Parametric

Parameter Name	Attribute value
category
Maker	Tensility International Corporation
series	-
Package	spool
Cable type	multi-core
Number of conductors	2
Wire gauge	18AWG
Number of wire strands	34/0.0071"
conductor material	Copper, tin plated
Sheath (insulation) material	Polyvinyl chloride (PVC)
Sheath (insulation) diameter	0.173"（4.39mm）
Shield type	-
length	16.40'（5.00m）
Sheath color	black
grade	UL Type 2651
characteristic	-
Voltage	300 V
Operating temperature	-10°C ~ 105°C
application	-
Sheath (insulation) thickness	0.0185"（0.470mm）
conductor insulation	-
shielding material	-
屏蔽覆盖范围	-

Preview

Download Datasheet

View All

Ratings

Voltage: 300 V

Temperature: -10 to 105 °C

Flammability: VW-1

Conductor

Conductor count: 2

Gauge: 18 AWG 0.82 mm2

Material: tinned copper strands

0.18 x 34

Strand size:

Outer jacket

Material: PVC/38P

Color: black

Diameter: 4.4 ±0.30 mm (2.2 ±0.15 x 2)

Nominal thickness: 0.47 mm

Electrical requirements

Voltage test: 300 V

Spark test: 3.0 kV

Conductor maximum resistance at 20 °C: 23.2 ohms/km

Jacket resistance at 20 °C: 10 Mohms/km

Dielectric test: 2000 Vac for 1 minute with no breakdown

Mechanical requirements

Jacket tensile strength: 1.05 kgf/mm2

After aging at 136±2 °C for 7 days:

Minimum tensile strength 70% of original

Minimum elongation 65% of original

Environmental requirements

Heat shock: 136±1 °C/1 hour, no observed degradation

Deformation: 136±1 °C/1 hour,

≤50%

Cold bend: -10±2 °C/1 hour, no observed cracking

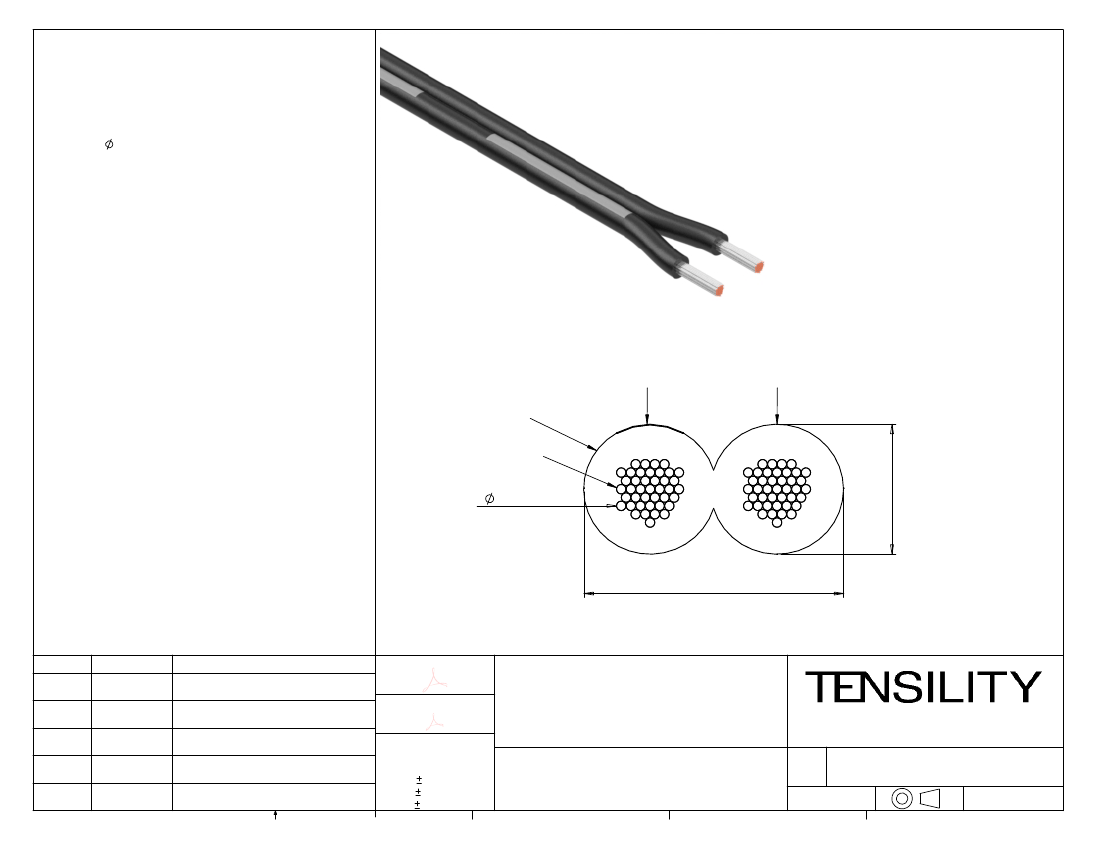

Wire marking:

E339579 UL AWM STYLE 2651 18 AWG 105°C

300V VW-1 - - - cUL AWM I A 105°C 300V FT1 TENSILITY

Stripe

Jacket

Conductor

0.18 x 34

Marking

4.4 ±0.30

Revision:

Date:

12/6/2016

Description:

Initial release

Prepared:

Digitally signed by GL

Date: 2017.10.05

15:09:54 -07'00'

Notes:

RoHS and REACH compliant

Function test: no open, no short circuit, no

intermittent

Description:

Wire, 2C TS, 18 AWG, UL2651, 300V, 105C, 4.4 mm,

VW-1, PVC

tel

fax

Verified:

Digitally signed by AG

Date: 2017.10.20

10:22:43 -07'00'

Dimensions are in

millimeters.

Tolerances:

0.5 mm

X.X:

0.3 mm

X.XX: 0.05 mm

1.541.323.3228

1.541.323.4202

Part number:

2.2 ±0.15

800

web

877.670.7118

tensility.com

Size:

Scale:

30-00793

15:1

Sheet 1 of 1
