123-1.544MHZ-DM0 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 123-1.544MHZ-DM0

123-1.544MHZ-DM0: DescriptionHCMOS Output Clock Oscillator, 1.544MHz Nom, LEAD FREE, SMD, 4 PIN; CategoryPassive components oscillator; File Size90KB，1 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

123-1.544MHZ-DM0 Overview

HCMOS Output Clock Oscillator, 1.544MHz Nom, LEAD FREE, SMD, 4 PIN

123-1.544MHZ-DM0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE, SMD, 4 PIN
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	1.544 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	7.5mm x 5.2mm x 1.5mm
longest rise time	5 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

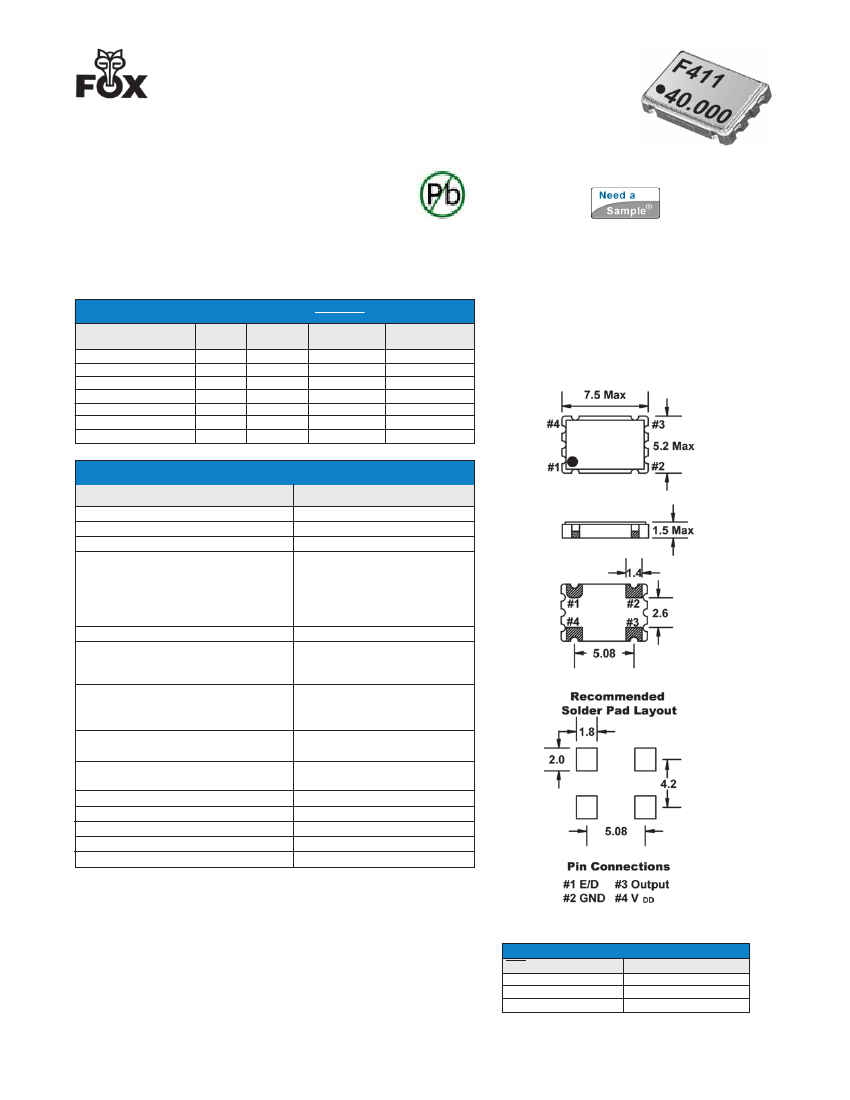

5.0V HCMOS SMD OSCILLATOR WITH STANDBY

MODEL: F4101 Series

FEATURES

•

5.0V Operation

HCMOS Output

Standby Function

Tape and Reel

(2,000 pcs. STD)

• PART NUMBER SELECTION

Learn More - Internet Required

Part Number

118-Frequency-xxxxx

119-Frequency-xxxxx

120-Frequency-xxxxx

121-Frequency-xxxxx

122-Frequency-xxxxx

123-Frequency-xxxxx

446-Frequency-xxxxx

Frequency

Model

Number Stability

F4101

±100PPM

F4101R

±100PPM

F4102

±50PPM

F4102R

±50PPM

F4103

±25PPM

F4103R*

±25PPM

F4104*

±20PPM

Operating

Temperature

-10 ~ +70ºC

-40 ~ +85ºC

-10 ~ +70ºC

-40 ~ +85ºC

-10 ~ +70ºC

-40 ~ +85ºC

-10 ~ +70ºC

Frequency

Range (MHz)

1.544 ~ 170.000

1.544 ~ 162.000

1.544 ~ 156.250

1.544 ~ 162.000

• ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range (F

)

Storage Temperature Range (T

stg

)

Supply Voltage

)

Input Current

)

1.544 ~ 32.000 MHz

32.000+ ~ 67.000 MHz

67.000+ ~ 125.000 MHz

125.000+ ~ 170.000 MHz

Output Symmetry (50% V

)

Rise Time (10% ~ 90% V

) (T

)

1.544 ~ 79.999999 MHz

80.000 ~ 170.000 MHz

Fall Time (90% ~ 10% V

) (T

)

1.544 ~ 79.999999 MHz

80.000 ~ 170.000 MHz

Output Voltage

)

Output Current

)

Output Load

(HCMOS)

Standby Current

Start-up Time

)

Output Disable Time

Output Enable Time

MAX

(unless otherwise noted)

1.544 ~ 170.000 MHz

-55ºC ~ +125ºC

5.0V ± 10%

18mA

50mA

80mA

90mA

40% ~ 60%

5nS

4nS

5nS

4nS

10% V

90% V

Min

2mA Min

-2mA Min

15pF

10µA

10mS

150nS

10mS

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, ag-

ing,

shock, and vibration. *Excludes shock/vibration.

An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.

Note: A 0.01µF bypass capacitor should be placed between VDD (Pin 4) and GND (Pin 2) to

minimize power supply line noise.

All dimensions are in millimeters.

• ENABLE / DISABLE FUNCTION

OUTPUT (Pin 3)

INH (Pin 1)

ACTIVE

OPEN

ACTIVE

'1' Level V

≥

70% V

High Z

'0' Level V

≤

30% V

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
